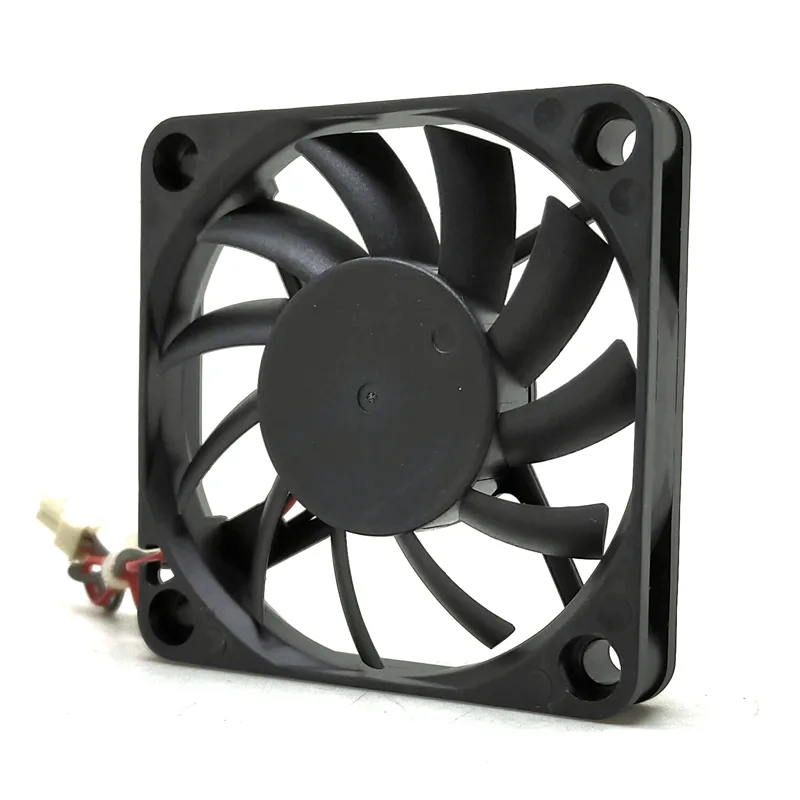

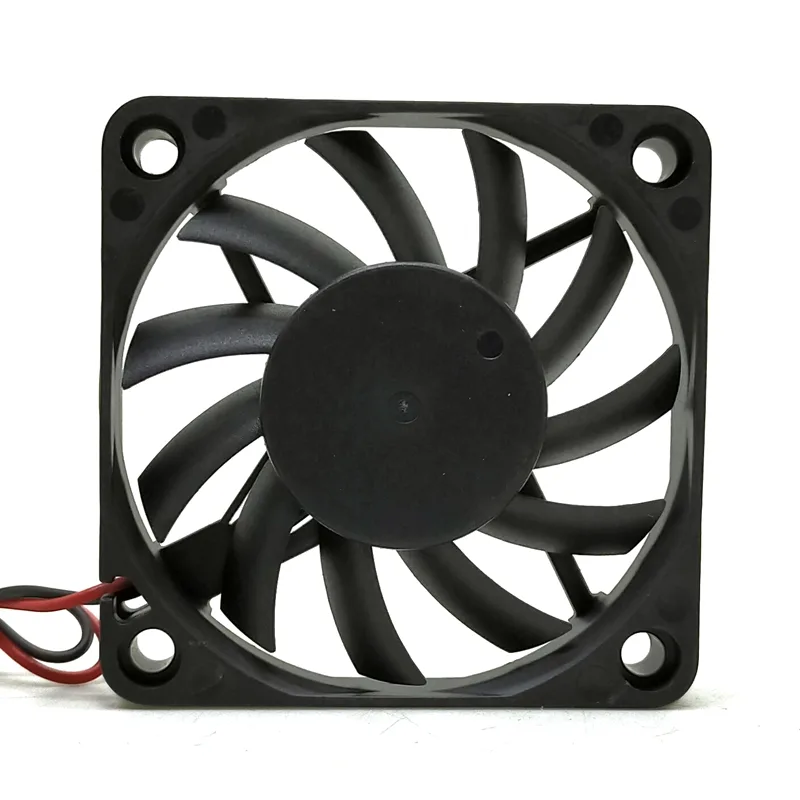

Black 60mm square case fan, 10mm thick, 2-wire power connector

SXDOOL

SXDOOL pl61b12h 60mm 12V 10mm case fan

SKU CH-9CV0-PEXZY MPN pl61b12h

A slim 60mm case fan with ball bearing and 2-pin power for tight server or chassis spaces

  • TypeCase Fan
  • Fan Size60mm
  • Bearing TypeBall
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • Slim 10 mm profile fits tight chassis spaces
  • 12 V operation powers directly from standard PSU rails
  • Ball bearing design extends operating life
  • 60 mm frame matches 6010 mounting pattern
  • Low 0.22 A draw reduces system power load

60 mm 12 V slim case fan

The SXDOOL pl61b12h is a 60 mm square frame fan only 10 mm thick. It runs on 12 V and draws 0.22 A through a two-pin power connector. The black frame houses a ball bearing and has no LED lighting. It is intended as a direct replacement for the Power Logic 6010 unit in servers, inverters or compact PC chassis.

Simple two-pin installation

Mount the fan with four standard 60 mm screws and plug the two-pin header into a 12 V fan socket on the motherboard or a fan controller. The connector is not keyed for PWM, so speed control depends on voltage regulation from the header. Misaligning the pins or forcing the connector backwards are the most common fitting errors.

Suits tight 12 V bays, not PWM builds

This fan fits any 60 x 60 x 10 mm cut-out that supplies 12 V on a two-pin header, making it ideal for legacy server trays, inverter enclosures or slim HTPC cases. Builders who need PWM speed signalling, higher static pressure or a larger frame should look at alternative models.

Highlights

  • Slim 10 mm profile fits tight chassis spaces
  • 12 V operation powers directly from standard PSU rails
  • Ball bearing design extends operating life
  • 60 mm frame matches 6010 mounting pattern
  • Low 0.22 A draw reduces system power load

Specifications

TypeCase Fan
Fan Size60mm
Bearing TypeBall
Power Connector2 Pin
ColorBlack
LEDNon-LED

Questions about this item

How can I confirm the 60mm 12V fan is spinning correctly after installing it in my server inverter?

Connect the 2-pin connector to a 12V header, power on the system and visually verify the blades rotate smoothly; the ball bearing should run quietly at the rated 0.22A draw.

What comes with the PL61B12H and do I need any extra cables or mounts?

The package includes the 60x60x10mm black non-LED fan with a 2-pin lead; mounting screws and any adapter cables are not included and must be sourced separately.

Which version of the 6010 slim fan should I choose for a 12V power logic chassis?

Select the PL61B12H model — it is the 12V, 0.22A, 60mm x 10mm ball-bearing variant designed for Power Logic 6010 server inverter applications.
