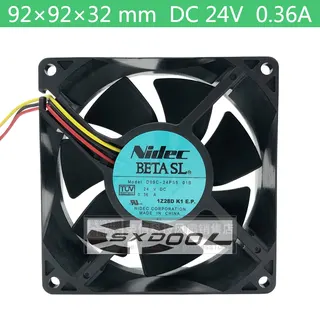

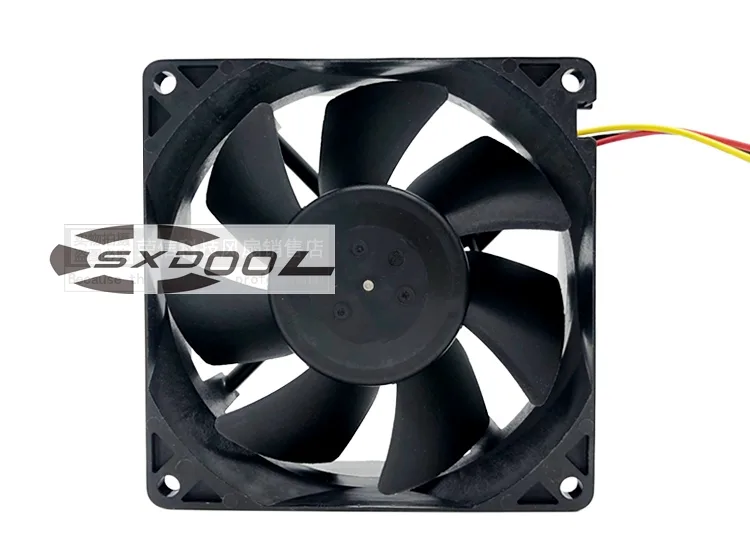

Black 92mm square axial fan with 32mm depth and 30cm wire leads

SXDOOL

SXDOOL Nidec D09C-24PS5 01B 24V 92mm case fan

SKU CH-A9H9-GYC7C

A 92 mm axial fan delivering 84.7 CFM at 4300 RPM with double ball bearings rated for 50,000 hours

  • Fan Size90mm
  • Reliable Japanese engineering from Nidec brand
  • 24V DC axial fan fits 92mm mounting holes
  • 4300 RPM delivers 84.7 CFM airflow for effective cooling
  • Double ball bearing rated for 50000 hours service life
  • Operates from -10°C to +70°C in industrial environments

Industrial 24 V axial fan

The SXDOOL Nidec D09C-24PS5 01B is a 92 mm square axial fan designed for 24 V DC industrial and inverter cooling. It draws 0.36 A for 8.64 W input power and spins at 4300 RPM to deliver 84.7 CFM (2.40 m³/min) of airflow. The double ball bearing is rated for roughly 50,000 hours of operation.

Thermals and acoustics at rated speed

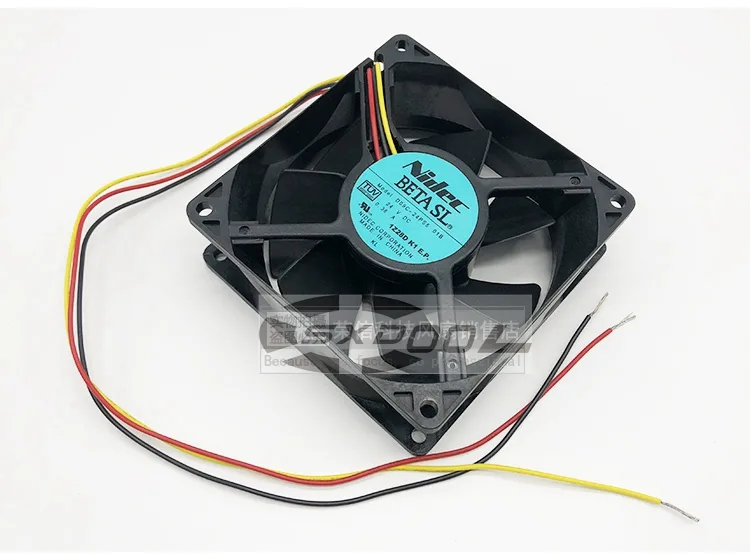

At 4300 RPM the fan produces a maximum static pressure of 0.5 inchH2O and a noise level of 48.0 dB-A. The 30 cm flying-lead connection has no fitted plug, so installers must terminate it to suit their harness. Operating temperature range spans -10 °C to +70 °C for harsh environments.

Sustained-load behaviour

Continuous duty at full voltage keeps airflow and pressure steady without the drop-off seen in short-burst cooling. The double ball bearing maintains consistent speed and acoustic output over long shifts, while the 180 g all-metal frame resists vibration in inverter cabinets. Not suited for builds needing PWM speed control or standard motherboard headers.

Highlights

  • Reliable Japanese engineering from Nidec brand
  • 24V DC axial fan fits 92mm mounting holes
  • 4300 RPM delivers 84.7 CFM airflow for effective cooling
  • Double ball bearing rated for 50000 hours service life
  • Operates from -10°C to +70°C in industrial environments

Specifications

Fan Size90mm

Questions about this item

How do I mount the 92 × 92 × 32 mm fan and connect the 30 cm bare-wire leads without a plug?

Align the four corner holes with the chassis, secure with standard M3 screws, then crimp or solder the two bare leads to a 24 V DC source observing polarity; the 30 cm wire length limits routing distance.

When will the double ball bearing need replacement and what is the rated life?

The double ball bearing is rated for about 50,000 hours of continuous operation at the specified temperature range; plan replacement once that runtime is reached.

What thermal limit appears first during sustained 4300 RPM operation at 24 V?

The maximum ambient temperature of 70 °C is the first hard limit; exceeding it risks bearing degradation and reduced airflow below the rated 84.7 CFM.
