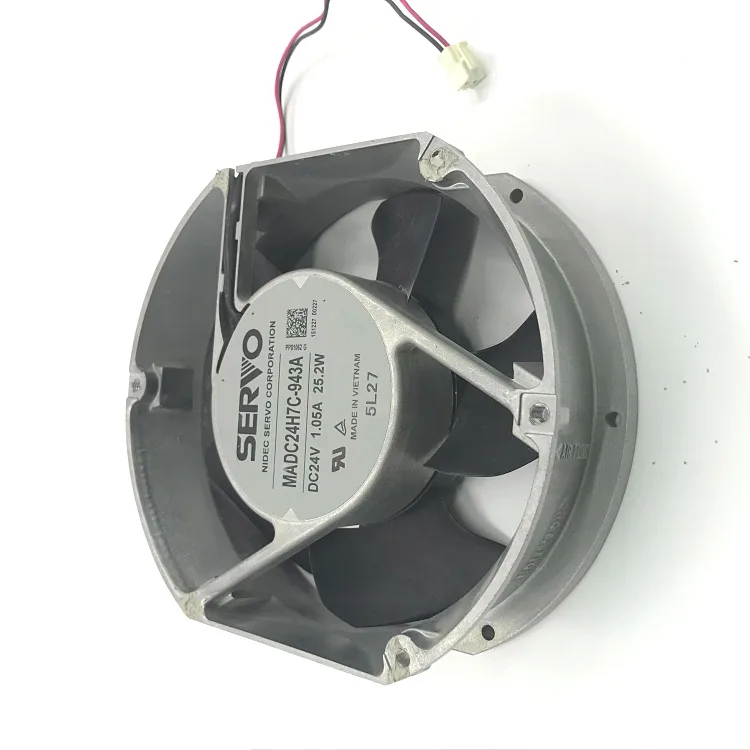

Silver 170mm square frame case fan with black blades, 2-pin connector, no LED

SXDOOL

SXDOOL MADC24H7C-943 170mm case fan 24V 2-pin

SKU CH-6PFA-ASQNP MPN MADC24H7C-943

A 170 mm dual-ball-bearing fan moves 280.1 CFM at 3800 RPM on 24 V power

  • Fan Size170mm
  • Bearing Type2 Ball
  • Power Connector2 Pin
  • ColorSilver
  • LEDNon-LED
  • 170mm diameter moves 280.1 CFM for high-volume cooling
  • 24V 1.05A motor delivers 25.2W at 3800 RPM
  • Dual ball bearings extend service life under continuous load
  • 2-pin power connector fits standard inverter or server headers
  • 55 dB(A) acoustic output at full speed

170 mm 24 V industrial case fan

The SXDOOL MADC24H7C-943 is a 170 mm square frame fan built for 24 V DC systems. It draws 1.05 A and delivers 25.2 W of continuous power. Dual ball bearings support a rated speed of 3800 RPM with a ten percent tolerance. The two-pin connector supplies power without speed reporting or PWM control.

Suits inverter and cabinet cooling.

This unit targets integrators cooling ABB inverters or similar 24 V enclosures where high static pressure and 280.1 CFM airflow are required. The fixed two-wire interface makes it unsuitable for motherboards that expect a third wire for tach feedback or a fourth for PWM duty-cycle control. Builders needing variable speed governed by a PC header should look elsewhere.

280.1 CFM at 55 dB(A) with 50 mm depth

At full rated voltage the fan moves 280.1 CFM while producing 55 dB(A) of acoustic noise. The 172 mm by 151 mm by 50 mm frame fits standard 170 mm mounting patterns but exceeds the depth of many slim chassis designs. Headroom is ample for dense heat-exchanger stacks; the limit appears in noise-sensitive or space-constrained installations where lower airflow or thinner profiles are preferred.

Highlights

  • 170mm diameter moves 280.1 CFM for high-volume cooling
  • 24V 1.05A motor delivers 25.2W at 3800 RPM
  • Dual ball bearings extend service life under continuous load
  • 2-pin power connector fits standard inverter or server headers
  • 55 dB(A) acoustic output at full speed

Specifications

Fan Size170mm
Bearing Type2 Ball
Power Connector2 Pin
ColorSilver
LEDNon-LED

Questions about this item

What voltage power supply must I already have to run this 24 V fan?

The fan requires a 24 V DC source capable of delivering 1.05 A, so your power supply must provide a 24 V rail rated for at least 25.2 W.

Can I connect this 2-pin fan to an older 3-pin or 4-pin motherboard header?

The fan uses a 2-pin connector; it will physically fit a 3-pin or 4-pin header if the keying matches, but speed reporting and PWM control will not be available.

How do I confirm the fan is spinning at its rated 3800 RPM after installation?

With only two wires the fan cannot report speed; you must verify operation by measuring airflow of roughly 280.1 CFM or by listening for the 55 dB(A) acoustic level at full voltage.
