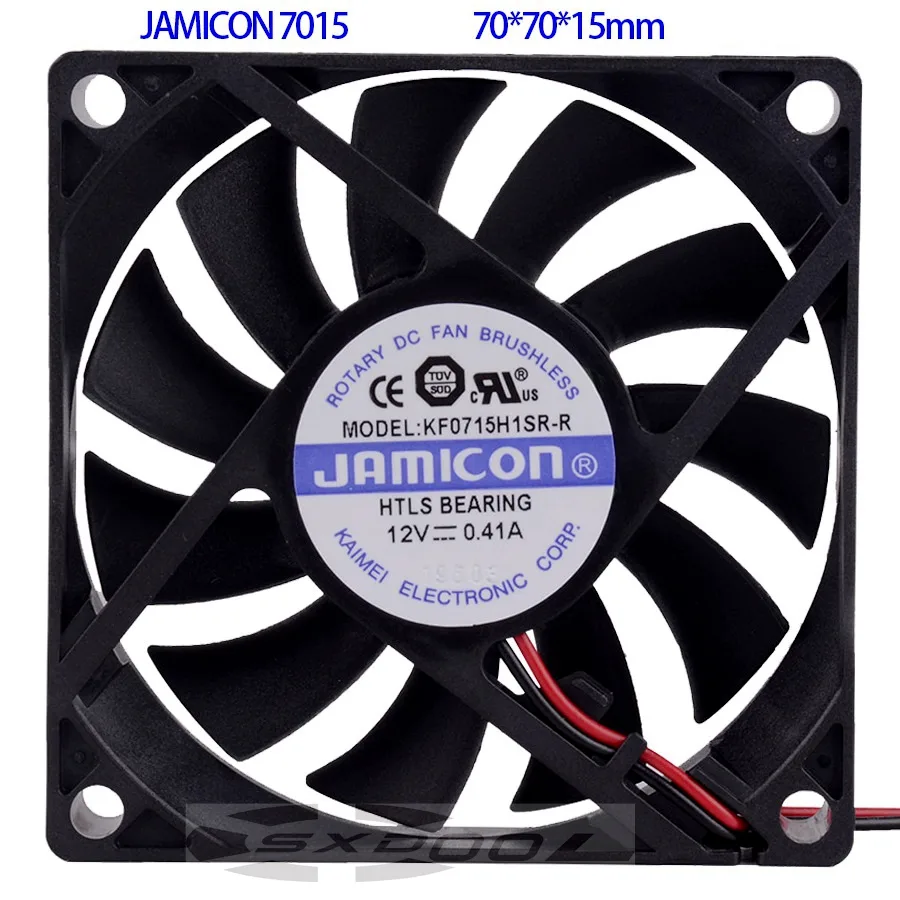

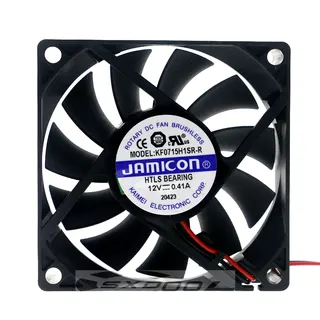

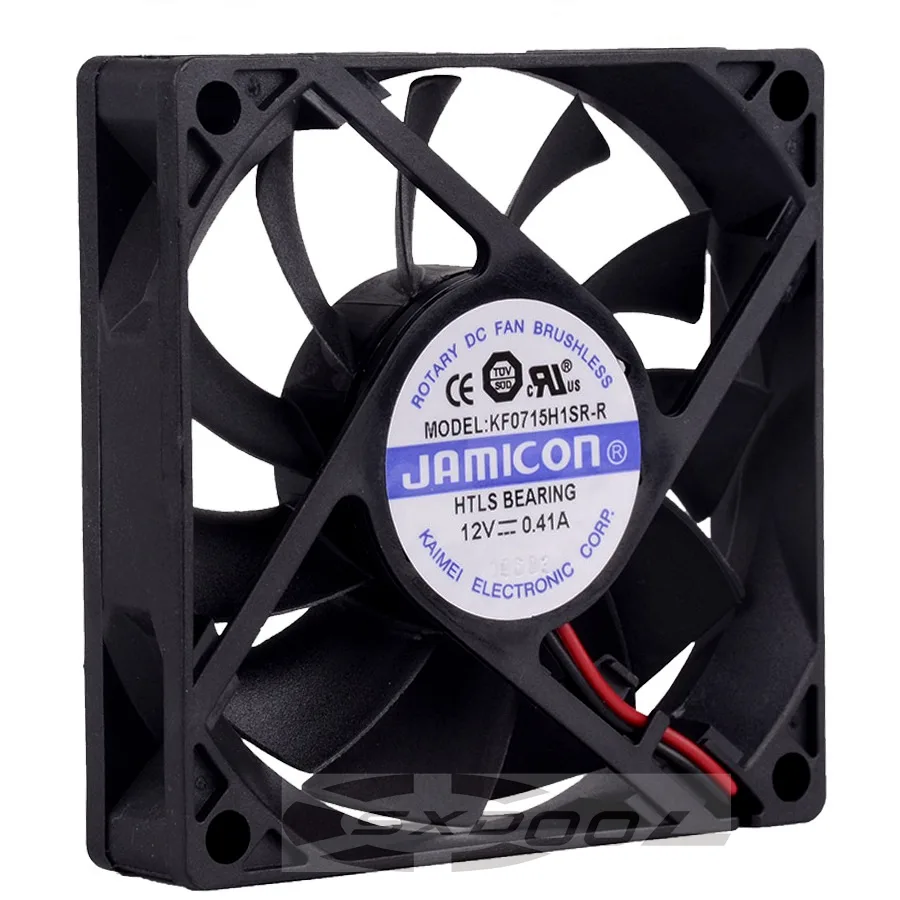

Black 70mm square case fan with 15mm depth and two-wire power connector

SXDOOL

SXDOOL KF0715H1SR-R 70mm 12V 0.41A case fan

SKU CH-75JY-KJ3N1

A 70 mm case fan spinning at 5000 RPM delivers 40.45 CFM airflow at 35-40 dBA using a 2-pin 12 V connection

  • Fan Size70mm
  • RPM5000-5499 RPM
  • Air Flow40-45 CFM
  • Noise Level35 - 40 dBA
  • Power Connector2 Pin
  • ColorBlack
  • Quiet operation at 35-40 dBA for low-noise builds
  • 70 mm frame fits tight chassis spaces easily
  • 40-45 CFM airflow moves heat from compact cases
  • 12 V 0.41 A draw keeps power load minimal
  • 2-pin connector plugs straight into standard headers

Compact 70mm Frame

The SXDOOL KF0715H1SR-R is a 70mm case fan built for compact chassis layouts where space is limited. It runs on 12V at 0.41A and draws 4.92W from a 2-pin power connector. The black non-LED housing measures 70x70x15mm.

Suited for Tight Builds

This fan suits builders fitting a 70mm mount in small-form-factor cases or replacing a JAMICON KF0715H1SR-R unit. It is not for systems that require PWM speed control or higher static pressure for dense radiators. Buyers needing RGB lighting or a 3-pin header should look elsewhere.

5000 RPM at 40.45 CFM

The single specification that decides fit is the 5000 RPM speed delivering 40.45 CFM airflow at 35 to 40 dBA noise. This fixed-speed profile matches the original JAMICON rating for direct replacement. Verify the 70mm mounting holes and 2-pin header before ordering.

Highlights

  • Quiet operation at 35-40 dBA for low-noise builds
  • 70 mm frame fits tight chassis spaces easily
  • 40-45 CFM airflow moves heat from compact cases
  • 12 V 0.41 A draw keeps power load minimal
  • 2-pin connector plugs straight into standard headers

Specifications

Fan Size70mm
RPM5000-5499 RPM
Air Flow40-45 CFM
Noise Level35 - 40 dBA
Power Connector2 Pin
ColorBlack
LEDNon-LED

Questions about this item

What maintenance does the sleeve-bearing JAMICON KF0715H1SR-R need after long use?

Sleeve bearings cannot be relubricated easily; plan to replace the fan when noise or speed drift appears.

Which limit appears first when the 12 V 0.41 A fan runs continuously at 5000–5499 RPM?

Bearing wear typically becomes audible before the 4.92 W motor reaches its thermal ceiling.

How much heat does the 4.92 W motor add to a case during all-day operation?

The motor dissipates 4.92 W of heat, a small load that most case airflow handles without extra cooling.
