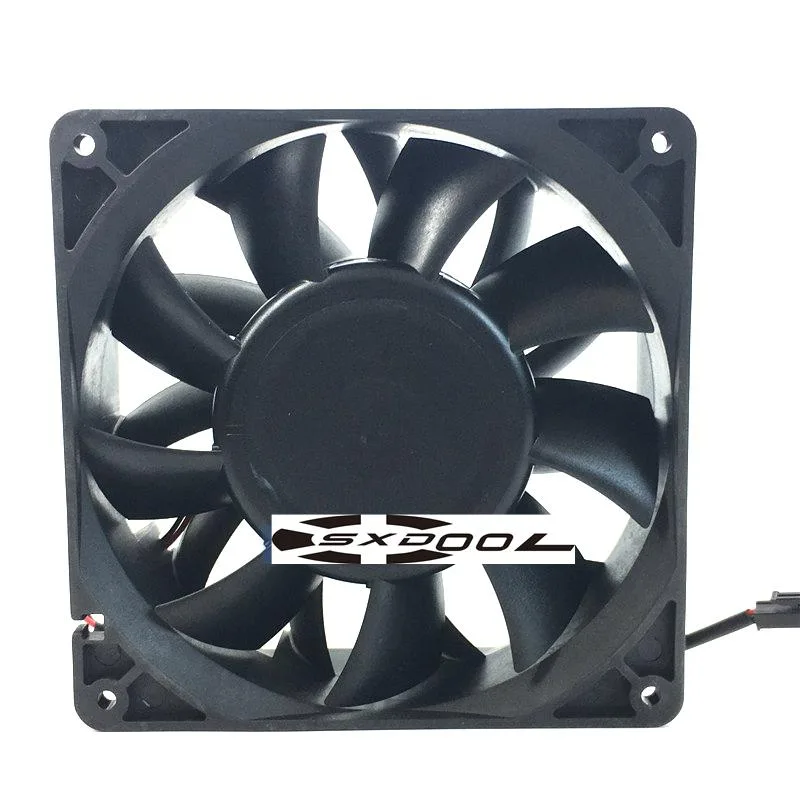

Black square 140mm frame 50mm thick two-wire connector

SXDOOL

SXDOOL FFB1424VHG 24V 140mm case fan 3200RPM 252.11CFM

SKU CH-2VQ6-GX4FT MPN FFB1424VHG

24 V 140 mm fan delivers 252.11 CFM at 3200 RPM with double ball bearings for server and industrial cooling

  • High airflow at 252.11 CFM for demanding cooling
  • 3200 RPM speed delivers strong static pressure of 0.644 IN H2O
  • Double ball bearings provide maintenance-free long service life
  • 24V 1.37A design suits industrial server and inverter use
  • Compact 140x140x50mm frame fits standard chassis mounts

Industrial 24 V 140 mm Delta fan

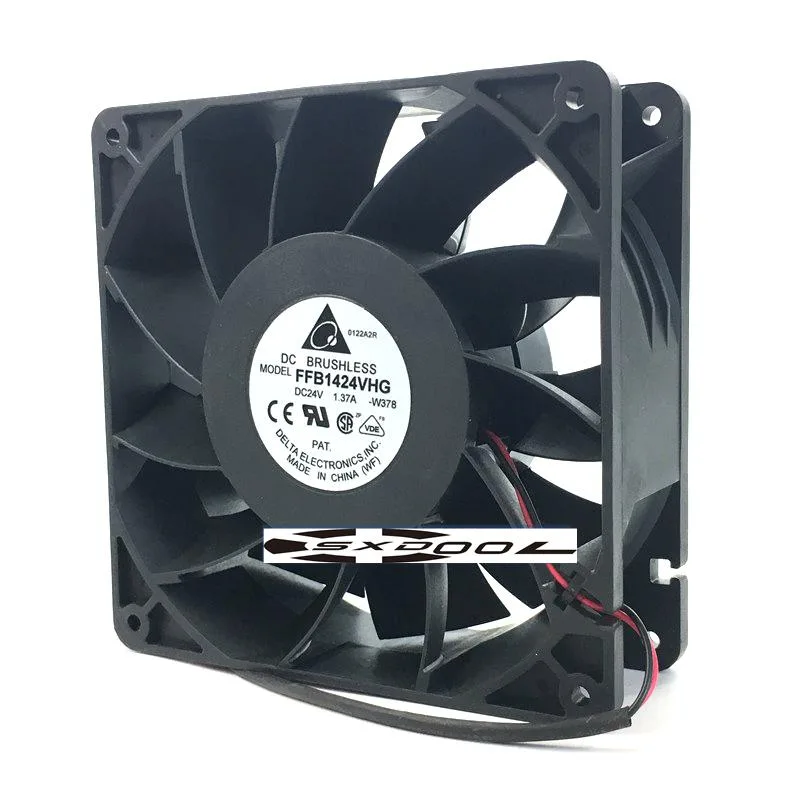

The Delta FFB1424VHG is a 140 mm by 50 mm case fan built for 24 V systems. It draws a rated 1.37 A with an actual draw of 0.91 A and spins at 3200 RPM to deliver 252.11 CFM. The unit targets chassis, power supply, server, inverter and industrial computer applications where high airflow is required.

Check 24 V supply and two-pin header

Verify that your equipment provides a 24 V DC source capable of at least 1.37 A before ordering. The fan uses a two-wire, two-pin connector, so the header must match that layout and voltage. No PWM or tachometer wire is present, so speed control and monitoring depend on external circuitry.

Sustained output with double ball bearings

Maintenance-free double ball bearings support continuous operation at the rated 3200 RPM and 58.5 dBA noise level. The design maintains the stated 0.644 in H₂O static pressure and 252.11 CFM airflow over long periods rather than only in short bursts. This suits server, inverter and industrial machines that run constantly under load.

Highlights

  • High airflow at 252.11 CFM for demanding cooling
  • 3200 RPM speed delivers strong static pressure of 0.644 IN H2O
  • Double ball bearings provide maintenance-free long service life
  • 24V 1.37A design suits industrial server and inverter use
  • Compact 140x140x50mm frame fits standard chassis mounts

Specifications

No published specifications for this item yet.

Questions about this item

What comes in the box and does it include a power cable or adapter?

The fan ships as a single 140 mm unit with a 2-wire 2-pin lead. No power cable, adapter or mounting screws are included.

Which current rating should I use when sizing a 24 V supply — 1.37 A or 0.91 A?

The nameplate current is 1.37 A; actual running current is 0.91 A. Size the supply for at least 1.37 A to cover start-up.

What does 252.11 CFM at 3200 RPM mean for cooling a server chassis?

At full speed the fan moves 252.11 CFM with 0.644 in H₂O static pressure at 58.5 dBA, suited for high-density server or inverter enclosures.
