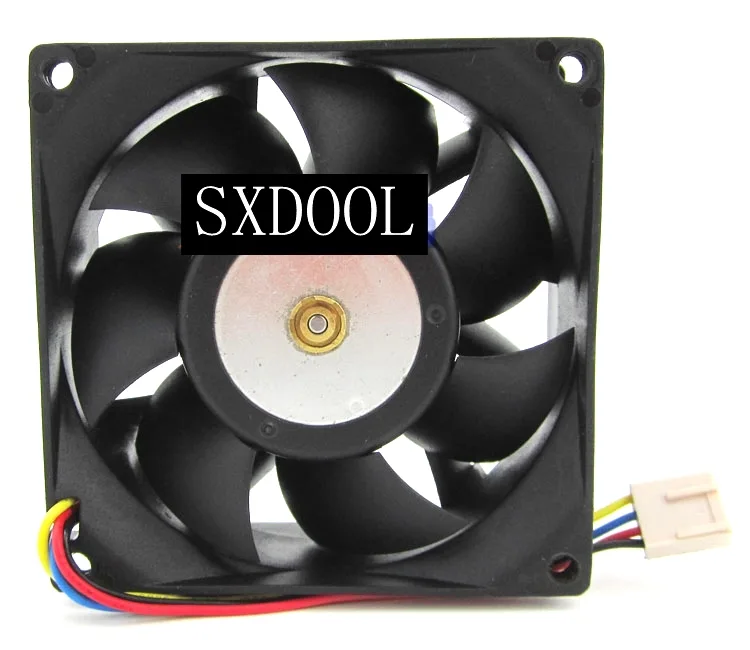

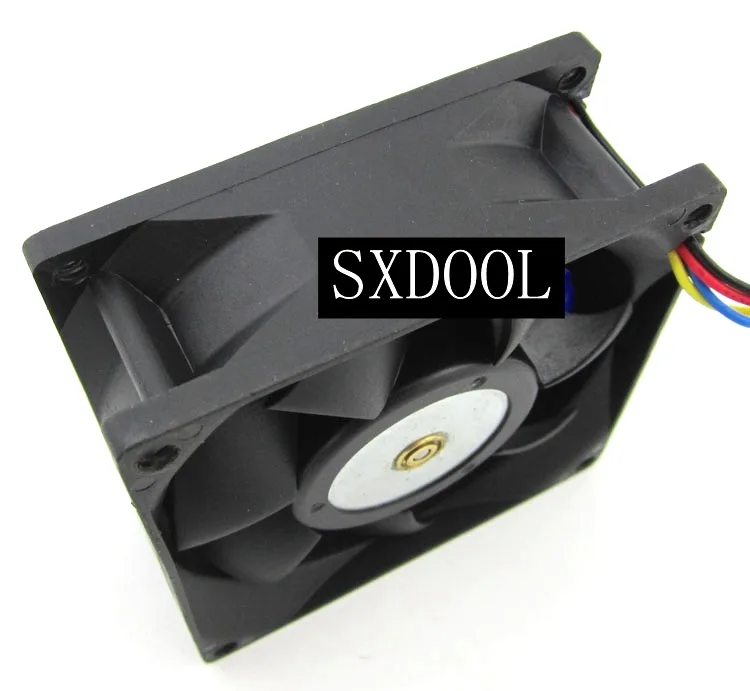

Black 80mm square case fan with 4-pin connector

SXDOOL

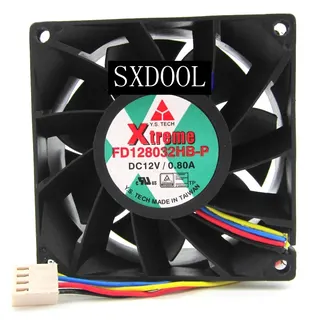

SXDOOL FD128032HB-P 80mm 12V .80A 4-pin case fan

SKU CH-6FC6-HPERA MPN FD128032HB-P

An 80 mm case fan with dual ball bearings and a 4-pin PWM connector for 12 V motherboard headers

  • TypeCase Fan
  • Fan Size80mm
  • Bearing Type2 Ball
  • Power Connector4 Pin
  • ColorBlack
  • LEDNon-LED
  • Efficient 12 V cooling from an 80 mm frame
  • Dual ball bearings extend operating life
  • Standard 4-pin PWM socket for precise speed control
  • Compact 8032 thickness fits tight chassis spaces
  • Non-LED black design keeps builds clean

SXDOOL 80mm 4-pin case fan

The SXDOOL FD128032HB-P is an 80mm case fan built for standard 12V 4-pin motherboard headers. It uses a dual-ball bearing and draws 0.80A to deliver high airflow in a compact 8032 frame. The black non-LED design suits system builders who need reliable cooling without lighting.

Upgrade from sleeve-bearing 80mm fans

This model replaces older 80mm fans that use sleeve bearings and 3-pin connectors. The dual-ball bearing extends service life and maintains consistent speed under continuous load. PWM control via the 4-pin header allows the motherboard to adjust speed precisely, reducing noise when full airflow is not required.

Limits of the 80mm 4-pin standard

The 80mm frame restricts maximum airflow compared to larger fans, so it suits targeted spot cooling or tight chassis rather than high-volume case throughput. The 4-pin PWM header requires motherboard support for automatic speed curves; on 3-pin headers the fan will run at full 12V speed without regulation.

Highlights

  • Efficient 12 V cooling from an 80 mm frame
  • Dual ball bearings extend operating life
  • Standard 4-pin PWM socket for precise speed control
  • Compact 8032 thickness fits tight chassis spaces
  • Non-LED black design keeps builds clean

Specifications

TypeCase Fan
Fan Size80mm
Bearing Type2 Ball
Power Connector4 Pin
ColorBlack
LEDNon-LED

Questions about this item

Will the 80*80*32mm frame and standard 4-pin socket fit my case and motherboard?

The fan measures 80 mm square by 32 mm thick and uses a standard motherboard 4-pin socket, so it fits any 80 mm mounting hole pattern and 4-pin header.

How do I install the 4-pin connector without bending pins?

Align the keyed 4-pin plug with the motherboard header, press straight down until the latch clicks, and route the cable clear of the fan blades.

When should I plan to replace the 2 Ball bearing fan running at 12V 0.80A?

The dual ball bearing design typically lasts several years of continuous 12 V 0.80 A operation; replace it when noise increases or airflow drops noticeably.
