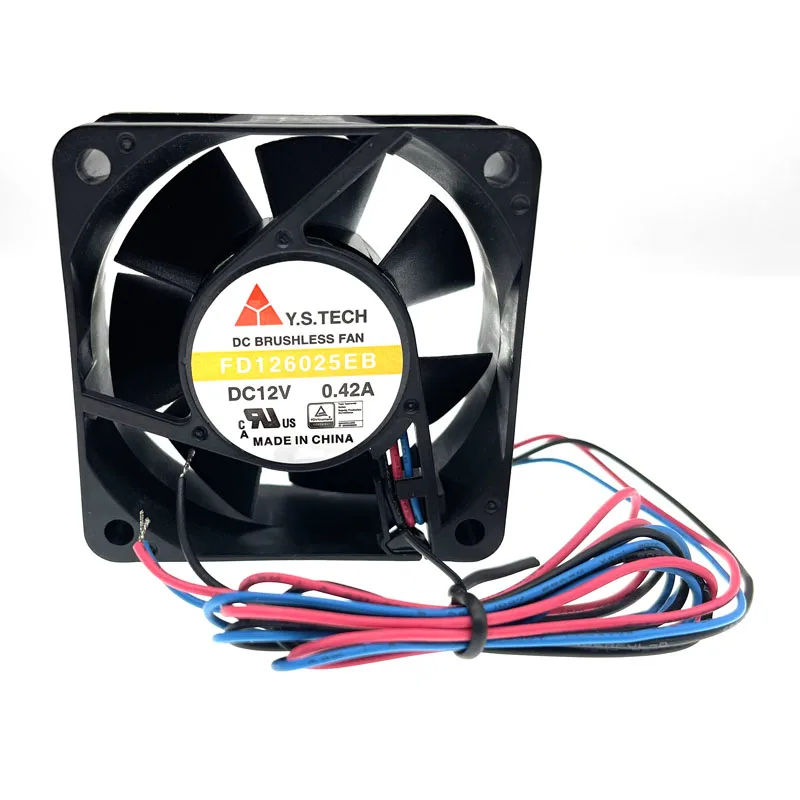

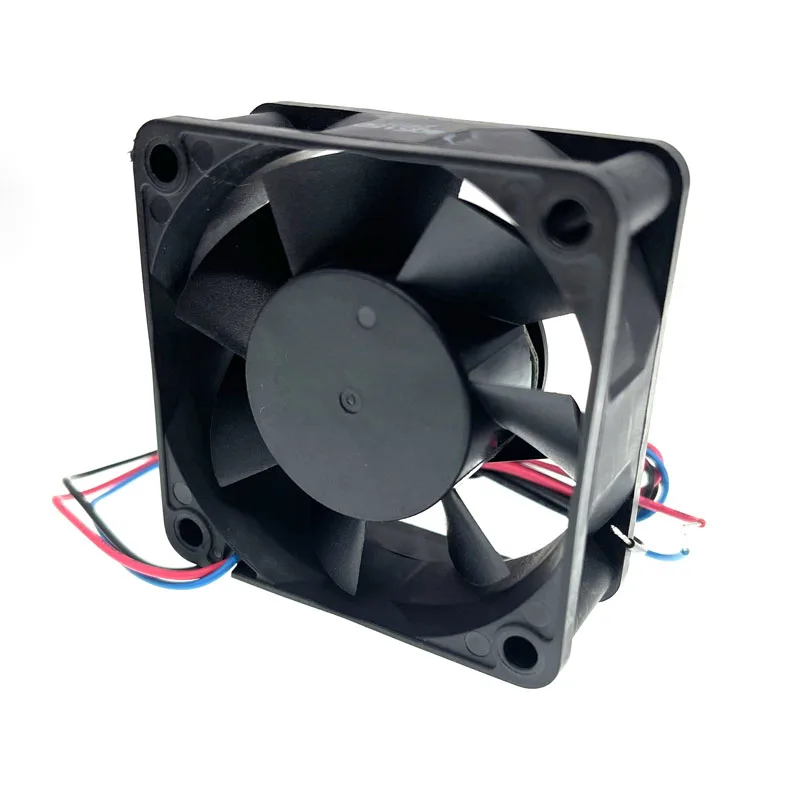

Black 60mm square case fan with 3-pin connector

SXDOOL

SXDOOL FD126025EB case fan 60mm 12V 5200RPM 3-pin

SKU CH-P0R8-PNSST MPN FD126025EB

Compact 60 mm case fan spins at 5200 RPM with 26.4 CFM airflow and 40 dBA noise on a 3-pin connector

  • TypeCase Fan
  • Fan Size60mm
  • Bearing Type2 Ball
  • RPM5000-5499 RPM
  • Air Flow25-30 CFM
  • Noise Level40 - 45 dBA
  • High airflow for tight spaces with 26.4 CFM at 5200 RPM
  • Dual ball bearings extend service life in continuous server use
  • 3-pin alarm signal warns the system before overheating occurs
  • Low 2.76 W draw keeps power budgets under control
  • Compact 60 × 60 × 25 mm frame fits 1U and small-form-factor chassis

Ideal fit

The SXDOOL FD126025EB is a 60mm DC brushless case fan built for tight server or workstation chassis that demand high-speed airflow. Its 3-pin connector and alarm RD signal suit systems needing active speed monitoring.

Deciding spec

The fan spins at 5200 RPM with a 5.0 mmH2O static pressure rating, pushing 26.4 CFM through restrictive grilles or dense heatsinks. That pressure-to-flow balance is the single figure that determines whether it clears your thermal bottleneck.

Sustained behaviour

Dual ball bearings and a 2.76 W motor keep output stable during continuous 12 V operation at up to 45 dBA. The 7 V to 13.2 V range lets the fan maintain curve fidelity without stalling under prolonged load.

Highlights

  • High airflow for tight spaces with 26.4 CFM at 5200 RPM
  • Dual ball bearings extend service life in continuous server use
  • 3-pin alarm signal warns the system before overheating occurs
  • Low 2.76 W draw keeps power budgets under control
  • Compact 60 × 60 × 25 mm frame fits 1U and small-form-factor chassis

Specifications

TypeCase Fan
Fan Size60mm
Bearing Type2 Ball
RPM5000-5499 RPM
Air Flow25-30 CFM
Noise Level40 - 45 dBA
Power Connector3 Pin
ColorBlack
LEDNon-LED

Questions about this item

What does 5200 RPM mean for airflow inside a typical case?

At 5200 RPM the fan moves 26.4 CFM and generates 5.0 mmH₂O static pressure, suitable for tight heatsinks or restricted front panels.

What does the 3-pin connector allow for speed control?

The 3-pin header provides a tachometer signal so the motherboard can monitor speed; voltage regulation controls RPM between 5000 and 5499.

Will the 60 × 60 × 25 mm frame fit a standard 60 mm mounting grid?

Yes, the 60 mm square frame with 25 mm thickness matches the common 60 mm hole pattern used on server chassis and small-form-factor cases.
