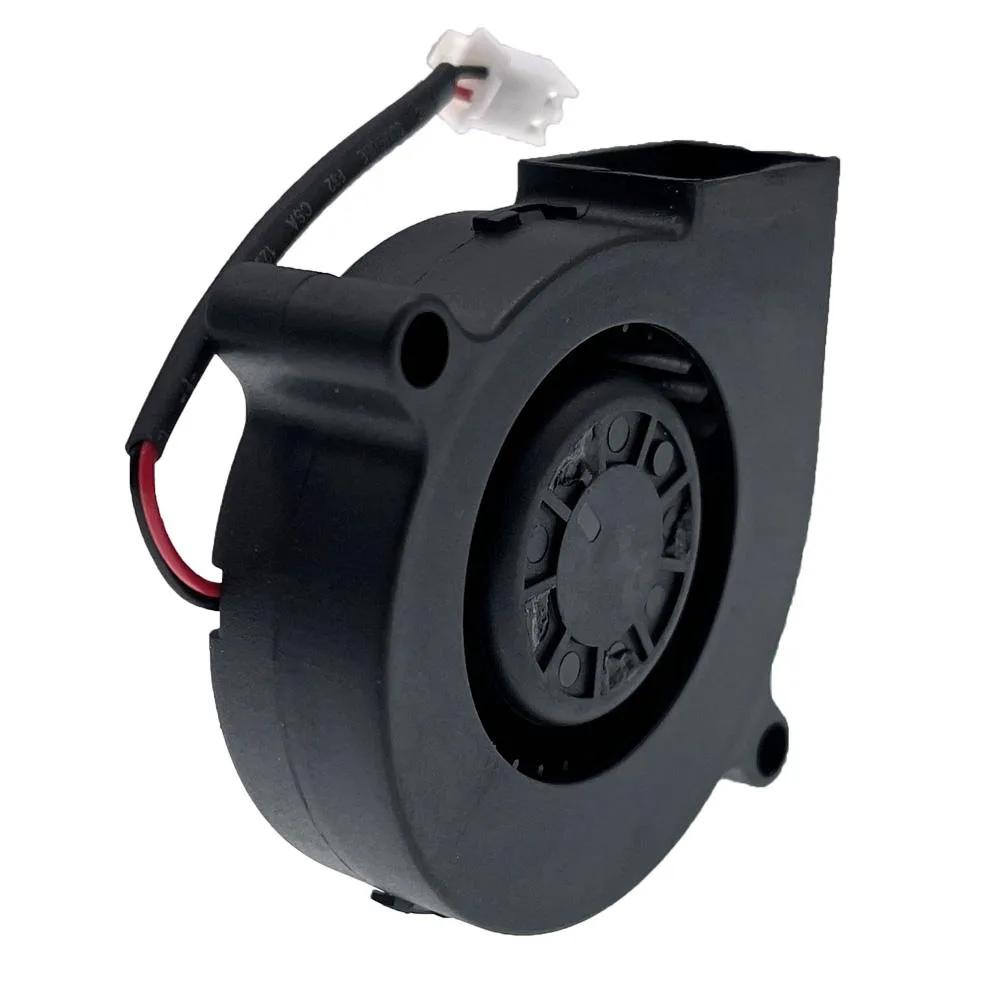

Small square centrifugal blower fan, black plastic housing, 50 by 50 by 15 mm, dual ball bearing, 24 V

SXDOOL

SXDOOL EF50152B1-1C01C-A99 case fan 5015 24V 5000RPM 4.2CFM

SKU CH-BZB1-HVH58 MPN EF50152B1-1C01C-A99

Compact 50 × 50 × 15 mm centrifugal blower spins at 5000 RPM to deliver 4.2 CFM at 43.3 dBA on 24 V power

  • TypeCase Fan
  • Centrifugal blower directs focused airflow to hotspots
  • Dual ball bearing extends operational lifespan
  • 24 V DC input matches printer power supplies
  • 5000 RPM delivers 4.2 CFM cooling capacity
  • Certified to UL, CSA, TUV and CE standards

Product identity

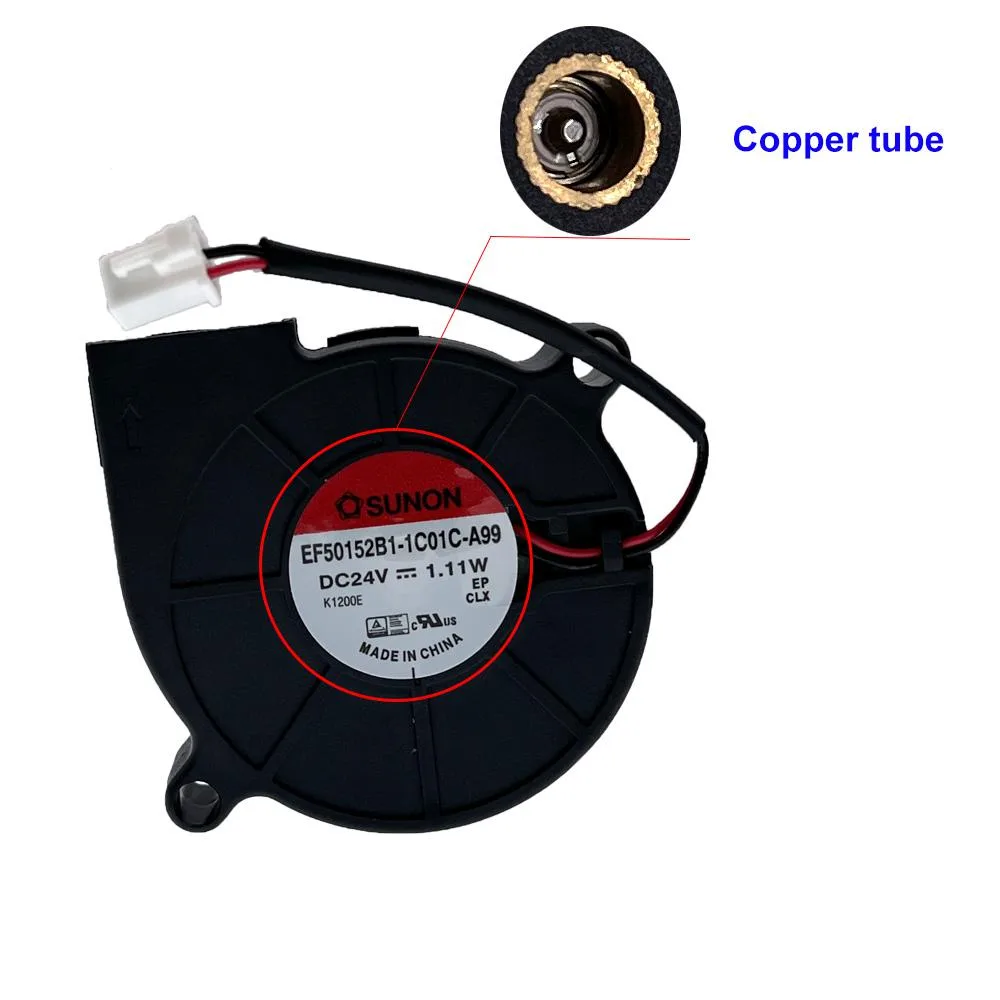

The SXDOOL EF50152B1-1C01C-A99 is a 5015 centrifugal blower fan measuring 50 by 50 by 15 millimetres. It runs on 24 V DC, draws 1.11 W, and spins at 5000 RPM with a tolerance of 15 percent. Dual ball bearings and UL, CSA, TUV and CE approvals support continuous operation in 3D printer hot-end cooling and similar compact thermal-management roles.

Who it suits and who it does not

This fan suits engineers and hobbyists who need a 24 V centrifugal blower with 4.2 CFM airflow and 0.52 inch-H₂O static pressure for targeted cooling in tight spaces. It is not suited for builds that require a different supply voltage, a larger frame size, or substantially higher airflow volumes. The 43.3 dBA noise level also makes it a poor choice for noise-sensitive environments.

Deciding specification

The 24 V DC operating voltage is the single specification that determines whether this blower can be used in a given system; the power source must match this value exactly for the fan to function.

Highlights

  • Centrifugal blower directs focused airflow to hotspots
  • Dual ball bearing extends operational lifespan
  • 24 V DC input matches printer power supplies
  • 5000 RPM delivers 4.2 CFM cooling capacity
  • Certified to UL, CSA, TUV and CE standards

Specifications

TypeCase Fan

Questions about this item

Does the package include mounting hardware or a power cable, or do I need to buy them separately?

The box contains one 5015 24V blower fan only; mounting screws and a power cable are not included and must be purchased separately if required.

How do I choose between the listed specifications such as 5000RPM, 4.2CFM and 43.3DBA for my 3D printer cooling?

This model is a single variant with fixed specifications: 5000RPM ±15%, 4.2CFM airflow, 43.3DBA noise and 0.52 inch-H₂O static pressure; select it when those exact figures match your printer's cooling requirements.

What does the 4.2CFM airflow figure mean once the fan is installed in a 3D printer enclosure?

At 5000RPM the blower delivers 4.2CFM with 0.52 inch-H₂O static pressure, providing focused centrifugal airflow through the hotend duct while operating at 43.3DBA noise level.
