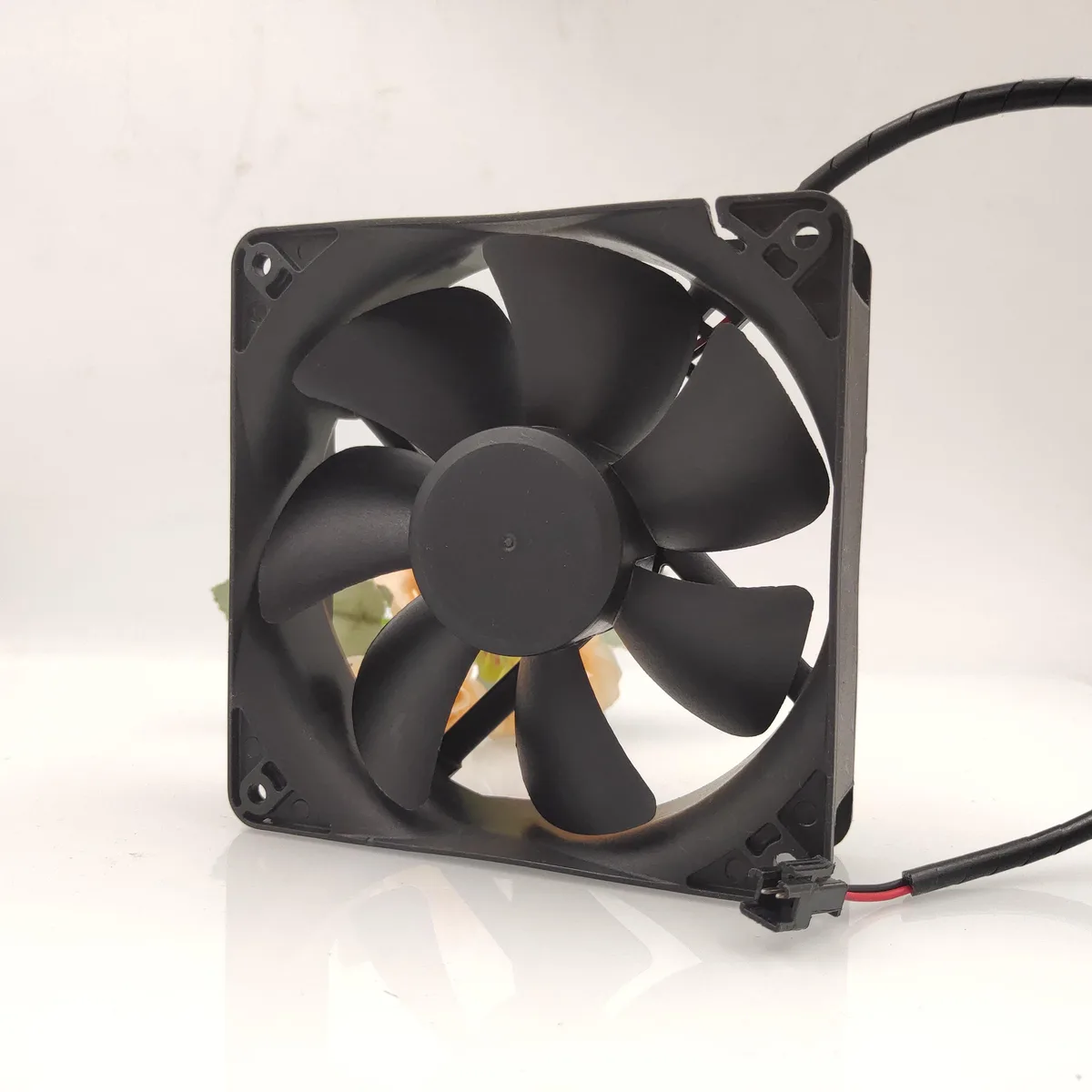

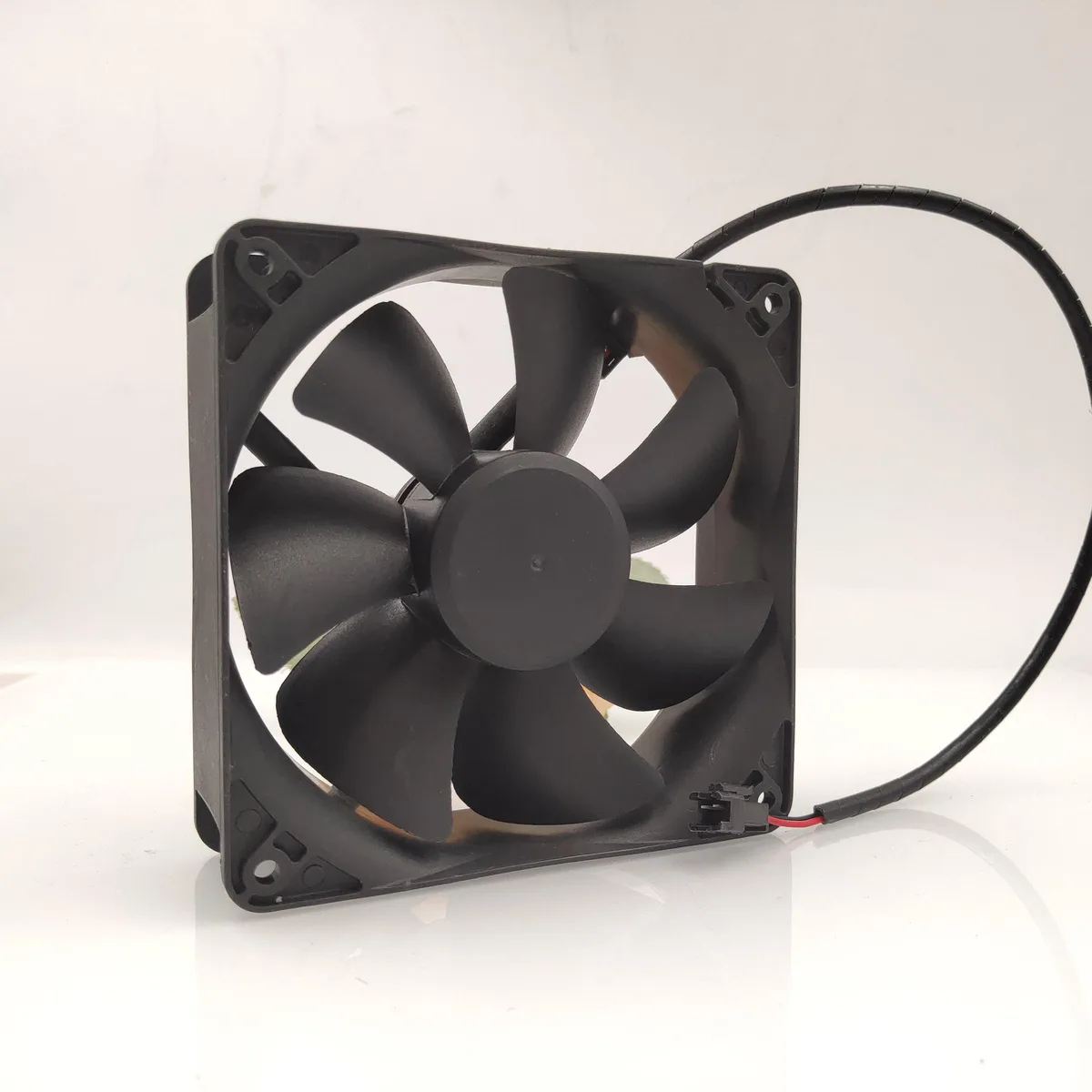

Square black 120mm axial fan with red and black 2-pin power wires

SXDOOL

SXDOOL EEC0382B1-000C-A99 24V 120x120x38mm Case Fan

SKU CH-QNE8-YRGAC

A 24V DC axial case fan measuring 120 x 120 x 38mm, delivering 138 CFM at 3100 RPM with 48 dB(A) noise and precision ball-bearing reliability

  • TypeCase Fan
  • 24V DC rated voltage for industrial equipment compatibility
  • 138 CFM airflow at 3100 RPM rated speed
  • 48 dB(A) acoustic output with 0.36 inH2O static pressure
  • Precision ball-bearing system with automatic restart and polarity protection
  • 10°C to +70°C operating range in 120x120x38mm axial frame

SUNON EEC0382B1-000C-A99 24V industrial axial fan

This 120 x 120 x 38mm DC axial fan is rated for 24V operation at 383mA and 9.2W. It delivers 138 CFM airflow at 3100 RPM with 0.36 inH2O static pressure and 48 dB(A) noise. A precision ball-bearing system provides automatic restart and polarity protection across a -10°C to +70°C range. The unit ships as a single fan with a red and black 2-wire lead ending in a 2-pin plug.

Compatibility checklist before ordering

Verify the complete label reads EEC0382B1-000C-A99; the character after EEC is the digit 0. Confirm your equipment supplies 24V DC and can accommodate the 383mA typical or 440mA maximum current draw. Match the 120 x 120 x 38mm frame, mounting-hole pattern, two-wire count and the exact 2-pin plug shape and occupied positions shown in the photos. Disconnect power before removal and do not select by appearance alone.

Suited for like-for-like industrial replacement

This fan suits technicians replacing the exact SUNON model in inverter cabinets, power supplies or control enclosures where the voltage, dimensions, connector and mounting holes align. It is not for builders needing a 12V or PWM-controlled case fan, nor for quieter desktop cooling where 48 dB(A) is too loud. Buyers who cannot confirm every specification match should look at other options.

Highlights

  • 24V DC rated voltage for industrial equipment compatibility
  • 138 CFM airflow at 3100 RPM rated speed
  • 48 dB(A) acoustic output with 0.36 inH2O static pressure
  • Precision ball-bearing system with automatic restart and polarity protection
  • 10°C to +70°C operating range in 120x120x38mm axial frame

Specifications

TypeCase Fan

Questions about this item

Does the package include mounting screws or a PWM cable, or do I need to buy them separately?

The listing supplies one fan with red and black power wires ending in a 2-pin plug. Mounting hardware and any adapter cables are not included.

How do I confirm this is the correct 24V variant and not a 12V look-alike?

Check the label for the exact model EEC0382B1-000C-A99 — the character after EEC is the digit 0 — and verify the 24V DC rating before ordering.

What does the 138 CFM rating mean when the fan is mounted in a typical server chassis?

At 3100 RPM the fan moves 138 CFM against 0.36 inH2O static pressure, so it suits enclosures with moderate airflow restriction.
