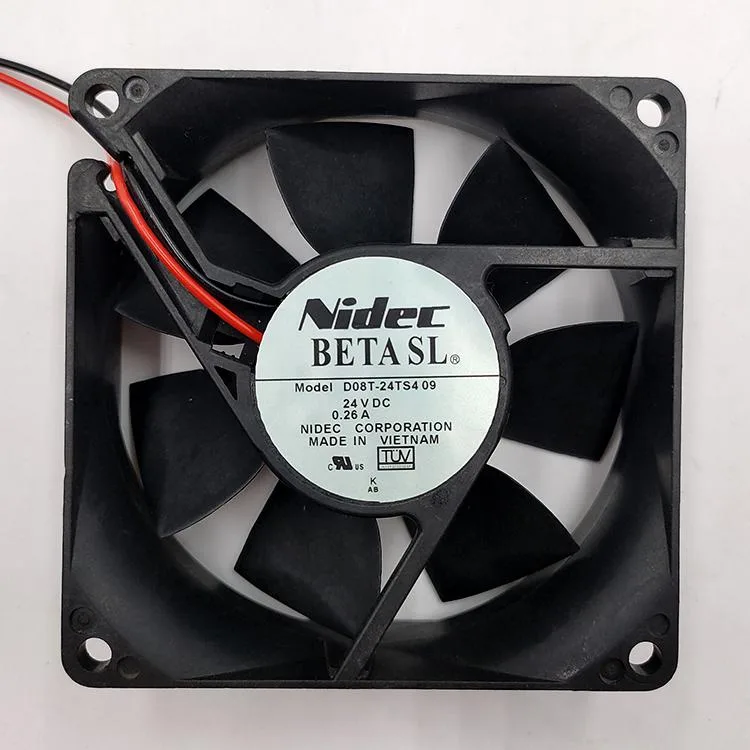

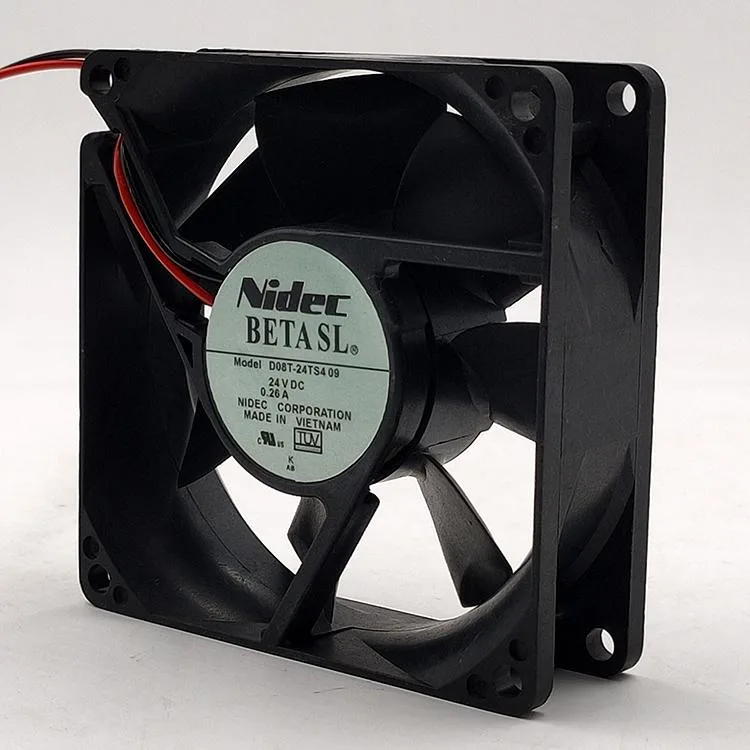

Black 80mm square Nidec case fan with transparent blades and central hub, 25mm thick, two-wire 24V connector visible

SXDOOL

SXDOOL D08T-24TS4 24V 0.26A 80mm Nidec case fan

SKU CH-VCZF-41HPW MPN D08T-24TS4

24V 80mm Nidec fan spins at 4500 RPM pushing 26 CFM with 42 dB noise and 40,000-hour double-ball bearing life

  • High airflow with 26 CFM and 6.8 m/s wind speed
  • Strong static pressure of 0.33 in-H2O for restricted spaces
  • Quiet operation at 42 dB noise level
  • Long-life double ball bearing rated for 40,000 hours
  • 24 V 0.26 A design draws only 5.52 W

Compact 24 V 80 mm Nidec fan

The SXDOOL D08T-24TS4 is an 80 mm square frame fan built around a Nidec motor rated for 24 V and 0.26 A. It spins at 4500 RPM ±10 % and moves 26 CFM with a static pressure of 0.33 in-H2O. The two-wire design delivers power only, without speed reporting or PWM control.

Suited for tight 24 V chassis slots.

This unit fits servers, industrial enclosures or custom rigs that supply 24 V directly to a two-pin header and need 1.51 m³/min airflow in an 80 × 80 × 25 mm space. Builders who require motherboard PWM control, variable speed curves or a three- or four-pin connector should look elsewhere.

Steady output within -10 °C to 70 °C range

The double-ball bearing is rated for 40 000 hours of continuous operation at up to 70 °C ambient. At full speed the fan produces 42 dB noise and 5.52 W draw, maintaining its 6.8 m/s wind speed without thermal throttling. Performance stays consistent across the stated temperature window.

Highlights

  • High airflow with 26 CFM and 6.8 m/s wind speed
  • Strong static pressure of 0.33 in-H2O for restricted spaces
  • Quiet operation at 42 dB noise level
  • Long-life double ball bearing rated for 40,000 hours
  • 24 V 0.26 A design draws only 5.52 W

Specifications

No published specifications for this item yet.

Questions about this item

What power source must I already have to run this 24 V, 0.26 A fan?

You need a 24 V supply that can deliver at least 0.26 A (5.52 W) with a two-wire positive and negative connection; the fan has no PWM or tachometer wire.

Can I plug this 80 mm, 25 mm thick fan into a standard 3-pin or 4-pin motherboard header?

No — the fan uses a bare two-wire lead for 24 V DC only; it lacks the third or fourth pin used by typical motherboard headers for speed control or monitoring.

How do I confirm the fan is spinning at its rated 4500 RPM after installation?

Measure the current draw — it should read about 0.26 A at 24 V — and check that exhaust airflow reaches roughly 1.51 m³/min (26 CFM) with a noise level near 42 dB.
