Square black frame fan with central hub and radial blades, 170mm sides, 50mm thick

SXDOOL

SXDOOL COMROTON COMAIR PQ24B7X 24V 1.0A 172x51mm case fan

SKU CH-6KST-A9P7G

A 24 V, 172 × 51 mm axial fan with 20 W power, 3550 RPM, 8 m³/min airflow and 65 dB noise using a high-precision ball bearing

  • TypeCase Fan
  • Delivers 8 m³/min airflow at 3550 RPM
  • Runs on 24 V DC with 1.0 A current draw
  • Consumes 20 W for efficient cooling performance
  • High-precision ball bearing ensures durable operation
  • 172 × 51 mm frame fits standard mounting points

Industrial axial fan for 24 V systems

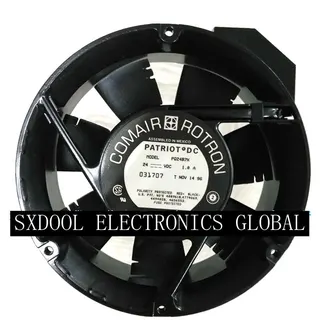

The COMROTON COMAIR PQ24B7X is a 172 mm square axial fan built for 24 V DC power. It draws 1.0 A and runs at 3550 rpm to move 8 m³/min of air through server chassis or industrial enclosures. The high-precision ball bearing supports continuous operation in equipment that demands steady airflow.

20 W draw with 65 dB output

At full speed the fan consumes 20 W while producing a measured noise level of 65 dB. The 51 mm frame depth fits standard 170 mm mounting patterns without protruding beyond typical rack clearances. Thermal load scales directly with the 24 V supply, so acoustic output remains consistent in normal use.

Ball bearing extends service interval

The high-precision ball bearing reduces friction compared with sleeve designs, lowering wear during 24/7 duty cycles. No speed-control cable or PWM header is included, so the unit runs at fixed voltage. Installers should verify 24 V availability and the 170 mm hole pattern before fitting.

Highlights

  • Delivers 8 m³/min airflow at 3550 RPM
  • Runs on 24 V DC with 1.0 A current draw
  • Consumes 20 W for efficient cooling performance
  • High-precision ball bearing ensures durable operation
  • 172 × 51 mm frame fits standard mounting points

Specifications

TypeCase Fan

Questions about this item

How do I mount the 172 mm square fan with 51 mm depth in my chassis?

Align the four corner holes with your case fan mounts, use the supplied screws, and ensure the airflow arrow points toward the interior; the 51 mm thickness can block adjacent drive cages if not checked first.

When will the high-precision ball bearing need replacement under continuous 24 V operation?

The ball bearing is rated for long life at 3550 RPM, but dust buildup on the blades increases load; clean the rotor every six months and plan bearing replacement once noise rises above the specified 65 dB level.

At what point does the 20 W motor hit its thermal limit during sustained 3550 RPM running?

The 24 V 1.0 A design delivers 8 m³/min airflow until internal winding temperature reaches its rated ceiling; in restricted enclosures this limit appears first as reduced RPM and rising noise.
