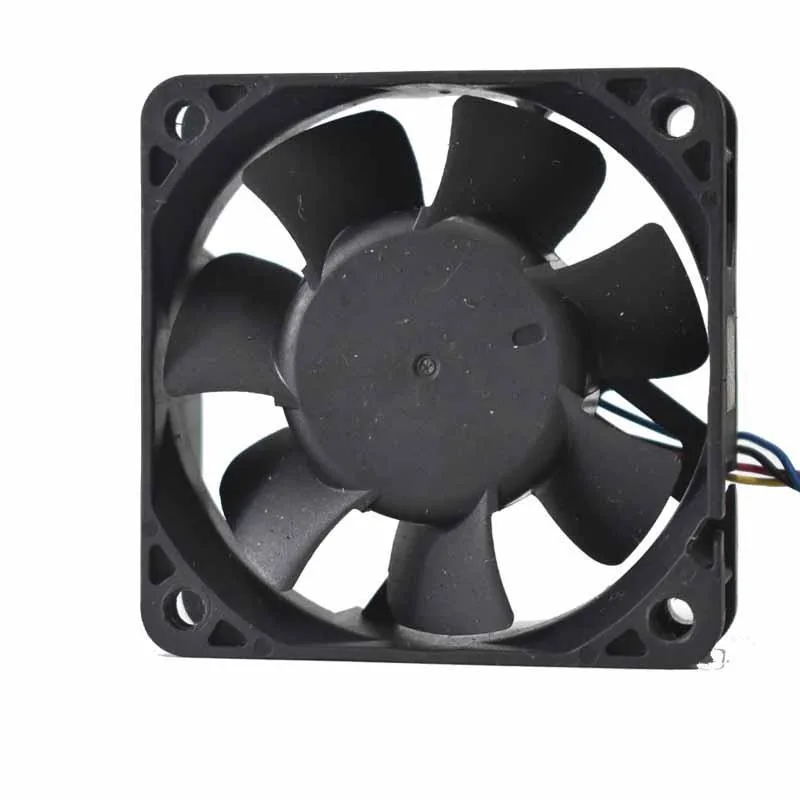

Square black 60mm frame 20mm thick four-pin connector

SXDOOL

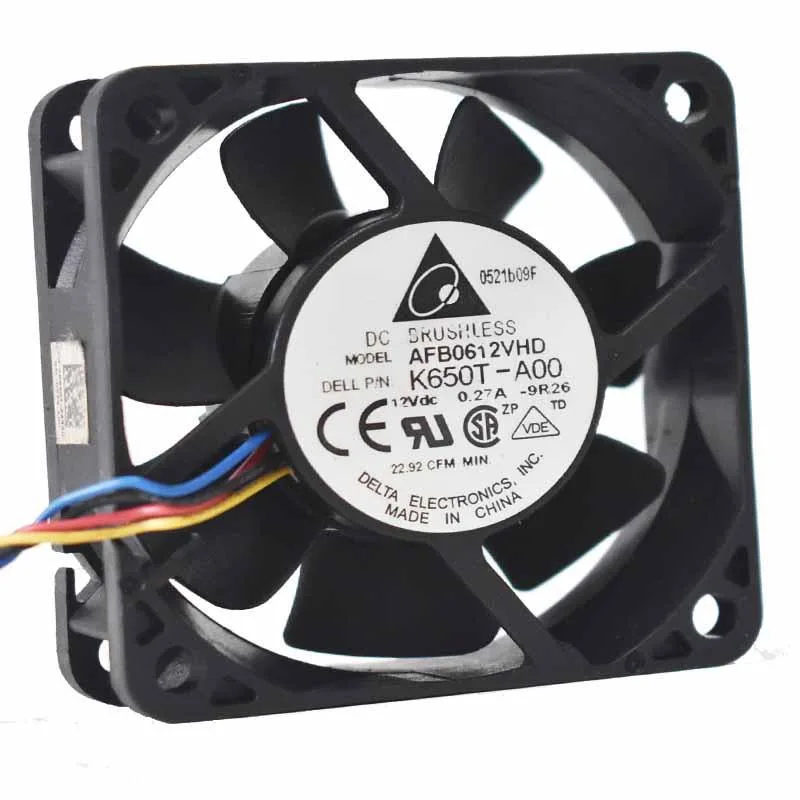

SXDOOL AFB0612VHD 6020 60mm 12V 0.27A 4-pin case fan

SKU CH-94EY-8HWGA

A 60 mm 12 V case fan with double ball bearing, 4800 RPM, 33 dB noise and 50000 hour life

  • TypeCase Fan
  • Efficient 12V operation draws only 0.27A
  • Double ball bearing rated for 50000 hours
  • PWM 4-pin control enables precise speed adjustment
  • 4800 RPM airflow in compact 60mm frame
  • Quiet 33 decibel noise level at full speed

Compact 60 mm 12 V case fan

The SXDOOL AFB0612VHD 6020 is a 60 mm square, 20 mm thick case fan designed for 12 V motherboard headers. It draws 0.27 A and spins at a reference speed of about 4800 RPM. The four-pin connector enables PWM control for automatic speed adjustment. Double ball bearings provide a rated service life of 50000 hours.

20 cm cable and double ball bearings

The 20 cm fan cable reaches nearby headers in tight builds without excess slack. Double ball bearings reduce friction compared to sleeve designs, sustaining the 50000-hour rating at continuous operation. The four-wire interface reports real-time RPM to the motherboard, allowing fan curves to react to temperature changes. No additional software or adapters are included.

Suits small-form-factor and replacement builds

This fan fits 60 mm mounts in compact chassis, rack units or legacy coolers where larger fans cannot install. Builders needing higher static pressure, lower noise than 33 decibels, or longer cables for full-tower routing should consider other models. It is not suited for radiators requiring > 20 mm thickness or high-airflow demands beyond the 4800 RPM reference.

Highlights

  • Efficient 12V operation draws only 0.27A
  • Double ball bearing rated for 50000 hours
  • PWM 4-pin control enables precise speed adjustment
  • 4800 RPM airflow in compact 60mm frame
  • Quiet 33 decibel noise level at full speed

Specifications

TypeCase Fan

Questions about this item

How often will the double ball bearing need replacement during continuous use?

The double ball bearing is rated for 50000 hours of service life before replacement is typically needed.

What speed limit is reached first when the fan runs at full voltage for long periods?

The fan speed reference is about 4800 RPM, which is the maximum sustained speed at 12V.

What noise and power levels should I expect when this fan runs all day at 12V?

Noise reference is 33 decibels and rated current is 0.27A at 12V during continuous operation.
