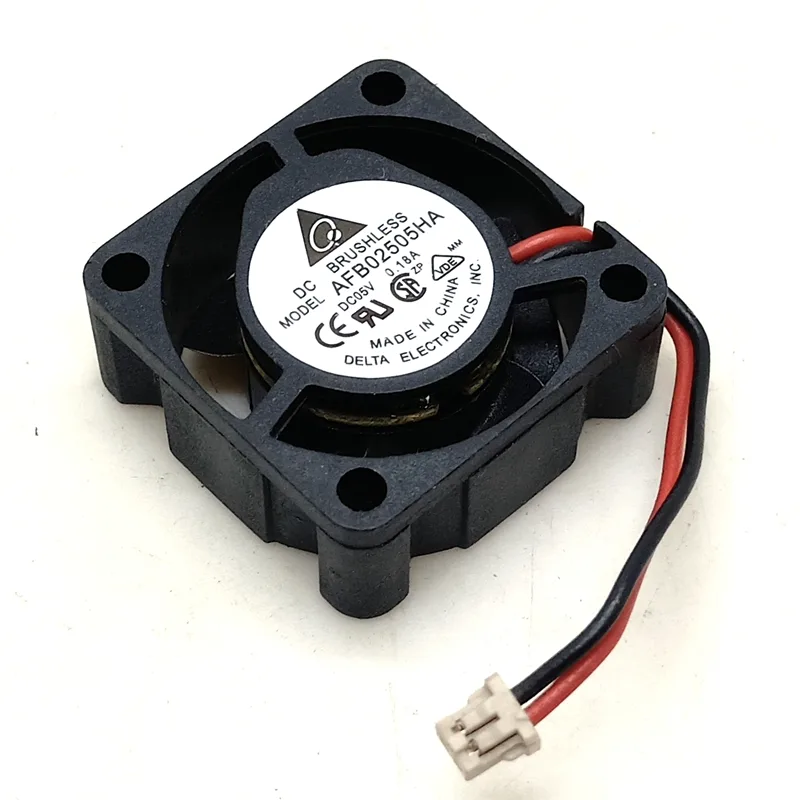

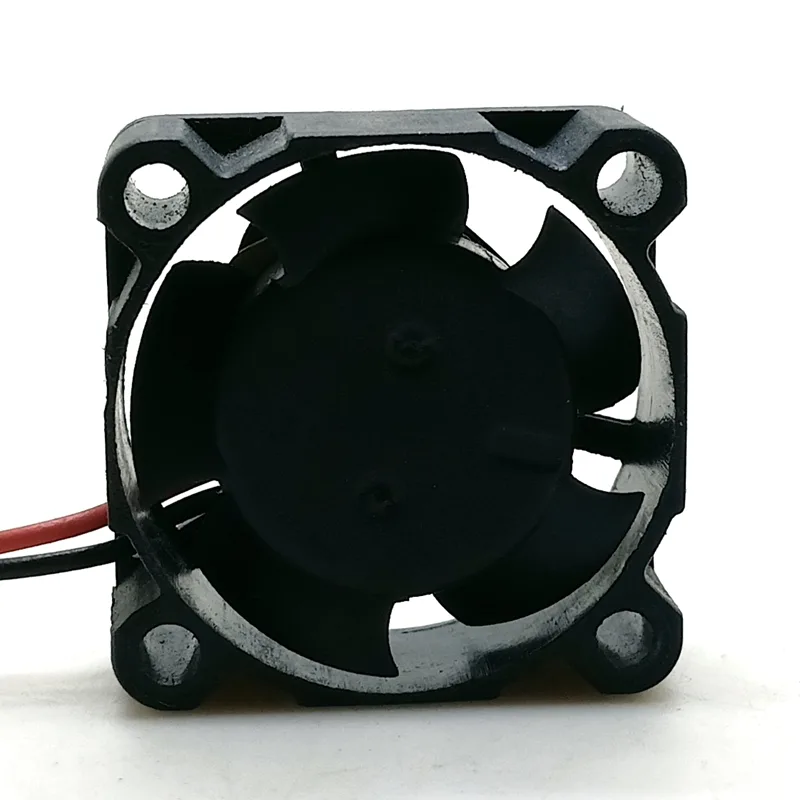

Tiny black 25 mm square fan, 10 mm thick, two-pin power connector

SXDOOL

SXDOOL afb02505ha 25mm 5V 0.18A case fan

SKU CH-WZMA-8Y4VR MPN afb02505ha

A 25 mm dual-ball-bearing case fan running at 5 V and 0.18 A, rated for 180000 hours of continuous operation

  • TypeCase Fan
  • Fan Size25mm
  • Bearing Type2 Ball
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • Ultra-compact 25 mm square footprint fits tight 2.5 cm spaces
  • Dual ball bearings rated for 180000 hours continuous operation
  • Low 5 V 0.18 A draw reduces power load
  • Non-LED black frame keeps builds clean and distraction-free
  • Two-pin connector enables simple plug-and-play installation

25 mm 5 V micro case fan

This 25 mm square fan runs on 5 V DC and draws 0.18 A through a two-pin connector. Dual ball bearings are rated for 180000 hours of continuous operation. The compact 25×25×10 mm frame fits tight server or notebook chassis where larger fans cannot mount. It is a plain black, non-LED cooler for targeted airflow in confined spaces.

Suited for 5 V headers and tight frames

Builders with a 5 V two-pin header and a 25 mm mounting grid can use this fan directly. It is not for systems that lack a 5 V supply or that require PWM speed control. It is also not for cases cut only for larger fan frames or for liquid-cooling radiators that need higher static pressure.

Dual ball bearing rated 180000 hours

The bearing type and rated lifetime are the decisive specification. Dual ball construction supports the 180000-hour continuous-operation figure, which far exceeds typical sleeve-bearing ratings. If your maintenance window demands that endurance, this fan meets it; if a shorter rating is acceptable, other bearing types may cost less.

Highlights

  • Ultra-compact 25 mm square footprint fits tight 2.5 cm spaces
  • Dual ball bearings rated for 180000 hours continuous operation
  • Low 5 V 0.18 A draw reduces power load
  • Non-LED black frame keeps builds clean and distraction-free
  • Two-pin connector enables simple plug-and-play installation

Specifications

TypeCase Fan
Fan Size25mm
Bearing Type2 Ball
Power Connector2 Pin
ColorBlack
LEDNon-LED

Questions about this item

How much heat does the 5 V 0.18 A motor add when the fan runs continuously?

At 0.18 A on 5 V the motor draws under 1 W, so the thermal contribution inside a chassis is negligible even after weeks of non-stop use.

What power header must the motherboard or controller provide for the 2-pin connector?

A standard 5 V two-pin header supplying at least 0.18 A is all that is required; no PWM signal or higher-voltage rail is needed.

Will the 25 mm frame align with the mounting holes on my legacy Delta server tray?

The 25 × 25 × 10 mm dimensions match the Delta AFB02505HA footprint, so existing screw positions line up without adapters.
