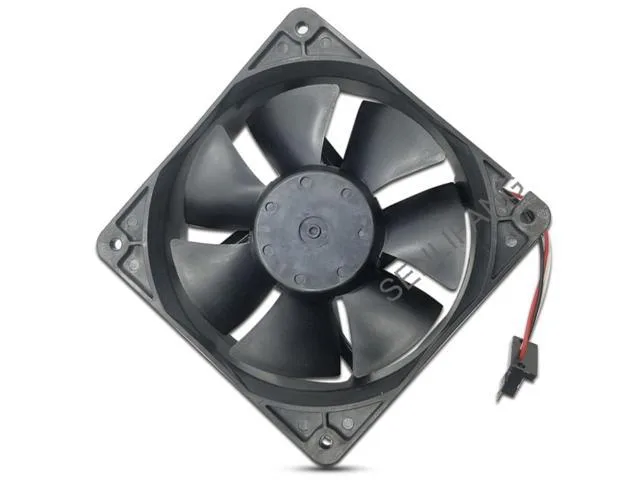

Square black 120mm frame fan with centre hub and mounting holes

SXDOOL

SXDOOL 9WF1224H1D03 120×120×38mm DC24V 0.32A 46dB Case Fan

SKU CH-0VTA-1PPBE

A 120 mm square DC 24 V case fan with double ball bearings delivering up to 300.4 CFM at 46 dB

  • High airflow up to 300.4 CFM for effective cooling
  • Low noise level of 46dB(A) for quiet operation
  • Wide voltage range DC 20.4~27.6V ensures stable performance
  • Double ball bearing design provides maintenance-free reliability
  • Operates in extreme temperatures from -10°C to +70°C

Sanyo SanAce 120WF 24V Double Ball Bearing Fan

The Sanyo SanAce 9WF1224H1D03 is a 120×120×38mm DC24V case fan built with a maintenance-free double ball bearing for long service life. It draws 0.32A at 7.68W and produces an airflow of 254.4 to 300.4 CFM at a noise level of 46dB(A). This new component suits industrial enclosures and high-performance workstations that run a 24V power rail.

Ideal for 24V Industrial Cooling Not 12V Builds

Engineers maintaining Fanuc or similar 24V equipment will find the 20.4–27.6V operating range a direct match. System builders using standard 12V motherboard headers cannot power this fan without a separate 24V supply or converter. Buyers needing PWM speed control or 12V operation should select a different model.

46dB(A) at Full Speed Decides Fit

At 46dB(A) the fan is audible in quiet rooms, so it belongs in server closets, rack cabinets or noise-tolerant workshops rather than silent desktop PCs. The double ball bearing and wide temperature rating of -10°C to +70°C support continuous duty in harsh environments.

Highlights

  • High airflow up to 300.4 CFM for effective cooling
  • Low noise level of 46dB(A) for quiet operation
  • Wide voltage range DC 20.4~27.6V ensures stable performance
  • Double ball bearing design provides maintenance-free reliability
  • Operates in extreme temperatures from -10°C to +70°C

Specifications

No published specifications for this item yet.

Questions about this item

What does 46 dB(A) sound like inside a typical chassis?

At 46 dB(A) the fan is clearly audible but not loud; in a closed case it sits at a moderate hum comparable to a quiet office, and the double ball bearing keeps the tone steady without rattling over time.

How does the DC 20.4–27.6 V range limit the fan in a standard 24 V circuit?

The fan is rated for 24 V nominal and will run reliably anywhere between 20.4 V and 27.6 V, so a regulated 24 V rail or industrial 24 V supply stays well inside the window without extra regulation.

Will the 120 × 120 × 38 mm frame fit a standard 120 mm mounting grid?

Yes — the 120 mm square footprint matches the common 120 mm hole pattern, but the 38 mm thickness is deeper than typical 25 mm case fans, so verify your chassis or radiator has the extra clearance before installing.
