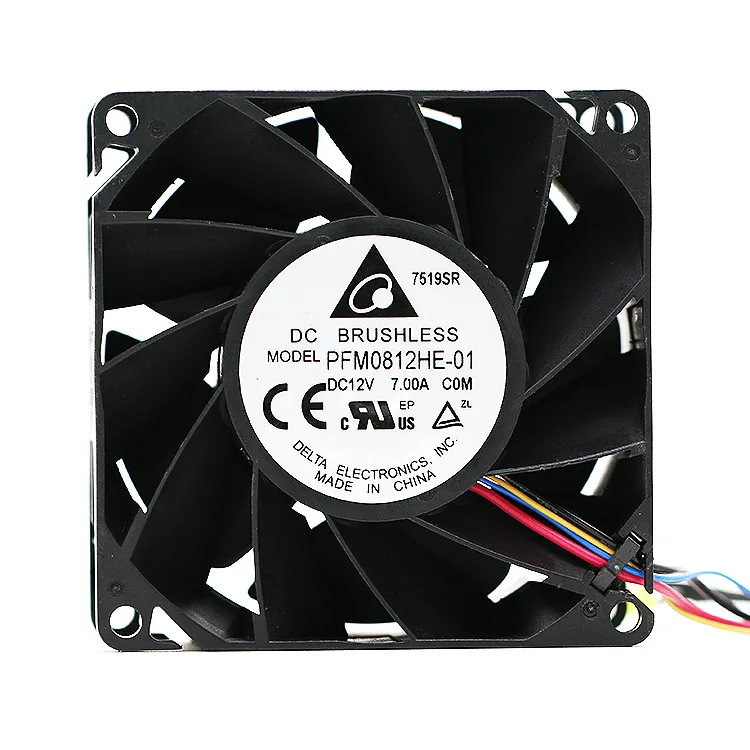

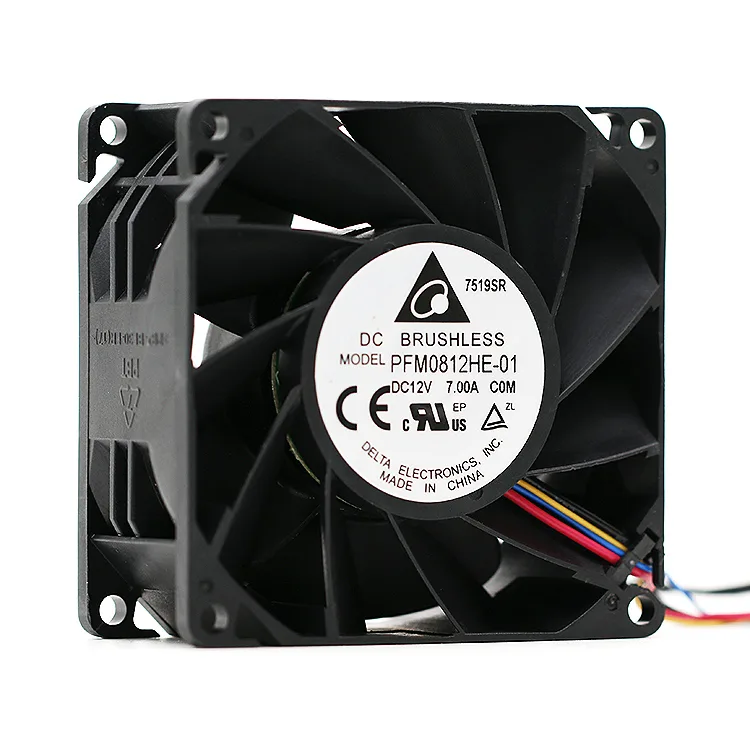

Black 80 mm square frame 38 mm thick axial fan with 4-pin PWM connector

SXDOOL

SXDOOL 80mm 16300 RPM 4-Pin PWM Case Fan

SKU CH-5E6J-NZX13

An 80 mm case fan delivering 16 300 RPM and 129.4 CFM through a 4-pin PWM connector with dual-ball bearings

  • TypeCase Fan
  • Fan Size80mm
  • Bearing Type2 Ball
  • RPM>7000 RPM
  • Air Flow>80 CFM
  • Noise Level> 50 dBA
  • High airflow of 129.4 CFM for intensive server cooling
  • 16300 RPM maximum speed delivers extreme thermal performance
  • Dual ball bearing design ensures long operational life
  • 4-pin PWM connector enables precise automatic speed control
  • Operates reliably from -10 °C to 70 °C ambient temperature

High-Speed 80mm Server Fan

The SXDOOL 80mm 16300 RPM 4-Pin PWM case fan is a new 80x80x38mm axial cooler built for high-static-pressure airflow in server and workstation environments. It delivers 129.4 CFM at 16300 RPM using a dual-ball bearing and PWM speed control with a tachometer signal. The unit draws 51.6W at 12V DC with a 7.00A rating and operates between -10 and 70°C.

Suited For Loud High-Density Cooling

This fan suits builders who need maximum airflow through restrictive heatsinks or dense drive cages and can accommodate a 38mm thick frame with a 4-pin PWM header. It is not suited for quiet desktop builds, noise-sensitive studios, or any chassis limited to thinner fan slots or 3-pin voltage control.

38mm Thickness Decides Fit

The single specification that decides compatibility is the 38mm frame width; the fan will only mount in bays or brackets designed for that exact depth. Verify your chassis clearance and 4-pin PWM header availability before purchase.

Highlights

  • High airflow of 129.4 CFM for intensive server cooling
  • 16300 RPM maximum speed delivers extreme thermal performance
  • Dual ball bearing design ensures long operational life
  • 4-pin PWM connector enables precise automatic speed control
  • Operates reliably from -10 °C to 70 °C ambient temperature

Specifications

TypeCase Fan
Fan Size80mm
Bearing Type2 Ball
RPM>7000 RPM
Air Flow>80 CFM
Noise Level> 50 dBA
Power Connector4 Pin
ColorBlack
LEDNon-LED

Questions about this item

Does the box include mounting screws or a fan filter?

The fan ships alone; mounting screws and any filter must be sourced separately.

Should I pick the 7000 RPM or the 16300 RPM spec?

16300 RPM ±10 % is the true maximum; the 7000 RPM figure is a lower reference point.

What does 129.4 CFM and 4.969 inch H₂O mean for my case?

It moves 3.62 m³/min at 1237.8 Pa static pressure — strong airflow but 77 dB(A) noise.
