Square 80mm case fan with black frame and transparent blades, 25mm thick, two-pin connector

SXDOOL

SXDOOL 3110KL-04W-B50 80mm 12V case fan

SKU CH-ZPMN-DD5KV MPN 3110KL-04W-B50

An 80 mm square case fan running at 3250 RPM, delivering 38.8 CFM airflow at 34 dBA noise with a 50,000-hour rated life

  • Fan Size80mm
  • Power Connector2 Pin
  • Compact 80 mm frame fits tight server bays
  • 3250 RPM delivers 38.8 CFM airflow
  • 34 dBA keeps acoustic profile low
  • 12 V 0.30 A draws only 3.6 W power
  • Rated 50000 hours at up to 75 °C

Compact 80 mm 12 V case fan

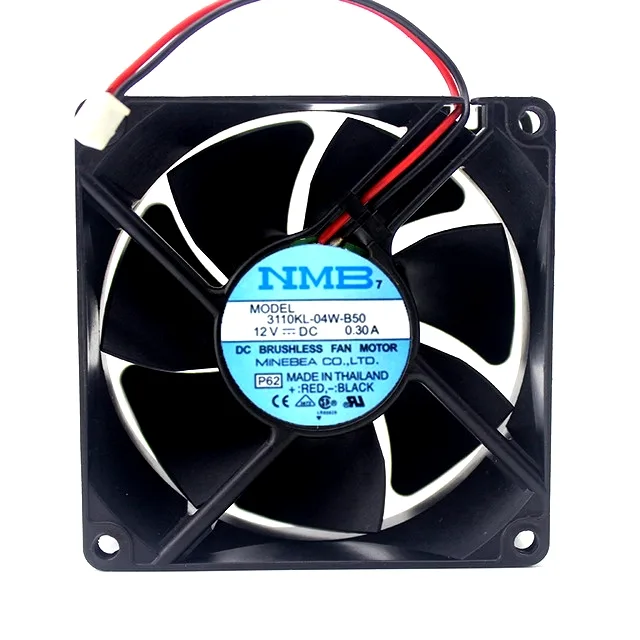

The SXDOOL 3110KL-04W-B50 is an 80 mm square frame fan designed for 12 V DC systems. It draws 0.30 A for 3.6 W of power and spins at 3250 RPM. The unit suits servers or compact enclosures that need directed airflow in a small footprint.

Two-pin power and 25 mm depth

A 2-pin connector supplies power without speed reporting or PWM control. The frame measures 80 × 80 × 25 mm and weighs 95 g, fitting standard 8025 mounting holes. Operation is rated from -20 °C to 75 °C with a 50,000-hour life expectancy.

Fixed-speed airflow limits

At 3250 RPM the fan delivers 38.8 CFM (1.1 m³/min) at 37.2 Pa static pressure while producing 34 dBA noise. The constant speed cannot be lowered by the motherboard, so noise and airflow remain at peak levels whenever the fan is powered. Builders who need variable speed or quieter idle operation should choose a PWM model.

Highlights

  • Compact 80 mm frame fits tight server bays
  • 3250 RPM delivers 38.8 CFM airflow
  • 34 dBA keeps acoustic profile low
  • 12 V 0.30 A draws only 3.6 W power
  • Rated 50000 hours at up to 75 °C

Specifications

Fan Size80mm
Power Connector2 Pin

Questions about this item

What airflow does the 2-pin 12 V connector deliver at 3250 RPM?

The 2-pin 12 V connector powers the fan to 3250 RPM, moving 38.8 CFM (1.1 m³/min) with 37.2 Pa static pressure at 34 dBA.

What are the exact frame dimensions and weight for mounting clearance?

The square frame measures 80 mm per side and 25 mm thick, weighing 95 g.

How is the 2-pin connector installed, and what polarity mistake should be avoided?

Align the red wire to +12 V and black to ground on the motherboard or controller header; reversing them will prevent the fan from spinning.
