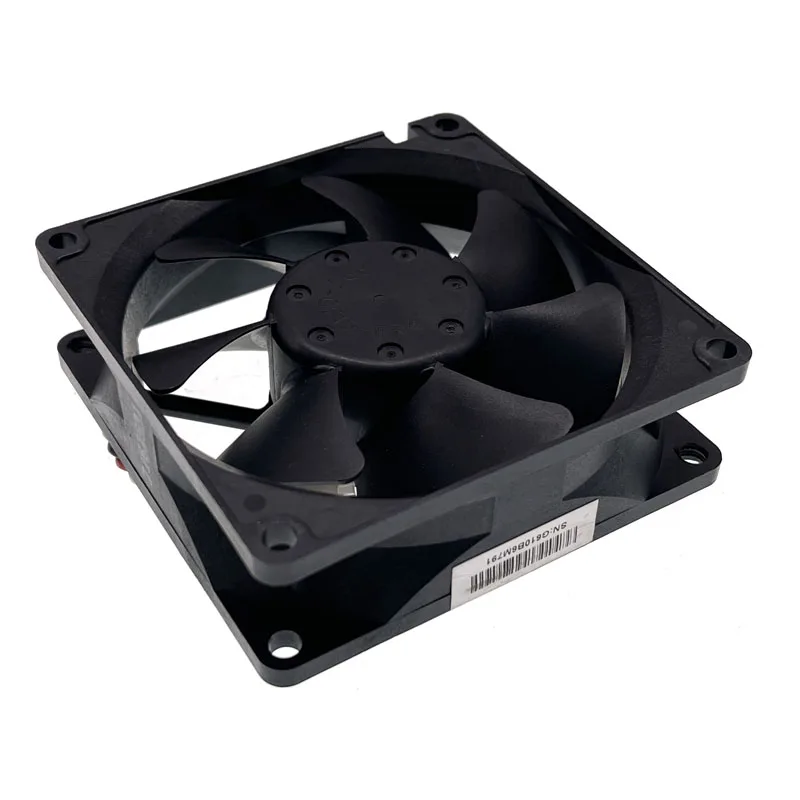

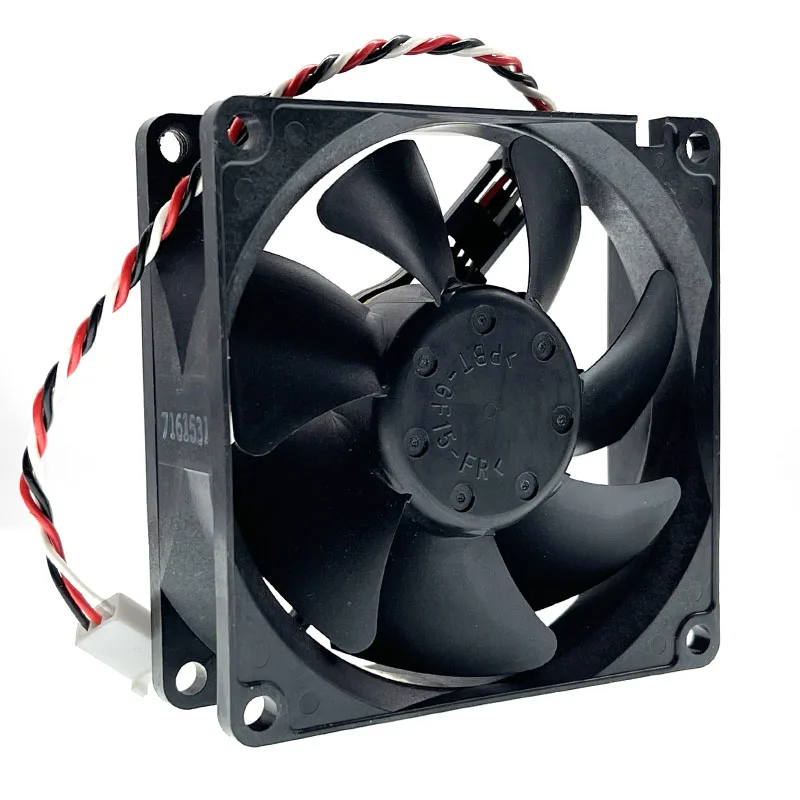

Black 80mm square case fan, 25mm thick, three-pin connector, no LEDs

SXDOOL

SXDOOL 3110gl-b4w-b79 80mm 12V 3-pin case fan

SKU CH-RE5Z-6765T MPN 3110gl-b4w-b79

80 mm 12 V case fan with dual-ball bearing, 3-pin tachometer connector, 4200 RPM and 49.6 CFM airflow at 45.6 dBA

  • TypeCase Fan
  • Fan Size80mm
  • Bearing Type2 Ball
  • RPM4000-4499 RPM
  • Air Flow45-50 CFM
  • Noise Level45 - 50 dBA
  • Dual-ball bearing rated 70000 hours for long service life
  • 4200 RPM delivers 49.6 CFM airflow through tight spaces
  • 3-pin tachometer connector enables motherboard speed monitoring
  • 12 V DC operation across 6.0–13.8 V range fits standard headers
  • Compact 80 × 80 × 25 mm frame suits small-form-factor builds

Compact 80 mm 12 V case fan

The SXDOOL 3110gl-b4w-b79 is an 80 mm frame fan that runs on 12 V DC and connects through a standard 3-pin header. Dual ball bearings and a rated speed of 4200 RPM deliver 49.6 CFM of airflow for targeted component cooling.

Check header voltage and mounting space

Verify that your motherboard or fan controller provides a 3-pin 12 V header and that the chassis offers an 80 × 80 mm mounting pattern with 25 mm depth clearance. The lead length is 14 cm so confirm the cable reaches the header without strain.

Replaces worn 80 mm sleeve-bearing fans

This unit suits builders swapping out ageing 80 mm sleeve-bearing fans that have become noisy or lost RPM. The 70000-hour dual-ball rating and 45.6 dBA output make the upgrade worthwhile when sustained high airflow matters more than silent operation.

Highlights

  • Dual-ball bearing rated 70000 hours for long service life
  • 4200 RPM delivers 49.6 CFM airflow through tight spaces
  • 3-pin tachometer connector enables motherboard speed monitoring
  • 12 V DC operation across 6.0–13.8 V range fits standard headers
  • Compact 80 × 80 × 25 mm frame suits small-form-factor builds

Specifications

TypeCase Fan
Fan Size80mm
Bearing Type2 Ball
RPM4000-4499 RPM
Air Flow45-50 CFM
Noise Level45 - 50 dBA
Power Connector3 Pin
ColorBlack
LEDNon-LED

Questions about this item

Does the fan ship with mounting screws or must they be purchased separately?

The package contains the 80 × 80 × 25 mm fan with a 14 cm 2510 3-pin lead; mounting screws are not included and must be sourced separately.

The spec lists 4 200 RPM and 49.6 CFM — is that the only speed option or are lower-voltage versions available?

This model is the 12 V 3110GL-B4W-B79 rated at 4 200 RPM ± 5 % and 49.6 CFM; no other voltage or speed variants are offered for this part number.

At 4 200 RPM and 45.6 dBA, how loud will the fan be inside a typical mid-tower case?

Expect a clearly audible 45.6 dBA at full speed; the 3-pin connector allows voltage control so the motherboard can reduce RPM and noise when full airflow is not needed.
