SXDOOL

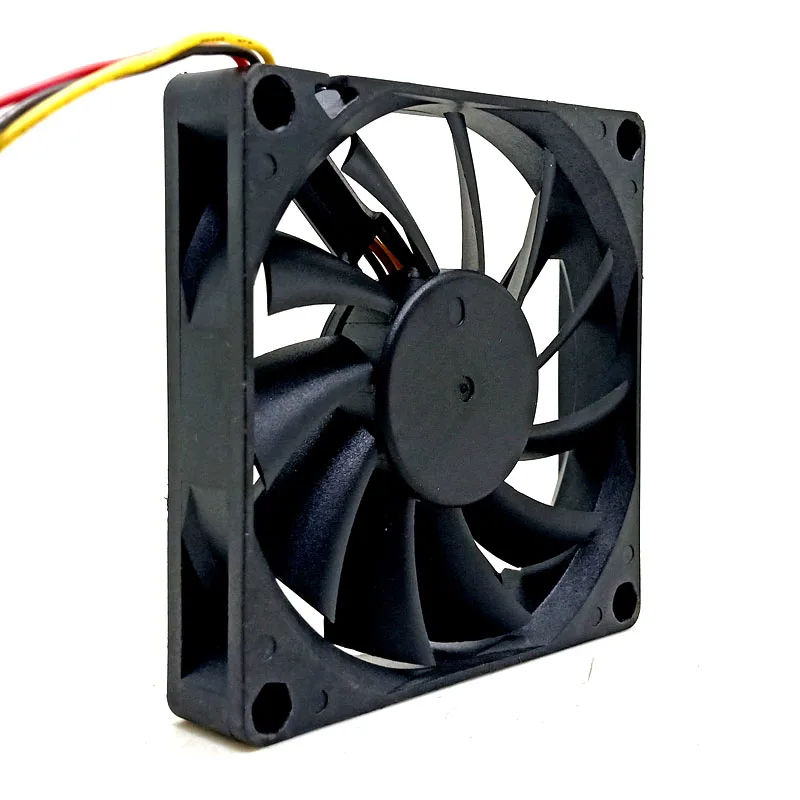

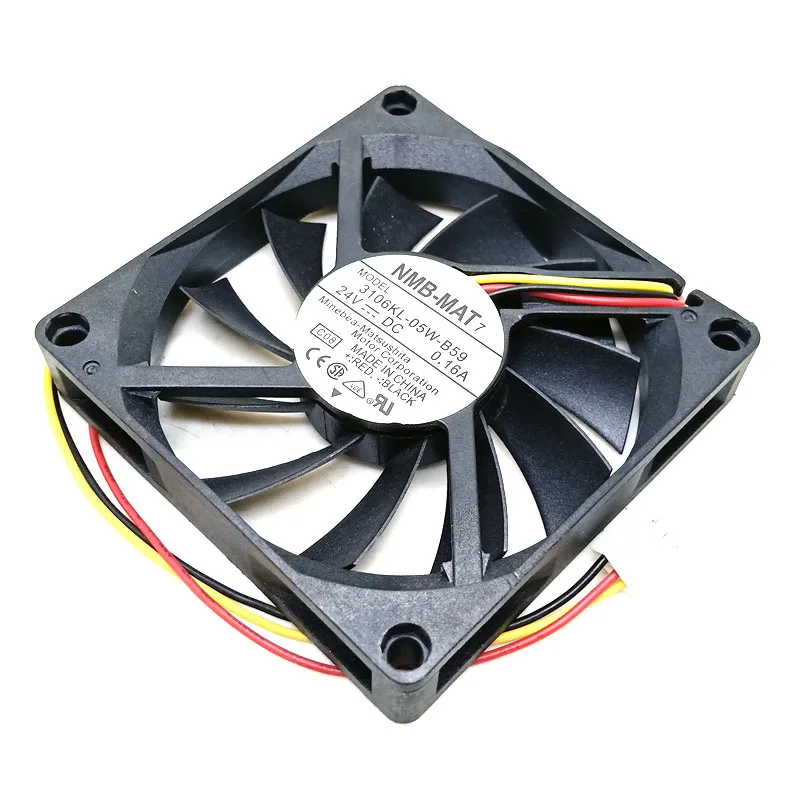

SXDOOL 3106kl-05w-b59 80mm 24V 15mm case fan
An 80 mm, 15 mm slim case fan running on 24 V with dual ball bearings, delivering 32.8 CFM at 3000 RPM and 34 dBA noise
- TypeCase Fan
- Fan Size80mm
- Bearing Type2 Ball
- RPM3000-3499 RPM
- Air Flow30-35 CFM
- Noise Level30 - 35 dBA
- Slim 15 mm profile fits tight server chassis
- 24 V DC power draws only 0.12 A in operation
- Double ball bearing rated for continuous 3000 RPM duty
- 8 CFM airflow clears heat from dense PCB layouts
- 34 dBA noise keeps rack environments quiet
Compact 80 mm 24 V fan for tight enclosures
The SXDOOL 3106kl-05w-b59 is an 80 mm square frame fan only 15 mm deep, designed for 24 V DC systems such as server cabinets, inverter units and dense PCB racks where vertical clearance is minimal. Its double ball bearing and 0.16 A rating target continuous duty in industrial environments.
Suited for 24 V industrial builds not
Engineers specifying 24 V cooling for rackmount gear, telecom shelves or embedded chassis will match the voltage and three-pin connector directly. Builders using standard 12 V ATX headers or expecting four-pin PWM control should look elsewhere, as the fan lacks both the voltage compatibility and the speed-reporting wire.
3000 RPM at 24 V delivers 32.8 CFM
At the rated 3000 RPM the impeller moves 32.8 CFM against 29.9 Pa static pressure while drawing 0.12 A actual current, a single operating point that determines whether airflow meets the thermal budget of the target enclosure.
Highlights
- Slim 15 mm profile fits tight server chassis
- 24 V DC power draws only 0.12 A in operation
- Double ball bearing rated for continuous 3000 RPM duty
- 8 CFM airflow clears heat from dense PCB layouts
- 34 dBA noise keeps rack environments quiet
Specifications
| Type | Case Fan |
|---|---|
| Fan Size | 80mm |
| Bearing Type | 2 Ball |
| RPM | 3000-3499 RPM |
| Air Flow | 30-35 CFM |
| Noise Level | 30 - 35 dBA |
| Power Connector | 3 Pin |
| Color | Black |
| LED | Non-LED |
Questions about this item
Will the 24 V 0.16 A rating be the limiting factor under sustained load?
The fan draws 0.12 A in practice, so the 0.16 A rating provides headroom for continuous 24 V operation.
How loud and hot does the 3000 RPM double-ball bearing get after hours of running?
Noise stays at 34 dBA and power draw is only 2.88 W, so heat output remains low during all-day use.
Does my system need a 3-pin 24 V header to run this 80 mm slim fan?
Yes, the 3-pin connector requires a 24 V DC source; a standard 12 V motherboard header will not work.
