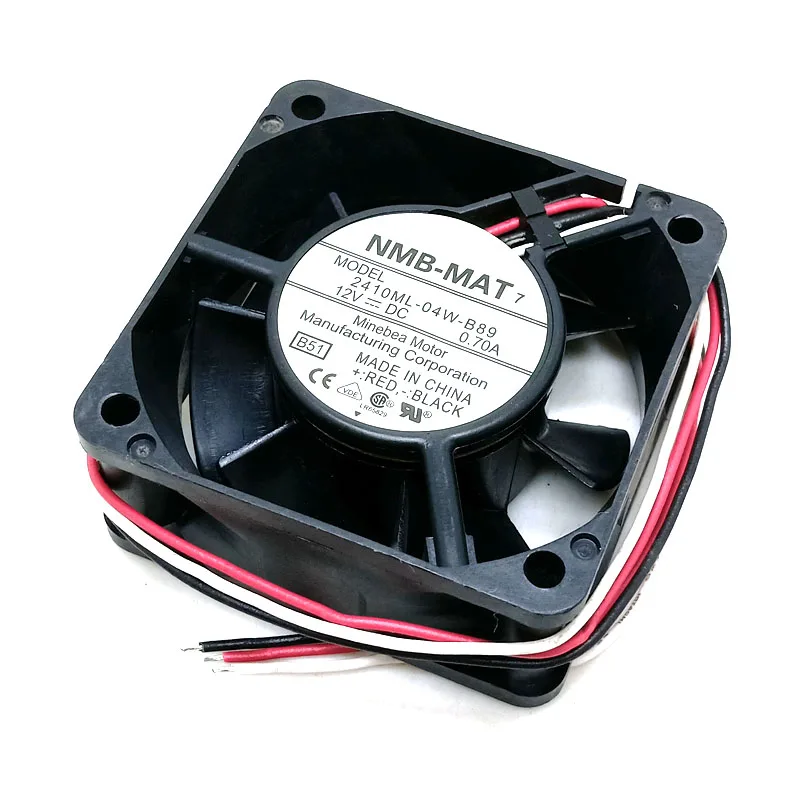

Black 60mm square case fan with transparent blades and three-pin connector

SXDOOL

SXDOOL 2410ml-04w-b89 60mm 12V 6500RPM case fan

SKU CH-3DZP-1DY3F MPN 2410ml-04w-b89

60 mm dual-ball-bearing fan spins at 6500 RPM to push 45–50 CFM through tight server or PSU housings

  • TypeCase Fan
  • Fan Size60mm
  • Bearing Type2 Ball
  • RPM6500-6999 RPM
  • Air Flow45-50 CFM
  • Power Connector3 Pin
  • High airflow of 45 to 50 CFM cools dense server PSUs efficiently
  • 6500 RPM dual-ball bearing spins fast with 100000-hour MTTF reliability
  • 12 V 0.70 A motor draws 8.4 W for strong thermal performance
  • 60 mm x 25 mm frame fits standard server and PSU mounting holes
  • 3-pin connector supports speed regulation for flexible cooling control

What this fan fits

The SXDOOL 2410ml-04w-b89 is a 60mm square, 25mm thick case fan designed for server power supplies and tight industrial chassis. It targets builders who need a direct replacement for an NMB 6025 frame in a 12V environment.

The spec that decides fit

A three-pin connector carries both power and a tachometer signal for speed regulation, while the double-ball bearing is rated for 100000 hours MTTF at 6500 RPM and 45.6 CFM. If your header is two-pin only or your mount pattern differs from 60mm centres, this unit will not work.

Install notes

Four corner screws align with standard 60mm holes; no special tools are required beyond a Phillips driver. The most common issue is cable length — the three-wire lead is short for full-tower routing, so plan the path before seating the fan.

Highlights

  • High airflow of 45 to 50 CFM cools dense server PSUs efficiently
  • 6500 RPM dual-ball bearing spins fast with 100000-hour MTTF reliability
  • 12 V 0.70 A motor draws 8.4 W for strong thermal performance
  • 60 mm x 25 mm frame fits standard server and PSU mounting holes
  • 3-pin connector supports speed regulation for flexible cooling control

Specifications

TypeCase Fan
Fan Size60mm
Bearing Type2 Ball
RPM6500-6999 RPM
Air Flow45-50 CFM
Power Connector3 Pin
ColorBlack
LEDNon-LED

Questions about this item

What does 6500 RPM mean once the fan is installed in a real machine?

The fan spins at 6500 RPM and moves 45.6 CFM of air, delivering high airflow for server PSU or tight industrial cooling spots.

What does the 3‑pin connector cap in practice?

The three‑wire lead supports speed regulation so the motherboard or controller can vary voltage and lower RPM when full flow is not needed.

What physical space does the 60×60×25 mm frame need to fit?

It requires a standard 60 mm square mounting hole pattern with 25 mm clearance behind the frame for the motor body.
