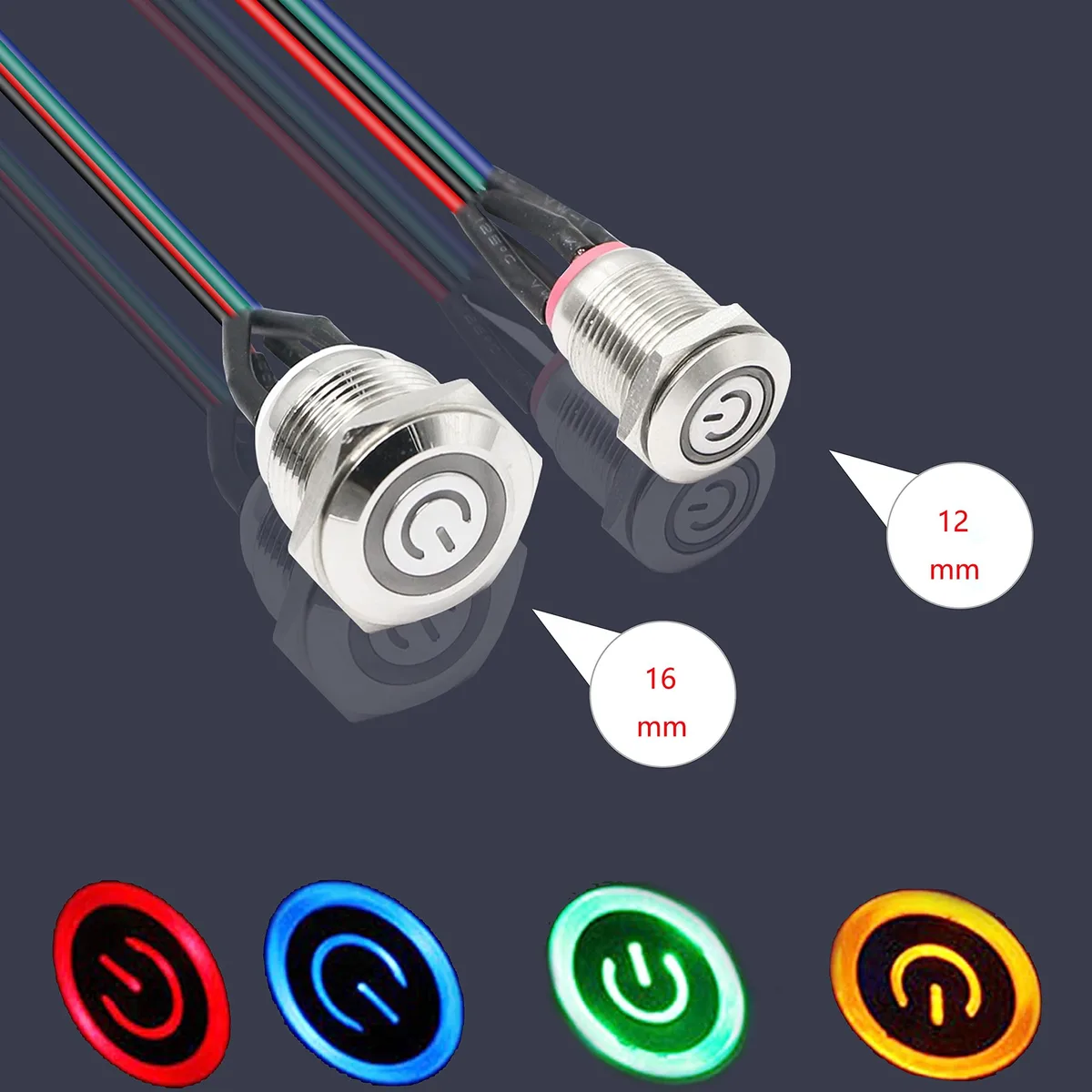

Blue metal push button with LED, 60cm cable, 12mm panel mount

Switch Gear 12mm 60cm 250V IP65

SKU CH-PMCB-DWEXC

A 12 mm panel-mount push button with blue LED and 60 cm cable for ATX power or reset switching, rated IP65 and 250 V

  • TypePush Buttons
  • Switch FunctionON-OFF
  • Voltage250 volts
  • Housing MaterialAluminum Alloy,Nickel,Metal
  • Mounting StylePanel Mount
  • Size/Dimensions1.1 cm x 9.6 cm x 15.6 cm
  • IP65 rated for dust and water resistance
  • 12 mm panel mount fits standard case cut-outs
  • 60 cm cable reaches motherboard headers easily
  • Nickel-plated aluminium alloy withstands repeated use
  • Built-in LED shows power state at a glance

Panel-mount ATX power switch

This panel-mount push button replaces a damaged or missing front-panel power switch on a desktop computer with an ATX supply and standard motherboard headers. The 12 mm nickel-plated aluminium alloy actuator fits a standard chassis cut-out and includes a blue LED that lights when the system is powered on.

IP65 aluminium housing and 60 cm lead

The switch body is rated IP65, resisting dust and low-pressure water jets, while the 60 cm two-wire cable reaches most motherboard header locations without strain. A momentary ON-OFF action connects to the POWER or RESET pins, and the built-in resistor drives the LED from a 3–6 V header supply at roughly 20 mA.

3 A switching limit at 250 V AC/DC

The contacts are rated for a maximum of 3 A at 250 V AC or DC, so the switch must not be used to carry primary PSU output currents or high-power peripheral loads. It is intended solely for low-current motherboard signalling; builders needing a higher-current mains interlock or a latching mechanism should select a different component.

Highlights

  • IP65 rated for dust and water resistance
  • 12 mm panel mount fits standard case cut-outs
  • 60 cm cable reaches motherboard headers easily
  • Nickel-plated aluminium alloy withstands repeated use
  • Built-in LED shows power state at a glance

Specifications

TypePush Buttons
BrandXMSJSIY
Switch FunctionON-OFF
Voltage250 volts
Housing MaterialAluminum Alloy,Nickel,Metal
Mounting StylePanel Mount
Size/Dimensions1.1 cm x 9.6 cm x 15.6 cm
MaterialAluminum
Standards/CertificationsIP65, Ip65
Horsepower3
Operating Temperature-20 degrees_celsius
Color/FinishBlue
Operating Frequencynot_applicable
Actuation TypePush Button
DutyComputers with ATX power supply and standard motherboard connectors
Compatibility/FitmentComputers with ATX power supply and standard motherboard connectors
Resolution1
Color DisplayBlue
FeaturesComputers with ATX power supply and standard motherboard connectors

Questions about this item

What voltage and current does the 12 mm switch handle?

The 12 mm switch is rated for AC or DC 220 V at 3 A maximum.

What panel cutout and wire length are needed to mount this button?

It requires a 12 mm panel cutout and includes a 60 cm (23.6 in) cable.

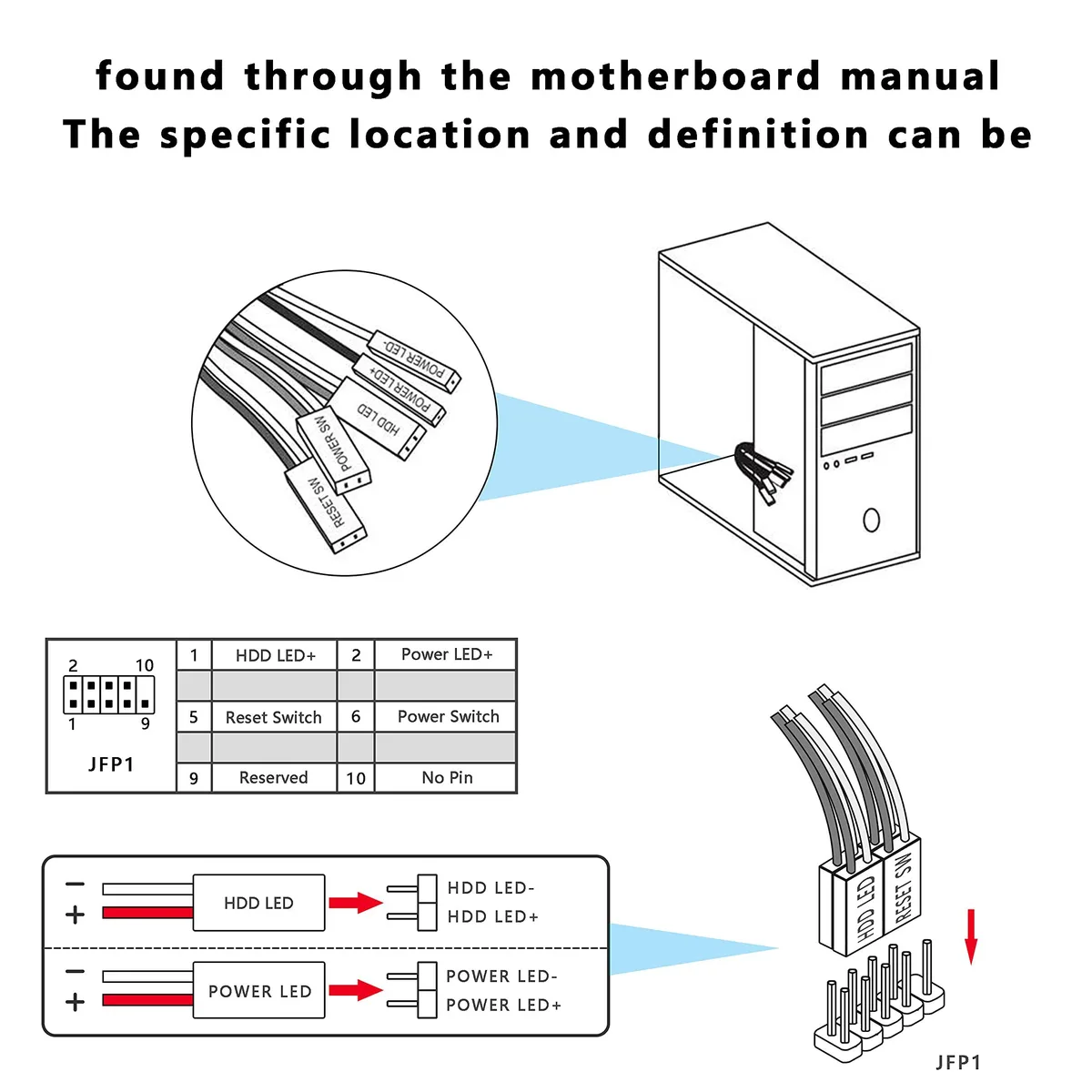

How do I connect the LED leads to the motherboard headers?

Plug one end into the motherboard POWER or RESET jack and the other end to the chassis panel; the LED uses a built-in resistor for 3-6 V at 20 mA.
