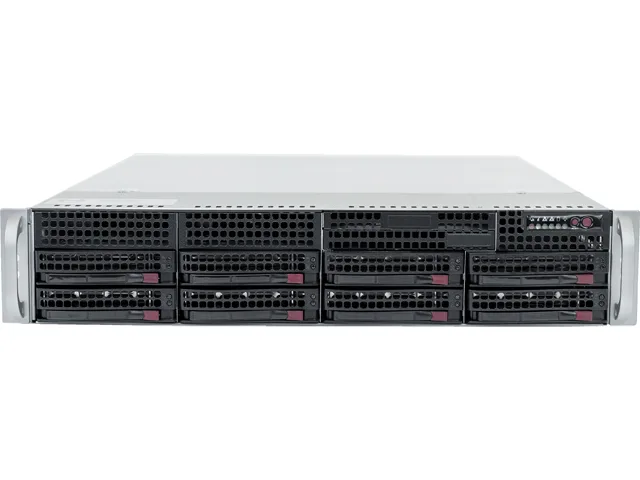

Silver 2U rackmount server chassis with eight front drive bays

Supermicro

Supermicro SYS-620P-TR 2U rackmount barebone server

SKU CH-27Q2-YMA16 MPN SYS-620P-TR

A 2U rackmount barebone supporting dual Xeon CPUs, 18 DDR4 slots up to 4 TB ECC memory, six PCIe 4.0 slots and eight 3.5-inch hot-swap bays

  • Form Factor2U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeIntel Xeon
  • CPU SocketLGA 4189
  • Installed CPUNo CPU Installed
  • Max Processors2
  • Supports dual Intel Xeon processors for scalable compute
  • 18 DDR4 3200MHz ECC slots enable up to 4TB memory
  • Six PCIe 4.0 slots plus M.2 NVMe for flexible expansion
  • Eight 3.5-inch hot-swap bays provide high-density storage
  • ASPEED AST2600 BMC with dedicated IPMI LAN simplifies remote management

2U Rackmount Barebone for Dual Xeon

The Supermicro SYS-620P-TR is a 2U rackmount server barebone designed for general-purpose workloads. It supports up to two Intel Xeon processors in LGA 4189 sockets and provides eighteen DDR4 3200MHz ECC memory slots for a maximum capacity of 4TB. The chassis includes eight 3.5-inch hot-swap drive bays and an ASPEED AST2600 BMC for out-of-band management.

Virtualisation and Compute Targets

This platform suits teams building virtualisation hosts, enterprise application servers or compute-intensive nodes that need dual-socket density in a 2U form factor. Organisations requiring single-socket economy, higher single-thread clocks or integrated high-speed networking beyond one gigabit should evaluate alternative chassis designs.

Six PCIe 4.0 Slots Define Expansion

The single specification that decides fit is the fixed PCIe 4.0 lane layout: one x8 low-profile slot, four x16 low-profile slots, one additional x8 low-profile slot and one M.2 NVMe connector. All add-in cards must conform to low-profile height and the available lane widths.

Highlights

  • Supports dual Intel Xeon processors for scalable compute
  • 18 DDR4 3200MHz ECC slots enable up to 4TB memory
  • Six PCIe 4.0 slots plus M.2 NVMe for flexible expansion
  • Eight 3.5-inch hot-swap bays provide high-density storage
  • ASPEED AST2600 BMC with dedicated IPMI LAN simplifies remote management

Specifications

BrandSUPERMICRO
SeriesSuperServer
ModelSYS-620P-TR
Form Factor2U Rackmount
WorkloadGeneral Purpose Server
CPU TypeIntel Xeon
CPU SocketLGA 4189
Installed CPUNo CPU Installed
Max Processors2
Memory Slots18 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory Supported4TB
Memory Type SupportedDDR4 3200MHz ECC LRDIMM/RDIMM
ECC SupportedYes
GPU/VPUASPEED AST2600 BMC
PCI ExpressSlot 1: PCI-E 4.0 x8 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP
1 x M.2 NVMe
Max. LAN Speed1 Gigabit
Hot-Swap Bays8 x 3.5" hot-swap fixed optional drive bays
Front USB2 x USB 2.0
COM2 COM Port(s) (1 front; 1 rear)
VGA1
Rear USB4 x USB 3.0
RJ451 Dedicated IPMI LAN port
Dimensions3.50" x 17.20" x 25.50"
Weight35.50 lbs.
Shipping weight27.53 kg
Package size876 × 678 × 290 mm

Questions about this item

Should I choose the single-processor or dual-processor configuration for the SYS-620P-TR?

The barebone supports up to two Intel Xeon CPUs in LGA 4189 sockets; install one or two depending on the core count and memory capacity your workloads require.

What does the 4 TB maximum memory mean when the server is assembled?

Eighteen DDR4 3200 MHz ECC slots accept RDIMM or LRDIMM modules, so total capacity scales with the number and density of DIMMs you populate across both processors.

How does the PCI-E 4.0 x16 slot count limit expansion cards?

Four low-profile PCI-E 4.0 x16 slots and two x8 slots provide up to six add-in cards, while a single M.2 NVMe slot handles local flash storage.
