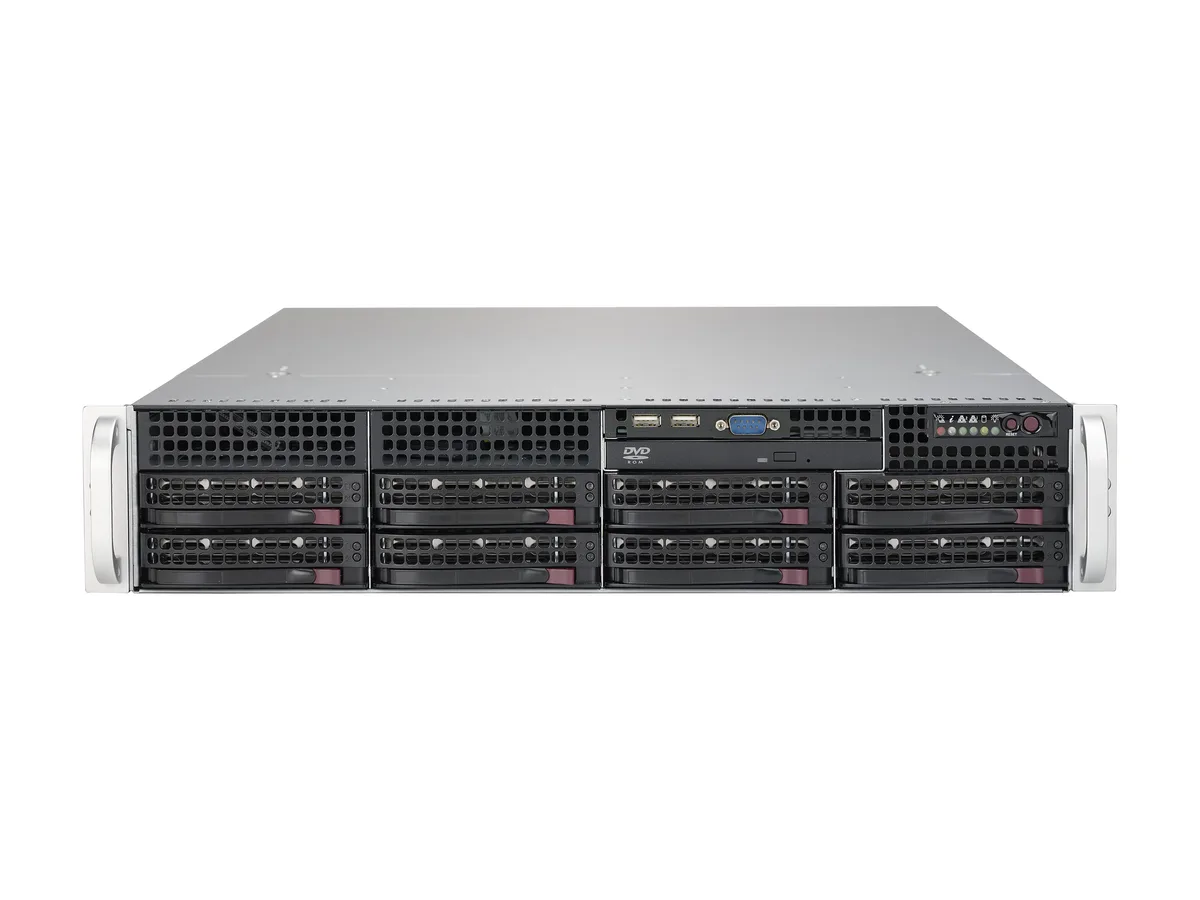

Silver 2U rackmount server chassis with eight front drive bays

Supermicro

Supermicro SYS-6029P-TRT 2U barebone server

SKU CH-PBSN-W9SZK MPN SYS-6029P-TRT

A 2U rackmount barebone with dual LGA 3647 sockets, 16 DDR4 DIMM slots, eight 3.5-inch hot-swap bays and dual 10GbE LAN

  • CPU TypeIntel Xeon Scalable Processors Dual UPI up to 10.4GT/s Suppo
  • CPU SocketDual LGA 3647
  • North BridgeIntel C622
  • Max Memory SupportedUp to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666 M
  • Memory Type SupportedDDR4 2666 / 2400 / 2133 MHz ECC SDRAM
  • ECC SupportedYes
  • Dual Intel Xeon Scalable sockets for high compute density
  • 16 DDR4 DIMM slots support up to 2TB ECC memory
  • Eight hot-swap 3.5" SATA bays with RAID 0/1/5/10
  • Dual 10 Gigabit Ethernet ports via Intel X722 controllers
  • 1000W redundant Titanium power supplies with PMBus monitoring

Dual-socket Xeon Scalable barebone

The Supermicro SYS-6029P-TRT is a 2U rackmount server barebone built around two LGA 3647 sockets for Intel Xeon Scalable processors. It targets organisations that need a dense compute platform for virtualization, data processing or cloud workloads and are prepared to supply their own CPUs, memory, storage and operating system. The integrated X11DPi-NT board provides the Intel C622 chipset and dual UPI links at up to 10.4 GT/s.

Redundant Titanium power and 10GbE networking

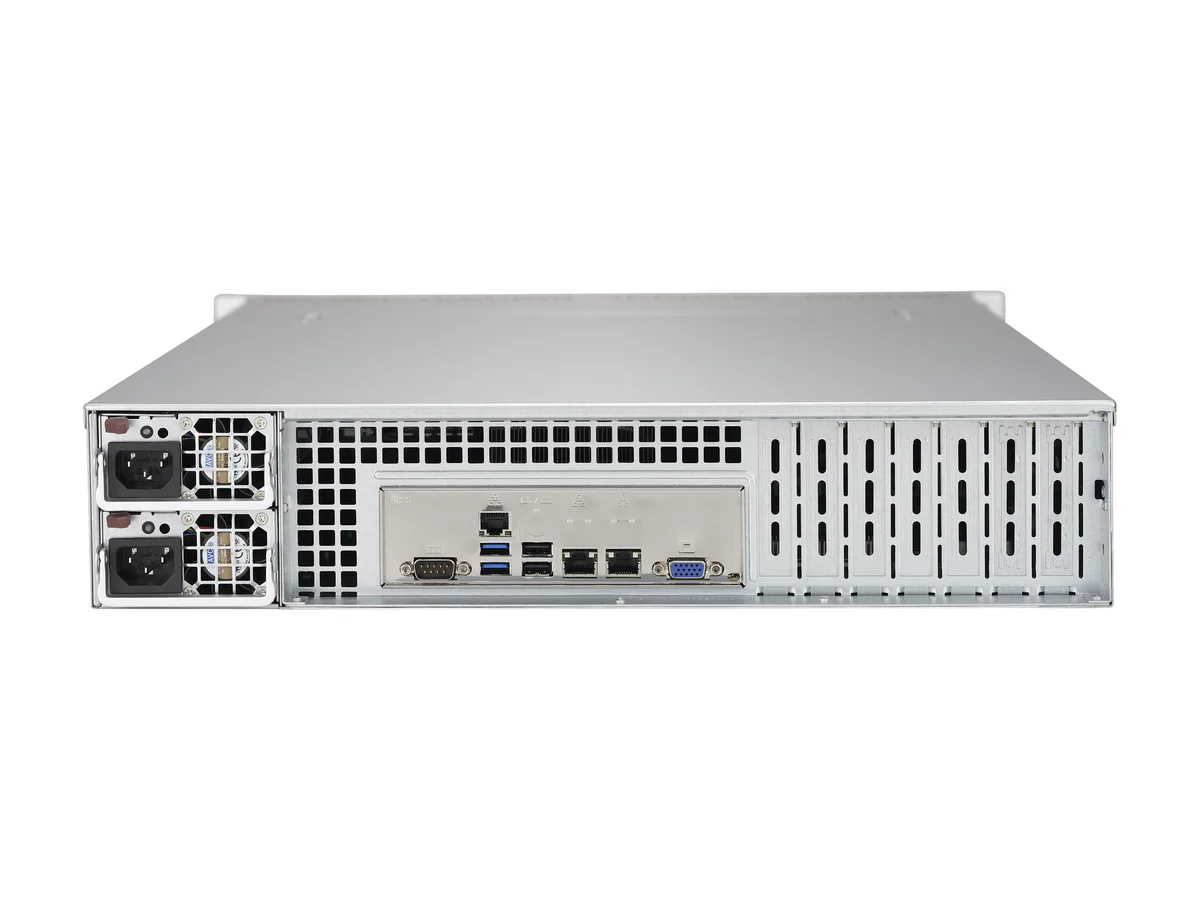

Two 1000W 80 PLUS Titanium certified supplies (96% efficiency) with PMBus deliver redundant power, keeping the system online if one unit fails. Network connectivity comes from dual Intel X722 controllers providing two 10GBase-T RJ45 ports plus a dedicated IPMI LAN port. Rear I/O also includes two USB 3.0 and two USB 2.0 ports. An Aspeed AST2500 BMC handles remote management.

Sixteen DIMM slots and eight hot-swap bays

Sixteen DDR4 slots support up to 2TB of ECC 3DS LRDIMM or 512GB of ECC RDIMM at speeds of 2666, 2400 or 2133 MHz, with Intel Optane Memory NVDIMM support. Storage capacity starts with eight hot-swap 3.5-inch SATA 600 bays and onboard RAID 0, 1, 5, 10; optional fixed 2.5-inch NVMe/SSD/HDD and M.2 devices can be added. Expansion uses four low-profile PCIe 3.0 x16 and two low-profile PCIe 3.0 x8 slots. Builders needing more than eight front drive bays or full-height add-in cards will need a different chassis.

Highlights

  • Dual Intel Xeon Scalable sockets for high compute density
  • 16 DDR4 DIMM slots support up to 2TB ECC memory
  • Eight hot-swap 3.5" SATA bays with RAID 0/1/5/10
  • Dual 10 Gigabit Ethernet ports via Intel X722 controllers
  • 1000W redundant Titanium power supplies with PMBus monitoring

Specifications

BrandSUPERMICRO
ModelSYS-6029P-TRT
CPU TypeIntel Xeon Scalable Processors
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
CPU SocketDual LGA 3647
North BridgeIntel C622
Max Memory SupportedUp to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666 MHz
Memory Type SupportedDDR4 2666 / 2400 / 2133 MHz ECC SDRAM
ECC SupportedYes
Serial ATA8 x SATA 600
SATA RAIDRAID 0/1/5/10
GPU/VPUAspeed AST2500 BMC
PCI Express4 x PCI-E 3.0 x16 (Low-profile)
2 x PCI-E 3.0 x8 (Low-profile)
First LANIntel X722
Second LANIntel X722
Max. LAN SpeedDual 10 Gigabit
Hot-Swap Bays8 x Hot-swap 3.5" SATA drive bays
Rear USB2 x USB 3.0
2 x USB 2.0
RJ452 x RJ45 10GBase-T Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
Max. Power1000W Redundant Power Supplies with PMBus
FeaturesDual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666 MHz; 16 x DIMM slots Supports Intel Optane Memory NVDIMM
4 x PCI-E 3.0 x16, 2 x PCI-E 3.0 x8 slots
8 x Hot-swap 3.5" SATA3 drive bays; RAID 0, 1, 5, 10
Optional DVD-ROM drive, optional support: 2 x fixed 2.5" NVMe / SSD / HDD, 1 x M.2 support
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key
2 x 10GBase-T LAN ports with Intel X722
1000W Redundant Power Supplies Titanium Level (96% efficiency)
Form Factor2U Rackmount
Dimensions3.50" x 17.20" x 25.50"
Weight35.50 lbs.
Shipping weight27.58 kg
Package size874 × 683 × 282 mm

Questions about this item

How do I replace a failed drive in the eight 3.5" hot-swap bays without shutting down?

Pull the failed drive from its front hot-swap tray while the system runs; the SATA backplane and RAID 0, 1, 5, 10 controller rebuild onto the new drive automatically.

What power draw stops me from adding more PCIe cards in the six low-profile slots?

Two 1000 W redundant Titanium supplies share the load; total draw must stay under 1000 W so CPUs, memory, drives and all cards remain powered if one supply fails.

How loud are the fans when both 205 W CPUs and all eight drives run continuously?

Redundant 1000 W Titanium units run at 96 % efficiency, cutting waste heat; BMC-controlled fans ramp only to the speed needed for the measured thermal load.
