Supermicro SYS-510P-WT 1U rackmount barebone server

1U rackmount barebone for Xeon LGA 4189

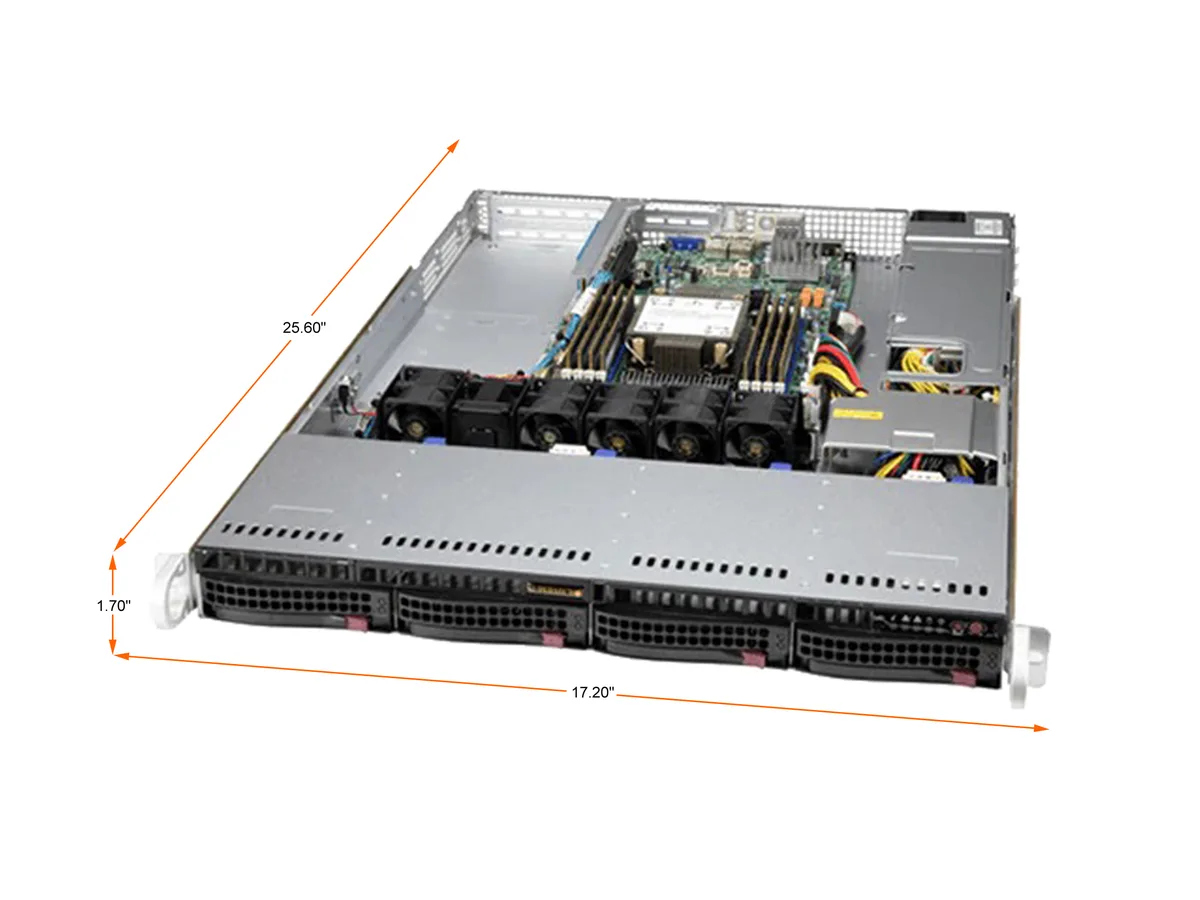

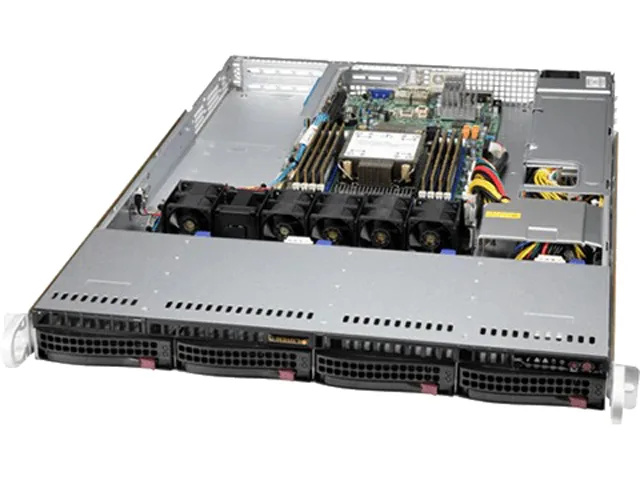

The Supermicro SYS-510P-WT is a 1U rackmount server barebone that supports Intel Xeon processors on an LGA 4189 socket. It arrives with no CPU or memory installed and provides eight 288-pin slots for up to 2 TB of DRAM or 3 TB with persistent memory. Dual Intel X550 controllers deliver two 10 Gigabit RJ45 ports plus a dedicated IPMI LAN connection.

Suits compute-dense deployments.

This chassis suits dense compute clusters, virtualization hosts and storage nodes that need dual 10 GbE networking and four front-accessible 3.5-inch hot-swap bays supporting both NVMe and SATA drives. It is not for GPU-heavy workloads because the three PCIe 4.0 x16 slots are full-height or low-profile only and no double-width accelerator clearance is provided.

Four hybrid NVMe/SATA hot-swap bays decide storage

The single specification that decides fit is the front bay count: four 3.5-inch hybrid bays that each accept an NVMe or SATA drive. If the deployment needs more than four front drives or requires 2.5-inch-only trays, a different platform is required.
