Silver 5U rackmount tower barebone server chassis

Supermicro

Supermicro AS-5014A-TT 5U rackmount tower barebone server

SKU CH-JNK3-NT8BH MPN AS-5014A-TT

5U rackmount/tower barebone supports AMD Ryzen Threadripper PRO CPUs, up to 2TB DDR4-3200 ECC, six PCI-E 4.0 x16 slots, four M.2 and six SATA bays

  • Form Factor5U Rackmount / Tower
  • CPU TypeSupports AMD Ryzen Threadripper PRO 5000WX/3000WX Series pro
  • CPU SocketSocket sWRX8
  • Installed CPUNo CPU Installed
  • Max Processors1
  • Memory Slots8 x 288Pin
  • Supports up to 64-core AMD Ryzen Threadripper PRO processors for heavy compute
  • 8-channel DDR4 3200 Registered ECC memory scales to 2 TB for large datasets
  • 6 PCI-E 4.0 x16 slots provide high-bandwidth expansion for GPUs and accelerators
  • 4 M.2 slots with PCI-E 4.0 x4 and RAID 0/1/5/10 for fast redundant storage
  • Dual 10 GbE and 1 GbE LAN plus IPMI for flexible network management

SuperWorkstation 5U barebone server

The Supermicro AS-5014A-TT is a new 5U rackmount tower barebone designed for AMD Ryzen Threadripper PRO 5000WX and 3000WX series processors. It uses a single Socket sWRX8 and provides eight 288-pin DDR4 3200 channels supporting up to 2TB of registered ECC memory. No CPU, memory or storage is installed.

Suited for multi-threaded workstations not compact

This platform suits professionals who need 64 cores, eight-channel memory bandwidth and six PCI-E 4.0 x16 slots for GPUs or accelerators. Builders who need a small-form-factor chassis, integrated graphics or pre-installed components should look elsewhere. The barebone state also requires separate sourcing of processor, memory modules and drives.

Sustained load with dual LAN and fixed drive bays

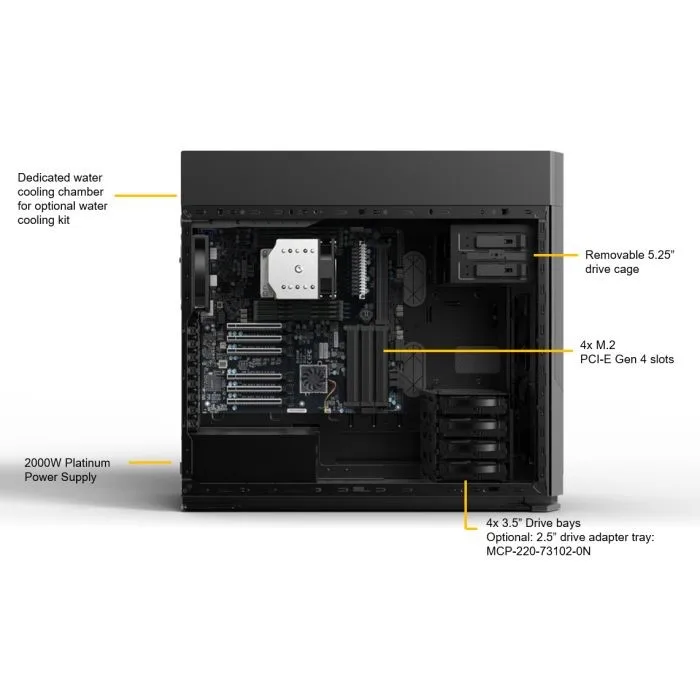

Under continuous load the system relies on four internal 3.5-inch or 2.5-inch SATA bays plus two front 2.5-inch bays and four M.2 2280 or 22110 slots for storage throughput. Networking uses a 10GBase-T port and a 1GbE port shared with IPMI. Six full-length PCI-E 4.0 x16 slots maintain bandwidth for long compute or render sessions.

Highlights

  • Supports up to 64-core AMD Ryzen Threadripper PRO processors for heavy compute
  • 8-channel DDR4 3200 Registered ECC memory scales to 2 TB for large datasets
  • 6 PCI-E 4.0 x16 slots provide high-bandwidth expansion for GPUs and accelerators
  • 4 M.2 slots with PCI-E 4.0 x4 and RAID 0/1/5/10 for fast redundant storage
  • Dual 10 GbE and 1 GbE LAN plus IPMI for flexible network management

Specifications

BrandSUPERMICRO
SeriesSuperWorkstation
ModelAS-5014A-TT
Form Factor5U Rackmount / Tower
CPU TypeSupports AMD Ryzen Threadripper PRO 5000WX/3000WX Series processor
CPU SocketSocket sWRX8
Installed CPUNo CPU Installed
Max Processors1
Memory Slots8 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory SupportedSupports up to 2TB Registered ECC DDR4 3200-MHz SDRAM
Memory Type SupportedDDR4 3200
Channel Supported8 Channel
ECC SupportedYes
RegisteredYes
Installed HDDNo Storage Installed
Serial ATA4 x SATA 600
SATA RAIDRAID 0/1/5/10
PCI-X6 x PCI-E 4.0 x16 slots
M.2 Interface: 4 PCI-E 4.0 x4, Form Factor: 2280, 22110, Key: M-Key
Onboard Audio7.1 HD Audio with optical S/PDIF
Number of LAN10G LAN: Single LAN via Marvel AQC110C 10G Ethernet Controller
1GbE LAN: Single LAN with Intel i210AT Enternet Controller (shared with IPMI)
Max. LAN Speed10 Gigabit
3.5" Bays4 x Internal fixed 3.5"/2.5" SATA3 drive bays
5.25" Bays2 x Front fixed 2.5" SATA3 drive bays
Front USB1 x USB 3.2 Gen 2 Tpye-C
COM1
VGA1
Rear USB1 x USB 3.2 Gen 2x2 Type-C
4 x USB 3.2 Gen 2 Type-A
3 x USB 3.2 Gen 1 Type-A
Dimensions21.06" x 8.74" x 22.56"
Shipping weight18.14 kg
Package size660 × 635 × 330 mm

Questions about this item

Which AMD Threadripper PRO processor series and socket does this barebone require?

The board accepts AMD Ryzen Threadripper PRO 5000WX and 3000WX series CPUs in the sWRX8 socket; no processor is included.

Can the six PCI-E 4.0 x16 slots run older PCI-E 3.0 add-in cards?

Yes, the 4.0 x16 slots are backward compatible with PCI-E 3.0 and earlier cards at their native speeds.

How can I verify the 8-channel DDR4 3200 memory is active after installing eight registered ECC DIMMs?

Check the BIOS memory information screen or the OS memory report — it should show 8-channel mode running at 3200 MHz with the full installed capacity.
