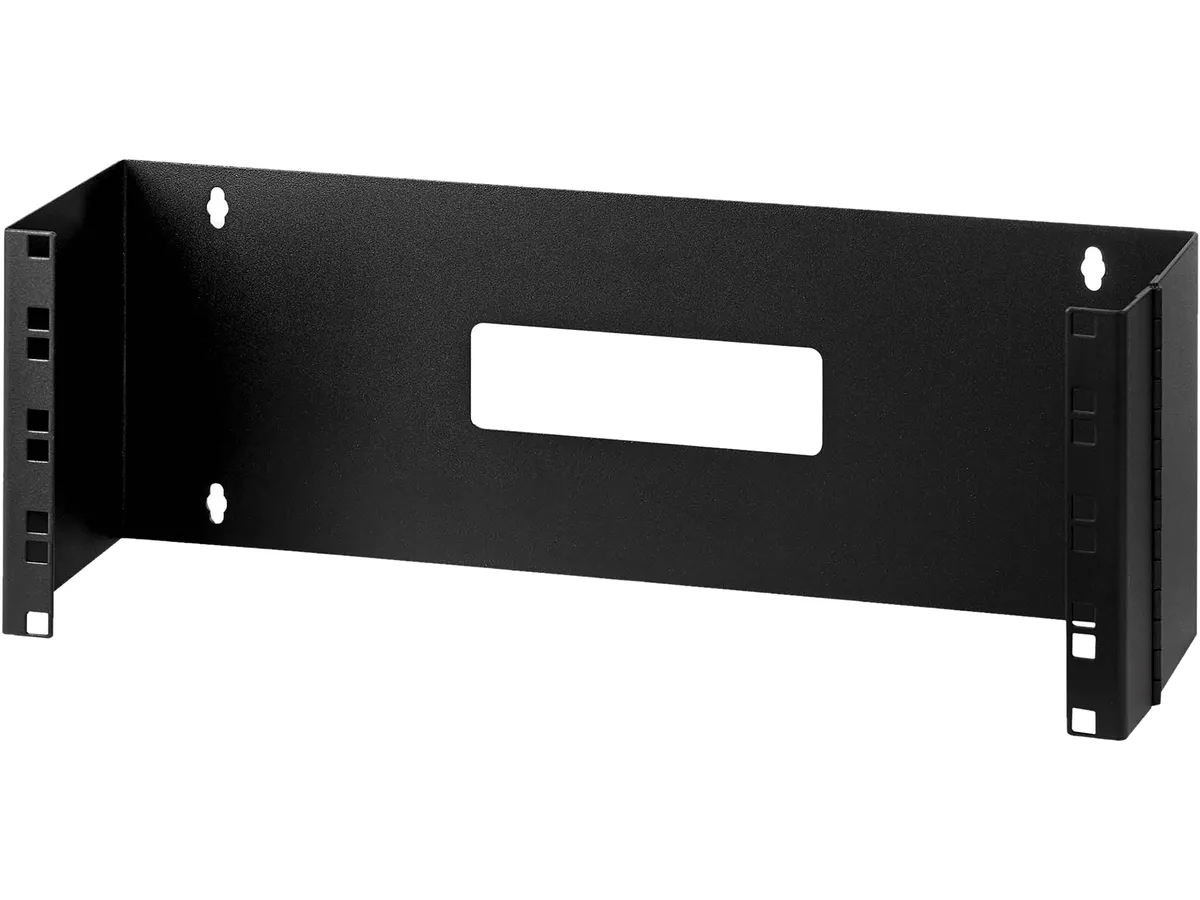

Black 4U hinged wall mount bracket open frame 19in equipment mounting

STARTECH

STARTECH WALLMOUNTH4 4U 19in Hinged Wall Mount Bracket server accessory

SKU CH-APDB-ECBCB MPN WALLMOUNTH4

A 4U hinged wall bracket holds 19-inch patch panels or switches, supports 15 kg, and mounts on 16-inch centres

  • TypeWall Mounting Bracket
  • ColorBlack
  • SpecificationsU Height: 4U Frame Type: Open Frame Wallmountable: Yes Front
  • FeaturesSturdy cold rolled steel construction 4U rack height Hinged

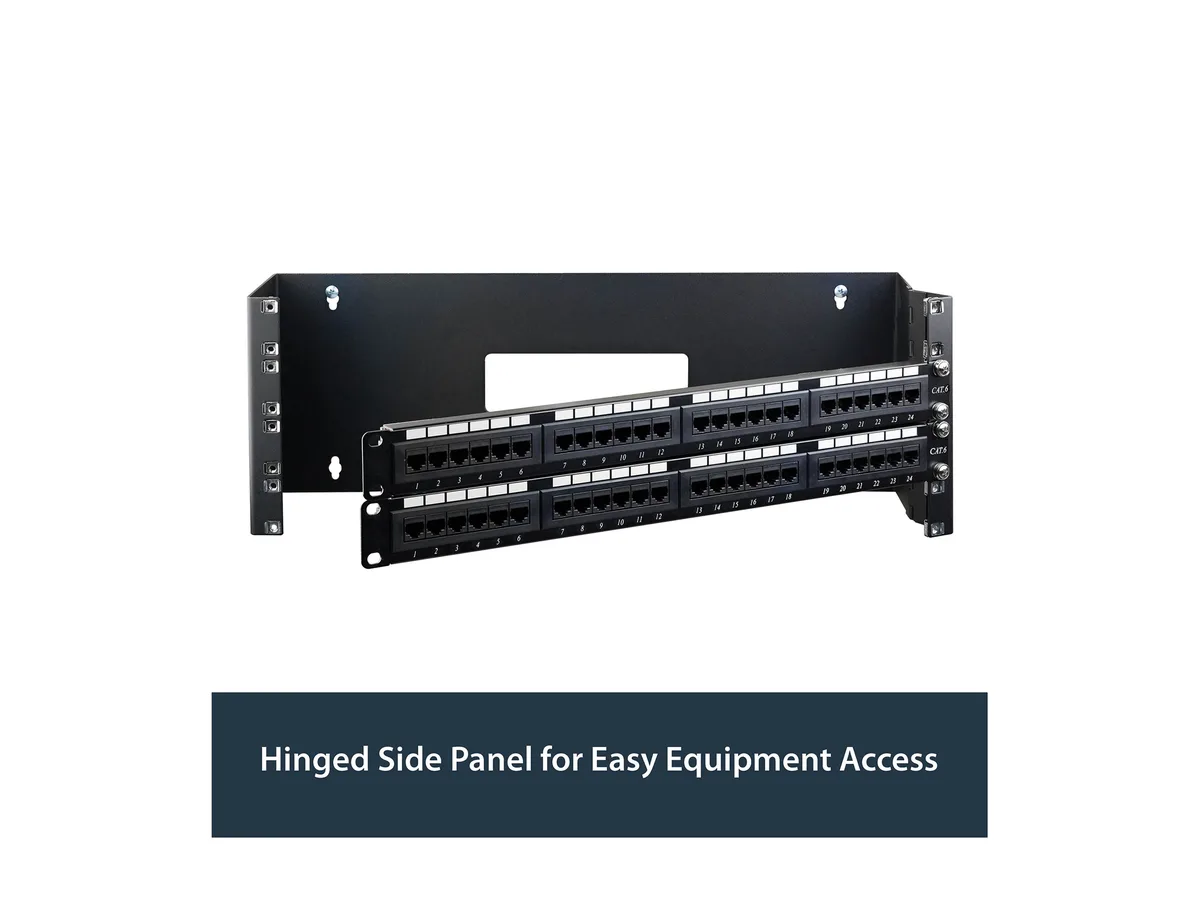

  • Hinged side panel simplifies rear equipment access
  • 4U rack height fits standard 19-inch patch panels
  • Cold-rolled steel frame supports 33.2 lb capacity
  • 16-inch centre wall holes match standard dry-wall studs
  • Open-frame design allows airflow for mounted devices

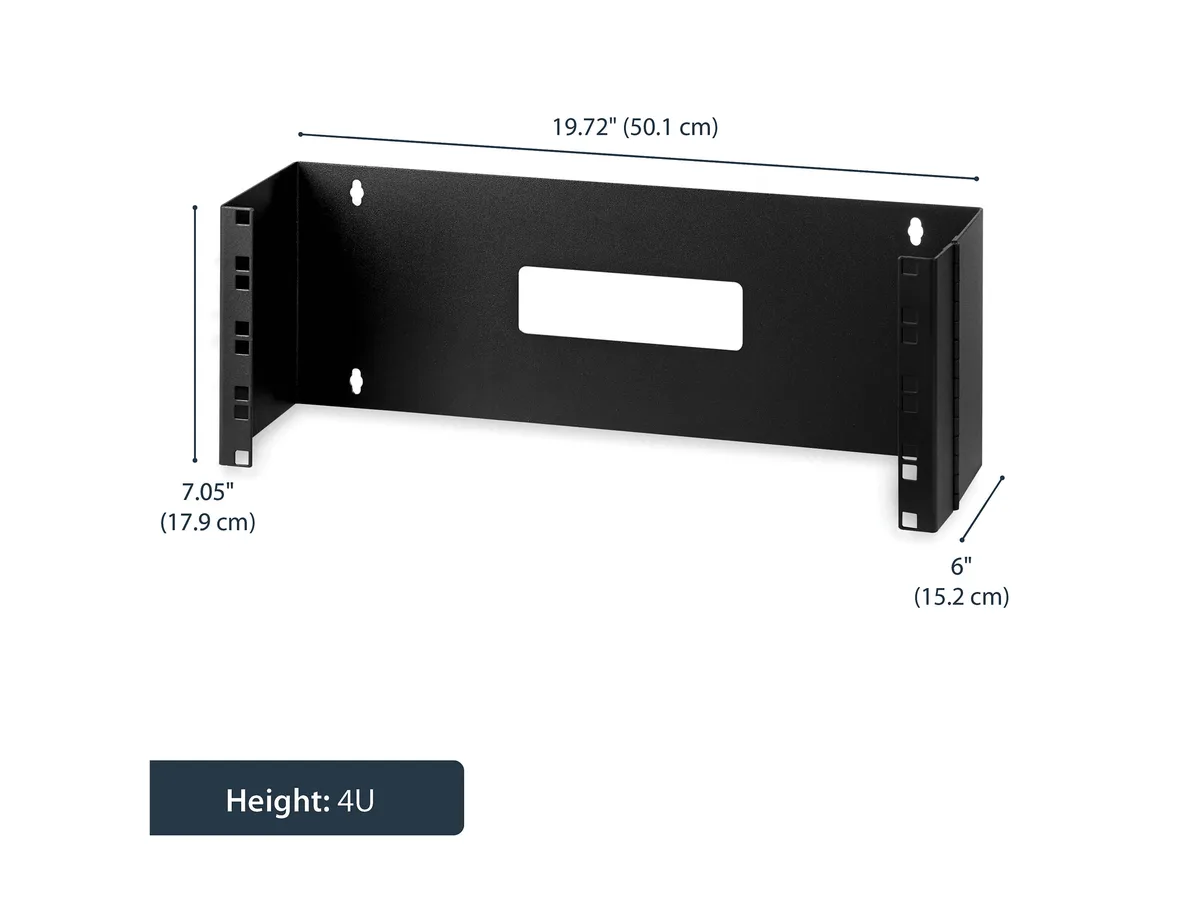

4U hinged wall bracket for 19in equipment

This black cold-rolled steel bracket provides a 4U open-frame enclosure that hinges away from the wall. It accepts standard 19in patch panels or shallow network devices and supports up to 15 kg of equipment weight.

Check wall structure and stud spacing before

The mounting holes are spaced 16 in centre-to-centre to align with standard dry-wall studs. Verify that your wall can accept the supplied hardware and that the 4 in depth clears any skirting boards or cable runs behind the bracket.

Suits installers mounting a single patch panel

Ideal for small offices or home labs that need rear-access hinging for one 19in device. Not suited for deeper servers, multi-device stacks, or installations that require a locked enclosure or higher weight capacity.

Highlights

  • Hinged side panel simplifies rear equipment access
  • 4U rack height fits standard 19-inch patch panels
  • Cold-rolled steel frame supports 33.2 lb capacity
  • 16-inch centre wall holes match standard dry-wall studs
  • Open-frame design allows airflow for mounted devices

Specifications

BrandStarTech.com
ModelWALLMOUNTH4
TypeWall Mounting Bracket
ColorBlack
SpecificationsU Height: 4U
Frame Type: Open Frame
Wallmountable: Yes
Front Door Type: Open
Weight Capacity: 33.2 lb [15 kg]
Color: Black
FeaturesSturdy cold rolled steel construction
4U rack height
Hinged side panel for easy equipment access
15 kg (33 lbs) weight capacity

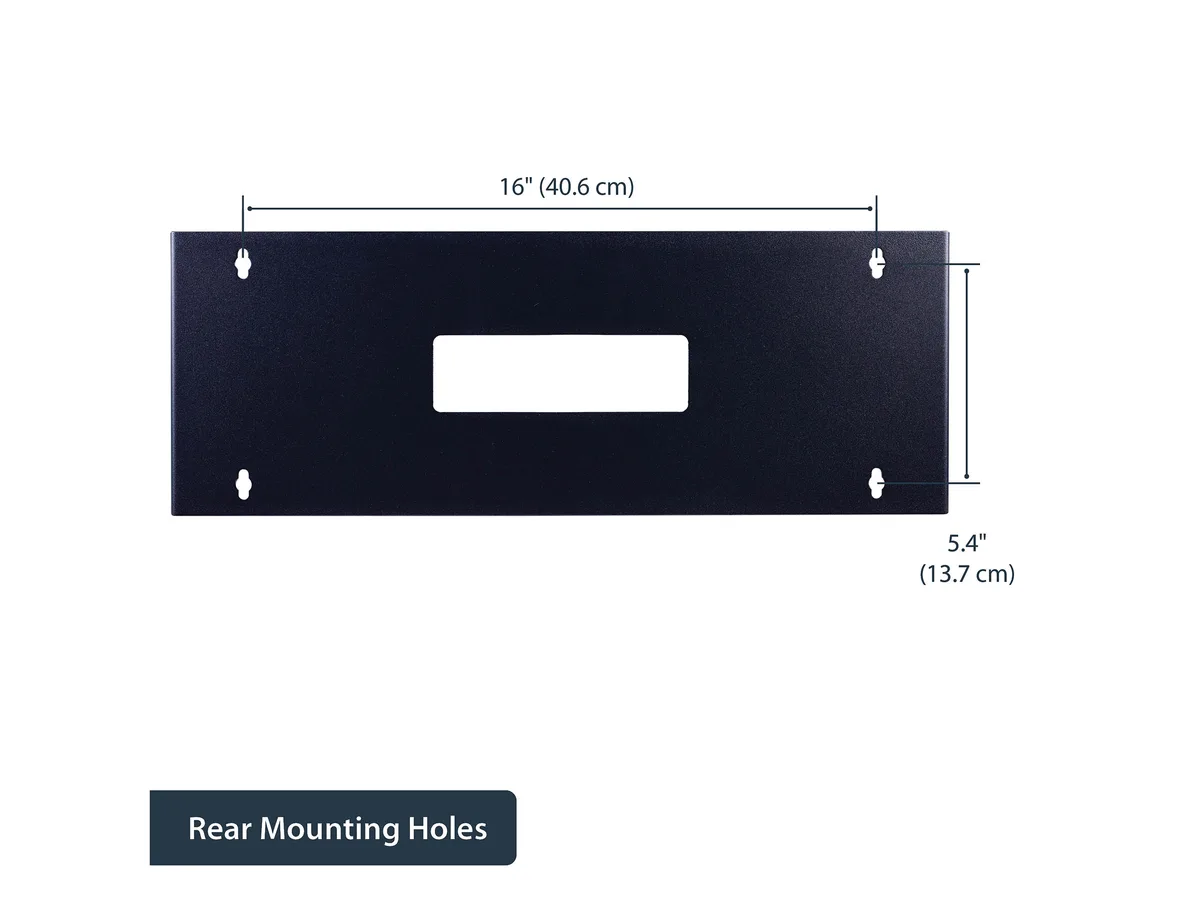

Wall mounting holes are 16" center to center for greater stability, and mounting to standard wall studs
Shipping weight3.63 kg
Package size513 × 198 × 185 mm

Questions about this item

What comes with the WALLMOUNTH4 bracket and what must I buy separately?

The bracket ships as a single 4U hinged steel frame. Mounting hardware for the wall and screws for 19 in equipment are not included.

Should I choose this 4U model or a different height for my patch panel?

Select the 4U version when your patch panel or switch occupies four rack units; other heights are sold as separate models.

What does the 33.2 lb weight capacity mean once the bracket is on the wall?

It supports up to 15 kg of 19 in gear when the bracket is secured to studs using the 16 in centre-to-centre mounting holes.
