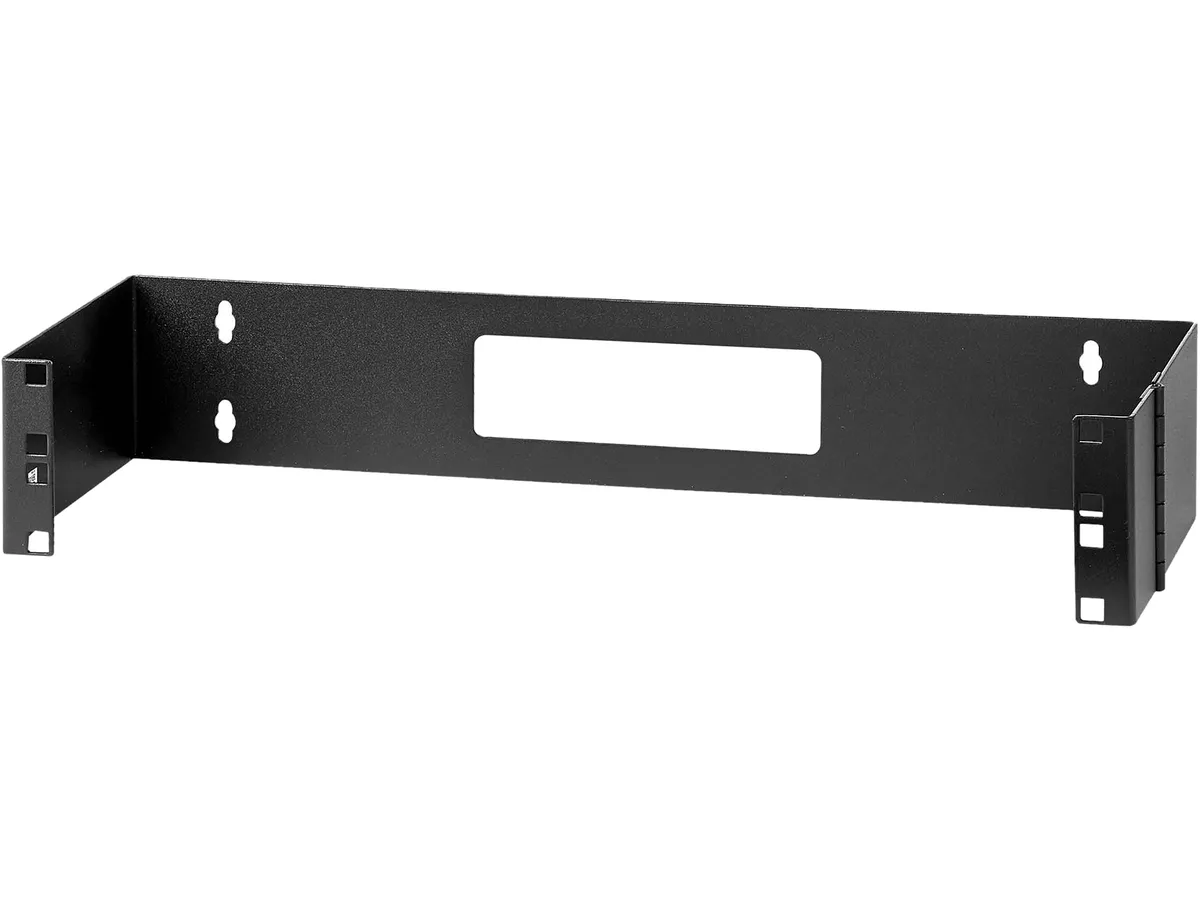

Black 2U hinged wall mount bracket open frame 19 inch rack mount

STARTECH

STARTECH WALLMOUNTH2 2U 19" Hinged Wall Mount Bracket server accessory

SKU CH-H553-XEQ6A MPN WALLMOUNTH2

A 2U hinged wall-mount bracket holds 19" patch panels or switches and swings open for rear access, with 16" stud spacing and a 10 kg capacity

  • TypeWall Mount Bracket
  • ColorBlack
  • SpecificationsU Height: 2U Frame Type: Open Frame Wallmountable: Yes Front
  • FeaturesSturdy cold rolled steel construction 2U rack height Hinged

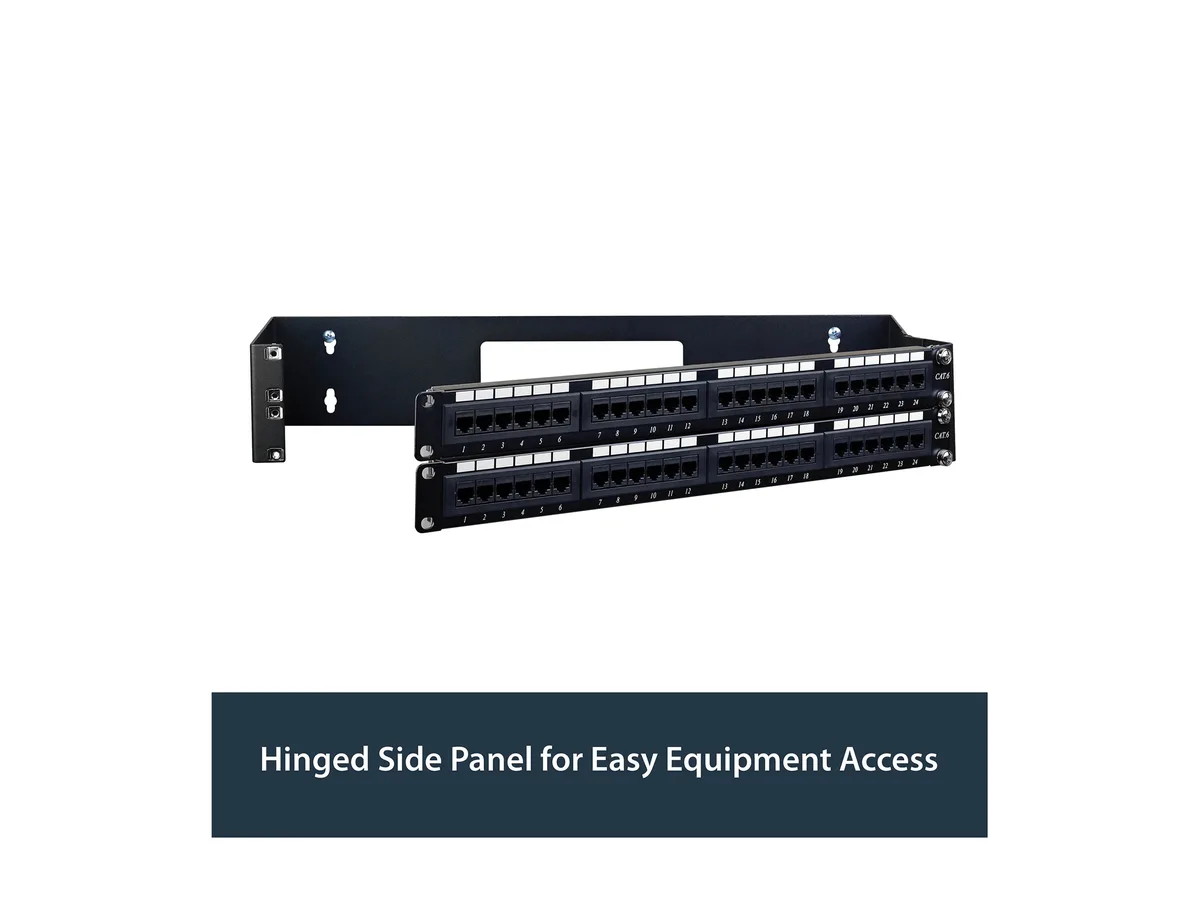

  • Hinged side panel gives quick rear access to patch panels

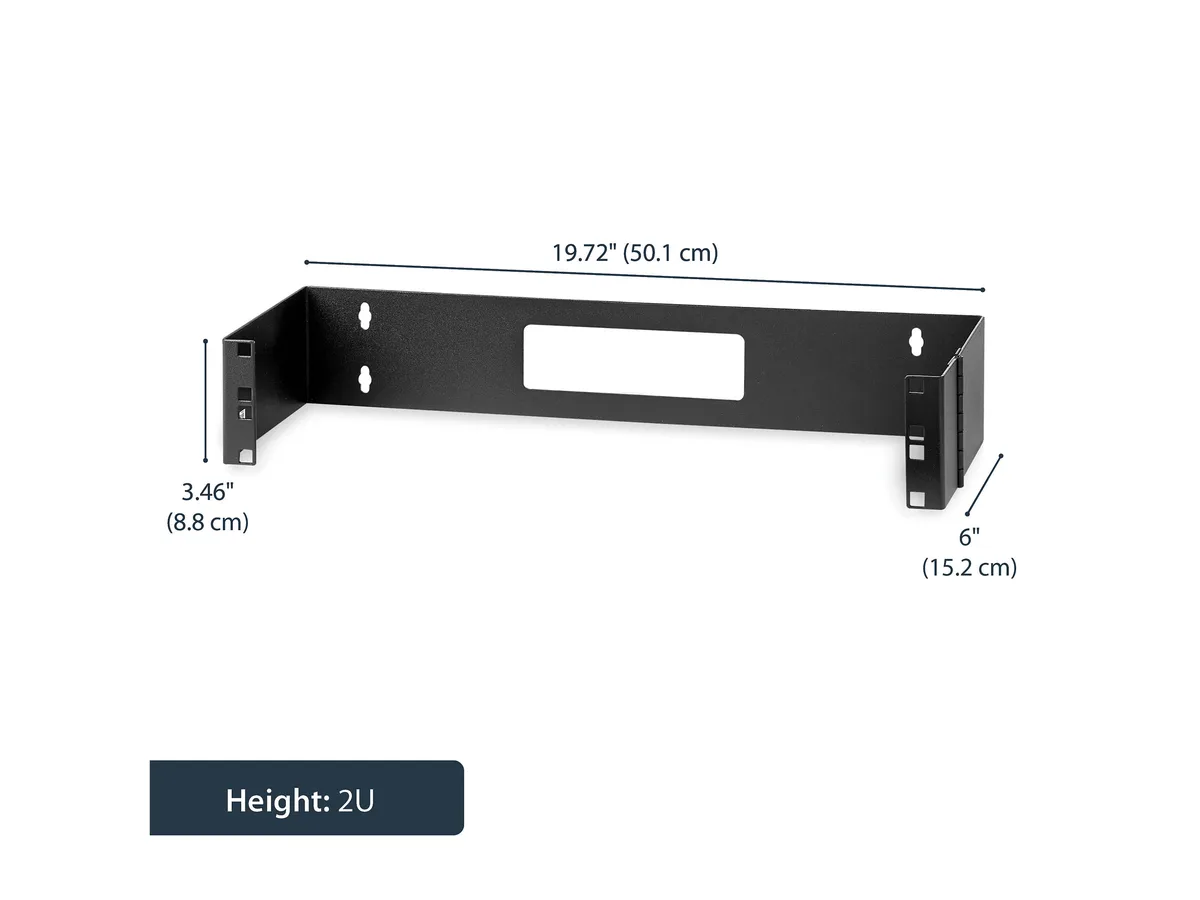

  • 2U height fits standard 19in rack equipment in shallow 4in depth
  • Cold rolled steel frame supports 10 kg load for secure mounting
  • 16in centre wall holes match standard stud spacing for stable installation
  • Open frame design allows airflow around mounted network devices

2U Hinged Wall Mount Bracket

The StarTech WALLMOUNTH2 is a 2U open-frame bracket that secures 19-inch patch panels or shallow network equipment to a wall. Its cold-rolled steel frame supports up to 10 kg of hardware in a fixed installation.

Hinged Access and 16-Inch Stud Spacing

A hinged side panel swings away to expose the rear of mounted devices for cable routing or port changes without removing the unit. Wall mounting holes are spaced 16 inches on centre to align with standard drywall studs for a secure anchor.

Installers Needing Rear Access to Wall-Mounted

This bracket suits technicians who must reach patch-panel backs regularly while keeping the chassis fixed to the wall. It does not suit buyers who need enclosed security, deeper equipment bays, or a higher load rating than 10 kg.

Highlights

  • Hinged side panel gives quick rear access to patch panels
  • 2U height fits standard 19in rack equipment in shallow 4in depth
  • Cold rolled steel frame supports 10 kg load for secure mounting
  • 16in centre wall holes match standard stud spacing for stable installation
  • Open frame design allows airflow around mounted network devices

Specifications

BrandStarTech.com
ModelWALLMOUNTH2
TypeWall Mount Bracket
ColorBlack
SpecificationsU Height: 2U
Frame Type: Open Frame
Wallmountable: Yes
Front Door Type: Open
Weight Capacity: 22.10 lbs.
Color: Black
FeaturesSturdy cold rolled steel construction
2U rack height
Hinged side panel for easy equipment access
10 kg (22 lbs) weight capacity

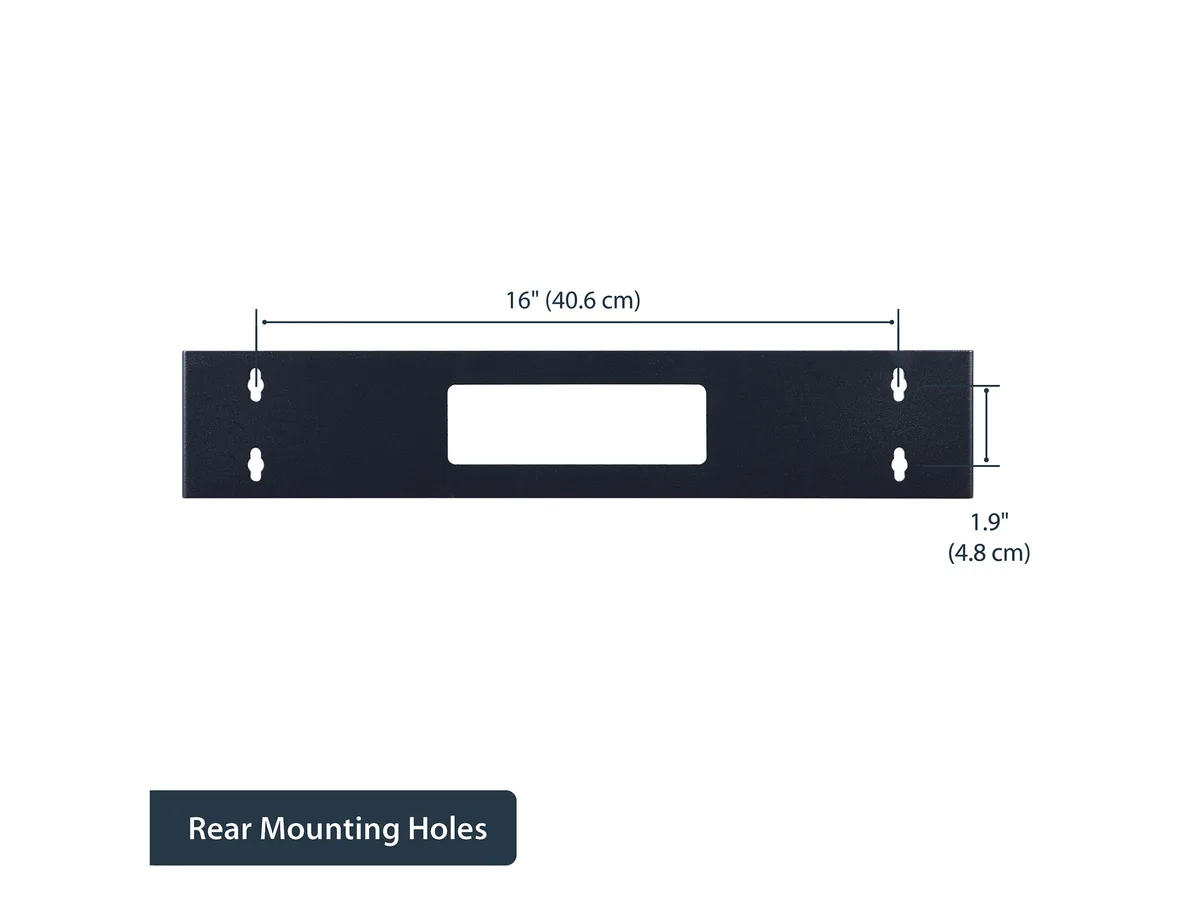

Wall mounting holes are 16" center to center for greater stability, and mounting to standard wall studs
Shipping weight4.25 kg
Package size584 × 356 × 203 mm

Questions about this item

How much equipment weight can the 2U hinged bracket hold before the steel frame reaches its limit?

The cold-rolled steel frame is rated for 10 kg or 22.10 lbs of mounted equipment.

Does the open-frame design stay cool and quiet when a patch panel runs continuously?

With no fans or moving parts the bracket adds no noise or heat; airflow depends entirely on the mounted device.

What wall spacing must already exist for the 16-inch mounting holes to line up?

Standard 16-inch on-centre stud spacing matches the bracket holes for secure dry-wall installation.
