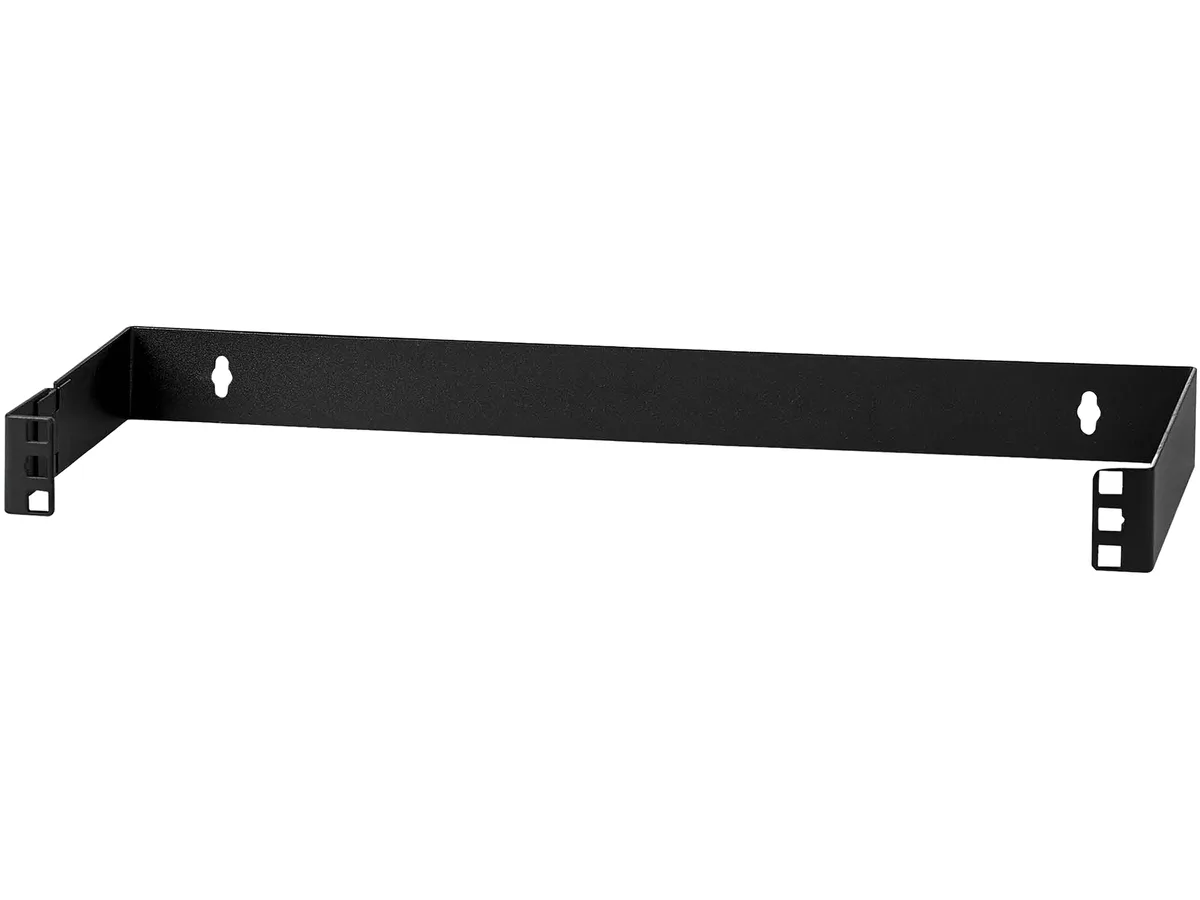

Black 1U hinged wall-mount bracket 19in wide shallow open frame cold rolled steel

STARTECH

STARTECH WALLMOUNTH1 1U 19in Hinged Wall Mount Bracket wired accessory

SKU CH-3WYX-DDGSY MPN WALLMOUNTH1

A 1U 19in hinged wall bracket holds a patch panel or switch and swings open for rear access, with 16in mounting centres and 17.7 lb capacity

  • ColorBlack
  • TypePDA Accessories
  • SpecificationsU Height: 1U Frame Type: Open Frame Wallmountable: Yes Front
  • FeaturesSturdy cold rolled steel construction 1U rack height Hinged
  • Hinged panel gives quick rear access to patch panels
  • 1U height fits standard 19 in racks
  • 16 in stud spacing matches standard drywall centres
  • Cold rolled steel frame supports 17.7 lb load
  • Shallow 6 in depth saves space in tight installs

Wall-mount bracket for patch panels

The StarTech.com WALLMOUNTH1 is a 1U 19-inch hinged wall bracket designed to hold patch panels or network switches in a fixed installation. It suits installers and IT staff who need a compact, open-frame solution that keeps cabling accessible while securing equipment flush to the wall.

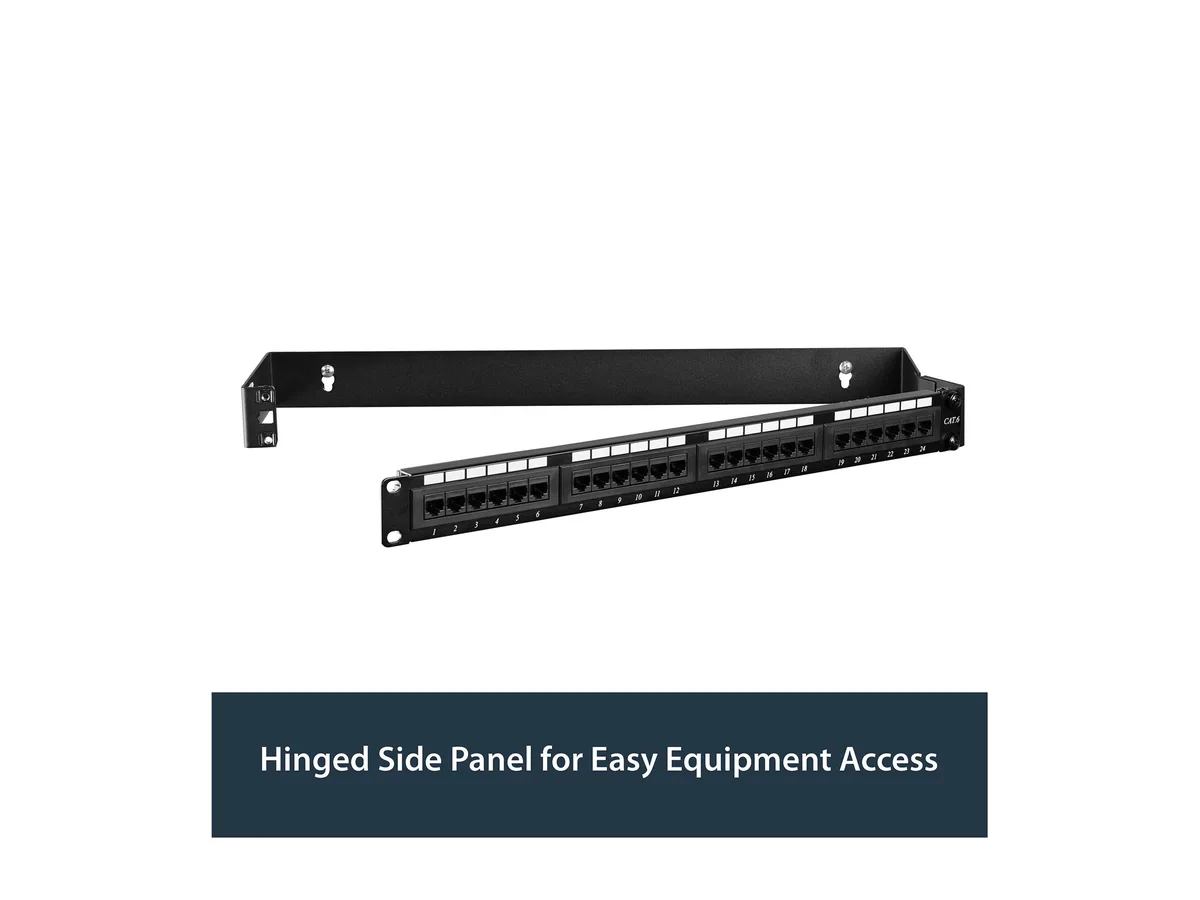

Hinged access with 17.7 lb capacity

The bracket supports up to 17.7 lb (8 kg) of equipment and uses a hinged side panel that swings out for rear access to connections. This single specification determines whether the bracket can carry the intended patch panel or switch without additional support.

Passive cooling with shallow depth

No fans are included, so the unit relies entirely on passive airflow around the mounted device. The external depth measures 6 in (152 mm) and the height is 1.7 in (44 mm), leaving a slim profile that fits tight spaces while allowing natural convection to manage heat from the installed equipment.

Highlights

  • Hinged panel gives quick rear access to patch panels
  • 1U height fits standard 19 in racks
  • 16 in stud spacing matches standard drywall centres
  • Cold rolled steel frame supports 17.7 lb load
  • Shallow 6 in depth saves space in tight installs

Specifications

BrandStarTech.com
ModelWALLMOUNTH1
ColorBlack
TypePDA Accessories
SpecificationsU Height: 1U
Frame Type: Open Frame
Wallmountable: Yes
Front Door Type: Open
Fan(s): No
Weight Capacity: 17.7 lb [8 kg]

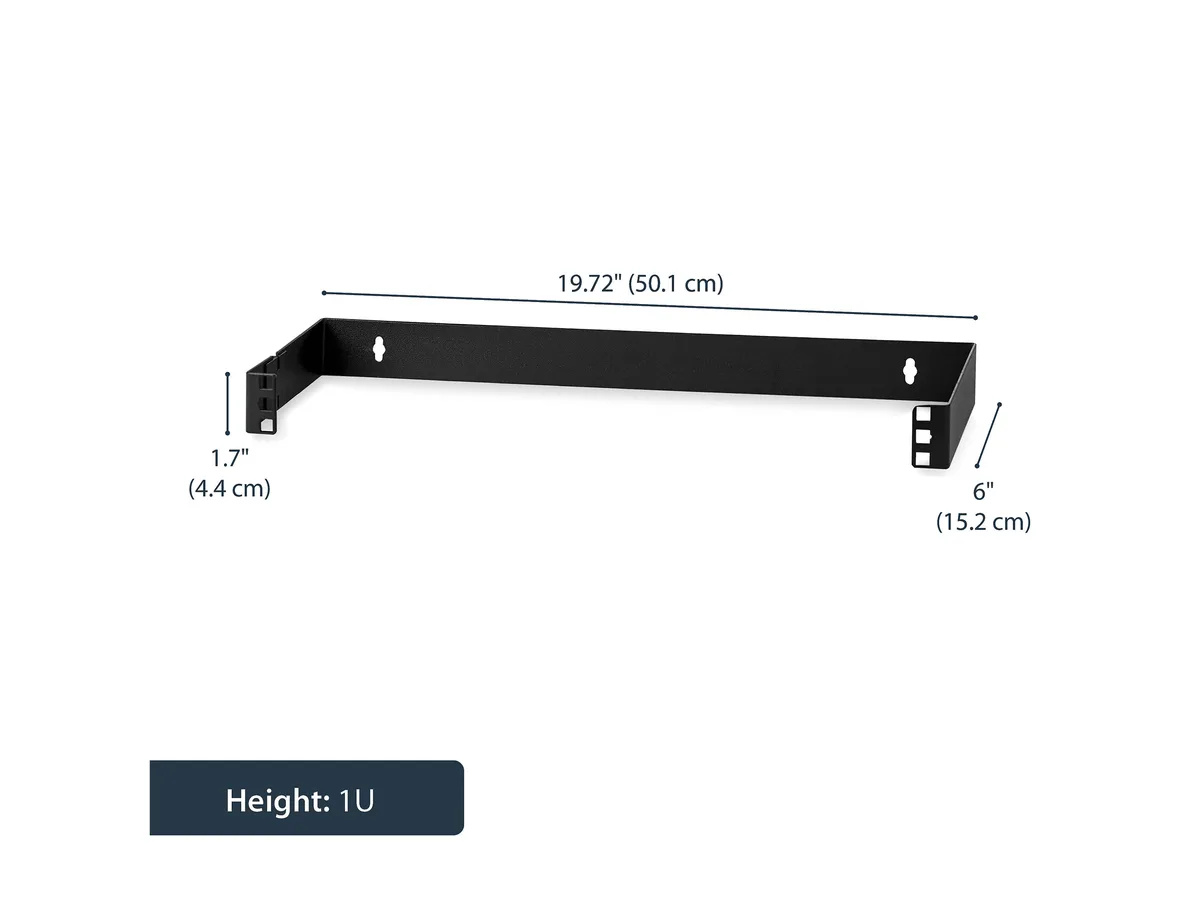

External Width: 19 in [483 mm]
External Height : 1.7 in [44 mm]
External Depth: 6 in [152 mm]

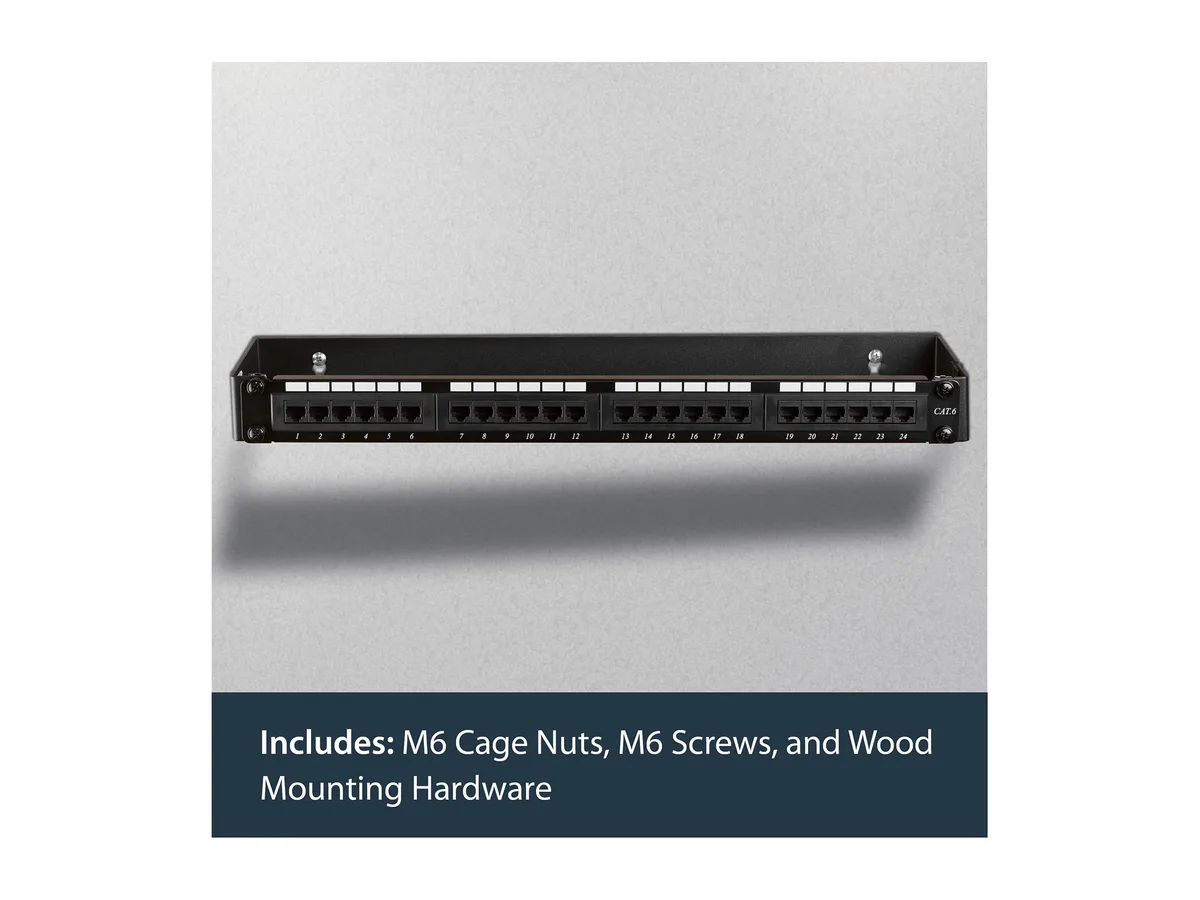

Included in Package:
1 - 1U Hinged 19" Wallmount Bracket
4 - Screws
FeaturesSturdy cold rolled steel construction
1U rack height
Hinged side panel for easy equipment access
8 kg (17 lbs) weight capacity
Wall mounting holes are 16" center to center for greater stability, and mounting to standard wall studs
Shipping weight0.86 kg
Package size513 × 196 × 58 mm

Questions about this item

What does the 1U height mean when the bracket is mounted on a wall?

The bracket occupies one standard rack unit, measuring 44 mm tall, so it adds minimal vertical space above or below a patch panel or switch.

How does the 19-inch width relate to standard rack equipment?

The 483 mm external width matches the 19-inch rack standard, allowing any 19-inch patch panel or shallow switch to bolt directly to the front flanges.

What wall spacing do the mounting holes require for a secure install?

The mounting holes are spaced 16 inches centre-to-centre, aligning with standard stud spacing in drywall construction for a solid anchor.
