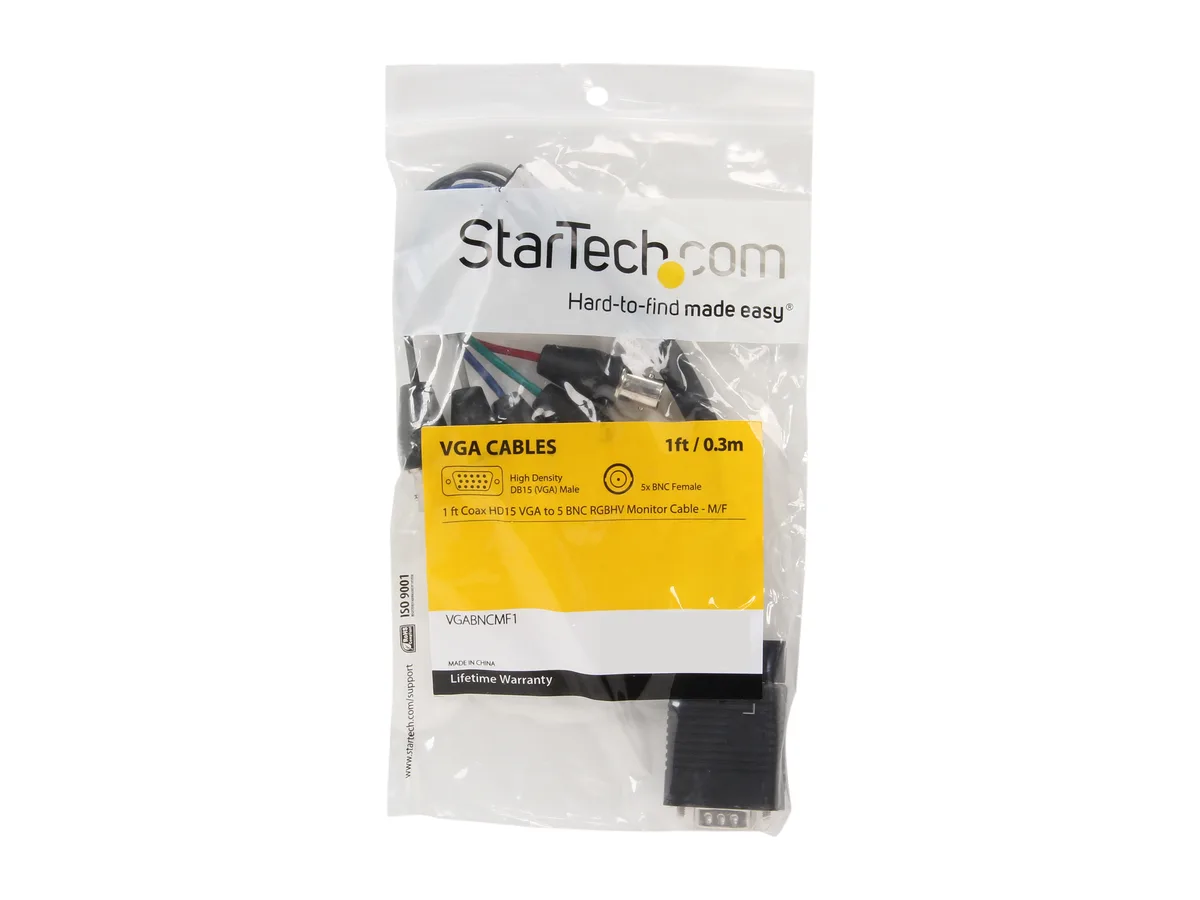

Black VGA male to five BNC female cable, short flexible design, 1ft length

STARTECH

STARTECH VGABNCMF1 VGA to 5 BNC RGBHV cable 1ft M/F

SKU CH-GKW8-P6JWF MPN VGABNCMF1

A 1 ft male-to-female cable linking a 15-pin VGA source to five BNC RGBHV connectors, 28 AWG with a .33 in (8.5 mm) PVC jacket, CMG rated

  • TypeOthers
  • ColorBlack
  • Connector Number6
  • Terminal GenderMale to Female
  • SpecificationsConnector A: 1 - 15 pin High Density D-Sub (VGA) Male Connec
  • FeaturesShort flexible cable design Fit behind a mounted TV or proje

Cable Length Female BNC

  • Male BNC
  • Female BNC

Struck-through versions exist but are not stocked here.

  • Connect wall-mounted displays using short flexible 1 ft design
  • Link VGA sources to BNC panels via 15-pin HD15 male to 5 BNC female
  • Fit tight installs with 0.33 in / 8.5 mm PVC jacketed cable
  • Support general-purpose runs with CMG fire-rated 28 AWG conductors
  • Convert RGBHV signals between VGA and BNC interfaces directly

Purpose-built adapter

This 1 ft cable converts a 15-pin VGA male source to five BNC female connectors for RGBHV signals. It serves installers who need to link VGA output devices to existing BNC cable runs in professional AV or legacy monitor setups.

Short flexible build

The 28 AWG coaxial construction with a .33 in (8.5 mm) PVC jacket bends easily behind wall-mounted displays or projectors. CMG fire rating meets general-purpose in-wall requirements while the compact length keeps signal paths clean and clutter-free.

Six-connector layout

Connector A is a high-density D-Sub male; Connector B splits into five BNC females carrying red, green, blue, horizontal and vertical sync. No active electronics or software are included, so the cable simply passes the analogue video signal without alteration.

Highlights

  • Connect wall-mounted displays using short flexible 1 ft design
  • Link VGA sources to BNC panels via 15-pin HD15 male to 5 BNC female
  • Fit tight installs with 0.33 in / 8.5 mm PVC jacketed cable
  • Support general-purpose runs with CMG fire-rated 28 AWG conductors
  • Convert RGBHV signals between VGA and BNC interfaces directly

Specifications

BrandStarTech.com
ModelVGABNCMF1
TypeOthers
ColorBlack
Connector Number6
Terminal GenderMale to Female
SpecificationsConnector A: 1 - 15 pin High Density D-Sub (VGA) Male
Connector B: 5 - BNC Female
Cable OD: 0.33" [8.5 mm]
Cable Jacket Type: PVC - Polyvinyl Chloride
Wire Guage: 28 AWG
Fire Rating: CMG Rated (General Purpose)
Product Weight: 0.21 lbs. (0.1 kg)
FeaturesShort flexible cable design
Fit behind a mounted TV or projector and allow you to connect your newer VGA interfaces to your existing BNC cable runs
Shipping weight0.05 kg
Package size203 × 178 × 23 mm

Questions about this item

How do I install the VGABNCMF1 cable and what step is often missed?

Connect the 15-pin HD15 male end to your VGA source and the five BNC female connectors to your RGBHV cable run; the step people miss is matching each BNC to its correct colour-coded signal (red, green, blue, H-sync, V-sync)

What maintenance or replacement will the VGABNCMF1 need later?

The 28 AWG coaxial conductors and PVC jacket are passive; no scheduled maintenance is required, but replace the cable if the jacket cracks or a BNC centre pin becomes bent

What limit appears first under sustained use of the VGABNCMF1?

The 0.33 inch (8.5 mm) diameter CMG-rated PVC jacket sets the bend-radius limit; repeated tight bends behind a mounted display can fatigue the 28 AWG cores before any signal degradation occurs
