Small black box VGA to composite or S-Video converter

STARTECH

STARTECH VGA2VID audio video converter 640x480 to 1600x1200

SKU CH-SVHB-7FZQ2 MPN VGA2VID

Converts PC VGA signals up to 1600x1200 into composite or S-Video for TV display with NTSC and PAL support

  • TypeVGA to Composite
  • ColorBlack
  • Cable LengthNo
  • SpecificationsMaximum Analog Resolutions: 1152 x 864 Operating Temperature
  • FeaturesHigh resolution inputs from your PC up to 1600x1200 Provides
  • Weight0.8
  • Connect PC to legacy TV via composite or S-Video
  • Select underscan or overscan for optimal picture fit
  • Switch between NTSC and PAL for global display compatibility
  • Accepts VGA input from 640x480 up to 1600x1200
  • Operates reliably from 0 to 70 degrees Celsius

PC-to-TV VGA converter

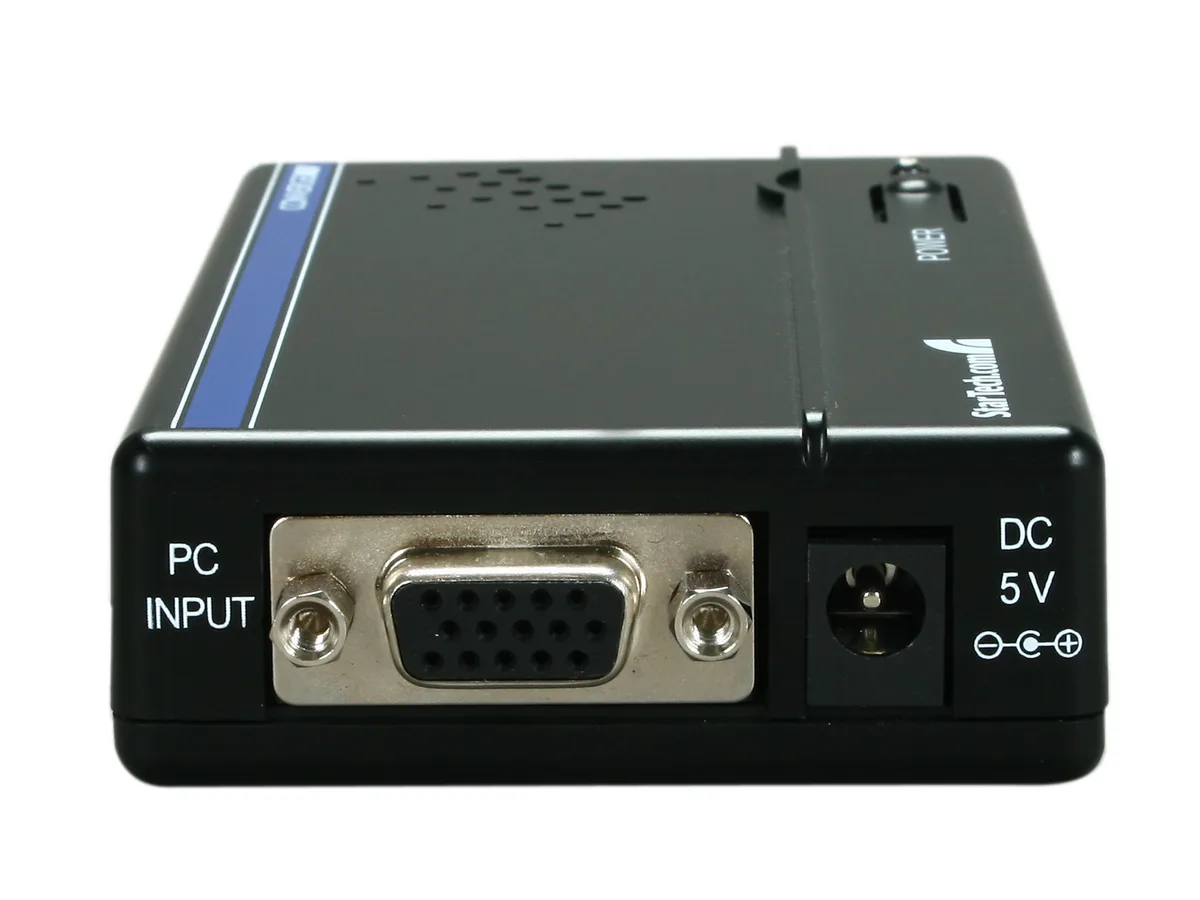

The StarTech VGA2VID adapts a computer's VGA output for composite or S-Video displays. It targets users connecting legacy PCs to older CRT televisions or flat-panel screens lacking VGA inputs. The unit requires a 5 V DC power supply with positive centre-tip polarity. Builders needing HDMI, DisplayPort or component-video outputs should look elsewhere.

Input range 640x480 to 1600x1200

Accepted PC resolutions span 640x480 through 1600x1200, while the maximum analog output resolution is 1152x864. Signals above that input ceiling cannot be processed, and finer detail is lost in the down-conversion to composite or S-Video. The converter operates reliably between 0 and 70 °C. Buyers who want pixel-perfect capture or higher output resolutions cannot be served by this device.

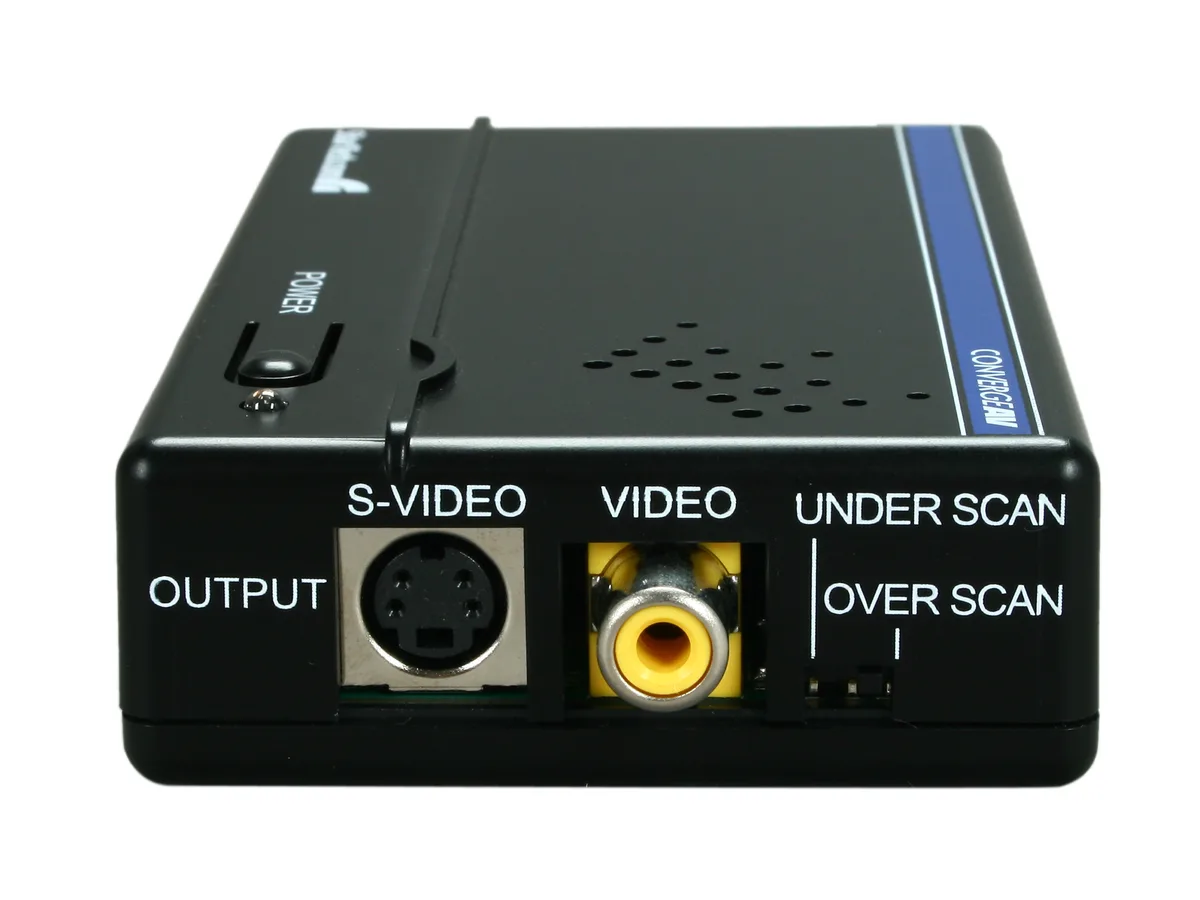

Composite and S-Video outputs

A selectable switch chooses between underscan and overscan modes to fit the image to different TV types. Both NTSC and PAL display standards are supported through the two output formats. No cables, mounting hardware or configuration software are included in the package. Users requiring bundled cables or on-screen adjustment tools will need to source them separately.

Highlights

  • Connect PC to legacy TV via composite or S-Video
  • Select underscan or overscan for optimal picture fit
  • Switch between NTSC and PAL for global display compatibility
  • Accepts VGA input from 640x480 up to 1600x1200
  • Operates reliably from 0 to 70 degrees Celsius

Specifications

BrandStarTech.com
ModelVGA2VID
TypeVGA to Composite
ColorBlack
Cable LengthNo
SpecificationsMaximum Analog Resolutions: 1152 x 864
Operating Temperature: 0-70
Power Adapter - DC Voltage: 5
Center Tip Polarity: Positive
Input Resolutions: 640x480 to 1600x1200
FeaturesHigh resolution inputs from your PC up to 1600x1200
Provides output in both composite and S-Video formats
Supports NTSC and PAL compatible displays
Image underscan and overscan selectable switch
Weight0.8
Shipping weight0.40 kg
Package size208 × 118 × 62 mm

Questions about this item

Will the VGA2VID work with my older graphics card that only outputs 640x480?

Yes, the converter accepts input resolutions from 640x480 up to 1600x1200, so it will handle that signal and output composite or S-Video to your display.

How can I confirm the VGA2VID is converting the signal correctly once connected?

Verify the image appears on the composite or S-Video screen, then use the underscan or overscan switch to adjust the picture edges until the full desktop fits the display area.

Does the VGA2VID package include the VGA cable and RCA leads I need, or must I buy them separately?

The unit itself is supplied without cables; you will need a standard VGA lead for the input and either a composite RCA cable or an S-Video cable for the output connection.
