Small silver and black capture box with HDMI, 3.5 mm jack and USB-C ports, plus cables included

STARTECH

STARTECH UVCHDCAP HDMI to USB-C Video Capture 1080p 60fps Silver Black

SKU CH-EPMZ-H862B

Captures 1080p 60fps HDMI video to USB-C with UVC plug-and-play on Windows and Mac, includes audio, cables and guide

  • TypeHDMI to USB-C Video Capture Device
  • Changer TypeHDMI to USB-C
  • ColorSilver & Black
  • Cable LengthNo
  • SpecificationsAudio: Yes Chipset ID: Mstar - MST3363CNK-170 Converter Type
  • Connector A1 x HDMI (19 pin) Female Input 1 x 3.5 mm Mini-Jack (3 Posit
  • Plug-and-play UVC capture works instantly on Windows and Mac
  • Records 1080p at 60fps preserving full HD source quality
  • Includes HDMI 19-pin, 3.5 mm audio, USB-C 3.0 and USB-A cables for flexible connectivity
  • Compact 3.60 x 2.40 x 0.90 inch design weighs only .18 lbs for portable use
  • Mstar MST3363CNK-170 chipset encodes H.264 video with two-channel stereo audio support

USB-C HDMI Capture for Streaming

This StarTech.com UVCHDCAP device converts an HDMI source to a USB-C signal for recording or live streaming on Windows or Mac computers. It supports the USB Video Class standard for driver-free plug-and-play operation and captures 2-channel stereo audio alongside the video feed.

Upgrade from Basic Screen Recording

The capture hardware replaces software-only screen recording by intercepting the HDMI output directly at up to 1920 x 1080 resolution at 60fps. The jump is worthwhile when you need to record gameplay from a console, a camera feed, or a second PC without loading the host CPU with encoding tasks.

Compact UVC Device with Included Cables

The unit measures 3.60" x 2.40" x 0.90" and weighs .18 lbs, connecting via a USB 3.0 Type-B port with both USB-C and USB-A cables supplied in the box. An HDMI cable and a 3.5 mm audio input are also provided, leaving your system’s native ports free for other peripherals while the Mstar MST3363CNK-170 chipset handles the H.264 encoding.

Highlights

  • Plug-and-play UVC capture works instantly on Windows and Mac
  • Records 1080p at 60fps preserving full HD source quality
  • Includes HDMI 19-pin, 3.5 mm audio, USB-C 3.0 and USB-A cables for flexible connectivity
  • Compact 3.60 x 2.40 x 0.90 inch design weighs only .18 lbs for portable use
  • Mstar MST3363CNK-170 chipset encodes H.264 video with two-channel stereo audio support

Specifications

BrandStarTech.com
ModelUVCHDCAP
TypeHDMI to USB-C Video Capture Device
Changer TypeHDMI to USB-C
ColorSilver & Black
Cable LengthNo
SpecificationsAudio: Yes
Chipset ID: Mstar - MST3363CNK-170
Converter Type: Format Converter
Industry Standards: MPEG4 (H.264), USB Video Class (UVC)
Audio Specifications: 2-channel stereo audio
Maximum Digital Resolutions: 1920 x 1080 60 FPS
Supported Resolutions: 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600
Wide Screen Supported: Yes

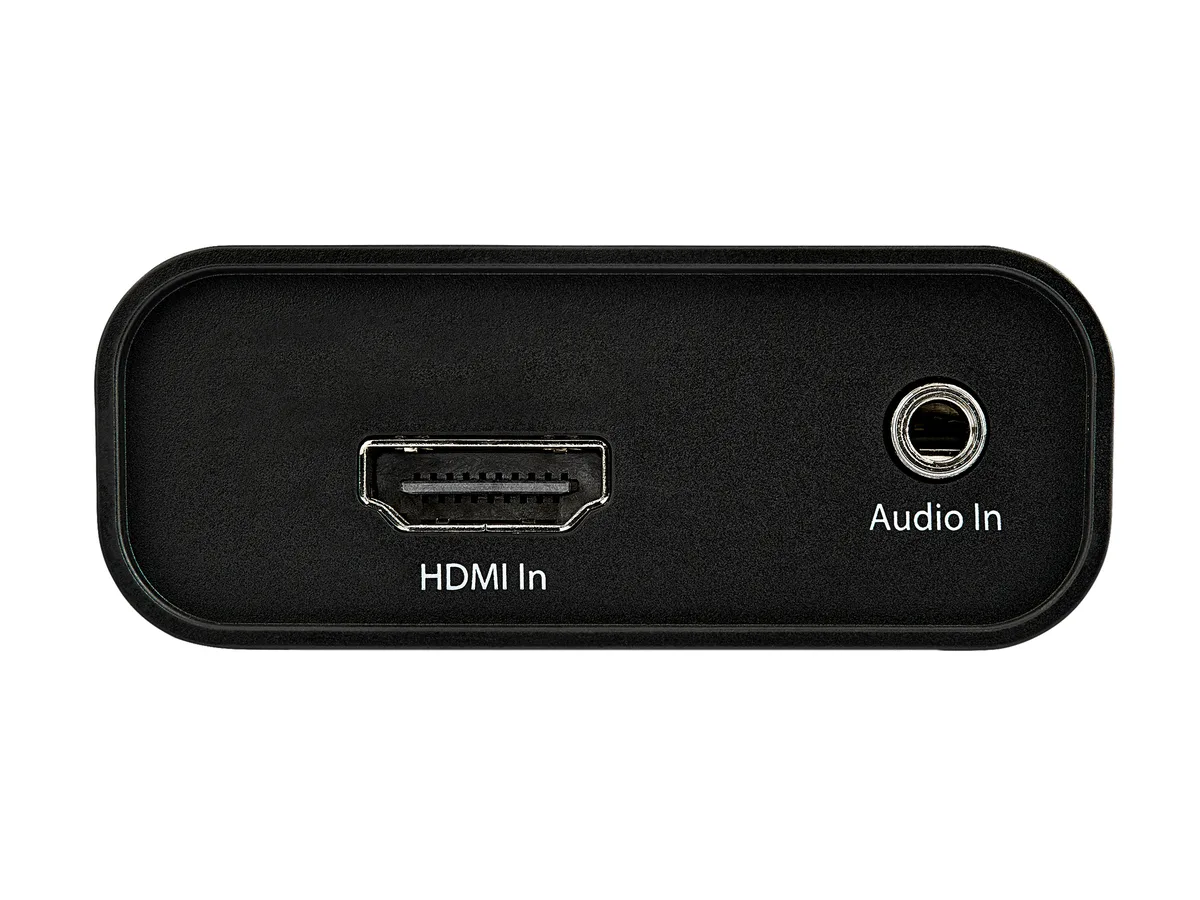

Connector A1 x HDMI (19 pin) Female Input
1 x 3.5 mm Mini-Jack (3 Position) Female Input

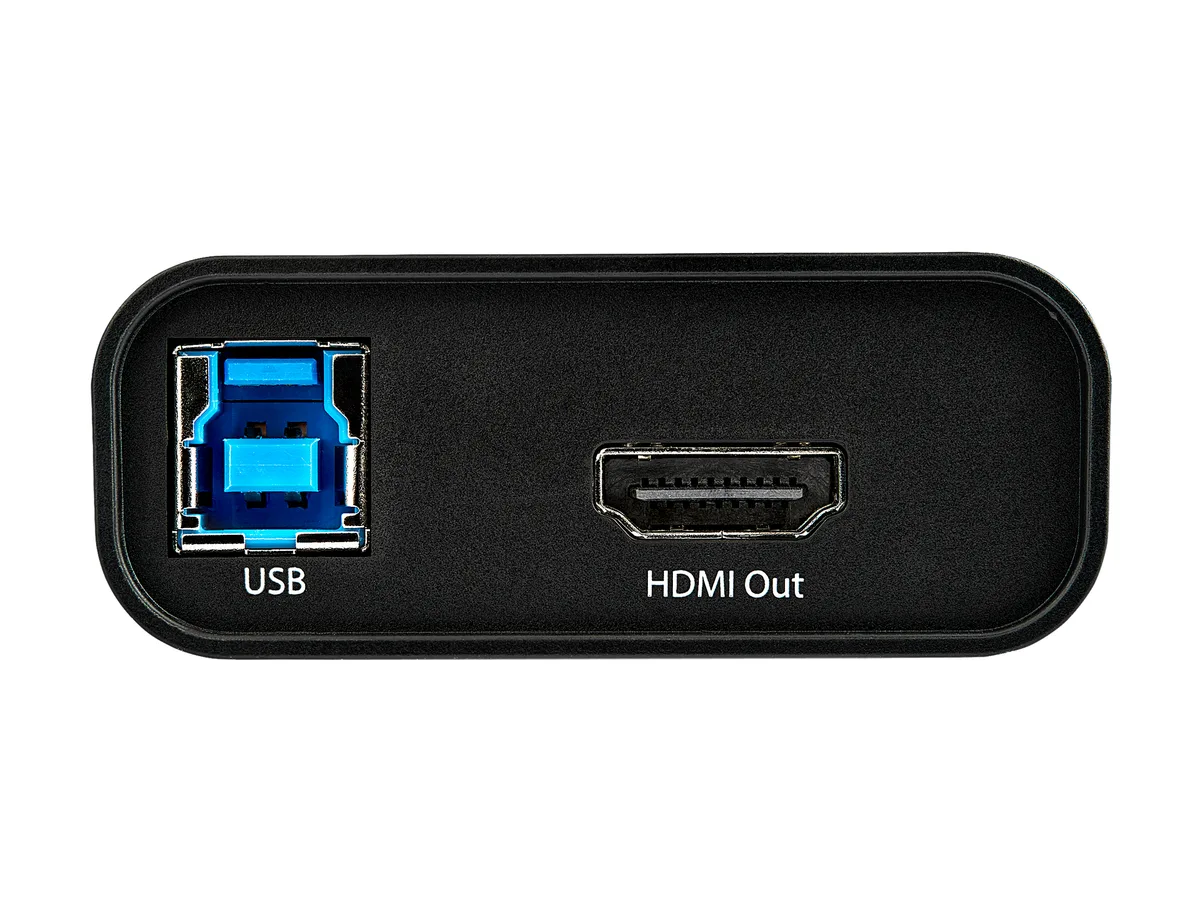

Connector B1 x USB Type-B (9 pin) USB 3.0 Female
AudioYes
FeaturesHassle-free USB-C HDMI capture using the UVC video standard and plug-and-play installation
Live broadcast your video source over the internet, with support for live streaming
Maintain the HD picture quality of your source content (maximum resolution 1080p at 60fps)
Dimensions3.60" x 2.40" x 0.90"
Weight0.18 lbs.

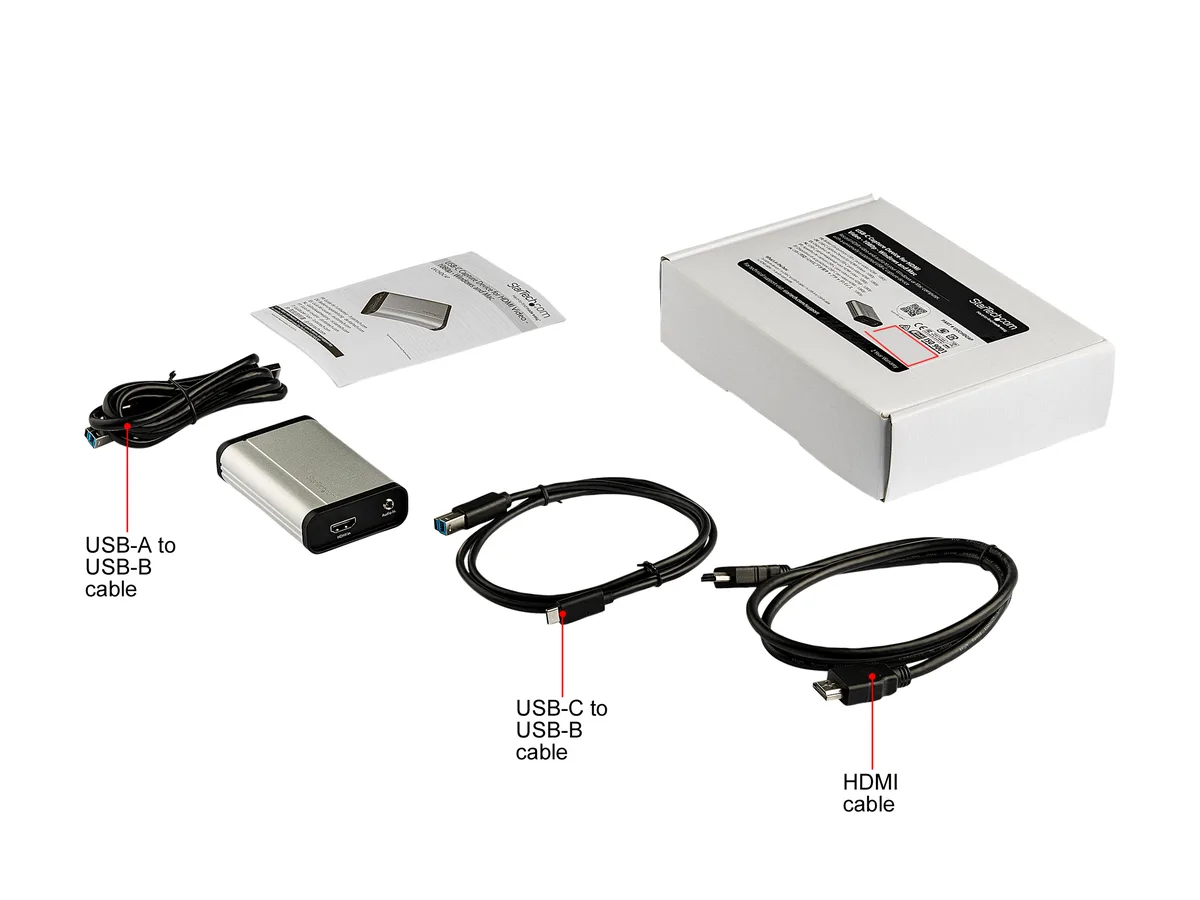

Package Quantity1 x capture device
1 x USB-C to USB-B cable
1 x USB-A to USB-B cable
1 x HDMI cable
1 x quick-start guide
Shipping weight0.68 kg
Package size254 × 203 × 152 mm

Questions about this item

What cables are included so the capture device can connect to both USB-C and USB-A ports?

The package provides a USB-C to USB-B cable and a USB-A to USB-B cable, plus an HDMI cable and a quick-start guide.

How is the device installed and what step do users often miss?

Connect the HDMI source, plug the USB-B end into the capture device, then attach the appropriate USB-C or USB-A cable to the computer; the driver installs automatically, but users sometimes forget to select the capture device as the audio input in their recording software.

What ongoing maintenance does the capture device require?

No internal maintenance is needed; simply keep the HDMI, 3.5 mm and USB connectors clean and replace any damaged cables from the supplied set.
