Black USB 3.1 Gen 2 Type-A male to 2.5in SATA combo receptacle cable

STARTECH

STARTECH USB312SAT3CB USB 3.1 Gen 2 to SATA converter cable 2.5

SKU CH-5PH3-65Q5A MPN USB312SAT3CB

Connect a 2.5" SATA SSD or HDD to a USB 3.1 Gen 2 port at 10 Gbps with UASP support and bus power

  • TypeUSB to SATA
  • ColorBlack
  • Cable Length2.5"
  • SpecificationsDrive Connectors 1 - SATA Data & Power Combo (7+15 pin) Rece
  • Connector A1x USB 3.1 Gen 2 male
  • Connector B1x 2.5in SATA III

Option USB 3.1

  • 10 Gbps USB 3.1 Gen 2 bandwidth enables fast drive access
  • UASP support accelerates data transfers with compatible drives
  • USB-powered design removes the need for an external power adapter
  • 5 inch SATA combo connector fits 2.5" SSDs and HDDs directly
  • Backward compatible with USB 3.0, 2.0 and 1.x ports

Connect 2.5" SATA Drives via USB 3.1 Gen 2

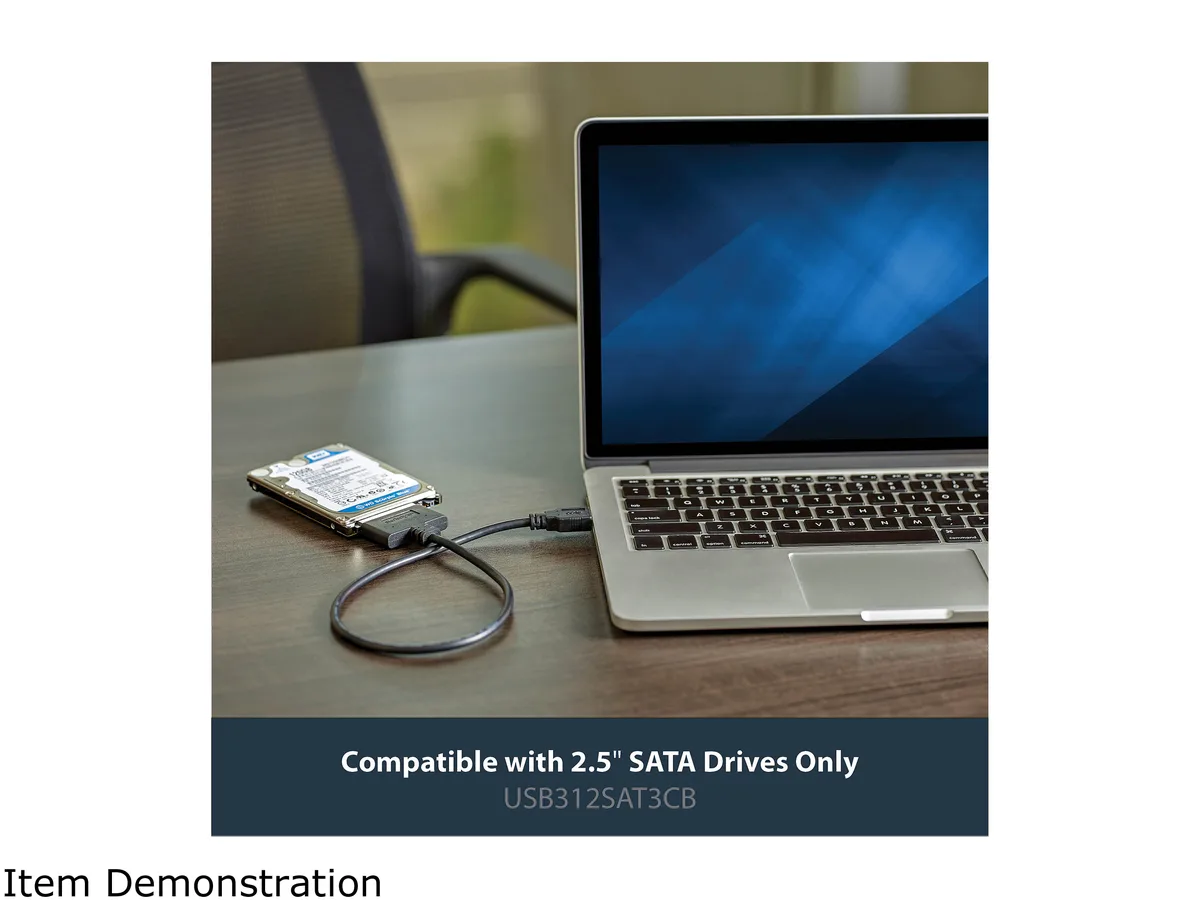

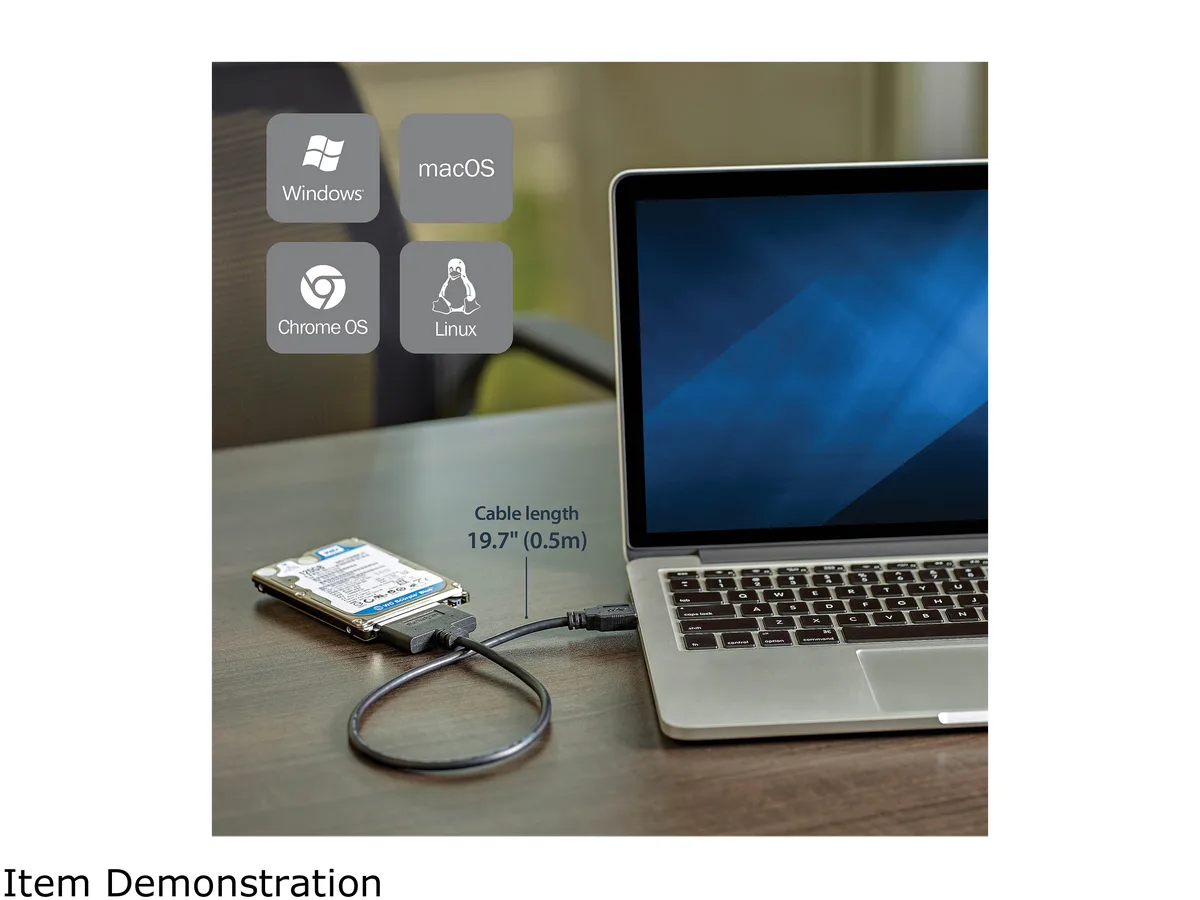

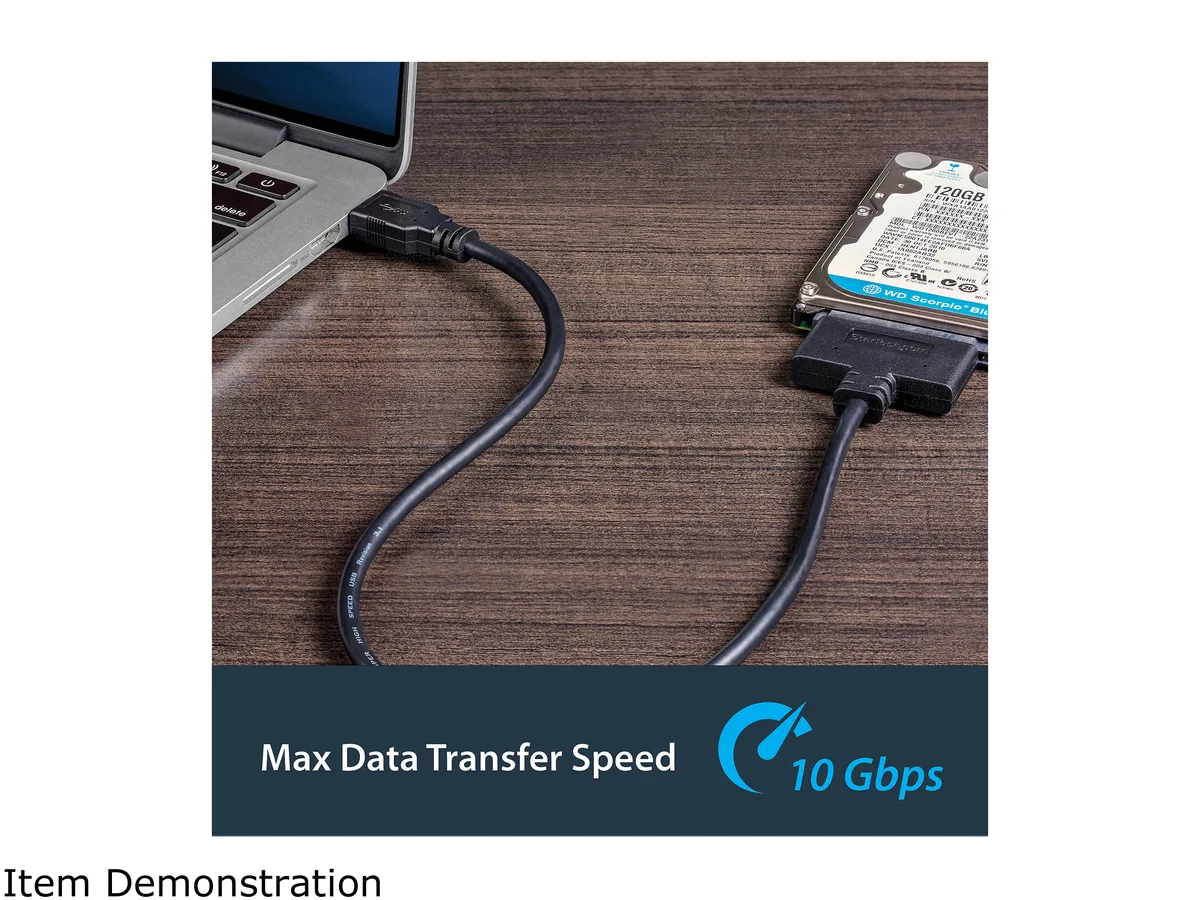

This ultra-portable adapter cable connects a 2.5" SATA SSD or HDD to a computer using a USB 3.1 Gen 2 Type-A port. It delivers up to 10 Gbps bandwidth and supports SATA III speeds of 6 Gbps. The ASMedia ASM1351 chipset enables UASP for improved transfer performance. Power is drawn directly from the USB port with no external supply required.

Suits Quick Drive Access, Not 3.5" Desktop Drives

The cable-style design makes it practical for technicians and users who need fast, tool-free access to 2.5" drives for data recovery, imaging or backups. It is backward compatible with USB 3.0, 2.0 and 1.x hosts. Builders needing to power 3.5" desktop drives should look elsewhere because this adapter provides no separate power input for the higher spin-up current those drives require.

2.5-Inch Cable Length Limits Placement

The integrated cable measures 2.5 inches end to end, so the drive sits immediately next to the host port. This keeps the setup compact for laptop use but prevents placing the drive at a distance or routing the cable behind a desktop chassis. Verify that your work area can accommodate this fixed reach before purchase.

Highlights

  • 10 Gbps USB 3.1 Gen 2 bandwidth enables fast drive access
  • UASP support accelerates data transfers with compatible drives
  • USB-powered design removes the need for an external power adapter
  • 5 inch SATA combo connector fits 2.5" SSDs and HDDs directly
  • Backward compatible with USB 3.0, 2.0 and 1.x ports

Specifications

BrandStarTech.com
ModelUSB312SAT3CB
TypeUSB to SATA
ColorBlack
Cable Length2.5"
SpecificationsDrive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - USB 3.1 USB Type-A (9 pin; Gen 2; 10 Gbps) Male
Bus Type: USB 3.1 Gen 2
Chipset ID: ASMedia - ASM1351
Compatible Drive Types (Type and Rate): SATA
Drive Size: 2.5in
Interface: USB 3.1 Gen 2
Number of 2.5 inch bays: 1
Number of Drives: 1
Hot Swap Capability: Yes
Max Drive Capacity: Currently tested with hard drives up to 2TB at 7200 RPM
Maximum Data Transfer Rate : 10 Gbps
Type and Rate: USB 3.1 Gen 2 - 10 Gbit/s
UASP Support: Yes
Connector A1x USB 3.1 Gen 2 male
Connector B1x 2.5in SATA III
FeaturesEasily access and backup data from a SATA drive to your PC or laptop
USB 3.1 (10 Gbps) Adapter Cable for 2.5in and 3.5in SATA SSD/HDD Drives
Supports SATA I, II, III
Tool-free cable-style adapter for quick access to external data
SATA drive adapter with integrated 1m cable
Fast data transfer rates through USB 3.1 Gen 2 (10Gbps)
Hot-swap and plug-and-play support
UASP support
Weight0.12 lb.
OptionUSB 3.1
Shipping weight0.05 kg
Package size194 × 161 × 15 mm

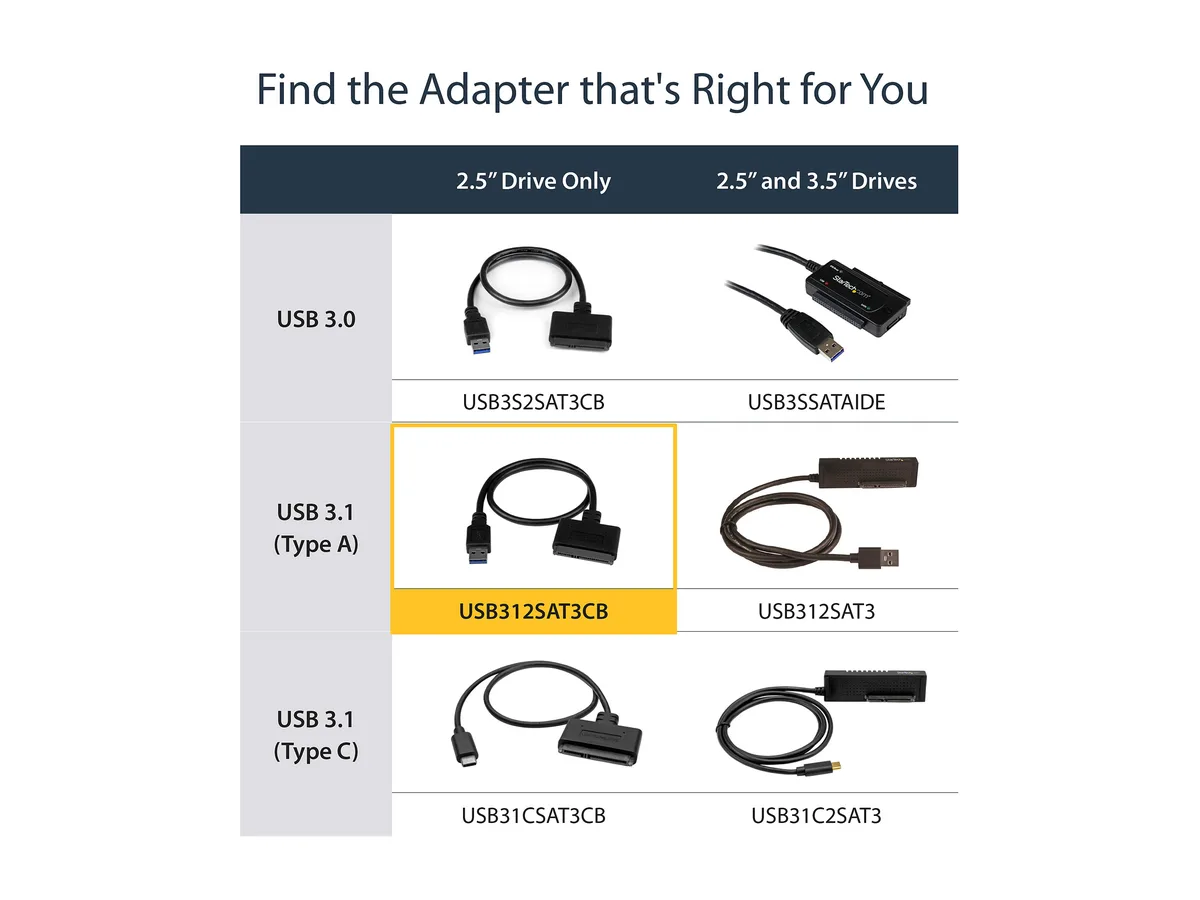

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the USB 3.1 Gen 2 (10 Gbps) interface cap SATA III drive speeds in practice?

The adapter runs at USB 3.1 Gen 2 10 Gbps while SATA III tops out at 6 Gbps, so the SATA drive remains the limiting factor.

What physical space does the 2.5" cable need to fit a 2.5" SATA drive?

The 2.5" cable ends in a 7+15 pin SATA receptacle that accepts standard 2.5" SATA SSDs or HDDs.

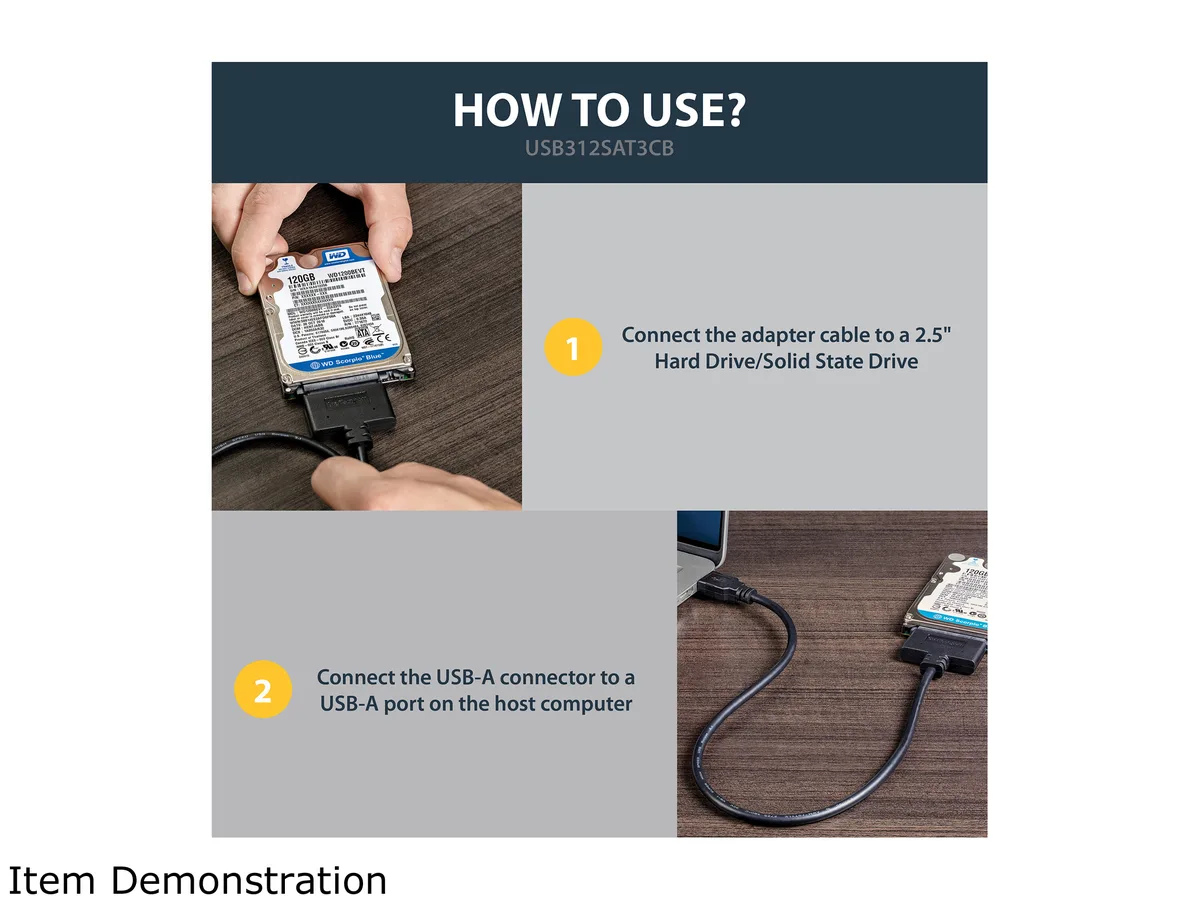

How is the adapter installed and what step is often missed?

Plug the USB Type-A male end into the host, attach the SATA combo connector to the drive, and ensure the host port can supply enough bus power for the 2.5" drive.
