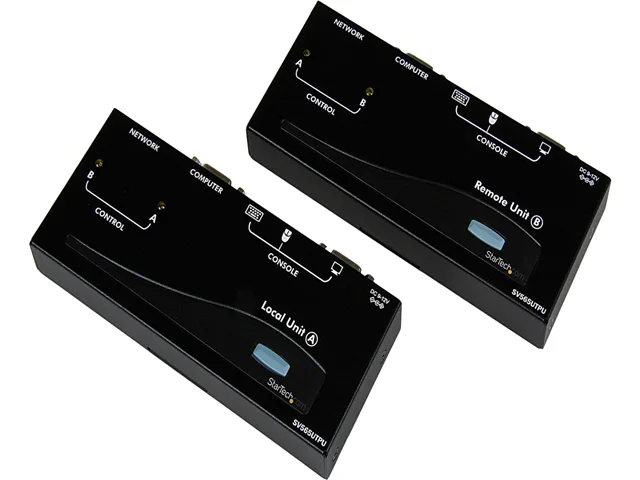

Small black box with VGA, USB and RJ45 ports

STARTECH

STARTECH SV565UTPU USB VGA KVM Console Extender CAT5 500ft

SKU CH-GYY6-C9RPA MPN SV565UTPU

Extends USB and VGA KVM control up to 500 ft over Cat5 or Cat6 UTP cable with included power adapter

  • Typeothers
  • PC Connectors1 - High Density DB15 (VGA) Female 1 - RJ45 Female
  • Console Connectors2 - USB A Female 1 - High Density DB15 (VGA) Female
  • Computer Connections1 Port
  • Video Resolution1280 x 1024 @ 300ft/ 100m 1024 x 768 @ maximum cable length
  • Power FeaturesInput Voltage: 115 AC Output Current: 600mA Power Adapter In

Computer Connections 500 ft over CAT5 VGA

  • Control a PC or KVM up to 500 ft away using standard Cat5 or Cat6 UTP cable
  • 1280 x 1024 video at 300 ft; 1024 x 768 at full 500 ft distance
  • Single USB VGA computer connection extended over RJ45 with included 9 V 600 mA power adapter
  • Compact 0.79 x 6.10 x 2.95 in local unit weighs 10.55 oz for easy mounting
  • Supports remote server rooms factory equipment and security monitoring from one console

Extend USB VGA KVM control 500 ft

This USB VGA KVM console extender lets you operate a server or computer from up to 500 ft away over a standard Cat5 or Cat6 UTP cable. It supports one computer connection and provides console ports for a VGA monitor and two USB devices. The unit includes a 9 V DC power adapter and is built for remote monitoring in industrial or server-room environments.

Upgrade from short-range direct cables

Replace a direct VGA and USB cable run when the console must sit farther than standard video cables allow. The jump is worth it when you need to place a keyboard monitor and mouse up to 500 ft from the computer or KVM switch while keeping full USB peripheral support.

Cat5 UTP distance and resolution limits

Video resolution drops from 1280 x 1024 at 300 ft to 1024 x 768 at the full 500 ft reach. The extender requires a solid UTP cable run and local power at the transmitter side. It does not transmit audio or support digital video interfaces.

Highlights

  • Control a PC or KVM up to 500 ft away using standard Cat5 or Cat6 UTP cable
  • 1280 x 1024 video at 300 ft; 1024 x 768 at full 500 ft distance
  • Single USB VGA computer connection extended over RJ45 with included 9 V 600 mA power adapter
  • Compact 0.79 x 6.10 x 2.95 in local unit weighs 10.55 oz for easy mounting
  • Supports remote server rooms factory equipment and security monitoring from one console

Specifications

BrandStarTech.com
ModelSV565UTPU
Typeothers
PC Connectors1 - High Density DB15 (VGA) Female
1 - RJ45 Female
Console Connectors2 - USB A Female
1 - High Density DB15 (VGA) Female
Computer Connections1 Port
Video Resolution1280 x 1024 @ 300ft/ 100m
1024 x 768 @ maximum cable length
Power FeaturesInput Voltage: 115 AC
Output Current: 600mA
Power Adapter Included: Yes
Power Adapter - Amperage: 0.6
Power Adapter - DC Voltage: 9 (DC)
ApplicationMonitor computer-controlled equipment in a factory or warehouse
Use one or more servers in a server room from a remote location
Control remote machines and security monitoring systems
FeaturesThis USB VGA KVM Console Extender lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500ft away. PC connection cables are included with this product for a ready out of the box solution.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Dimensions0.79" x 6.10" x 2.95" (HWD)
Weight10.55 oz
Shipping weight1.41 kg
Package size295 × 244 × 86 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cable and power connections does the SV565UTPU need at the computer end?

The computer module requires a high-density DB15 VGA cable and an RJ45 Cat5 or Cat6 UTP link, plus the included 9 V DC 600 mA power adapter plugged into 115 V AC.

Which step do installers often miss when linking the local and remote units?

Connecting the 9 V DC power adapter to the computer-side unit before linking the Cat5 or Cat6 cable; the extender will not pass video or USB without local power.

When should the 9 V DC 600 mA power adapter be replaced?

Replace the adapter if the extender loses video at 300 ft (1280×1024) or 500 ft (1024×768), or if USB keyboard and mouse become intermittent, indicating insufficient output current.
