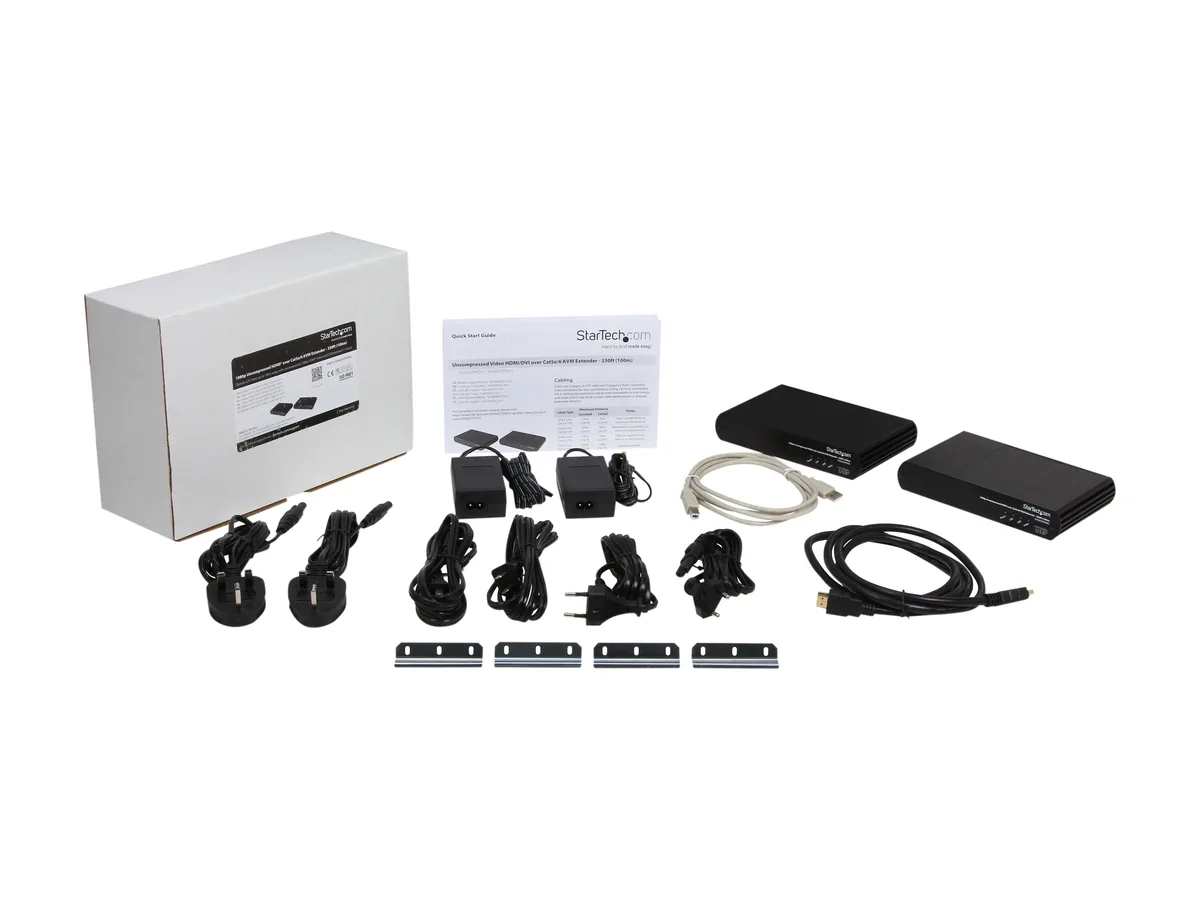

StarTech SV565UTPHDU KVM extender box with HDMI and USB ports

STARTECH

STARTECH SV565UTPHDU KVM Switch 100m 1080p USB 2.0

SKU CH-JKJT-K1KRB MPN SV565UTPHDU

Extends uncompressed 1080p HDMI and USB 2.0 control up to 100m over a single Cat5e or Cat6 cable

  • Typeothers
  • FeaturesUncompressed 1080p and 1920 x 1200 HD video extension Extend
  • Weight5.60 lbs.

Computer Connections 330 ft over CAT5e HDMI

  • Operate a PC from 100 m away with uncompressed 1080p video
  • Extend HDMI and USB 2.0 signals up to 330 ft over Cat5e/6
  • Supports 1920 x 1200 resolution without compression
  • Works OS-independent with no drivers or software needed
  • Includes three USB 2.0 ports for keyboard, mouse and peripherals

Remote PC Operation

The StarTech.com SV565UTPHDU is a USB HDMI KVM console extender that lets you control a computer from up to 100 m away over a single Cat5e or Cat6 cable. It delivers uncompressed 1080p and 1920 x 1200 video with HDCP, CEC and Lip Sync pass-through. The unit is OS independent and requires no software or drivers, providing three USB 2.0 ports for keyboard, mouse and other peripherals.

Site Suitability

This extender suits installers who need to place a PC in a secure or climate-controlled room while operating it from a distant workstation. It works for digital signage, industrial control or server management where direct cabling is impractical. Buyers who require 4K resolution, HDR support or USB 3.0 data rates should look at other products.

Distance Limit

The single specification that decides fit is the 100 m (330 ft) maximum extension distance over Cat5e or Cat6. If the cable run between the computer and the console exceeds this length, the extender will not function.

Highlights

  • Operate a PC from 100 m away with uncompressed 1080p video
  • Extend HDMI and USB 2.0 signals up to 330 ft over Cat5e/6
  • Supports 1920 x 1200 resolution without compression
  • Works OS-independent with no drivers or software needed
  • Includes three USB 2.0 ports for keyboard, mouse and peripherals

Specifications

BrandStarTech.com
ModelSV565UTPHDU
Typeothers
FeaturesUncompressed 1080p and 1920 x 1200 HD video extension
Extend up to 330 ft (100m) over a single Cat5e / Cat6 cable
HDCP, CEC and Lip Sync pass-through support
OS independent - no software or drivers required
3 USB 2.0 ports with transfer rates up to 30Mbps
Supports connection to a single computer or cascading to an existing KVM switch
Supports most combo keyboard and mouse sets (including Wireless)
The SV565UTPHDU USB HDMI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up
Weight5.60 lbs.
Shipping weight2.52 kg
Package size295 × 213 × 109 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which cable type should I choose to reach the full 100m distance?

Use a single Cat5e or Cat6 cable; both support the maximum 100m extension for uncompressed 1080p video and USB 2.0 signals.

What does the 1080p uncompressed claim mean for my display?

You get full 1920 x 1200 or 1080p resolution with no compression artefacts, plus HDCP, CEC and lip-sync pass-through for protected content.

How does the Cat5e / Cat6 link limit the USB 2.0 performance?

The extender carries USB 2.0 over the same Cat5e or Cat6 cable, so keyboard, mouse and other low-speed devices work at standard USB 2.0 rates up to 100m.
