Rectangular black metal box with dual DVI ports USB and audio jacks on front

STARTECH

STARTECH SV431DD2DUA 4-Port Dual DVI KVM Switch with Audio and USB 2.0 Hub

SKU CH-2QWY-RQPV1 MPN SV431DD2DUA

Controls four dual-monitor DVI computers with one keyboard, mouse, audio set and USB 2.0 hub, supporting 2048×1536 analog and 1920×1200 digital resolution

  • TypeDVI, USB
  • Console Connectors2 - 24 pin DVI-I (Single Link) Female 4 - USB A Female 2 - 3
  • Computer Connections4 Port DVI - Dual Monitor
  • Video ResolutionAnalog Resolutions 2048x1536 @85Hz Digital Resolutions 1920x
  • PC SelectionPush Buttons/Hot Keys
  • LED Indicators1 - Green - Power 4 - Green - Host Online, Red - Host Select

Computer Connections 4 Port DVI - Dual Monitor

  • Control 4 dual-monitor computers with one keyboard and mouse
  • Switch systems via front push buttons or custom hot keys
  • Dual DVI-I console supports 2048×1536 analog or 1920×1200 digital
  • Built-in USB 2.0 hub plus 3.5 mm mic and audio ports
  • Verified compatible with ThinkPad Pro Dock for docked laptops

4-Port Dual DVI KVM Switch

The StarTech SV431DD2DUA lets one user control four multimedia computers from a single keyboard, mouse and dual DVI monitor setup. A built-in USB 2.0 hub and 3.5 mm audio ports keep peripherals and sound shared across all connected systems. It is aimed at office or home workstations that need quad-system access without duplicate hardware.

Check your console and cables

Your console must provide two DVI-I single-link inputs for video, four USB-A ports for keyboard, mouse and hub devices, plus 3.5 mm jacks for microphone and speakers. Each of the four target computers needs dual DVI outputs and USB ports to match the switch’s computer-side cables. Verify that your required resolutions fall within 2048x1536 at 85 Hz analog or 1920x1200 at 60 Hz digital. Hot-key switching requires a standard USB keyboard.

Metal chassis with front-panel controls

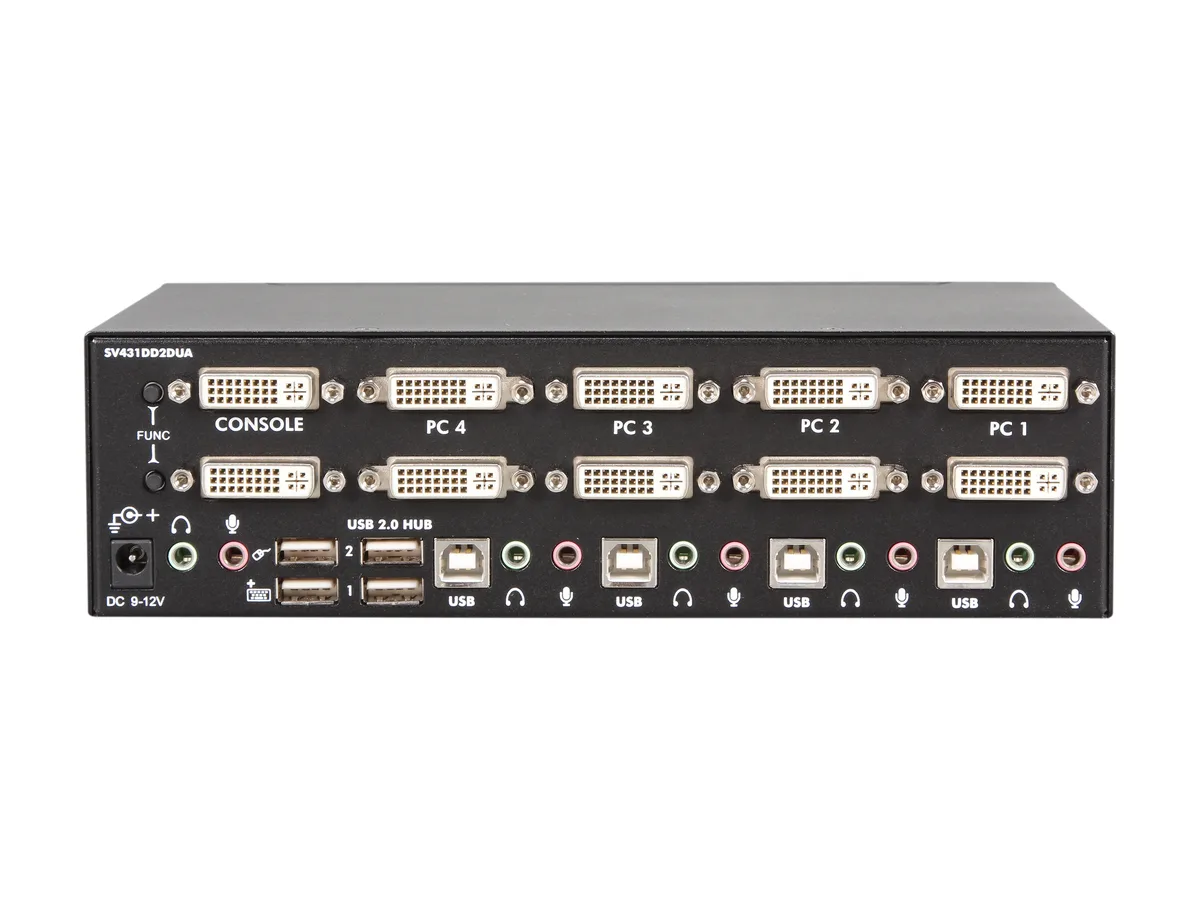

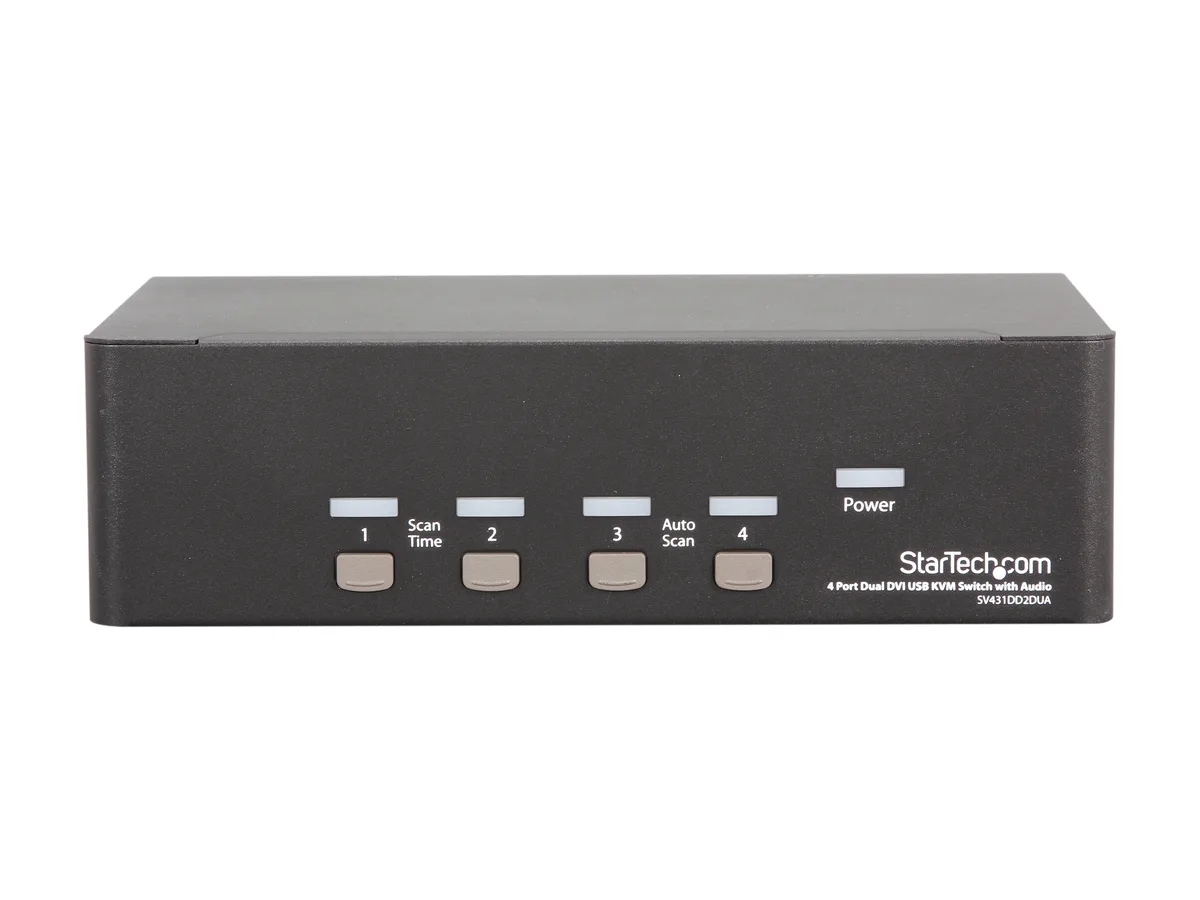

The 4.05 lb metal enclosure sits on a desk and uses push buttons for manual port selection alongside green and red LEDs that show power, host-online and host-selected status. Rear-mounted 24-pin DVI-I, USB-A and 3.5 mm connectors keep cable runs tidy and reduce daily plug wear. The fixed computer cables mean the unit stays anchored while you switch between systems.

Highlights

  • Control 4 dual-monitor computers with one keyboard and mouse
  • Switch systems via front push buttons or custom hot keys
  • Dual DVI-I console supports 2048×1536 analog or 1920×1200 digital
  • Built-in USB 2.0 hub plus 3.5 mm mic and audio ports
  • Verified compatible with ThinkPad Pro Dock for docked laptops

Specifications

BrandStarTech.com
ModelSV431DD2DUA
TypeDVI, USB
Console Connectors2 - 24 pin DVI-I (Single Link) Female
4 - USB A Female
2 - 3.5 mm Audio Female
Computer Connections4 Port DVI - Dual Monitor
Video ResolutionAnalog Resolutions 2048x1536 @85Hz
Digital Resolutions 1920x1200 @60Hz
PC SelectionPush Buttons/Hot Keys
LED Indicators1 - Green - Power
4 - Green - Host Online, Red - Host Selected
FeaturesShare a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers
Compatible with the Thinkpad Pro Dock
Dual Monitor KVM Switch / Dual Display KVM / Dual DVI KVM / Multi-Monitor KVM
Supports resolutions up to 2048x1536 (analog) / 1920x1200 (digital)
USB 2.0 hub and Mic/Audio ports
Control 4 dual display computers with a single set of peripherals
Quad system control for a single user workstation with dual monitors, increasing productivity in the office or at home
Weight4.05 lbs.
Shipping weight1.79 kg
Package size295 × 249 × 81 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables come in the box and which ones do I need to buy for four dual-DVI computers?

The switch provides four dual DVI ports, four USB-A ports and 3.5 mm audio jacks for the console; you must supply four DVI cables, four USB cables and audio cables to connect each computer.

Should I choose the analog 2048x1536 @85Hz mode or the digital 1920x1200 @60Hz mode for my monitors?

Use the digital 1920x1200 @60Hz setting for DVI-D or DVI-I digital monitors; the analog 2048x1536 @85Hz figure applies only to VGA signals through a DVI-I adapter.

How does the 1920x1200 @60Hz digital resolution look when I switch between four computers on dual monitors?

Each computer can drive both monitors at 1920x1200 @60Hz over DVI, and the front push buttons or hot keys let you swap all four systems instantly without losing signal sync.
