Compact silver box with dual DVI ports USB and audio jacks

STARTECH

STARTECH SV231DD2DUA 2-Port Dual DVI KVM Switch with Audio USB 2.0 Hub

SKU CH-YWM9-H6HE3 MPN SV231DD2DUA

Controls two dual-monitor computers from one keyboard, mouse and dual DVI console with USB 2.0 hub and audio

  • TypeDVI, USB
  • Console Connectors2 - 24 pin DVI-I (Single Link) Female 4 - USB A Female 2 - 3
  • Computer Connections2 Port DVI - Dual Monitor
  • Video ResolutionAnalog Resolutions 2048 x 1536 Digital Resolutions 1920 x 12
  • LED Indicators1 - Green - Power 4 - Green - Host Online, Red - Host Select
  • FeaturesShare a keyboard, mouse and dual DVI displays/monitors betwe

Computer Connections 2 Port DVI - Dual Monitor

  • Control 2 dual-monitor computers with one keyboard and mouse using the 2-port DVI KVM switch
  • View crisp digital video up to 1920 x 1200 resolution on each DVI display connected
  • Connect analog monitors at resolutions up to 2048 x 1536 via the DVI-I ports
  • Expand connectivity with a built-in USB 2.0 hub and 3.5 mm audio jacks for mic and speakers

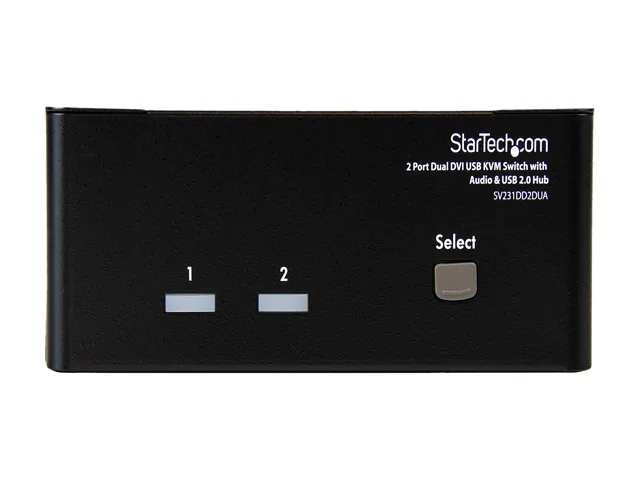

  • Switch between systems instantly using front-panel buttons with green and red LED status indicators

2-Port Dual DVI KVM Switch

The StarTech SV231DD2DUA lets one operator control two multimedia computers that each drive two DVI displays. A built-in USB 2.0 hub and 3.5 mm audio jacks allow a single keyboard, mouse, microphone and speakers to serve both systems. Front-panel LEDs show power status and which host is active.

Suits dual-monitor workstations sharing one console

Offices and home users who run two computers with dual DVI monitors and need USB 2.0 peripheral sharing will benefit. Buyers whose computers only output HDMI, DisplayPort or VGA without active adapters cannot connect them. Buyers who require switching for more than two systems will need a different solution.

Dual DVI-I single-link video up to 1920 x 1200

Each computer port accepts a dual-link DVI-I connector but the switch passes single-link digital signals at a maximum of 1920 x 1200 and analogue signals up to 2048 x 1536. If your workflow demands higher digital resolutions or refresh rates beyond this ceiling, this unit will not meet the requirement.

Highlights

  • Control 2 dual-monitor computers with one keyboard and mouse using the 2-port DVI KVM switch
  • View crisp digital video up to 1920 x 1200 resolution on each DVI display connected
  • Connect analog monitors at resolutions up to 2048 x 1536 via the DVI-I ports
  • Expand connectivity with a built-in USB 2.0 hub and 3.5 mm audio jacks for mic and speakers
  • Switch between systems instantly using front-panel buttons with green and red LED status indicators

Specifications

BrandStarTech.com
ModelSV231DD2DUA
TypeDVI, USB

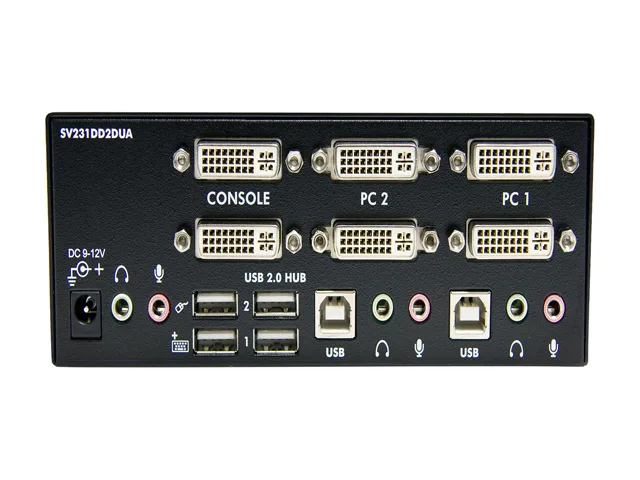

Console Connectors2 - 24 pin DVI-I (Single Link) Female
4 - USB A Female
2 - 3.5 mm Audio Female
Computer Connections2 Port DVI - Dual Monitor
Video ResolutionAnalog Resolutions 2048 x 1536
Digital Resolutions 1920 x 1200
LED Indicators1 - Green - Power
4 - Green - Host Online, Red - Host Selected
FeaturesShare a keyboard, mouse and dual DVI displays/monitors between 2 multimedia computers
Compatible with ASUS VS228H-P / 247H-P
Dual Monitor KVM Switch / Dual Display KVM / Dual DVI KVM / Multi-Monitor KVM
Supports resolutions up to 1920x1200 (DVI-Digital)
USB 2.0 hub and Mic/Audio ports
Control 2 dual display computers with a single set of console peripherals
Dual system control for a single user workstation with dual monitors, increasing productivity in the office or at home
Weight2.60 lbs.
Shipping weight1.27 kg
Package size295 × 198 × 71 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum digital resolution this KVM switch supports across both DVI displays?

The switch handles digital resolutions up to 1920 x 1200 per display over DVI-D.

Does the unit generate noticeable heat or fan noise during continuous all-day operation?

It is a passive device with no fan; heat output is minimal and it runs silently.

Which cables must I already have to connect two dual-DVI computers and one console?

You need four DVI cables for video, two USB cables for the computer links, plus your keyboard, mouse, monitors and audio cables.
