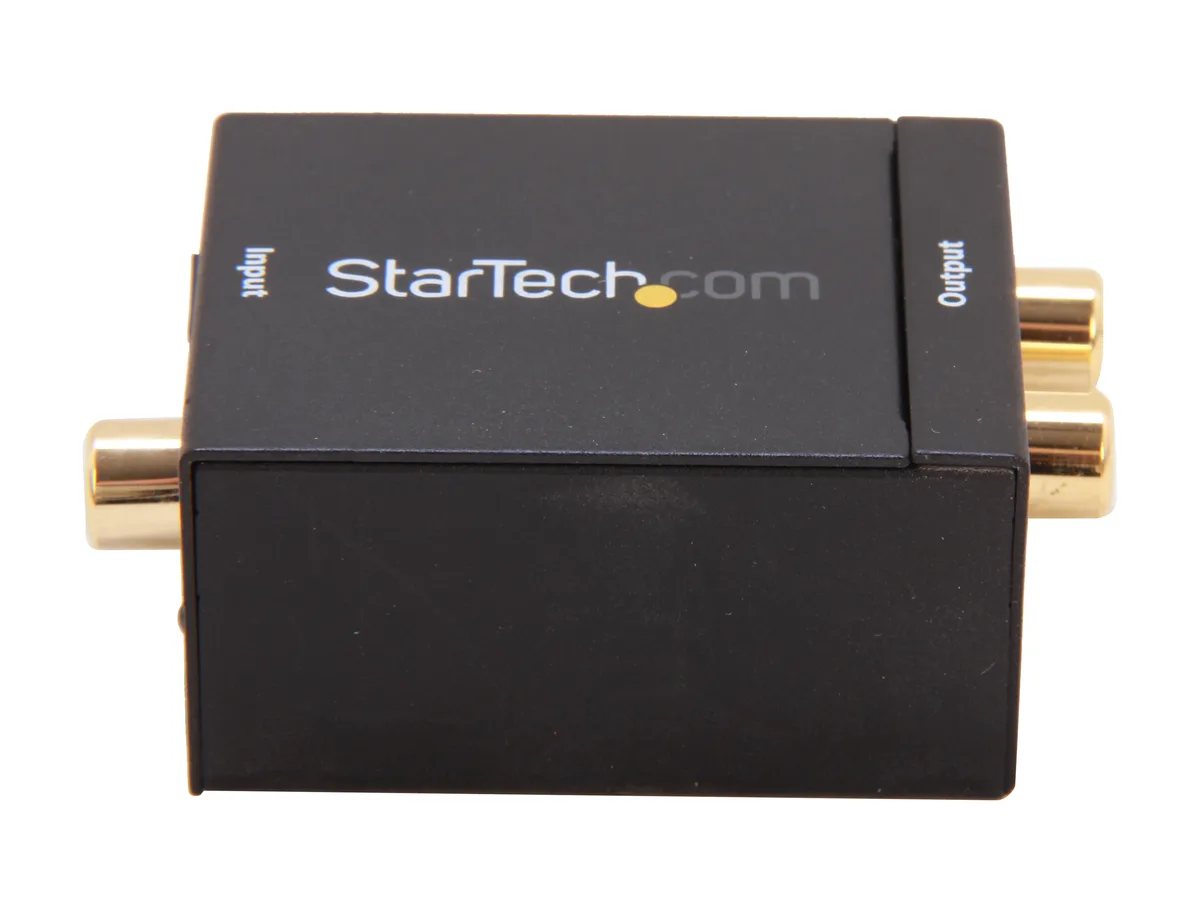

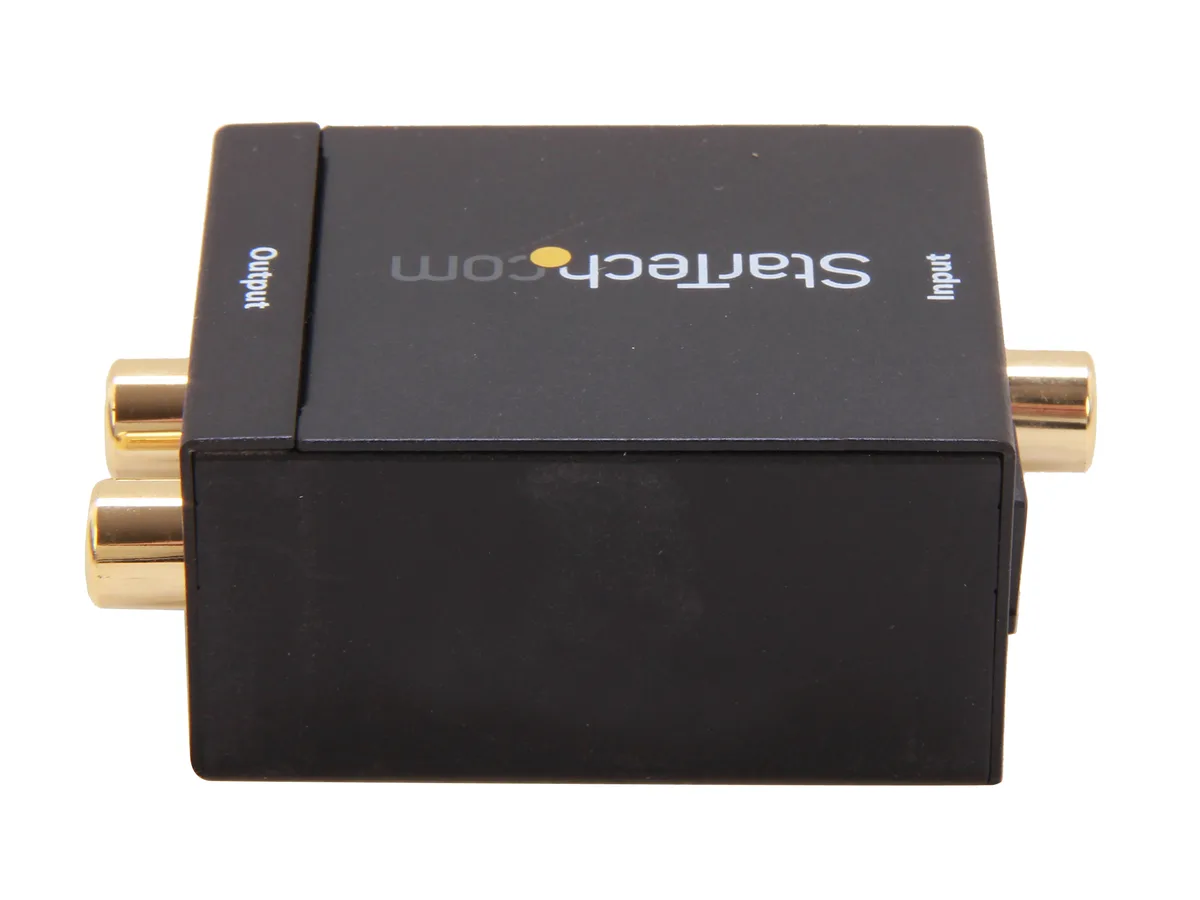

Small black box with optical and coaxial inputs, stereo RCA outputs

STARTECH

STARTECH SPDIF2AA Audio Video Converter Digital Coaxial Toslink to Stereo RCA

SKU CH-W8BM-X2B2B MPN SPDIF2AA

Converts digital coaxial or Toslink signals to stereo RCA audio with 24-bit depth and up to 96 kHz sampling

  • TypeDigital to Analog
  • ColorBlack
  • Cable LengthNo
  • SpecificationsAudio Specifications 2 channel (stereo) supported 32, 44.1,
  • Connector A1 x Digital Coax Audio (RCA) Female 1 x Toslink (SPDIF; Opti
  • Connector B1 x Stereo Audio (2 x RCA) Female

Style Toslink/Digital Coax to RCA Stereo Audio

  • HDMI Audi Extractor
  • Toslink/Digital Coax to RCA Stereo Audio

Struck-through versions exist but are not stocked here.

  • Converts digital coax or Toslink to stereo RCA
  • Supports 32, 44.1, 48 and 96 KHz sampling rates
  • Handles 24-bit S/PDIF incoming bit stream
  • Compact 1.7" x 1.1" x 2" form factor
  • Operates from 0 to 70 degree Celsius

Digital Coax or Toslink to Stereo RCA

The StarTech.com SPDIF2AA converts a digital coaxial or Toslink optical signal into analogue stereo RCA audio. It accepts two-channel PCM streams at 32, 44.1, 48 and 96 KHz sampling rates with 24-bit resolution. The compact black enclosure measures 1.7 by 1.1 by 2 inches and weighs 2.8 ounces. It operates from 0 to 70 °C and stores from -10 to 80 °C at 10 to 85 percent humidity.

Two-channel PCM at up to 96 KHz

The converter handles stereo digital sources such as TV outputs, disc players or game consoles and outputs line-level analogue audio for amplifiers or powered speakers. It supports the four listed sampling rates and 24-bit depth but does not decode multichannel formats such as Dolby Digital or DTS. Surround soundtracks will not play correctly through this device.

Optical and coaxial inputs to stereo RCA

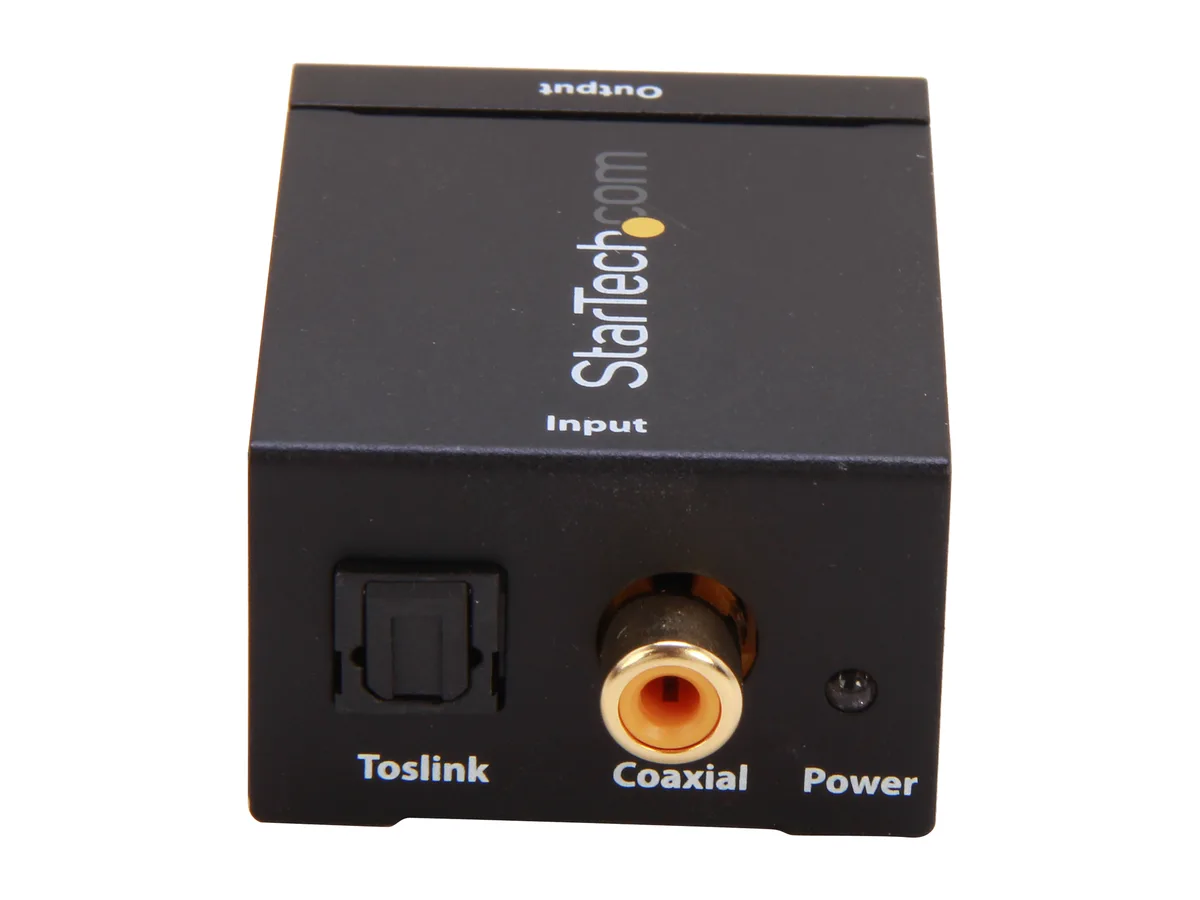

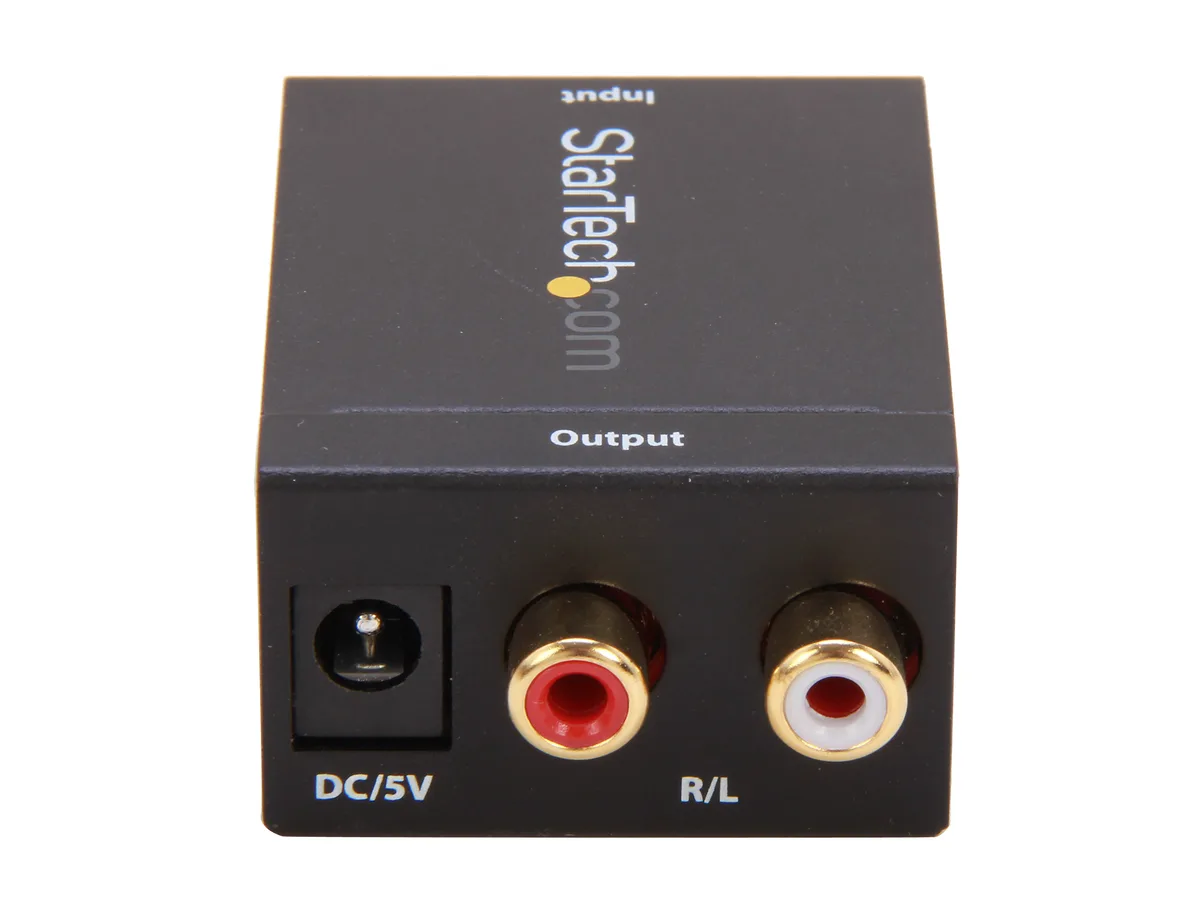

A single digital coaxial RCA female and a single Toslink female provide the input options; both share the same internal decoder. The output is a pair of RCA female connectors for left and right channels. Buyers needing HDMI audio extraction, multichannel analogue output or sample rates above 96 KHz cannot use this converter.

Highlights

  • Converts digital coax or Toslink to stereo RCA
  • Supports 32, 44.1, 48 and 96 KHz sampling rates
  • Handles 24-bit S/PDIF incoming bit stream
  • Compact 1.7" x 1.1" x 2" form factor
  • Operates from 0 to 70 degree Celsius

Specifications

BrandStarTech.com
ModelSPDIF2AA
TypeDigital to Analog
ColorBlack
Cable LengthNo
SpecificationsAudio Specifications
2 channel (stereo) supported
32, 44.1, 48 and 96 KHz Sampling rates
Operating Temperature: 0 to 70 degree
Storage Temperature: -10 to 80 degree
Humidity: 10~85 % RH Non-Condensing
Power Adapter Included
Input Voltage: 110 ~ 240 AC
Input Current: 0.5 A
Output Voltage: 5 DC
Output Current: 0.2A
Center Tip Polarity: Positive
Plug Type: M
Power Consumption: 0.5W
Color: Black
Enclosure Type: Steel
Connector A1 x Digital Coax Audio (RCA) Female
1 x Toslink (SPDIF; Optical) Female
Connector B1 x Stereo Audio (2 x RCA) Female
FeaturesAccepts Digital Coax or Toslink digital audio input
Outputs analog L/R RCA stereo analog audio
Compact form factor
Easy to install and use
24-bit S/PDIF incoming bit stream
Supports 32, 44.1, 48 and 96 KHz sampling rates
Applications
- Connect newer Blu-Ray, DVD Players and Game Consoles to two channel analog stereo receivers
- Convert or extend your digital audio input into an analog format, without signal or quality loss
Dimensions1.7" x 1.1" x 2"
Weight2.8 oz.
Shipping weight0.36 kg
Package size163 × 122 × 58 mm

Questions about this item

Will the SPDIF2AA work with my older CD player that uses a coaxial digital output?

Yes, the unit accepts a digital coax signal on its RCA female input and converts it to stereo analogue RCA output.

How can I verify the converter is handling a 96 KHz signal correctly after I connect it?

Play a 96 KHz source and confirm sound comes through both left and right RCA outputs without distortion.

Does the SPDIF2AA package include the power adapter and both Toslink and coaxial cables?

The box contains the converter only; a 5 V power adapter and any Toslink or coaxial cables must be purchased separately.
