STARTECH

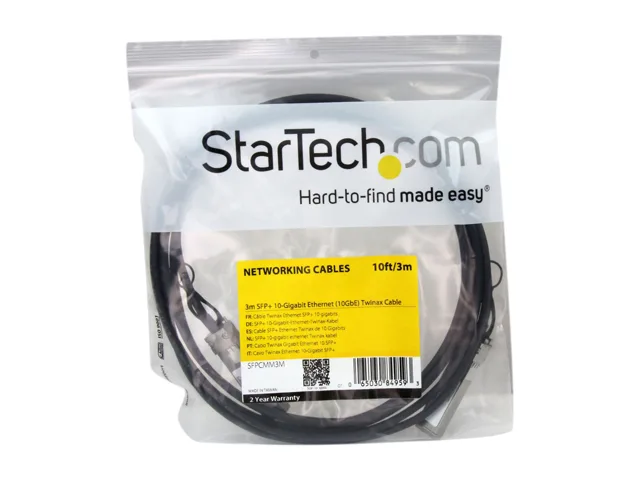

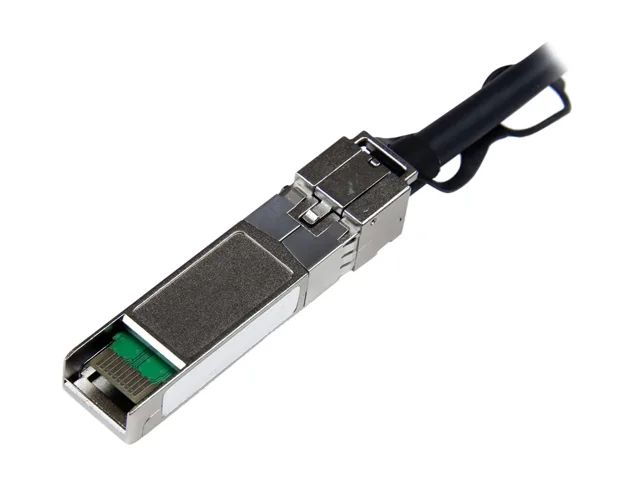

STARTECH SFPCMM3M SFP+ Passive Twinax Direct Attach Cable 3m 10 GbE
A 3 m passive SFP+ direct-attach twinax cable for 10 GbE links, Cisco-compatible and MSA-compliant
- TypeSFP+
- Connector A1 x SFP+ Latching Plug
- Connector B1 x SFP+ Latching Plug
- Length3m
- ColorBlack
- FeaturesCable Jacket Type: PVC - Polyvinyl Chloride Impedance: 100 O
- 10 GbE throughput over 3 m passive copper
- Under 0.05 W draw cuts switch power budget
- Hot-swappable SFP+ ends work with live ports
- 100 % Cisco SFP-H10GB-CU3M compatibility guaranteed
- Meets SFP+ MSA specs for multi-vendor interoperability
Direct-attach copper for 10 GbE links
The STARTECH SFPCMM3M is a passive SFP+ Twinax cable built for 10 GbE connections between switches, servers or storage. It replaces fibre modules with a lower-cost copper link that draws under 0.05 W and installs without powering down the chassis.
Upgrade from fibre transceivers or shorter DACs
Use this cable when you need a 3 m reach (9.8 ft) and want to avoid the expense and power draw of optical SFP+ transceivers. The jump is worth it for rack-to-rack or top-of-rack runs where latency must stay low and the link budget fits passive copper.
Handles 10 GbE and 1x-8x Fibre Channel over 3 m
The 30 AWG conductors meet the 100 Ohm impedance target for 10 GbE and 1x, 2x, 4x and 8x Fibre Channel. Beyond 3 m the passive design runs out of margin, so longer spans require active or optical alternatives.
Highlights
- 10 GbE throughput over 3 m passive copper
- Under 0.05 W draw cuts switch power budget
- Hot-swappable SFP+ ends work with live ports
- 100 % Cisco SFP-H10GB-CU3M compatibility guaranteed
- Meets SFP+ MSA specs for multi-vendor interoperability
Specifications
| Brand | StarTech.com |
|---|---|
| Model | SFPCMM3M |
| Type | SFP+ |
| Connector A | 1 x SFP+ Latching Plug |
| Connector B | 1 x SFP+ Latching Plug |
| Length | 3m |
| Color | Black |
| Features | Cable Jacket Type: PVC - Polyvinyl Chloride Impedance: 100 Ohm Wire Gauge: 30 AWG Compatible with Cisco equipment Compliant with SFP+ MSA Multi-Source Agreement standards Support for 1x, 2x, 4x and 8x Fiber Channel data rates Compliant with SFF 8431 connector standards Support for multi-gigabit data rates up to 10.5Gbps Hot-swappable with fiber optic modules Low Power consumption <0.5W Quick release latching SFP+ connectors. Connect 10GbE SFP+ network devices with this high-quality replacement SFP cable Compatible with SFP+ enabled Fiber switches such as the Cisco Catalyst 2960 / 650 |
| Shipping weight | 0.13 kg |
| Package size | 184 × 163 × 25 mm |
Questions about this item
What SFP+ port spacing and latching mechanism does the 3 m passive twinax cable require?
The cable uses standard SFP+ latching plugs on both ends that fit any MSA-compliant SFP+ cage with 100 Ohm differential impedance.
How do I correctly seat the SFP+ connectors, and what is the common mistake?
Insert each end straight until the latch clicks; the frequent error is angling the module, which bends the 30 AWG twinax pairs and breaks the latch.
When should the 3 m DAC be replaced, and what wear signs appear first?
Replace it if link errors rise or the latch no longer holds; the PVC jacket and passive copper have no active components to degrade beyond physical damage.
