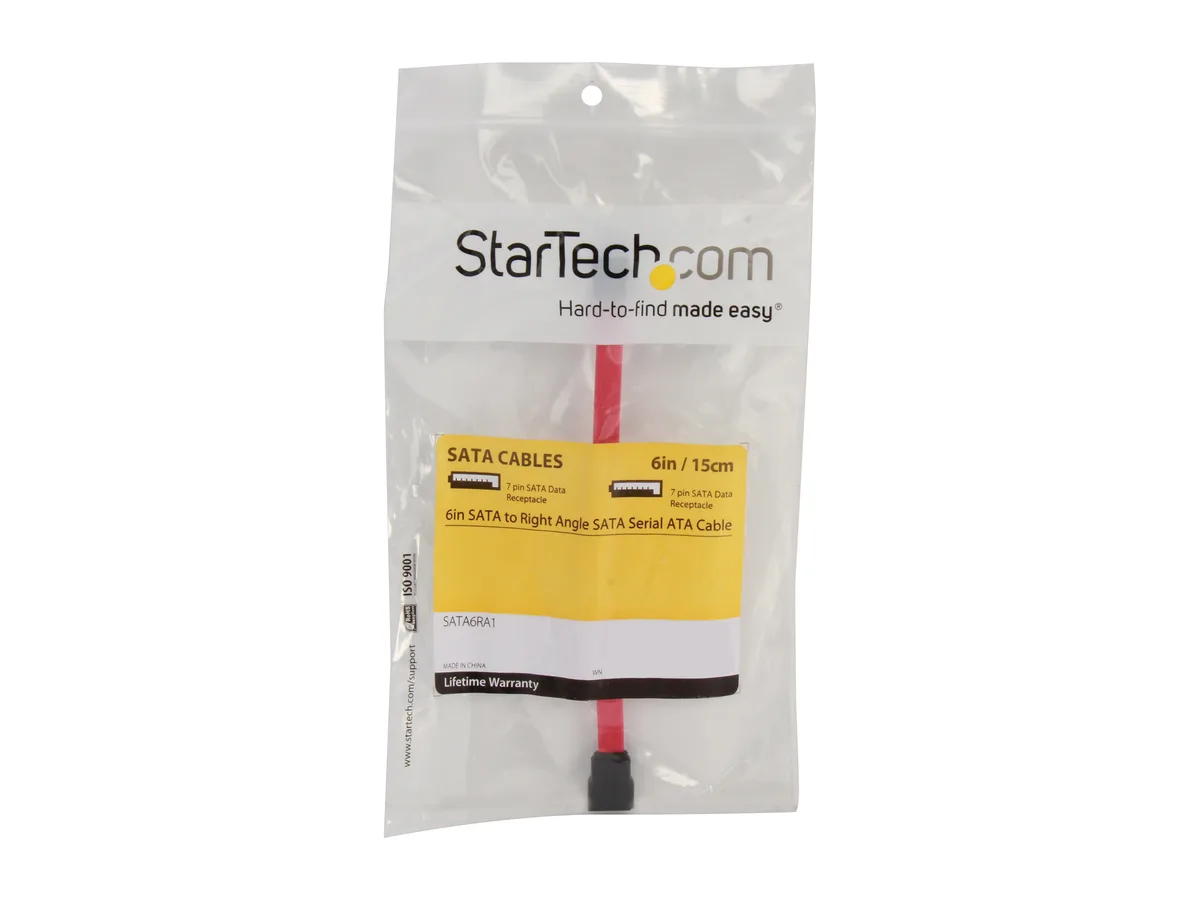

Red 6-inch SATA cable with straight and right-angle connectors

STARTECH

STARTECH SATA6RA1 6" SATA right-angle cable 26 AWG 152.4 mm

SKU CH-T298-62Q16 MPN SATA6RA1

Right-angled SATA data cable with 26 AWG conductors fits 2.5" and 3.5" drives in tight spaces

  • TypeCable Connectors
  • ColorRed
  • Length6" [152.4 mm]
  • Cable Length6 in.
  • Connector Number2
  • Connector DetailConnector A: 1 - SATA (7 pin; Data) Receptacle Connector B:

Cable Length 6 in.

Struck-through versions exist but are not stocked here.

  • Right-angled connector fits tight spaces for easier drive installation
  • Thin 26 AWG cable reduces clutter and improves case airflow
  • 4 mm length provides flexibility for drive positioning
  • Supports 6 Gbps SATA III speeds for fast data transfer
  • Compatible with both 2.5" and 3.5" SATA drives

Right-Angle SATA Cable for Tight Builds

This six-inch SATA data cable uses a straight connector on one end and a right-angle connector on the other to fit drives where a straight plug would hit a case wall or another component. The 26 AWG conductors and aluminium-Mylar foil with braid shielding meet Serial ATA III specifications for reliable 6 Gbps transfer rates. Red PVC jacket adds visibility during cable routing.

Replaces Standard Straight SATA Cables

Swap this cable in when a drive sits flush against a side panel, a long graphics card or a drive cage that leaves no room for a straight connector hood. The right-angle head removes the clearance problem without needing an adapter that adds another failure point. Builders with generous space around every SATA port will not need the angled design.

Handles Two Drives in Cramped Bays

The 152.4 mm length reaches from a motherboard port to a 2.5 or 3.5 inch drive mounted in a tight bay while keeping slack minimal for airflow. Seven conductors carry the full SATA III signal set. The short reach cannot span full-tower distances or connect drives mounted far from the board; longer cables are required for those layouts.

Highlights

  • Right-angled connector fits tight spaces for easier drive installation
  • Thin 26 AWG cable reduces clutter and improves case airflow
  • 4 mm length provides flexibility for drive positioning
  • Supports 6 Gbps SATA III speeds for fast data transfer
  • Compatible with both 2.5" and 3.5" SATA drives

Specifications

BrandStarTech.com
ModelSATA6RA1
TypeCable Connectors
ColorRed
Length6" [152.4 mm]
Cable Length6 in.
Connector Number2
Connector DetailConnector A: 1 - SATA (7 pin; Data) Receptacle
Connector B: 1 - SATA (7 pin; Data) Receptacle
SpecificationsCable Shield Type: Aluminum-Mylar Foil with Braid
Cable Jacket Type: PVC - Polyvinyl Chloride
Wire Gauge: 26 AWG
Number of Conductors: 7
Connector Style: Straight to Right Angle
FeaturesCompliant with Serial ATA III Specifications
Supports fast data transfer rates of up to 6 Gbps
Meets current Serial ATA specifications and ensures maximum performance
Offers 6" in length for greater flexibility
Specially designed to improve system airflow and routability
Make a Right-Angled Connection to your SATA Drive, for Installation in Tight Spaces.
Shipping weight0.01 kg
Package size169 × 121 × 24 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much clearance does the right-angle SATA connector need behind a 3.5 or 2.5 drive?

The right-angle connector bends at the drive port so the cable runs parallel to the drive, letting you route it in the narrow gap between the drive and the case wall.

Which end plugs in first when I install the SATA6RA1 in a tight build?

Connect the straight end to the motherboard or controller first, then angle the right-angle end onto the drive SATA port; reversing the order can make the bend fight the limited space.

When should I replace this 26 AWG SATA cable?

Replace it if the PVC jacket shows cracks, the foil-and-braid shield is exposed, or the 7-pin connectors feel loose and cause intermittent 6 Gbps link errors.
