STARTECH
STARTECH SAT32MSAT257 mSATA to 2.5in SATA ssd accessory
Converts an mSATA SSD into a 7mm high 2.5in SATA 6Gbps open bracket drive
- ColorRed
- Conversion TraymSATA Drive to 2.5" Drive
- Compatible Products2.5"
- SpecificationsDrive Installation: Fixed Drive Type: mSATA (Mini SATA) Inte
- FeaturesConvert an mSATA SSD into a 7mm high 2.5in SATA 6Gbps Open B
- Converts mSATA SSD to 2.5in SATA 6Gbps drive
- 7mm open bracket fits standard 2.5in bays
- 52 pin mSATA receptacle connects directly
- SATA 7+15 pin combo powers and transfers data
- Open frame design maximises heat dissipation
mSATA to 2.5in SATA adapter

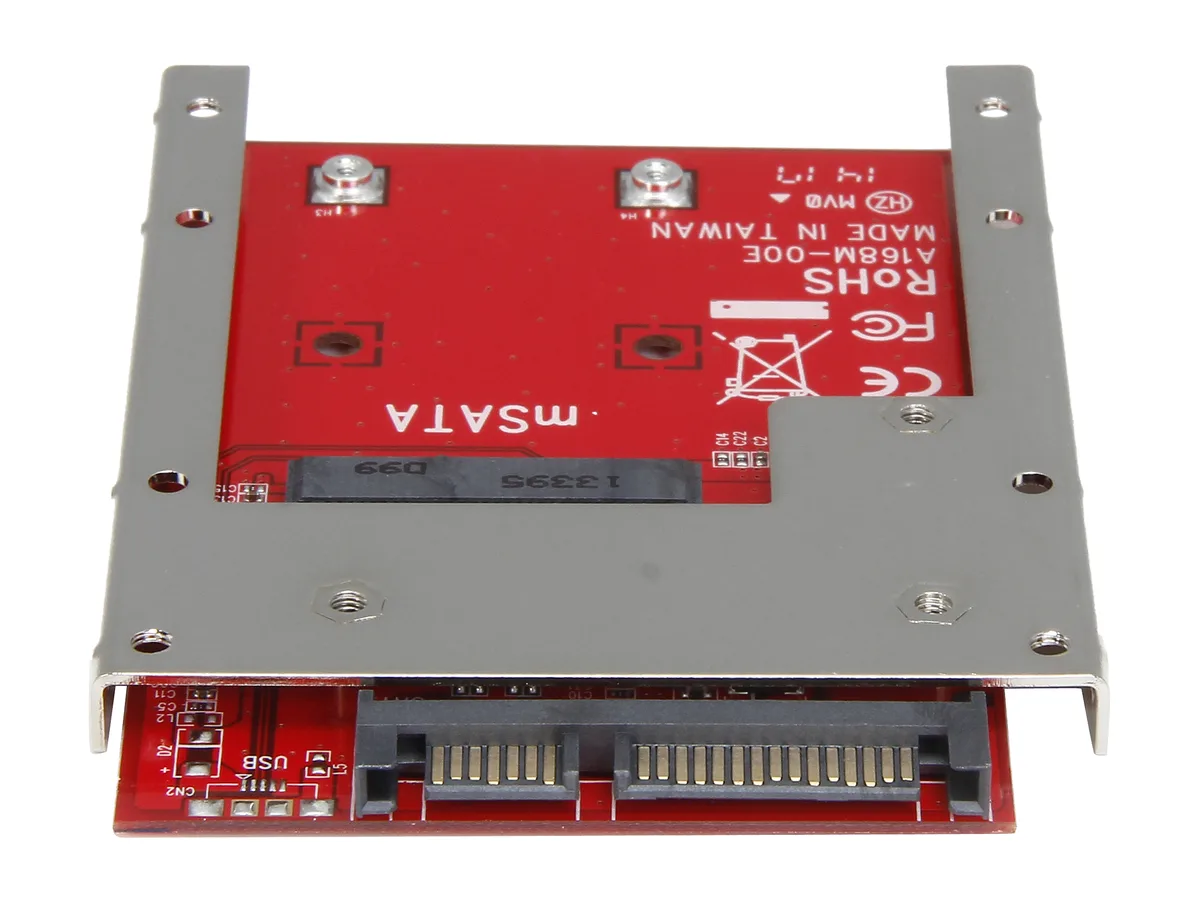

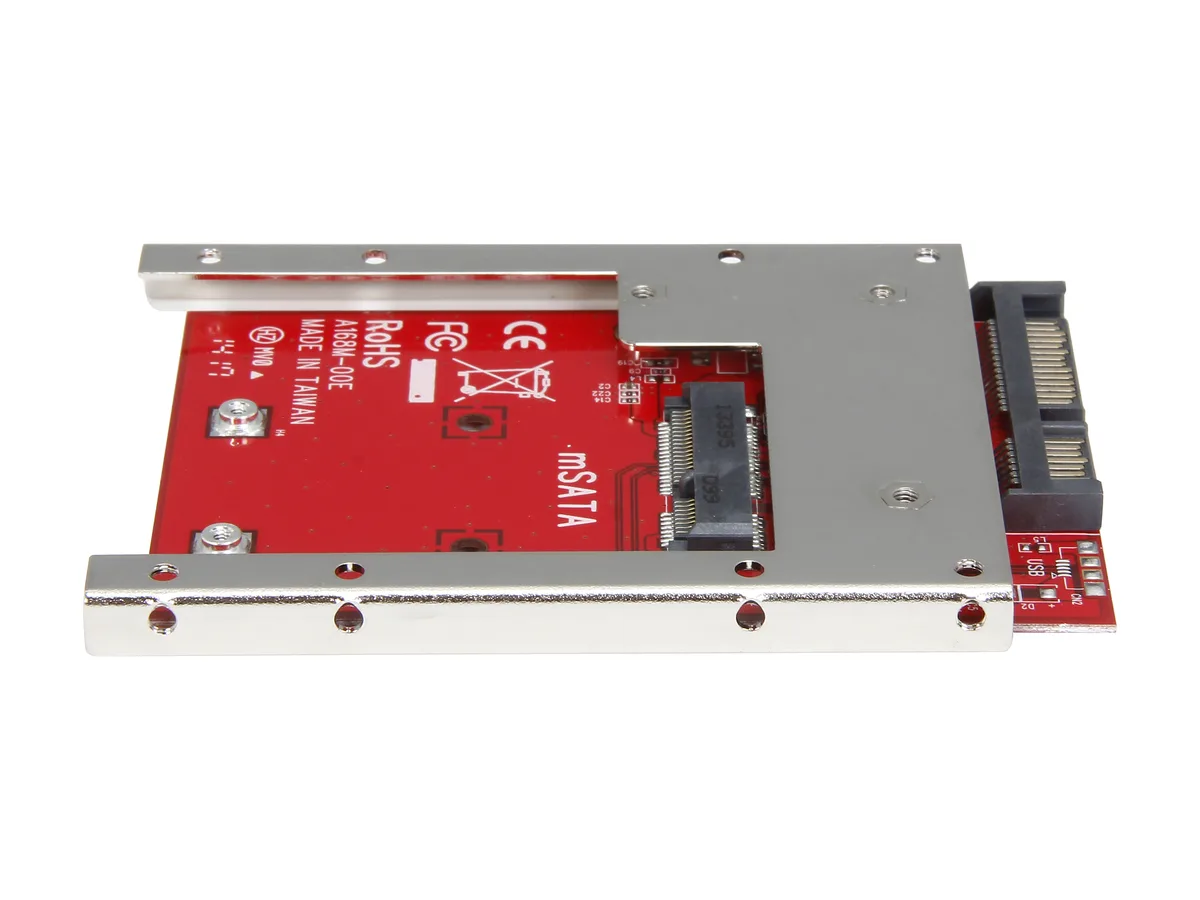

This adapter converts an mSATA solid-state drive into a 7 mm high 2.5in SATA 6Gbps open bracket drive. It fits a single mSATA module using a 52 pin receptacle and presents a standard SATA data and power connector to the host. The open frame design allows maximum heat dissipation during operation.
Replaces direct mSATA slot dependency
The adapter upgrades a system that only accepts 2.5in SATA drives so it can use an existing mSATA SSD instead. The jump is worth it when a laptop or desktop has a vacant 2.5in bay but no mSATA connector on the motherboard. It also lets builders repurpose an mSATA drive from an older ultrabook without buying a new 2.5in SSD.
Fits any 2.5in SATA drive bay
Installation is fixed and the bracket matches the 7 mm height used in slim laptops and standard drive caddies. The converter needs only the SATA data and power cables already present in the target machine. It frees up the mSATA slot on the original board for other expansion cards or leaves it empty if the board is being retired.
Highlights
- Converts mSATA SSD to 2.5in SATA 6Gbps drive
- 7mm open bracket fits standard 2.5in bays
- 52 pin mSATA receptacle connects directly
- SATA 7+15 pin combo powers and transfers data
- Open frame design maximises heat dissipation
Specifications
| Brand | StarTech.com |
|---|---|
| Model | SAT32MSAT257 |
| Color | Red |
| Conversion Tray | mSATA Drive to 2.5" Drive |
| Compatible Products | 2.5" |
| Specifications | Drive Installation: Fixed Drive Type: mSATA (Mini SATA) Interface : SATA Number of Drives: 1 Drive Connectors: 1 - mSATA (52 pin; Mini SATA) Receptacle Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle Maximum Data: Transfer Rate 6 Gbps Type and Rate: SATA III (6 Gbps) |
| Features | Convert an mSATA SSD into a 7mm high 2.5in SATA 6Gbps Open Bracket SSD Compatible with mSATA solid state drives such as the SAMSUNG 840 EVO MZ-MTE250BW mSATA 250GB SATA III TLC Internal Solid State Drive (SSD) / mSATA to 2.5 7mm SATA Adapter / Mini PCIe mSATA to SATA Adapter / mSATA to SATA 7mm Enclosure / mini PCIe SSD Adapter / mSATA to sata 3 Adapter Maximum heat dissipation with open frame design Add an mSATA SSD to any 2.5in SATA platter application to increase performance |
| Shipping weight | 0.11 kg |
| Package size | 183 × 147 × 36 mm |
Questions about this item
What height does the adapter add to my mSATA drive for a 2.5in bay?
The open bracket holds the mSATA SSD at a 7mm profile so it fits standard 2.5in SATA drive slots.
Which connectors do I line up when seating the mSATA card?

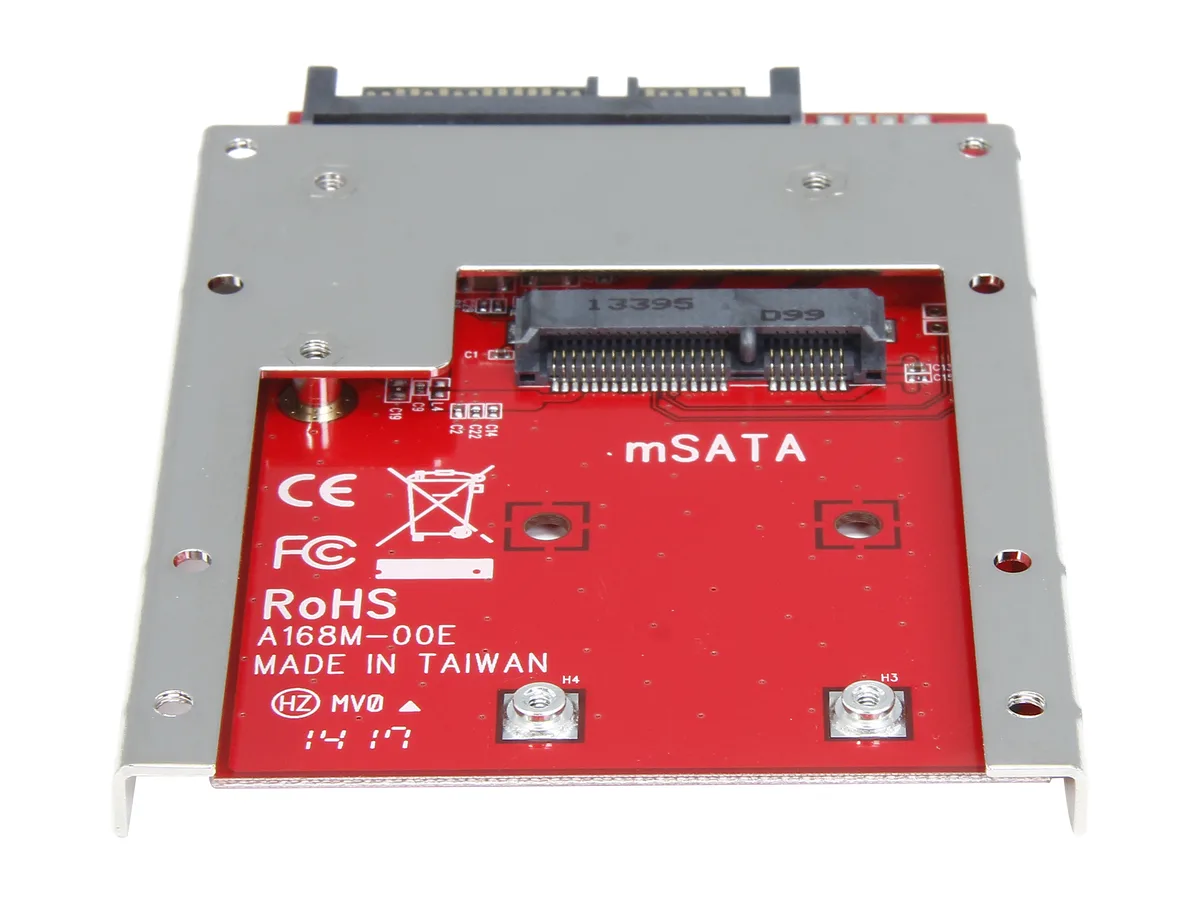

Insert the 52 pin mSATA edge connector into the receptacle on the red PCB, then plug the combined 7+15 pin SATA data and power connector into the host.
Does the open frame need any thermal pad or paste over time?
No, the frame relies on passive airflow; just keep dust off the exposed PCB and drive controller.
