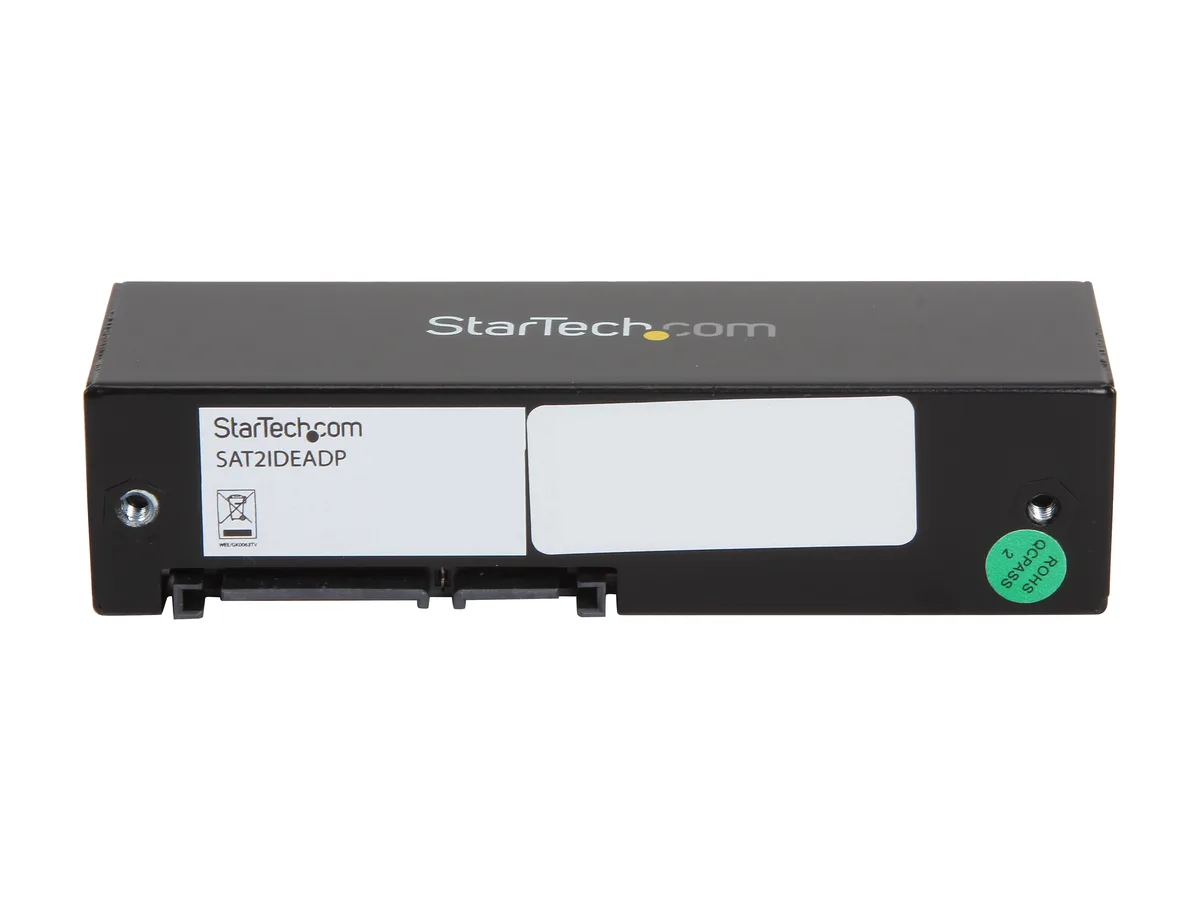

Black SATA to IDE adapter with steel enclosure and mounting holes for 2.5in and 3.5in drives

STARTECH

STARTECH SAT2IDEADP SATA to 2.5in or 3.5in IDE hard drive adapter

SKU CH-1KA8-FWV2Y MPN SAT2IDEADP

Connects 2.5in or 3.5in IDE drives to SATA docks with 48-bit LBA support

  • ColorBlack
  • Cable LengthNo
  • SpecificationsConnector Types: 1 - IDE 40 pin Male Connector Types: 1 - SA
  • FeaturesCompatible with most 3.5in StarTech.com SATA hard drive dock
  • Weight0.47
  • Connect 2.5in or 3.5in IDE drives to a SATA dock
  • 48-bit LBA enables large-capacity drive support
  • Steel enclosure protects the adapter during use
  • Mounting holes fit both 2.5in and 3.5in form factors
  • 40-pin and 44-pin IDE connectors covered

SATA-to-IDE adapter for HDD docks

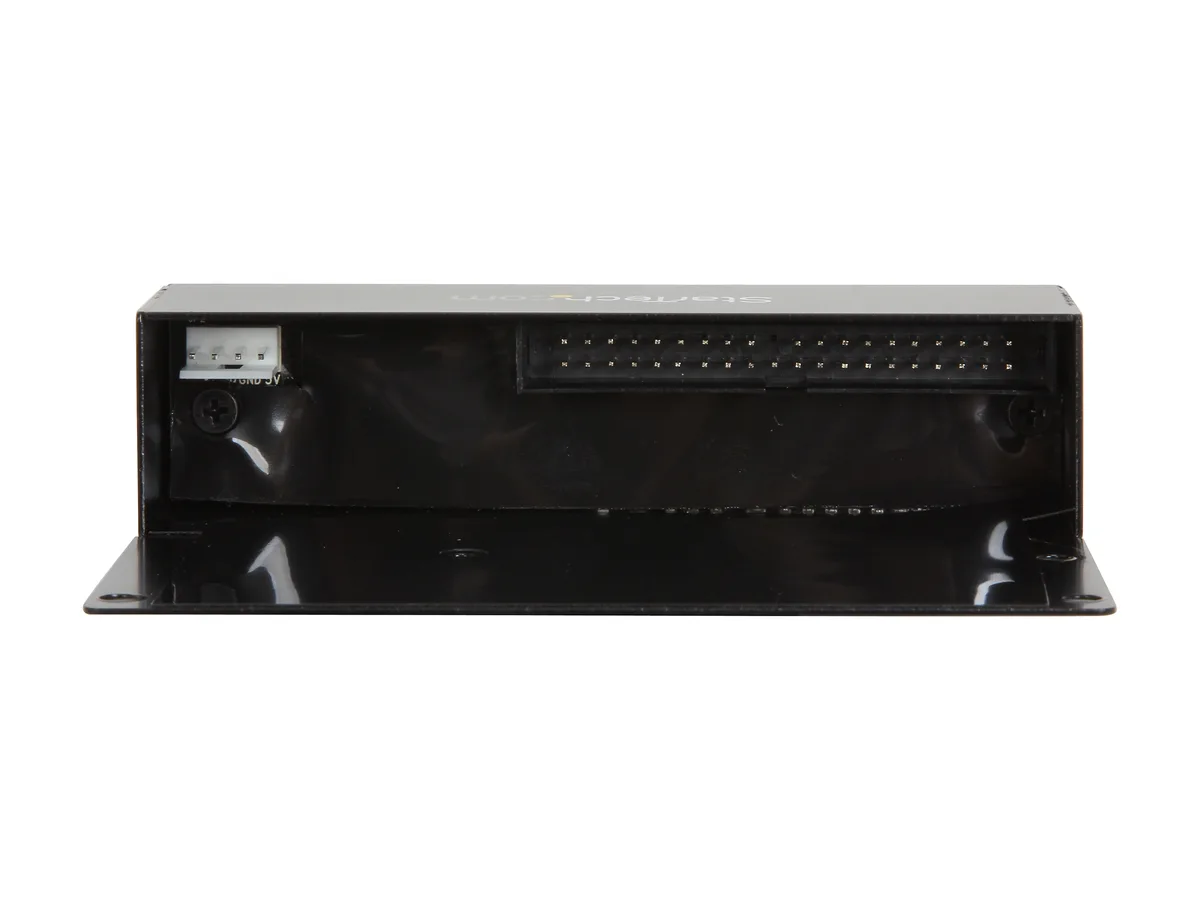

This adapter lets you connect 2.5in or 3.5in IDE hard drives to a SATA docking station or duplicator. It carries a 40-pin IDE connector, a SATA data plug, a SATA power plug and an SP4 power connector inside a steel enclosure. The board supports 48-bit LBA addressing.

Suits users with legacy IDE drives

Builders who need to read or copy data from older 40-pin 3.5in or 44-pin 2.5in IDE drives will find this adapter useful. It is not for anyone whose drives already use a native SATA interface or who require a direct motherboard connection without a dock.

Fits into a SATA dock ecosystem

The adapter mounts both 2.5in and 3.5in drive form factors using integrated holes and draws power through the dock's SATA and SP4 connectors. It frees you from hunting for a working legacy IDE controller or cable while keeping the drive physically secure.

Highlights

  • Connect 2.5in or 3.5in IDE drives to a SATA dock
  • 48-bit LBA enables large-capacity drive support
  • Steel enclosure protects the adapter during use
  • Mounting holes fit both 2.5in and 3.5in form factors
  • 40-pin and 44-pin IDE connectors covered

Specifications

BrandStarTech.com
ModelSAT2IDEADP
ColorBlack
Cable LengthNo
SpecificationsConnector Types: 1 - IDE 40 pin Male
Connector Types: 1 - SATA Data 7 pin Plug
Connector Types: 1 - SATA Power Plug
Connector Types: 1 - SP4 Male
Enclosure Type: Steel
LBA support: 48-bit
Product Height: 1.02 in [26 mm]
Product Length: 3.98 in [101 mm]
Product Weight: 3.67 oz [104 g]
Product Width: 3.07 in [78 mm]
Humidity: 8% ~ 90% RH
Operating Temperature: 5°C to 80°C (41°F to 176°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Chipset ID: JMicron JM20330
OS Compatibility: OS independent; No software or drivers required
FeaturesCompatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators.
Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives.
Mounting holes for both 2.5in and 3.5in form factor IDE hard drives.
Large capacity hard drive support, with 48-bit LBA.
Durable, metal construction.
Compliant with SATA revision 1.0.
Compatible with PATA (IDE) 66/100/133 MBps hard drives.
Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay.
Weight0.47
Shipping weight0.21 kg
Package size145 × 107 × 53 mm

Questions about this item

Which SATA hard-drive docks accept this adapter?

It is compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators.

Can I connect both 40-pin and 44-pin IDE drives to the same adapter?

Yes, the adapter supports 40-pin 3.5in and 44-pin 2.5in IDE hard drives using the mounting holes for each form factor.

How do I verify the adapter is communicating with the drive after installation?

The adapter supports 48-bit LBA, so the connected IDE drive should appear at its full capacity in the host system BIOS or operating system disk utility.
