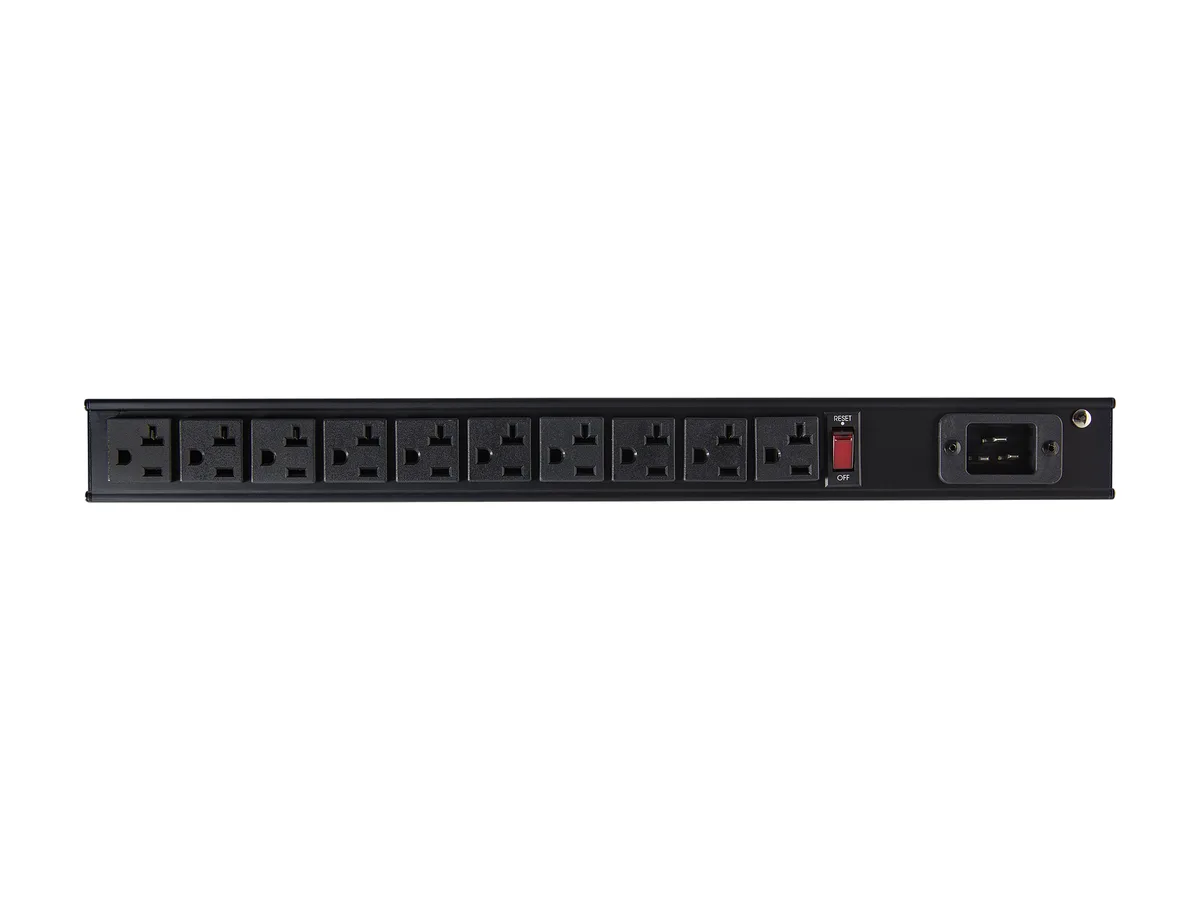

Silver metal 1U horizontal rackmount power strip with ten front outlets and a power switch

STARTECH

STARTECH RKPW101920 10 Outlet 1U Horizontal Rackmount PDU 125V 16A NEMA 5-20P

SKU CH-17FK-1JYXN MPN RKPW101920

A 1U horizontal rackmount PDU distributes 125V power through 10 NEMA 5-20R outlets and one IEC 60320 C19 outlet with a 20A circuit breaker and 8ft cord

  • TypeBasic
  • Rack Size1U
  • StyleHorizontal
  • Package IncludesRackmount 10 Outlet Rackmountable Power Strip 8 ft NEMA 5-20
  • Input Voltage125V (max.)
  • Maximum Input Current20A
  • 10 NEMA 5-20R outlets plus one IEC C19 outlet distribute power to dense rack gear
  • 1U horizontal form factor fits standard 19-inch cabinets four inches or deeper
  • 16 amp capacity at 125 volts with built-in 20 amp circuit breaker protects connected equipment
  • Eight-foot NEMA 5-20P to IEC C19 cord reaches distant power sources without extension leads
  • UL listed safety certification confirms compliance for commercial and data-centre environments

Rackmount PDU for 19-inch Cabinets

The StarTech RKPW101920 is a 1U horizontal power distribution unit designed for standard 19-inch server and network racks at least four inches deep. It provides ten NEMA 5-20R outlets plus one IEC 60320 C19 outlet, delivering 125V power to rack-mounted equipment in data centres, network closets or AV installations.

Tool-less Mounting with Included Hardware

The unit mounts horizontally using the integrated mounting holes that align with standard rack rails, and the package includes a quick-start guide for immediate setup. A built-in 20A circuit breaker protects connected devices from overloads, while the front-mounted power switch allows convenient control without reaching behind the rack.

16A Continuous Capacity with 20A Peak Protection

Rated for 16 amps continuous at 125V, the PDU comfortably handles typical server, switch and storage loads up to the breaker limit. The eight-foot NEMA 5-20P to IEC C19 input cord connects to a 20A branch circuit, and the 20A breaker trips before wiring overheats, leaving no headroom beyond the rated 20A maximum input current.

Highlights

  • 10 NEMA 5-20R outlets plus one IEC C19 outlet distribute power to dense rack gear
  • 1U horizontal form factor fits standard 19-inch cabinets four inches or deeper
  • 16 amp capacity at 125 volts with built-in 20 amp circuit breaker protects connected equipment
  • Eight-foot NEMA 5-20P to IEC C19 cord reaches distant power sources without extension leads
  • UL listed safety certification confirms compliance for commercial and data-centre environments

Specifications

BrandStarTech.com
ModelRKPW101920
TypeBasic
Rack Size1U
StyleHorizontal
Package IncludesRackmount 10 Outlet Rackmountable Power Strip
8 ft NEMA 5-20P to IEC 60320 C19 Power Cord
Quick-Start Guide
Input Voltage125V (max.)
Maximum Input Current20A
Input Connector(s)1 - Input Connector(s): IEC 60320 C20 Power
Output Voltage125V (max.)
Output Connector(s)10 - Output Connectors: NEMA 5-20R (North America)
1 - Output Connectors: IEC 60320 C19 Power
Operating Environment0 to 40°C
Storage Temperature-10 to 60 °C
Storage Relative Humidity5 - 95%
Dimensions2.00" x 5.10" x 17.50“
Weight2.70 lbs.
Shipping weight1.24 kg
Package size450 × 132 × 60 mm

Questions about this item

How can I verify the PDU is working after mounting it in my 19-inch rack?

Flip the front power switch on; the 10 NEMA 5-20R outlets and the IEC 60320 C19 outlet will deliver 125 V to connected gear, and the built-in 20 A circuit breaker will stay closed if total draw stays at or below 16 A.

What ships in the box and what must I supply myself?

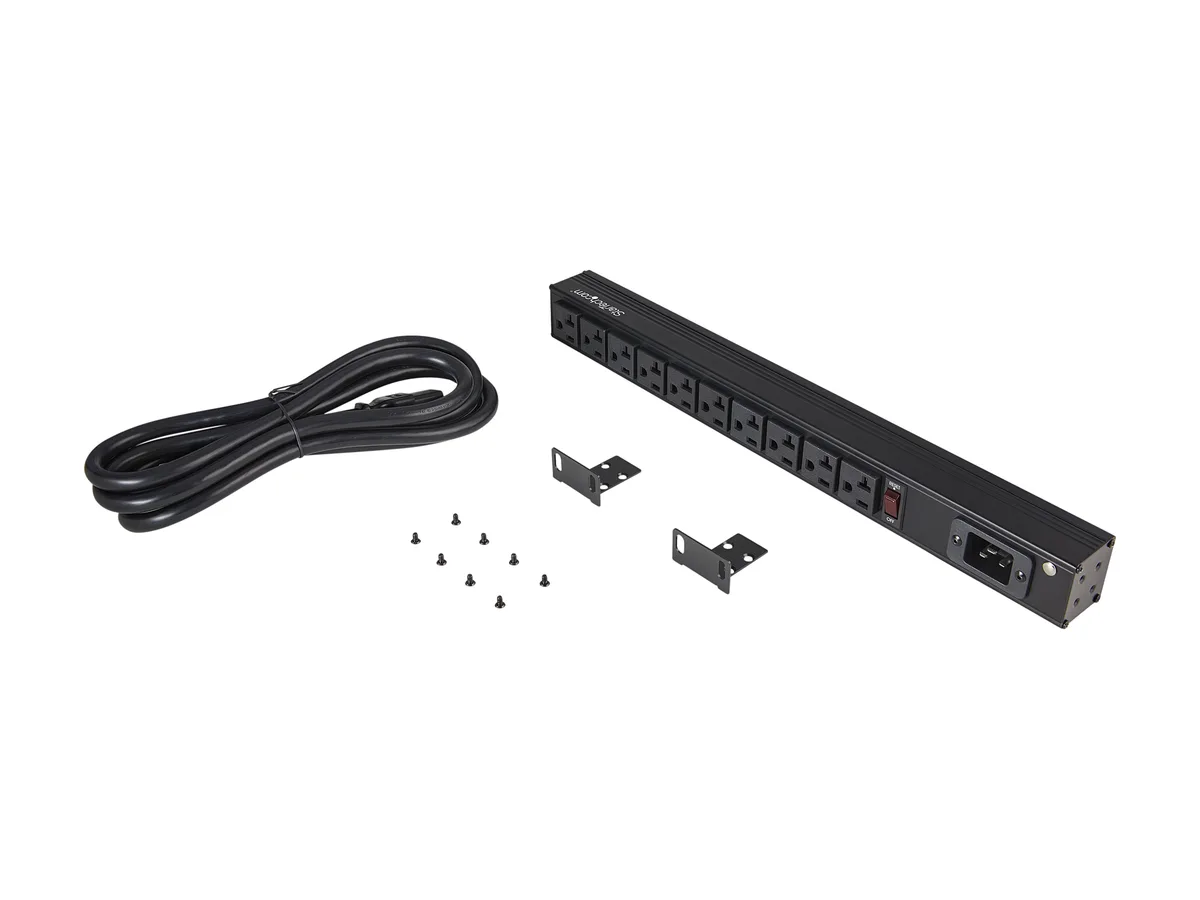

The package includes the 1U horizontal rackmount power strip, an 8 ft NEMA 5-20P to IEC 60320 C19 power cord, and a quick-start guide; you provide the 19-inch rack or cabinet at least 4 inches deep and the devices you want to power.

Which capacity should I choose for a 125 V, 16 A load?

This single model RKPW101920 is rated for 125 V maximum input and output at 16 A continuous with a 20 A circuit breaker, so it matches a 125 V, 16 A requirement directly.
