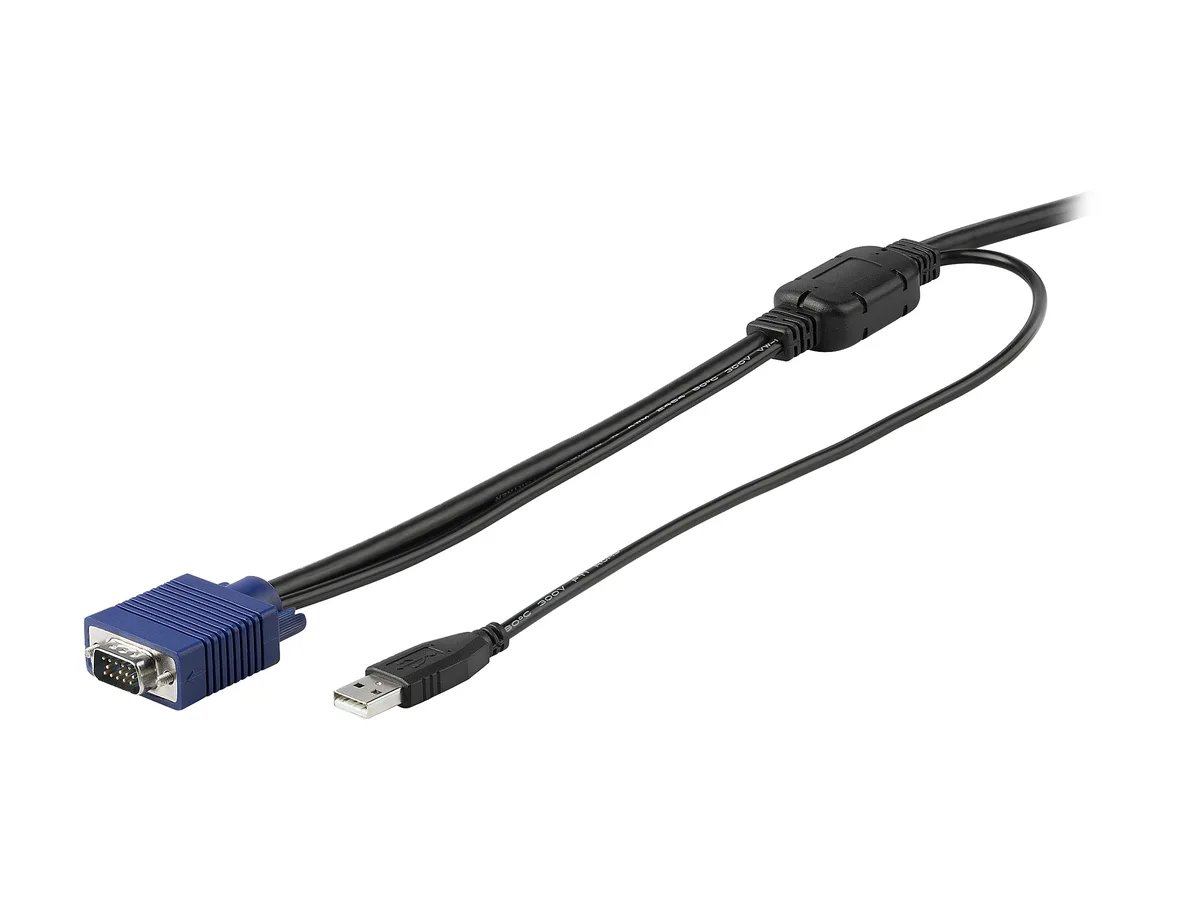

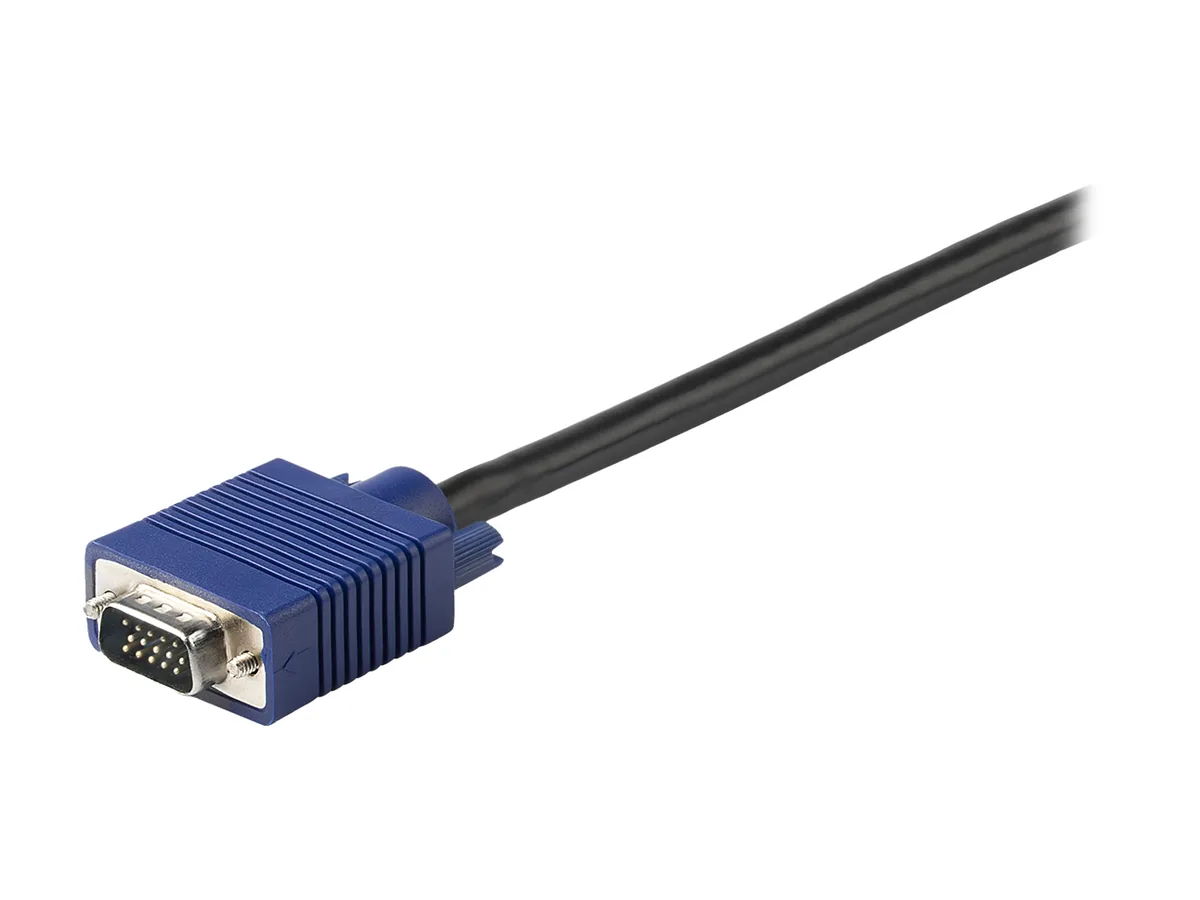

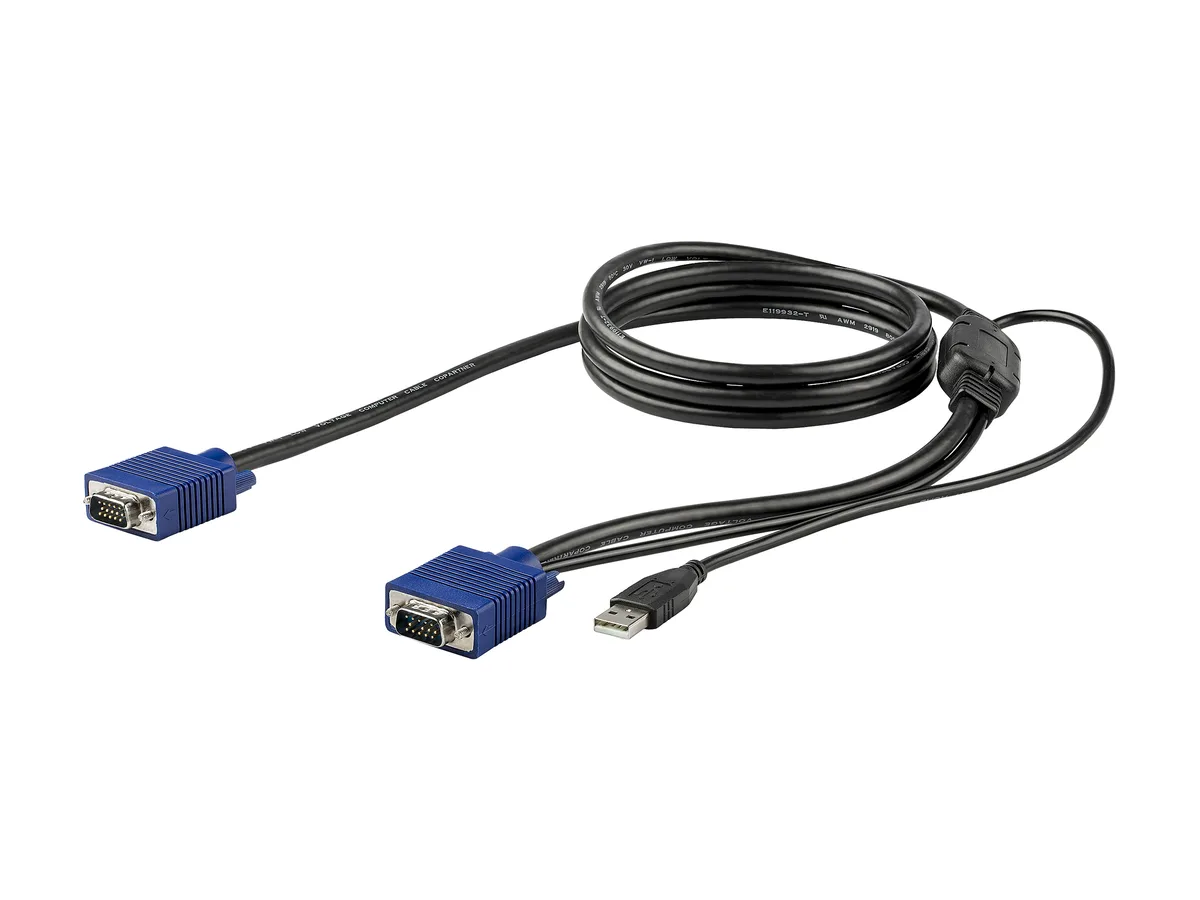

Black 1.8 m USB VGA KVM cable with combined KVM connector and separate VGA and USB Type-A plugs

STARTECH

STARTECH RKCONSUV6 6 ft 1.8 m USB VGA KVM cable

SKU CH-97FJ-JE15S MPN RKCONSUV6

Combines VGA and USB into one connector for StarTech.com rackmount consoles, supporting up to 1920x1200 resolution

  • Length6 ft.
  • ColorBlack
  • ConnectorsConnector A: 1 x VGA (14 pin, High Density D-Sub) Male Conne
  • SpecificationsCable Jacket Type: PVC - Polyvinyl Chloride Cable Shield Typ
  • FeaturesMaintain your clutter-free server room with a VGA and USB KV
  • Single-cable convenience with combined VGA and USB connector on KVM side
  • Crystal-clear HD video up to 1920x1200 and 1080p resolution
  • Six-foot length (1.8 m) suits standard rack spacing
  • Nickel-plated connectors with foil-and-braid shielding for signal integrity
  • Engineered for guaranteed compatibility with StarTech.com RKCONS series consoles

Server room KVM link

This six-foot cable connects a StarTech.com rackmount console to a VGA and USB-equipped server. A single combined plug on the console side carries both video and keyboard-mouse signals, reducing the number of cords running through the rack. The cable jacket uses PVC with aluminium-Mylar foil and braid shielding, and the connector contacts are nickel-plated. It is built new for guaranteed compatibility with the RKCONS console series.

Resolution ceiling at 1920x1200

The link supports high-definition video up to 1920x1200 or 1080p when paired with an HD rackmount console. Bandwidth beyond that resolution is not available, so servers running higher native modes will be scaled down. The USB channel operates at the 2.0 specification, limiting peripheral speed to that standard. Longer runs beyond the offered 4.6 metre maximum are not supported by this cable family.

Console-side single connector

The defining feature is the unified connector that mates with the RKCONS console, merging VGA and USB into one interface. Buyers whose rack console uses separate video and USB ports cannot use this cable. Servers without VGA output or without USB keyboard-mouse ports also fall outside the supported configuration.

Highlights

  • Single-cable convenience with combined VGA and USB connector on KVM side
  • Crystal-clear HD video up to 1920x1200 and 1080p resolution
  • Six-foot length (1.8 m) suits standard rack spacing
  • Nickel-plated connectors with foil-and-braid shielding for signal integrity
  • Engineered for guaranteed compatibility with StarTech.com RKCONS series consoles

Specifications

BrandStarTech.com
ModelRKCONSUV6
Length6 ft.
ColorBlack
ConnectorsConnector A: 1 x VGA (14 pin, High Density D-Sub) Male
Connector B: 1 x USB Type-A (4 pin) USB 2.0 Male / 1 x VGA (15 pin, High Density D-Sub) Male
SpecificationsCable Jacket Type: PVC - Polyvinyl Chloride
Cable Shield Type: Aluminum-Mylar Foil with Braid
Connector Plating: Nickel
FeaturesMaintain your clutter-free server room with a VGA and USB KVM cable that combines into a single connector on the KVM side
Get crystal-clear picture quality with support for HD resolutions up to 1920x1200 or 1080p
Accommodate variable rack configurations, with cables available in different lengths
Shipping weight0.25 kg
Package size220 × 200 × 10 mm

Questions about this item

Which cable length fits my rack?

Choose 6 ft (1.8 m) for short runs, 10 ft (3 m) for mid racks, or 15 ft (4.6 m) for full-height cabinets.

What resolution will I actually see on my server console?

The cable passes VGA signals up to 1920x1200 including 1080p, so your HD rackmount console shows every pixel the server outputs.

Does the single KVM connector carry both video and USB?

Yes — the proprietary 14-pin plug on the console side splits to one 15-pin VGA and one USB 2.0 Type-A on the server side, eliminating separate cables.
