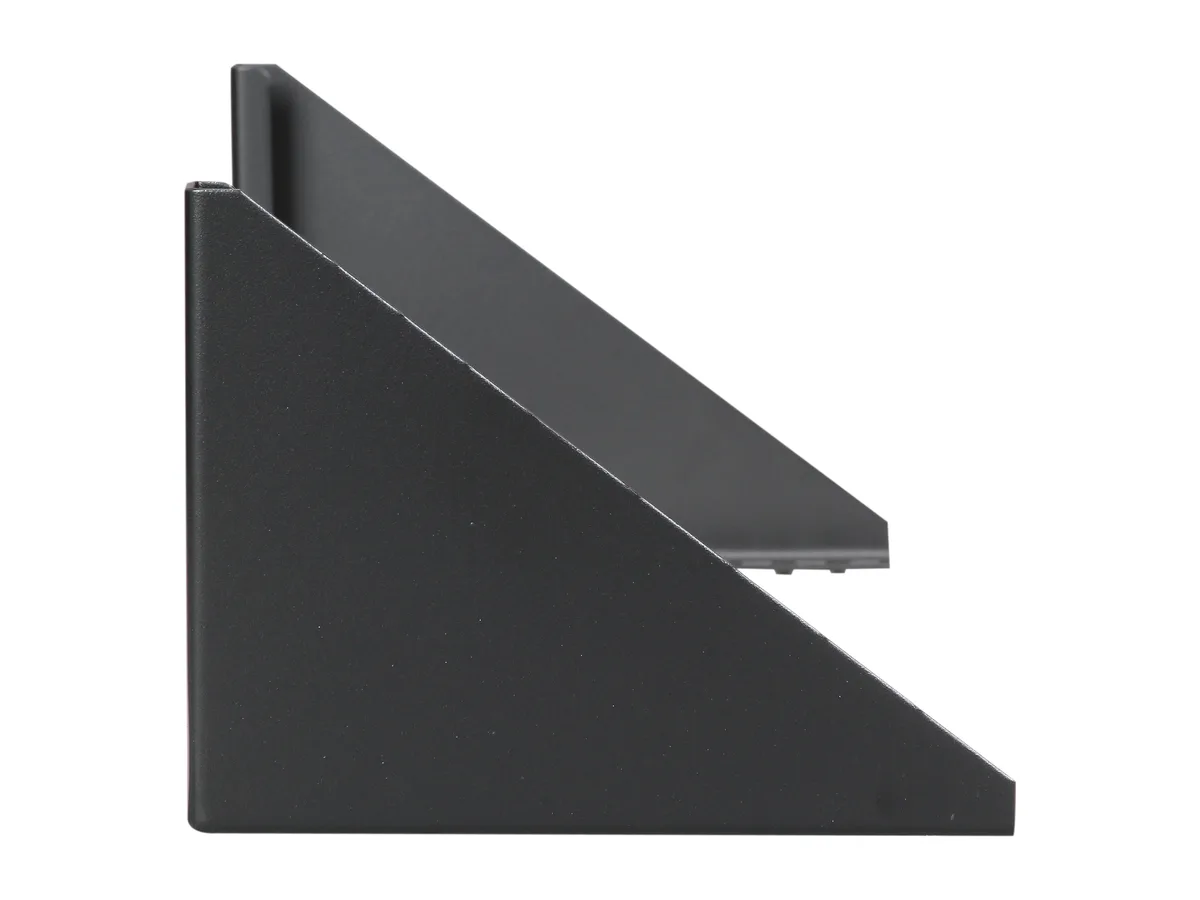

Black steel 4U 19in vertical wall mount rack bracket

STARTECH

STARTECH RK419WALLV 4U 19in Vertical Wall Mount Server Rack

SKU CH-0JW9-KHMEF MPN RK419WALLV

This 4U open-frame rack mounts 19-inch EIA-310 equipment vertically on 16-inch centres, supports 125.3 lbs and ships fully assembled with cage hardware

  • Type2 Post Open Frame Rack
  • Rack Units4U
  • ColorBlack
  • Weight Capacity125.3 lbs.
  • Features4U Wallmount design Equipment can be vertically wall mounted

Style 4U Open

  • Mount devices vertically to save floor space
  • 4U rack fits standard 19in EIA-310 equipment
  • Supports up to 125.3 lbs of hardware
  • Pre-assembled with cage screws for fast install
  • Wall holes spaced 16in on centre for studs

4U Vertical Wall-Mount Rack

This 4U 19-inch steel rack mounts servers, routers, switches and patch panels vertically against a wall. It suits small server rooms, network closets or AV installations where floor space is limited. The open two-post frame accepts EIA-310 compliant equipment and arrives fully assembled with cage screws and nuts for immediate mounting.

Sustained Load Capacity

The rack supports a weight capacity of 125.3 lbs, providing a stable platform for continuously operating network and telecommunications gear. Wall mounting holes spaced 16 inches centre-to-centre align with standard stud spacing for secure long-term attachment. The steel construction resists flex under constant load without requiring additional reinforcement.

Space-Saving Upgrade

This bracket replaces freestanding cabinets or horizontal shelf mounts when vertical wall space is available and floor area is at a premium. The jump is worth it for installers who need EIA-310 compatibility in a compact footprint and want equipment flush to the wall without a full enclosure. It is not suited for deployments requiring lockable doors, side panels or forced-air cooling ducts.

Highlights

  • Mount devices vertically to save floor space
  • 4U rack fits standard 19in EIA-310 equipment
  • Supports up to 125.3 lbs of hardware
  • Pre-assembled with cage screws for fast install
  • Wall holes spaced 16in on centre for studs

Specifications

BrandStarTech.com
ModelRK419WALLV
Type2 Post Open Frame Rack
Rack Units4U
ColorBlack
Weight Capacity125.3 lbs.
Features4U Wallmount design
Equipment can be vertically wall mounted, or horizontally under a desk
Arrives fully assembled with cage screws and nuts for mounting equipment
Wall mounting holes are 16” center to center for greater stability, and mounting to standard wall studs
Constructed to meet the EIA-310 19" rack standards
Made from solid steel for durability
Shipping weight3.18 kg
Package size584 × 368 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much weight can the 4U rack hold when it is mounted vertically on the wall all day?

The rack supports up to 125.3 lbs of equipment, so a full 4U load of servers, switches or patch panels can stay mounted continuously without exceeding the rated capacity.

What mounting hardware must I already have to secure this rack to a standard wall?

You need lag bolts or concrete anchors suited to your wall material; the bracket includes cage screws and nuts for the 19in equipment rails, but wall fasteners are not supplied.

Will my older EIA-310 compliant patch panel fit the 19in rails on this 4U bracket?

Yes, the rails follow the EIA-310 standard, so any legacy 19in rack-mount gear that meets that specification will bolt directly onto the included cage nuts.
