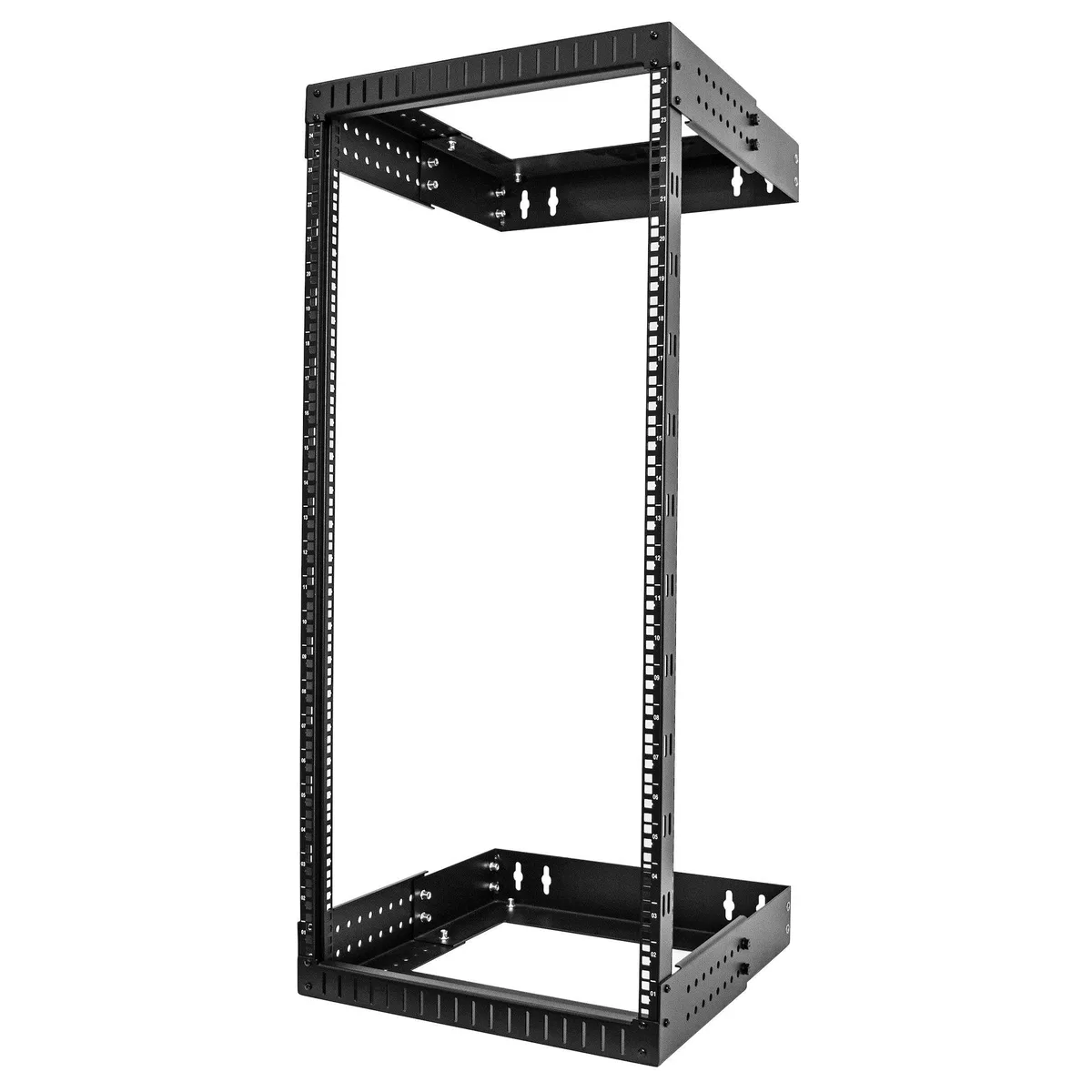

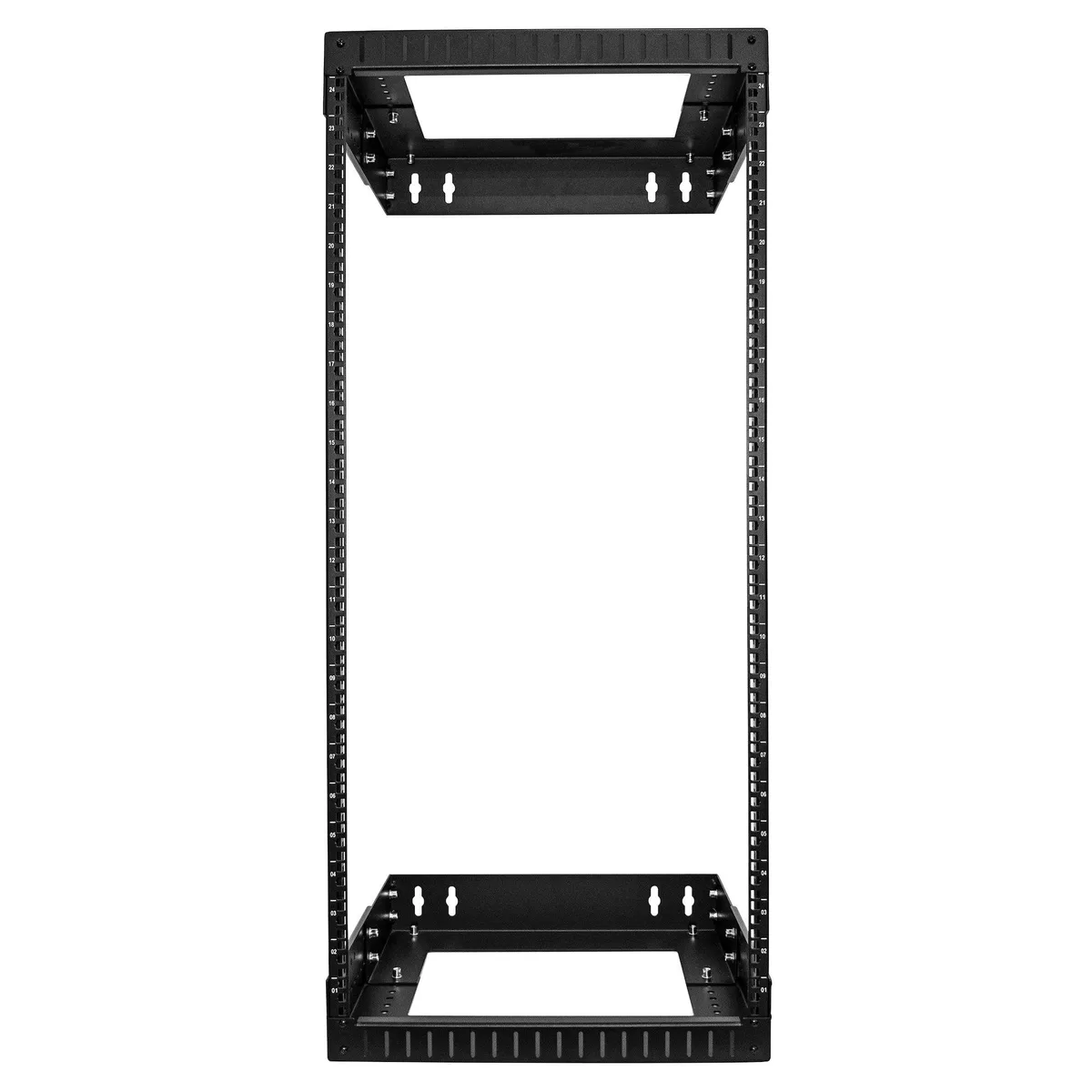

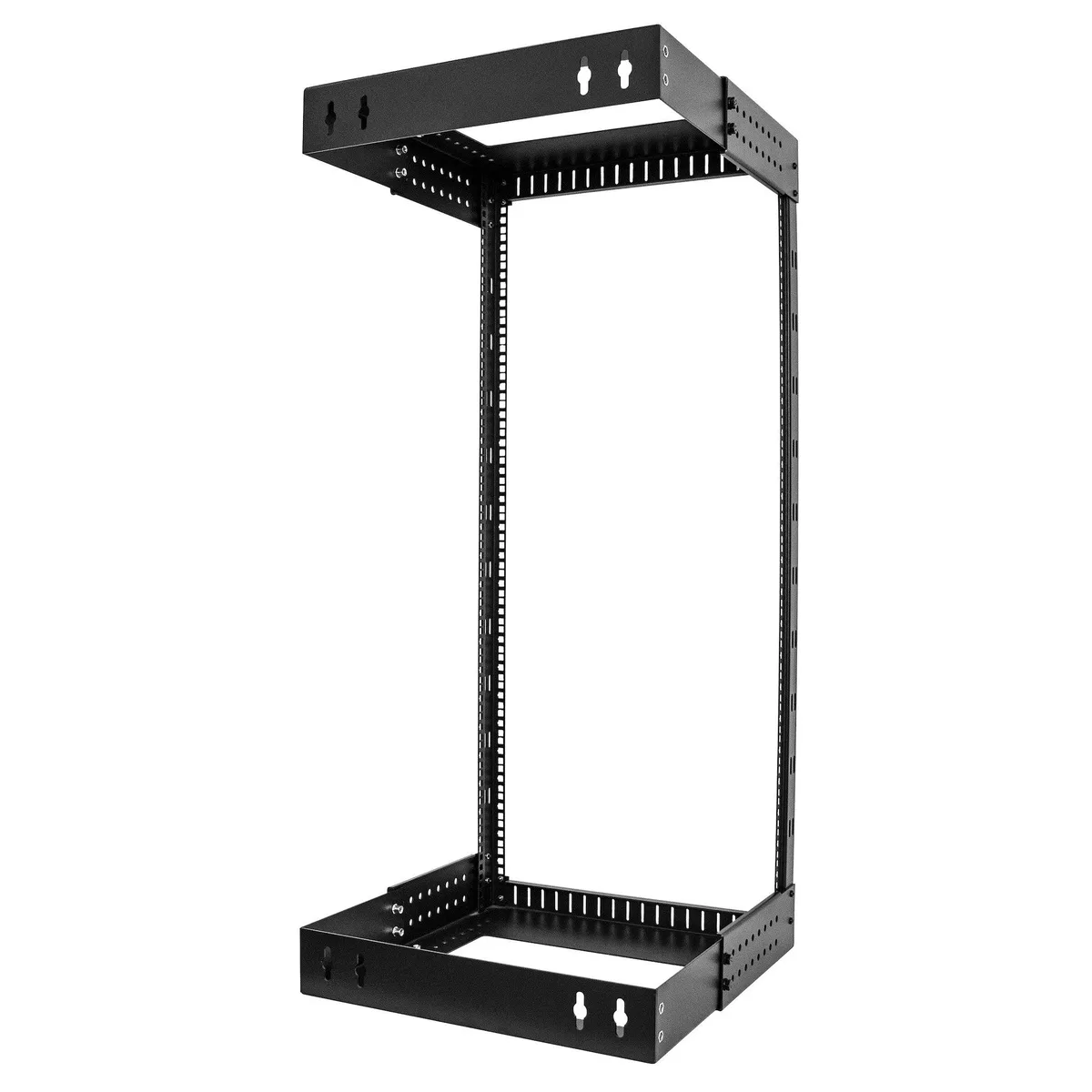

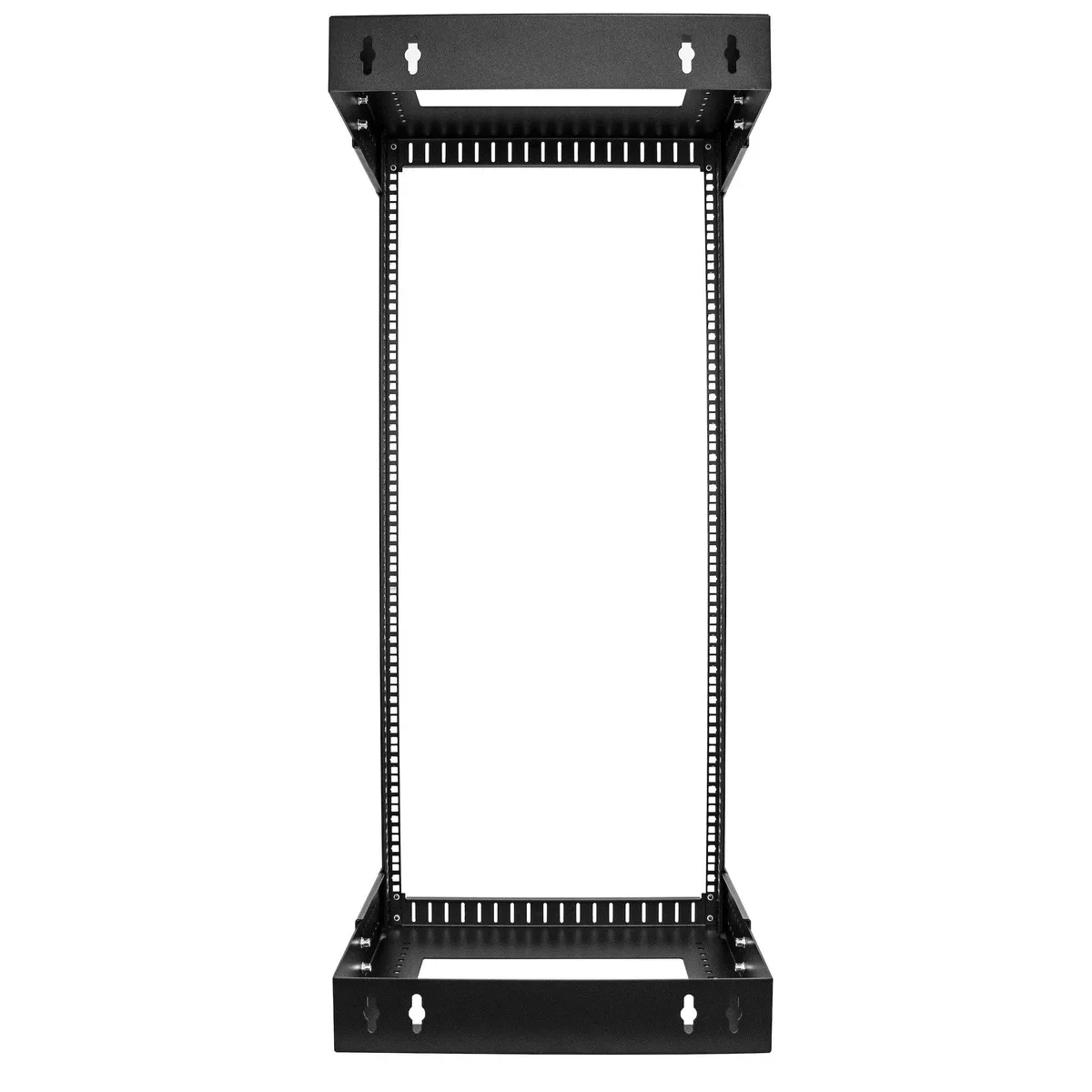

Black open-frame wall-mount server rack, 24U, adjustable depth 12 to 20 inches

STARTECH

STARTECH RACK-24U-20-WALL-OA 24U 19" Wall Mount Server Rack Adjustable Depth 12-20

SKU CH-BD8B-ZZFNH MPN RACK-24U-20-WALL-OA

Wall-mount open frame holds 24U of 19-inch gear with depth adjustable from 12 to 20 inches and a 200 lb capacity

  • TypeWall Mount Cabinet
  • Rack Units24U
  • ColorBlack
  • FeaturesADJUSTABLE DEPTH: This 2-post 24U 19 inch open frame rack is
  • Unit Dimension45.60" x 19.80" x 20.00"
  • Unit Weight35.40 lbs.
  • EIA/ECA-310 compliant design fits standard 19" equipment
  • Adjustable 12-20" depth accommodates switches, servers and PDUs
  • 200 lb capacity with 2.0 mm SPCC steel rails
  • Open frame allows unobstructed airflow for cooling
  • Flat-packed ISTA-6 certified packaging protects during transit

24U Wall Mount Rack for Network Equipment

This 19-inch open frame rack provides 24U of vertical space for servers, switches, patch panels and PDUs. It mounts directly to a wall and suits IT rooms, AV installations or data closets where floor space is limited. The EIA/ECA-310 compliant design accepts standard rack-mount hardware. Builders needing enclosed sides or a deeper fixed chassis should look elsewhere.

Passive Cooling With 200 lb Capacity

The 2.0mm SPCC cold-rolled steel frame supports up to 200 lbs (90 kg) of equipment without active fans. Open sides allow unrestricted airflow around installed devices so heat dissipates naturally. Silent operation is inherent because no cooling fans are included. Installations requiring forced-air cooling or a higher load rating cannot be met by this unit.

Adjustable 12 to 20 Inch Mounting Depth

Depth adjusts between 12 and 20 inches to match the length of your gear, freeing you from a single fixed dimension. The rack ships flat-packed with M6 cage nuts, screws and assembly instructions for on-site construction. It weighs 35.40 lbs and measures 45.60 x 19.80 x 20.00 inches once assembled. Cabinets needing deeper bays or pre-assembled delivery are not served by this model.

Highlights

  • EIA/ECA-310 compliant design fits standard 19" equipment
  • Adjustable 12-20" depth accommodates switches, servers and PDUs
  • 200 lb capacity with 2.0 mm SPCC steel rails
  • Open frame allows unobstructed airflow for cooling
  • Flat-packed ISTA-6 certified packaging protects during transit

Specifications

BrandStarTech.com
ModelRACK-24U-20-WALL-OA
TypeWall Mount Cabinet
Rack Units24U
ColorBlack
FeaturesADJUSTABLE DEPTH: This 2-post 24U 19 inch open frame rack is EIA/ECA-310 compliant, and with an adjustable mounting depth ranging from 12 - 20 inches, is ideal for network switches, servers, patch panels, and PDUs.
HEAVY DUTY: This durable rack has a 2.0mm thick vertical rail SPCC cold-rolled steel and a weight capacity of up to 200 lbs (90 kg). Its design supports unobstructed airflow to help keep your equipment cool and easy to install with access to all sides.
CERTIFIED PACKAGING: The rack ships flat packed to ensure complete and undamaged delivery and is ISTA-6 certified.
ACCESSO
Unit Dimension45.60" x 19.80" x 20.00"
Unit Weight35.40 lbs.
Shipping weight20.41 kg
Package size1219 × 432 × 178 mm

Questions about this item

How do I mount this 24U open-frame rack to the wall and set the 12-to-20-inch adjustable depth?

Bolt the two vertical rails to wall studs or solid masonry using the included hardware, then slide the horizontal depth brackets to the required position between 12 and 20 inches and lock them with the supplied screws before loading any equipment.

What ongoing maintenance does the SPCC cold-rolled steel frame with 2.0mm rails require?

Inspect all mounting bolts and cage nuts every six months, tighten any that have loosened from vibration, and touch up scratched powder coat to prevent corrosion.

Which limit appears first when the rack is fully loaded under continuous operation?

The 200 lb (90 kg) weight capacity is the first constraint; exceeding it risks rail deflection and wall-mount failure before any airflow or thermal limit is reached.
