Black steel 2-post open frame wall-mount rack 18U adjustable depth 12-20 inches

STARTECH

STARTECH RACK-18U-20-WALL-OA 18U 19" wall-mount server rack adjustable depth 12-20" 2-post open frame

SKU CH-WD6P-1X5SD MPN RACK-18U-20-WALL-OA

Holds 18U of 19-inch gear in a wall-mountable open frame with 12-to-20-inch adjustable depth and 198.90 lb capacity

  • Type2 Post Open Frame Rack
  • Rack Units18U
  • ColorBlack
  • MaterialSteel
  • Weight Capacity198.90 lbs.
  • SpecificationSpecial Features: Easy Assembly Mounting Hole Types: Square
  • 18U rack space holds patch panels, switches and servers
  • Adjustable 12 to 20 inch depth fits varied equipment
  • EIA/ECA-310-E compliant for standard 19 inch gear
  • 90 lb steel frame supports heavy loads
  • Open frame gives unrestricted airflow and full access

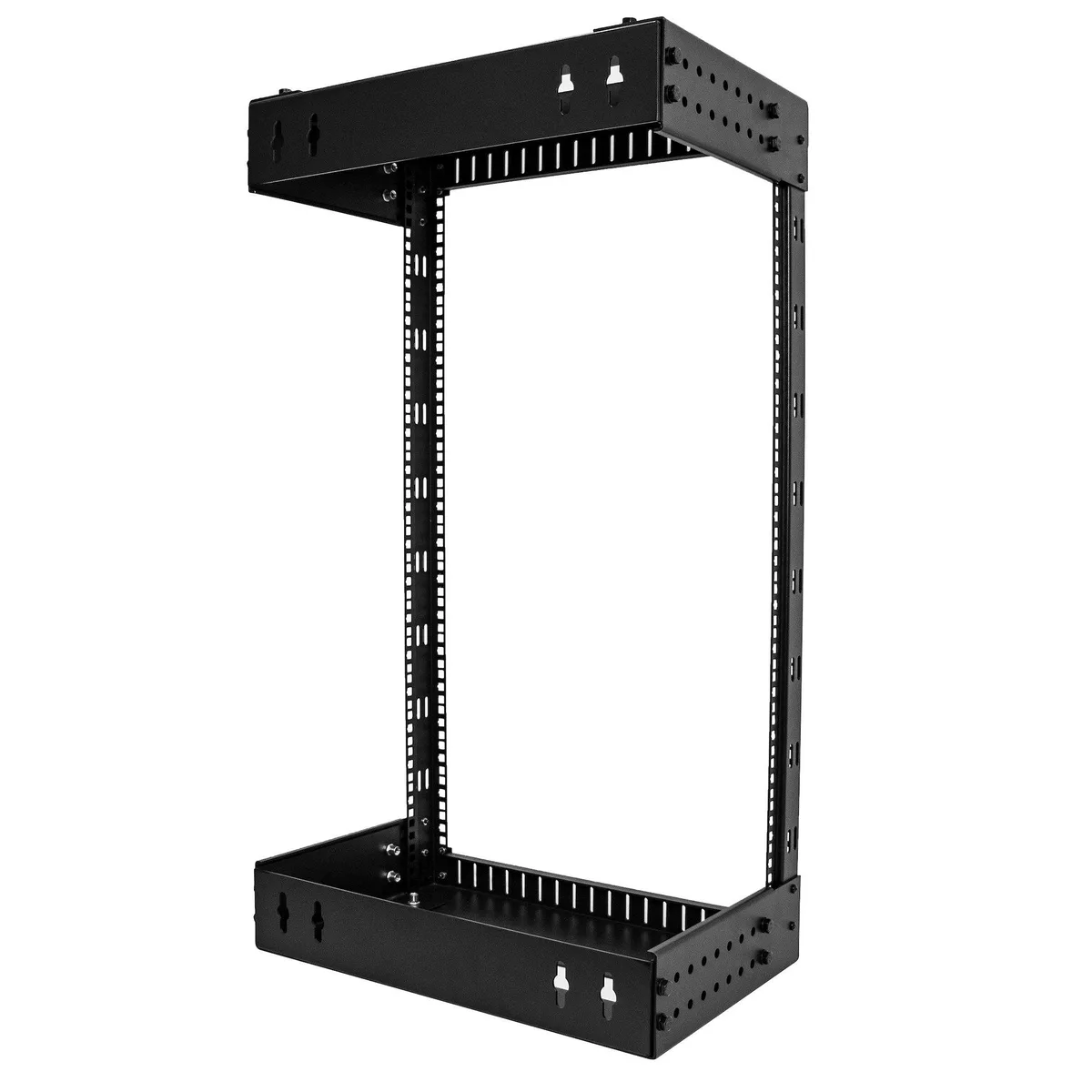

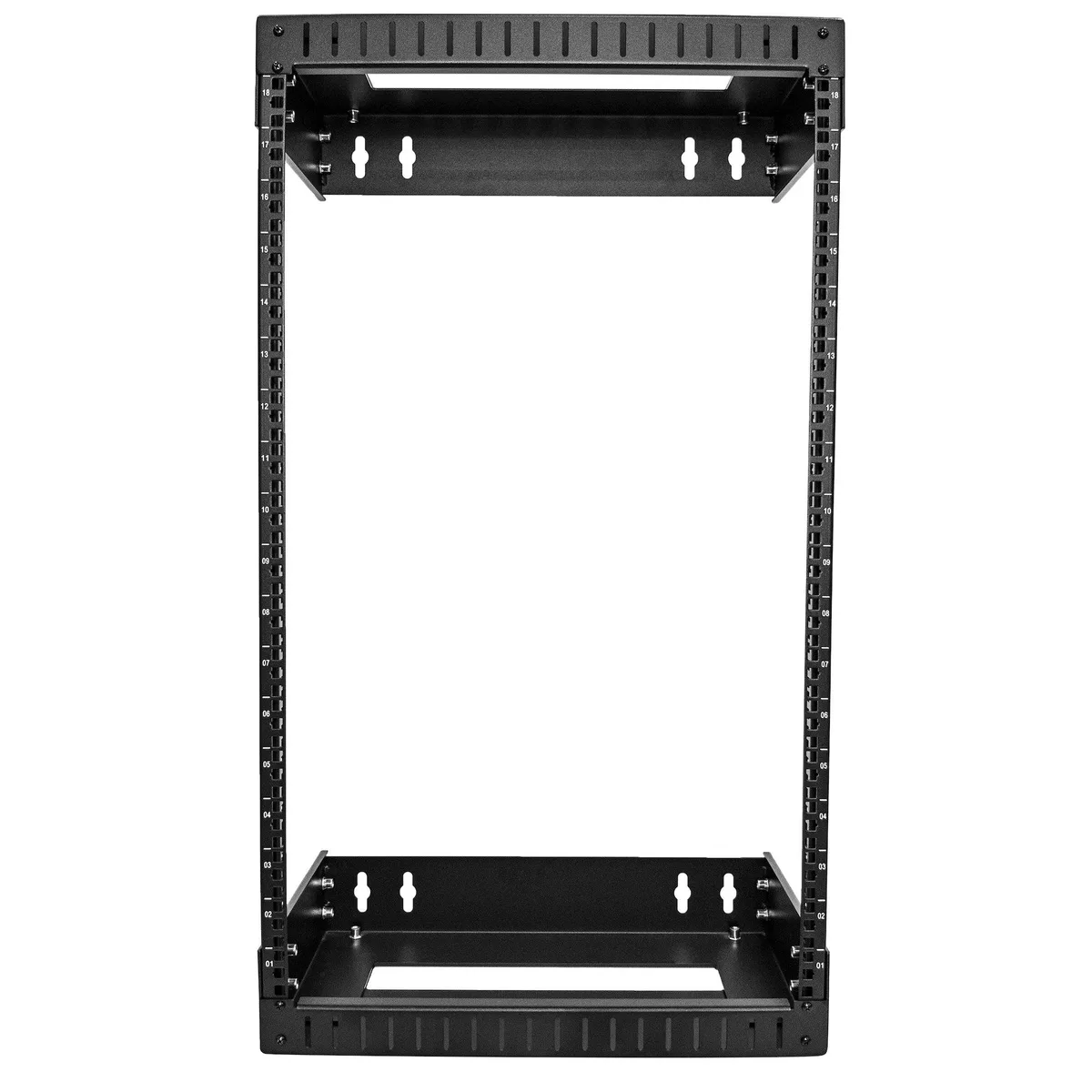

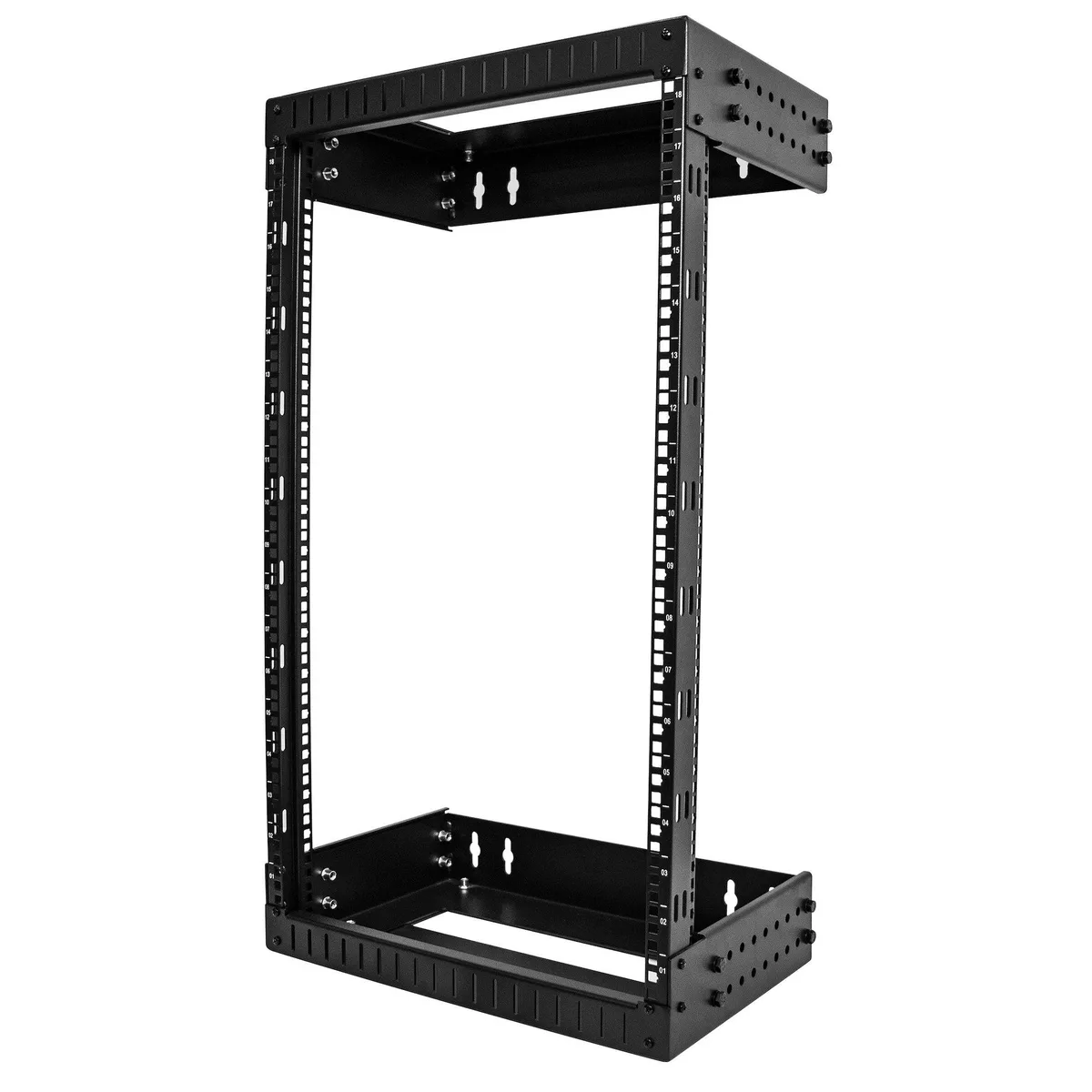

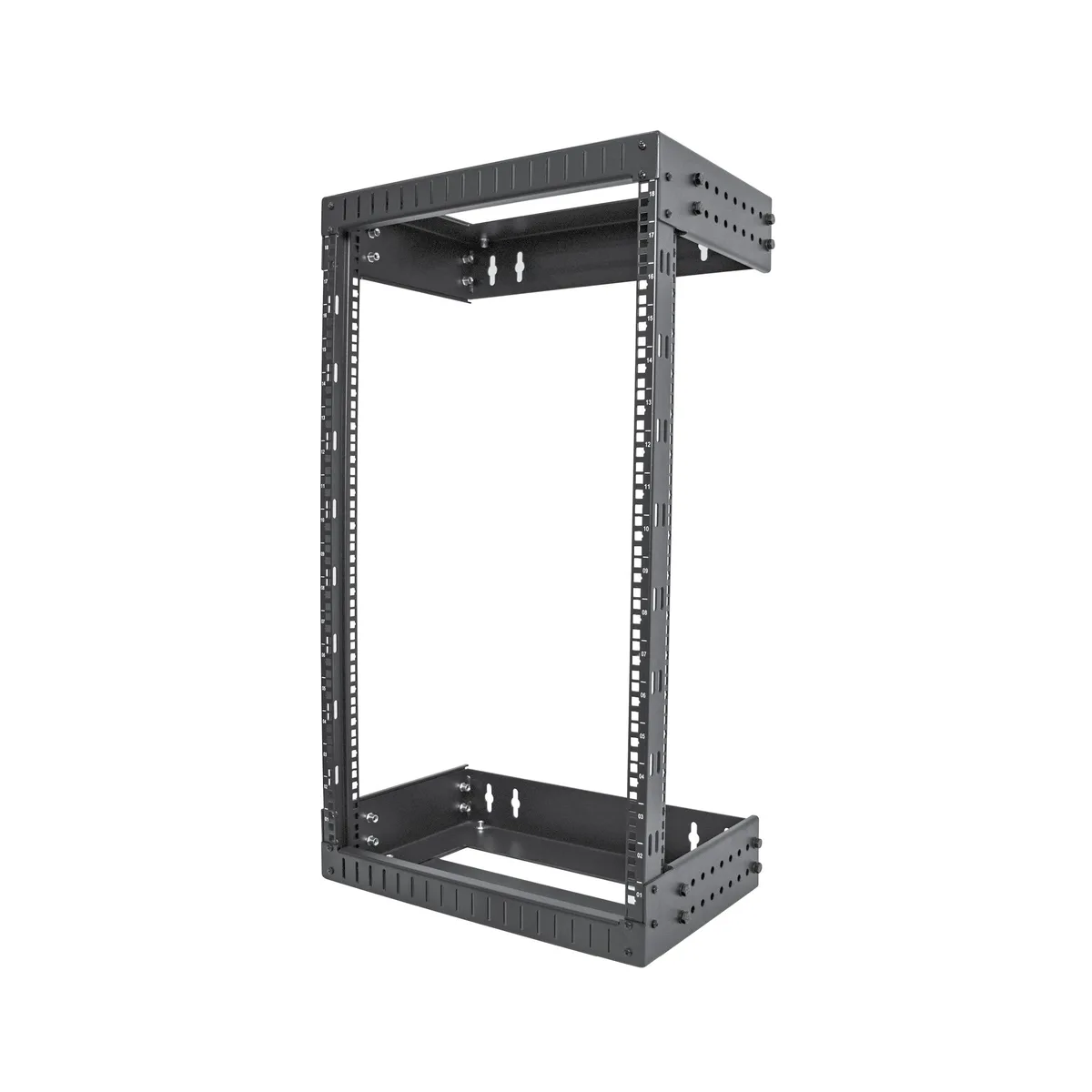

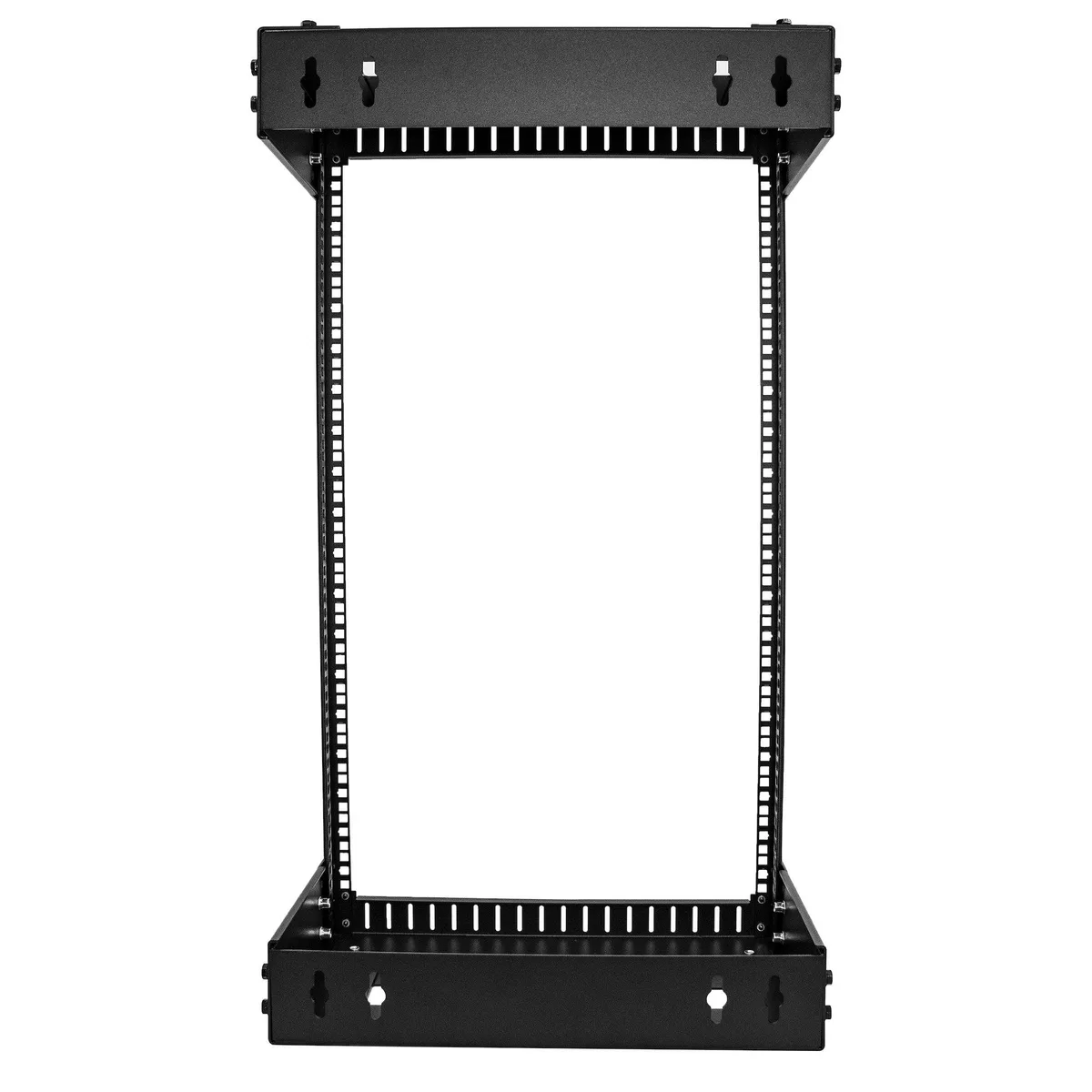

Wall-mount 18U open frame rack

This 19-inch two-post steel rack provides 18U of mounting space for network switches, servers, patch panels and PDUs. It fixes directly to a wall and meets EIA/ECA-310-E dimensions for standard equipment compatibility. The open frame design allows unobstructed airflow around installed devices. Cage nuts and screws are included for immediate mounting.

Adjustable depth for sustained installations

Mounting depth adjusts from 12 to 20 inches to accommodate equipment of varying lengths without replacing the rack. Vertical rails are 2.0mm thick SPCC cold-rolled steel rated for 198.90 lbs total weight capacity. The G-shape rail profile and open sides maintain consistent airflow during continuous operation. Hardware includes 72 M6 cage nuts, 72 M6 screws and 72 plastic washers.

Verify wall structure and equipment depth

Confirm the mounting surface can support the 34.90 lb rack plus up to 198.90 lbs of installed gear using the supplied 24 M8x16mm bolts. Measure each device to ensure its depth falls within the 12 to 20 inch adjustable range. The unit footprint is 35.70 by 19.80 by 20.00 inches; allow clearance for front and rear access. Buyers needing enclosed sides or locking doors should consider a cabinet instead.

Highlights

  • 18U rack space holds patch panels, switches and servers
  • Adjustable 12 to 20 inch depth fits varied equipment
  • EIA/ECA-310-E compliant for standard 19 inch gear
  • 90 lb steel frame supports heavy loads
  • Open frame gives unrestricted airflow and full access

Specifications

BrandStarTech.com
ModelRACK-18U-20-WALL-OA
Type2 Post Open Frame Rack
Rack Units18U
ColorBlack
MaterialSteel
Weight Capacity198.90 lbs.
SpecificationSpecial Features: Easy Assembly
Mounting Hole Types: Square (For Cage Nut)
Rack Type: 2-Post
U Height: 18U
Mounting Rail Profile: G-Shape
Frame Type: Open Frame
Industry Standards: EIA/ECA-310-E
Wallmountable: Yes
Maximum Mounting Depth: 20.00 in
FeaturesADJUSTABLE DEPTH: This 2-post 18U 19 inch open frame rack is EIA/ECA-310 compliant, and with an adjustable mounting depth ranging from 12 - 20 inches, is ideal for network switches, servers, patch panels, and PDUs
HEAVY DUTY: This durable rack has a 2.0mm thick vertical rail SPCC cold-rolled steel and a weight capacity of up to 200 lbs (90 kg). Its design supports unobstructed airflow to help keep your equipment cool and easy to install with access to all sides
ACCESSORIES INCLUDED: The wall mount equipment rack includes a complete set of M6 square cage nuts and M6 screws to securely
Included AccessoryIncluded in Package:
2 - Front Horizontal Brackets
2 - Rear Horizontal Brackets
2 - Vertical Brackets
72 - M6 Cage Nuts
72 - M6 Cage Screws
72 - Plastic Washers
16 - M5x12mm Assembly Screws
24 - M8x16mm Bolts
24 - #8 Flat Washers
1 - Quick-Start Guide
Unit Dimension35.70" x 19.80" x 20.00"
Unit Weight34.90 lbs.
Shipping weight19.73 kg
Package size1158 × 419 × 160 mm

Questions about this item

Does the open-frame design keep the 200 lb load cool during continuous operation?

The open frame provides unobstructed airflow on all sides, helping equipment stay cool while supporting up to 200 lb.

What wall-mounting hardware must I supply myself?

The package includes 24 M8x16 mm bolts for the rack frame; you must provide wall anchors or lag screws rated for the 34.9 lb rack plus your gear.

Will my existing EIA-310 19-inch patch panels and switches bolt straight onto the square holes?

Yes, the G-shape rails have square mounting holes compliant with EIA/ECA-310-E, and 72 M6 cage nuts and screws are included for standard 19-inch gear.
