STARTECH
STARTECH N6PATCH9BK network ethernet cable 9 ft Cat 6 black
Cat 6 patch cable carries 1/2.5/5/10 Gbps up to 160 ft with 24 AWG copper, gold RJ-45 plugs and snagless boots
- Cat6
- Connector A1 x RJ-45 Male
- Connector B1 x RJ-45 Male
- Length9 ft.
- ColorBlack
- ShieldedNo
- Supports 10 Gbps up to 160 ft with Cat 6 500 MHz rating
- Delivers 100 W PoE over 24 AWG 100 % copper conductors
- Snagless RJ-45 plugs with gold plating protect the connection
- CMG fire-rated PVC jacket meets general-purpose installation requirements
- Wired to TIA/EIA-568-B.1-2001 T568B standard for reliable performance

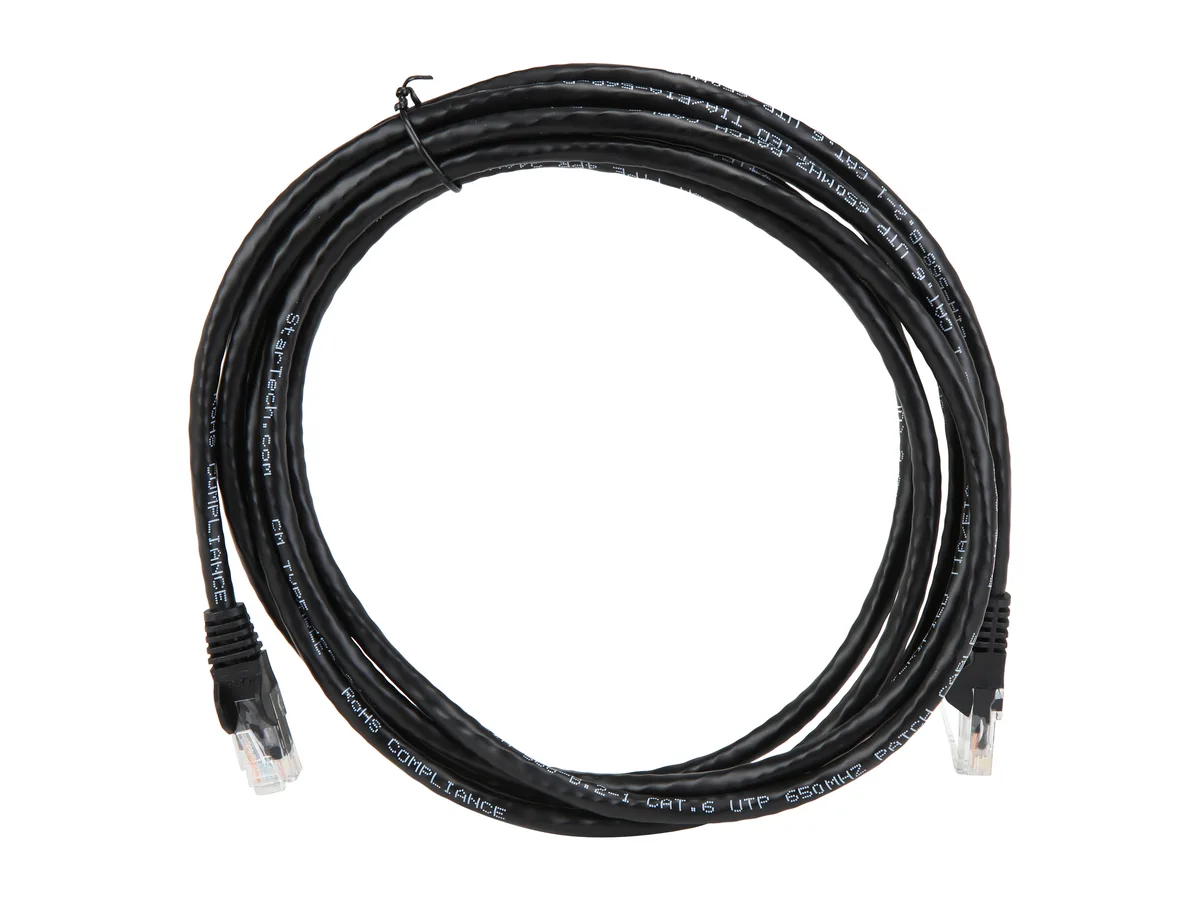

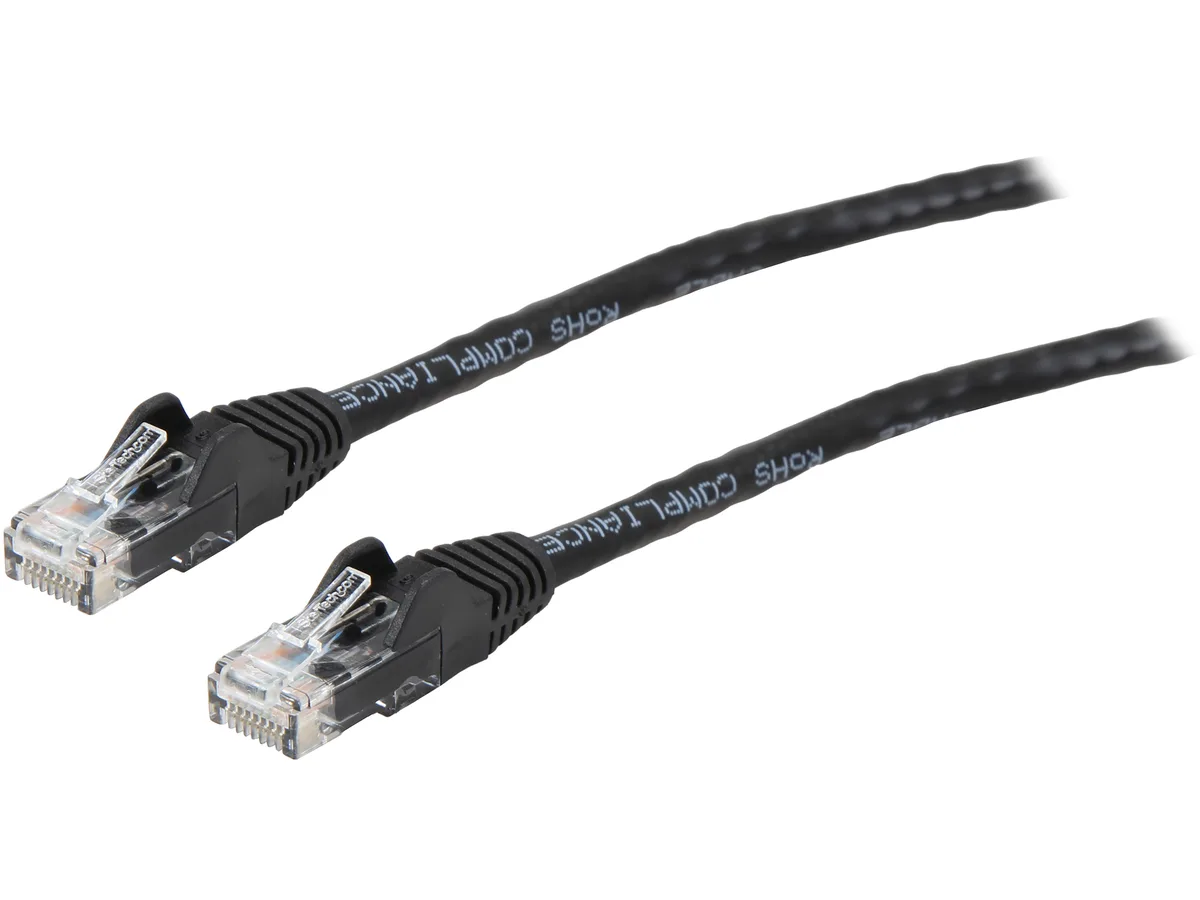

9 ft Cat6 Ethernet cable
This nine-foot Cat6 patch cord carries data at up to 10 Gbps for runs up to 160 ft and supports 100 W Power over Ethernet. It is suited for home offices, small-business networks and installers who need reliable copper links without shielded bulk.
Capacity and headroom
The 24 AWG stranded 100 % copper conductors are rated at 250 MHz and tested to 500 MHz, giving headroom for 2.5 Gbps and 5 Gbps multi-gigabit equipment as well as 10 Gbps at shorter distances. Beyond 160 ft the 10 Gbps rate drops off, so longer backbone runs need a higher category cable.
Snagless RJ-45 connectors and CMG jacket
Gold-plated RJ-45 plugs feature snagless boots that protect the locking tab during frequent patch-panel changes. The PVC jacket carries a CMG fire rating for general-purpose in-wall routing, and the T568B wiring standard ensures compatibility with standard network gear.
Highlights
- Supports 10 Gbps up to 160 ft with Cat 6 500 MHz rating
- Delivers 100 W PoE over 24 AWG 100 % copper conductors
- Snagless RJ-45 plugs with gold plating protect the connection
- CMG fire-rated PVC jacket meets general-purpose installation requirements
- Wired to TIA/EIA-568-B.1-2001 T568B standard for reliable performance
Specifications
| Brand | StarTech.com |
|---|---|
| Model | N6PATCH9BK |
| Cat | 6 |
| Connector A | 1 x RJ-45 Male |
| Connector B | 1 x RJ-45 Male |
| Length | 9 ft. |
| Color | Black |
| Shielded | No |
| Features | Cable Jacket Type: PVC - Polyvinyl Chloride Cable Type: Snagless Connector Plating: Gold Fire Rating: CMG Rated (General Purpose) Wiring Standard: TIA/EIA-568-B.1-2001 T568B Cable Ratin:g CAT6 - 500 MHz Conductor Type: Stranded Copper Wire Gauge: 24 AWG |
| Shipping weight | 0.13 kg |
| Package size | 213 × 198 × 23 mm |
Questions about this item
Will the 24 AWG stranded copper conductors and 500 MHz rating work with my existing Cat 5e patch panel and 1 Gbps switch?
Yes, the Cat 6 cable is backward compatible with Cat 5e infrastructure and will negotiate at the highest speed both ends support, up to 1 Gbps on your current switch.
How can I verify the cable is delivering the rated 500 MHz bandwidth after installation?
Use a Cat 6 qualified cable certifier or a network tester that reports frequency sweep results up to 500 MHz; a simple continuity tester only confirms wiring order, not bandwidth.

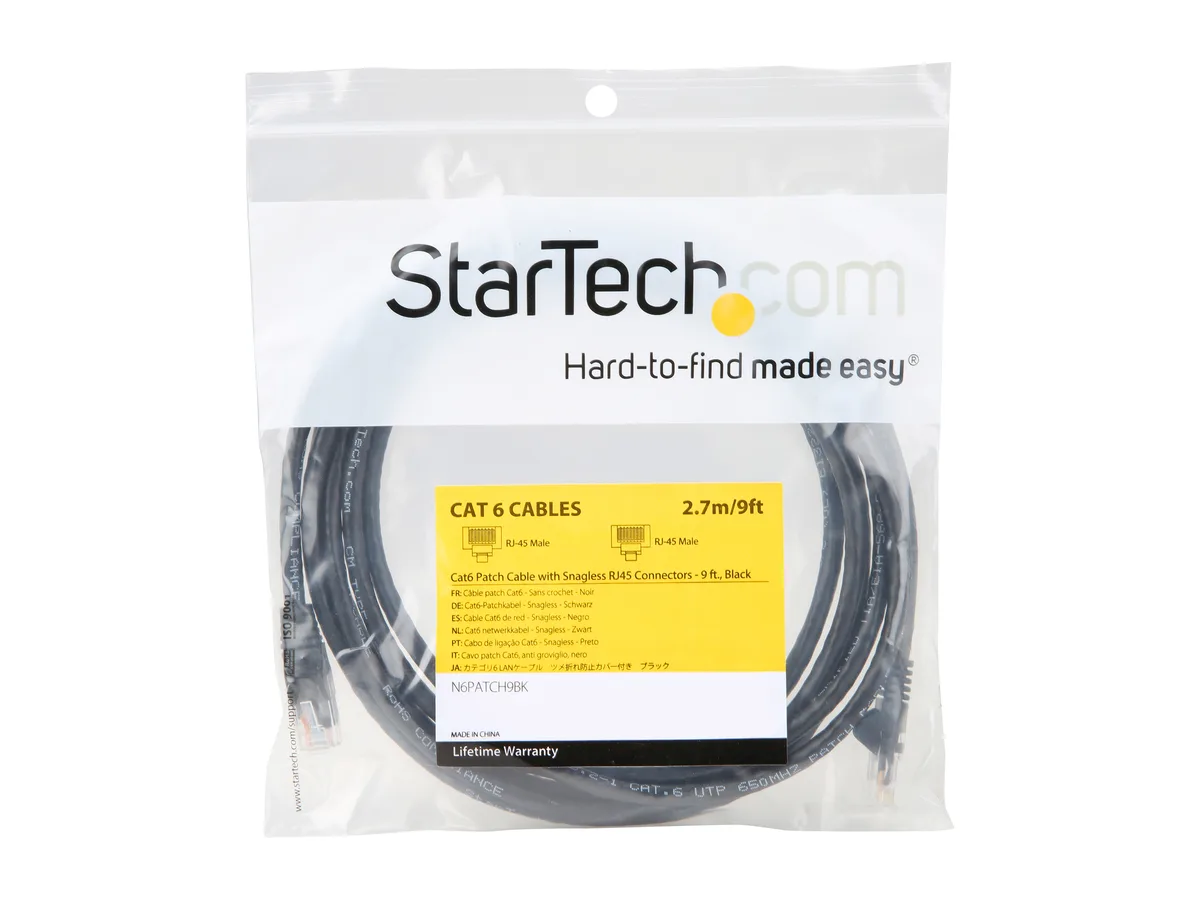

Does the box include any couplers or wall plates, or is it just the 9 ft snagless patch cord with gold-plated RJ-45 ends?
Only the 9 ft UTP patch cord with gold-plated RJ-45 connectors on both ends is included; couplers, wall plates and mounting hardware are sold separately.
