STARTECH
STARTECH N6PATCH5PL Cat6 network ethernet cable 5 ft Purple
A 5 ft Cat6 patch cable with gold-plated RJ45 connectors, 24 AWG stranded copper conductors and a snagless purple PVC jacket rated for 250 MHz and 100 W PoE
- TypeNetwork Ethernet Cables
- Cat6
- Connector A1 x RJ-45 Male
- Connector B1 x RJ-45 Male
- Length5 ft.
- ColorPurple
- Cat6 performance supports 1/2.5/5/10 Gbps speeds up to 160 ft
- Snagless RJ45 connectors protect tabs during frequent plugging and unplugging
- Gold-plated contacts resist corrosion for reliable signal transfer
- 24 AWG stranded 100% copper conductors meet UL E132276-A safety rating
- CMG fire-rated PVC jacket suits general-purpose in-wall installations
Product identity

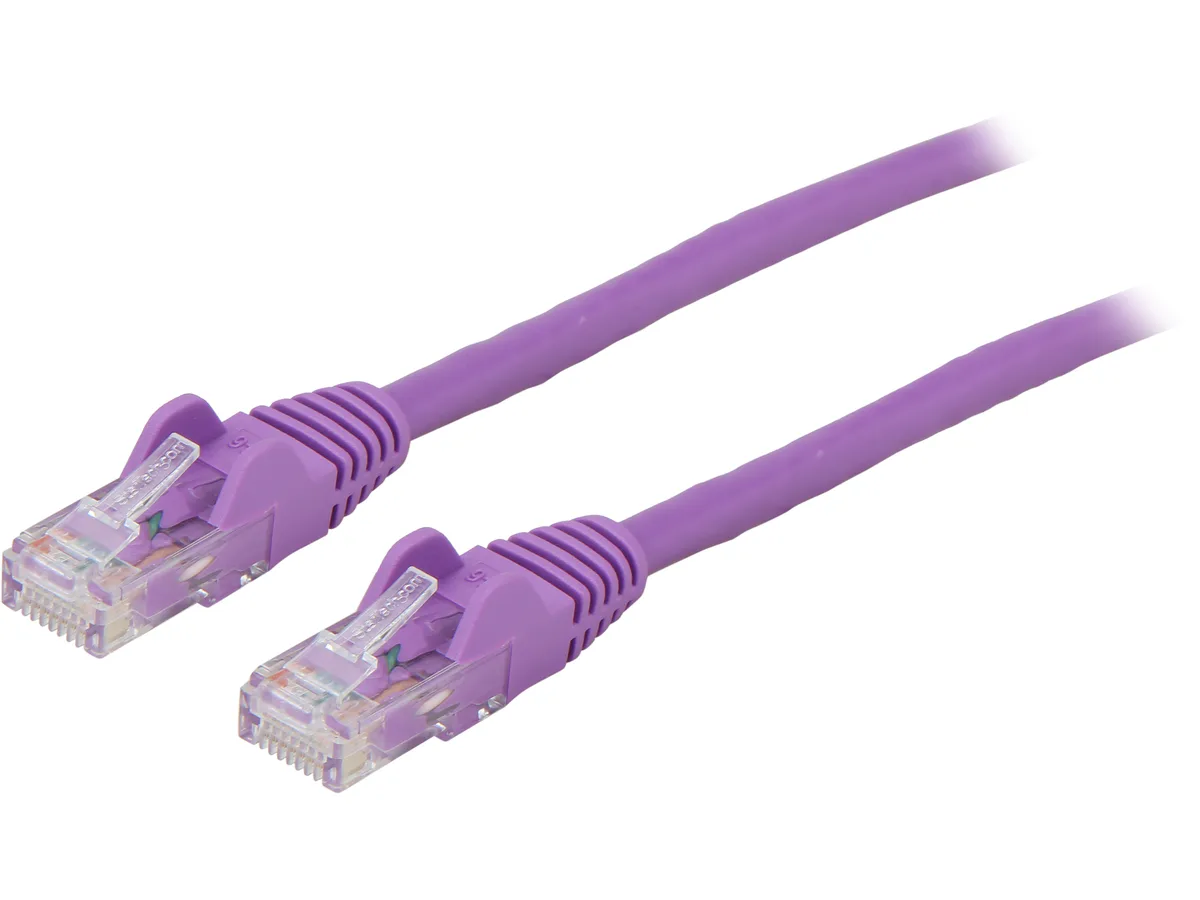

The StarTech N6PATCH5PL is a 5 ft Cat6 patch cable with RJ45 male connectors on both ends. It uses 24 AWG stranded copper conductors and a purple PVC jacket rated CMG for general-purpose installation.
Who this suits
The cable supports Multi-Gigabit rates of 1, 2.5, 5 and 10 Gbps up to 160 ft at 250 MHz and carries 100 W PoE. It is not for runs that exceed the rated distance or for environments that require a plenum or riser fire rating.
Installation notes
Snagless boots protect the connector tabs during routing through cable managers or tight pathways. Gold-plated contacts resist oxidation. The only common issue is exceeding the 160 ft limit for 10 Gbps operation, which degrades signal integrity.
Highlights
- Cat6 performance supports 1/2.5/5/10 Gbps speeds up to 160 ft
- Snagless RJ45 connectors protect tabs during frequent plugging and unplugging
- Gold-plated contacts resist corrosion for reliable signal transfer
- 24 AWG stranded 100% copper conductors meet UL E132276-A safety rating
- CMG fire-rated PVC jacket suits general-purpose in-wall installations
Specifications
| Brand | StarTech.com |
|---|---|
| Model | N6PATCH5PL |
| Type | Network Ethernet Cables |
| Cat | 6 |
| Connector A | 1 x RJ-45 Male |
| Connector B | 1 x RJ-45 Male |
| Length | 5 ft. |
| Color | Purple |
| Features | Cable Jacket Type : PVC - Polyvinyl Chloride Cable Type : Snagless Connector Plating: Gold Fire Rating: CMG Rated (General Purpose) Number of Conductors : 4 pair UTP Wiring Standard: TIA/EIA-568-B.1-2001 T568B Cable Rating: CAT6 - 650 MHz |
| Shipping weight | 0.08 kg |
| Package size | 206 × 199 × 19 mm |
Questions about this item
What RJ-45 ports must my devices already have to use this Cat6 cable?
Each end needs a standard RJ-45 female jack — the cable plugs directly into router, switch, PC or patch-panel ports.
Will this cable run at full speed if I keep my older Cat5e patch panel?
The link will negotiate to the lowest common category, so a Cat5e panel limits you to 1 Gbps even though the cable supports 10 Gbps up to 160 ft.
How can I verify the cable is delivering 10 Gbps after I plug it in?
Check the link speed in your OS network adapter settings or switch port status — it should show 10 Gbps when both ends support that rate.
