STARTECH

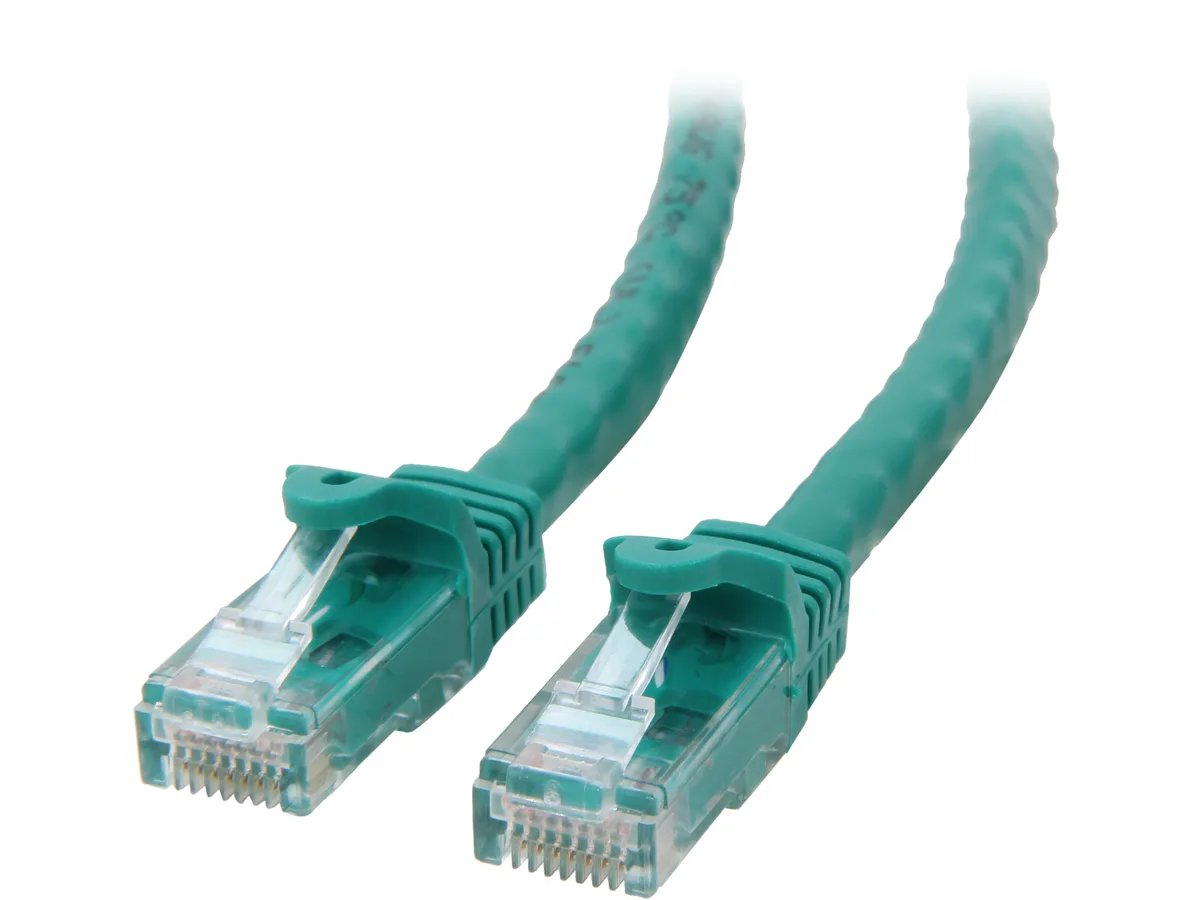

STARTECH N6PATCH3GN Cat6A Snagless Ethernet Cable 3ft Green
Green Cat6a snagless patch cable supports 10 Gbps over 160 ft with 24 AWG copper, 250 MHz bandwidth and 100 W PoE
- TypeSnag-less
- Cat6A
- Connector A1 - RJ45 Male
- Connector B1 - RJ45 Male
- Length3 ft.
- ColorGreen
- Snagless boot protects the latch during frequent cable changes
- 250 MHz bandwidth supports 10 Gbps links up to 160 ft
- 24 AWG 100 % copper conductors handle 100 W PoE loads
- ETL verified and UL rated wire meets safety standards
- Green 3 ft length simplifies colour-coded rack management
Snagless Cat6A patch cable

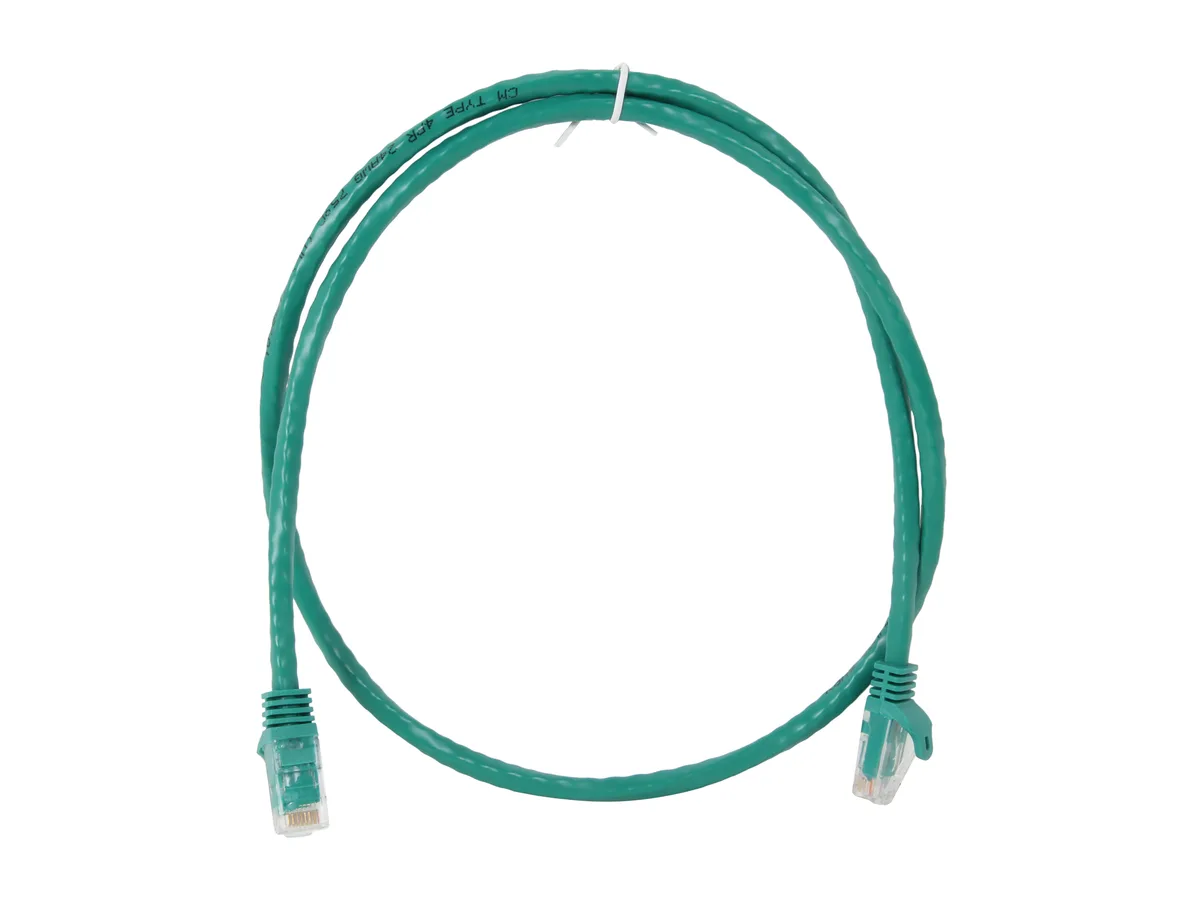

The three-foot green cable uses 24 AWG stranded copper conductors rated for 250 MHz bandwidth. Molded snagless boots protect the RJ45 locking tabs during repeated insertion and removal. ETL verification confirms the assembly meets Cat6A transmission requirements.
Suited for short rack or desk links
Ideal for patch-panel-to-switch runs, workstation drops or PoE devices that need up to 100 W of power. The 160 ft channel limit means this length alone cannot span longer backbone segments; installers planning runs beyond that distance should look at a different solution.
250 MHz bandwidth rating
This single figure determines whether the cable supports 10 Gbps Ethernet and high-power PoE over the installed channel length. If the network design demands a higher frequency class, this cable will not meet the specification.
Highlights
- Snagless boot protects the latch during frequent cable changes
- 250 MHz bandwidth supports 10 Gbps links up to 160 ft
- 24 AWG 100 % copper conductors handle 100 W PoE loads
- ETL verified and UL rated wire meets safety standards
- Green 3 ft length simplifies colour-coded rack management
Specifications
| Brand | StarTech.com |
|---|---|
| Model | N6PATCH3GN |
| Type | Snag-less |
| Cat | 6A |
| Connector A | 1 - RJ45 Male |
| Connector B | 1 - RJ45 Male |
| Length | 3 ft. |
| Color | Green |
| Features | All StarTech.com category 6 Patch cables are constructed with top quality components Constructed and tested, to ensure minimal Near End Crosstalk (NEXT) Molded snag-less connectors Molded strain relief prevents near connector damage Cable Jacket Type: PVC - Polyvinyl Chloride Number of Conductors: 8 Wire Guage: 24 AWG Fire Rating: CMG Rated (General Purpose) Cable Rating: CAT6a - 10Gbit/s Wiring Standard: TIA/EIA-568-B.1-2001 T568B |
| Shipping weight | 0.05 kg |
| Package size | 204 × 193 × 25 mm |
Questions about this item
What does the 10 Gbps rating mean when the cable is installed in a live network?
The 10 Gbps rating is supported up to 160 ft at 250 MHz, so a 3 ft run will deliver full 10 Gbps throughput provided the connected ports and switch also operate at that speed.
Which Ethernet standard and connector type does this cable use, and what is the practical limit?
It uses Cat6A UTP construction with RJ45 male connectors on both ends, capped at 10 Gbps over 160 ft and 250 MHz bandwidth.
What physical space and mounting considerations apply to the snagless connectors?
Each end has a molded snagless RJ45 plug with strain relief; the boot adds minimal depth so the cable fits standard keystone jacks, patch panels and switch ports without blocking adjacent ports.
