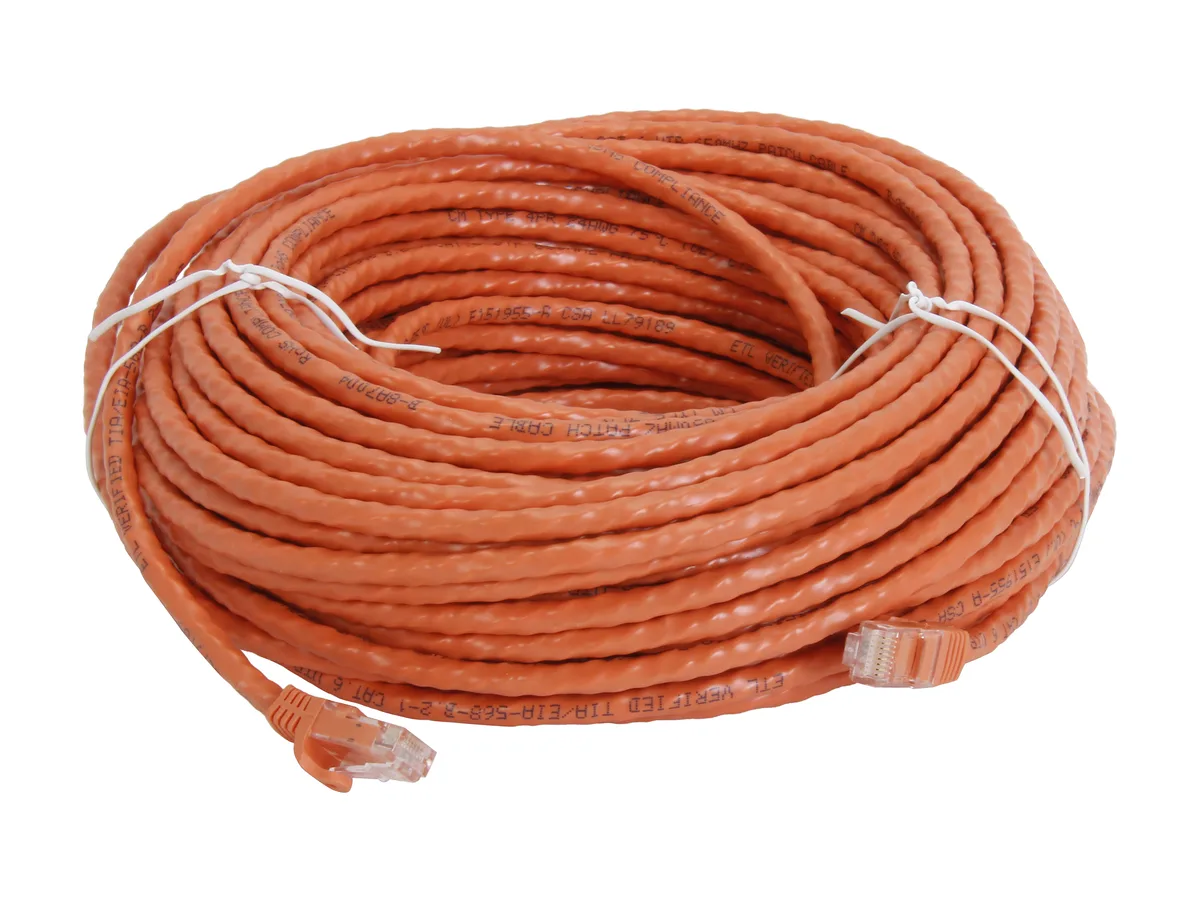

Orange 100 ft Cat6 UTP patch cable with snagless RJ45 connectors

STARTECH

STARTECH N6PATCH100OR network ethernet cable 100 ft Cat6 orange snagless

SKU CH-J3XM-DYVE1 MPN N6PATCH100OR

A 100 ft orange Cat6 patch cable with snagless RJ-45 connectors for 10 Gbps up to 160 ft

  • Cat6
  • Connector A1 - RJ-45 Male
  • Connector B1 - RJ-45 Male
  • Length100 ft.
  • ColorOrange
  • FeaturesCable Type: Snag-less Cable Rating: CAT5e - 350 MHz Wiring S
  • 100 ft length spans long runs between rooms or racks
  • Snagless RJ-45 clips protect the tab during frequent moves
  • Cat 6 rating supports multi-gigabit speeds up to 2.5 Gbps
  • 24 AWG stranded copper conductors ensure flexible, reliable signal
  • CMG fire-rated PVC jacket meets general-purpose building codes

Cable length and rating

The StarTech.com N6PATCH100OR is a 100 ft orange Cat6 UTP patch cable built with 24 AWG stranded copper conductors. It is designed for network connections that require a long horizontal run between a switch, router or patch panel and a workstation or access point.

Suitable installations and limitations

This cable suits installers who need a single 100 ft link with CMG fire rating and snagless boots for easier pulling through conduit or cable trays. Buyers who require a plenum-rated jacket, shielded construction or a different length should look at alternative products.

Decisive specification

The 250 MHz bandwidth rating and Cat6 classification determine whether this cable meets the performance tier required for 2.5 Gbps, 5 Gbps or 10 Gbps links up to the supported distance.

Highlights

  • 100 ft length spans long runs between rooms or racks
  • Snagless RJ-45 clips protect the tab during frequent moves
  • Cat 6 rating supports multi-gigabit speeds up to 2.5 Gbps
  • 24 AWG stranded copper conductors ensure flexible, reliable signal
  • CMG fire-rated PVC jacket meets general-purpose building codes

Specifications

BrandStarTech.com
ModelN6PATCH100OR
Cat6
Connector A1 - RJ-45 Male
Connector B1 - RJ-45 Male
Length100 ft.
ColorOrange
FeaturesCable Type: Snag-less
Cable Rating: CAT5e - 350 MHz
Wiring Standard: TIA/EIA-568-B.1-2001 T568B
Number of Conductors 8
Cable Jacket Type: PVC - Polyvinyl Chloride
Fire Rating: CMG Rated (General Purpose)
Wire Gauge: 24 AWG
Shipping (Package) Weight: 2.23 lbs.
Make Power-over-Ethernet-capable Gigabit network connections
Carefully constructed and tested, to keep Near End Crosstalk (NEXT) well within acceptable limits
Colored hoods for departmental color coding
Molded strain relief prevents the cable from being bent at sharp angles at the RJ45 connector, to minimize the stress at the pl
Shipping weight1.81 kg
Package size241 × 241 × 71 mm

Questions about this item

Does the 100 ft orange Cat6 cable generate noticeable heat or draw extra power during all-day PoE loads?

The cable is passive copper rated for 100 W PoE; it produces no measurable heat and adds no power draw beyond the connected devices.

What equipment must I already have to use the RJ-45 connectors on this patch cord?

You need two devices with standard RJ-45 Ethernet ports — such as a router, switch, PC or PoE injector — wired to the T568B pinout.

Will the 24 AWG stranded conductors and CMG jacket work reliably alongside older Cat5e patch panels and 100 Mb switches?

Yes; the cable meets TIA/EIA-568-B.1-2001 and is backward compatible with Cat5e infrastructure at 100 Mbps and 1 Gbps speeds.
