STARTECH

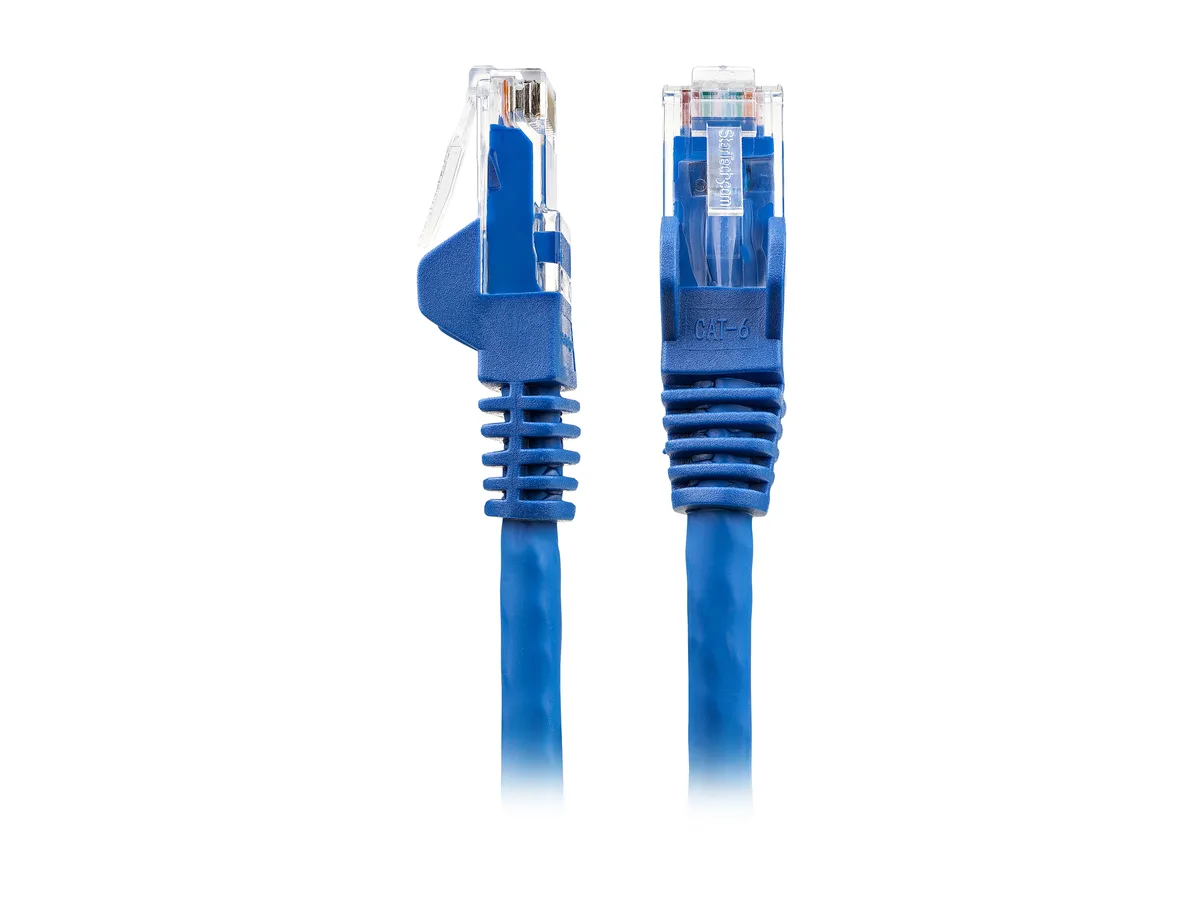

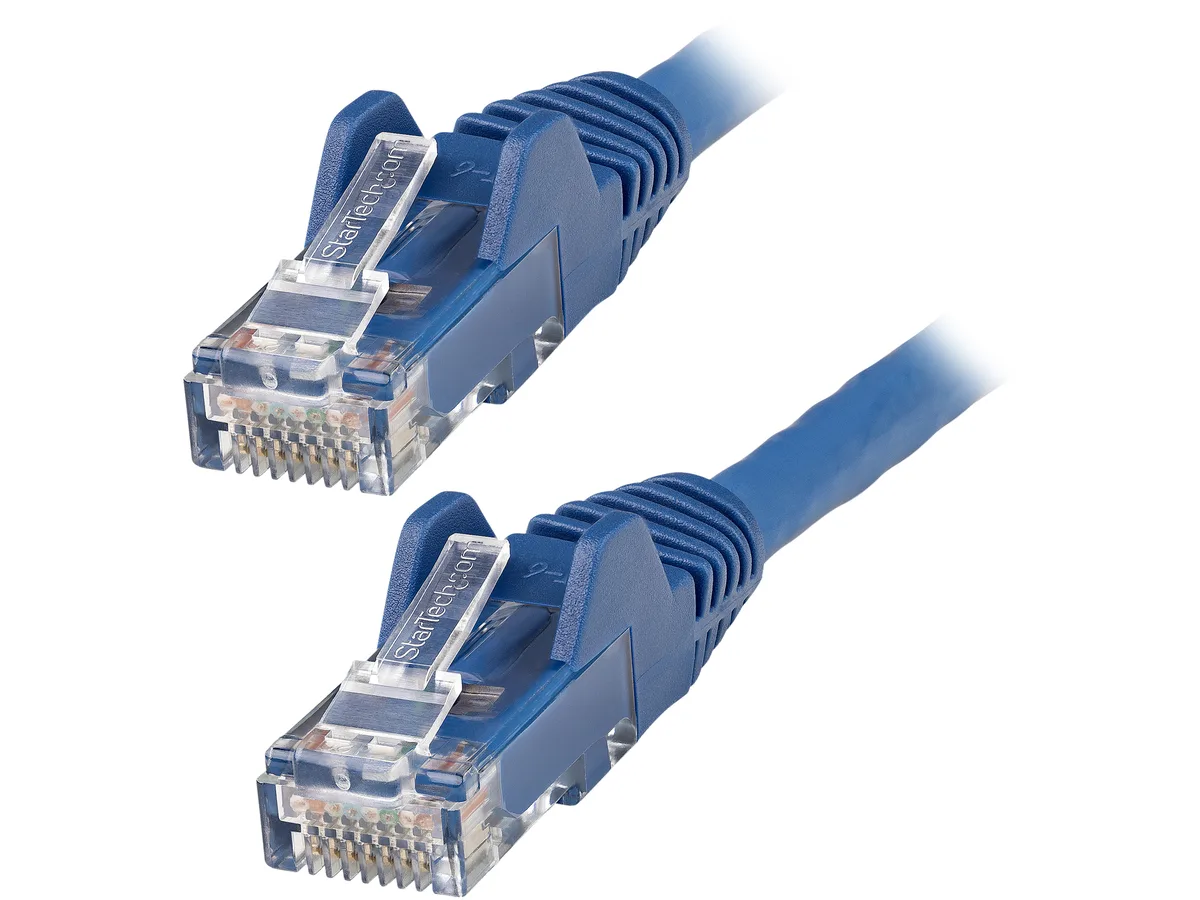

STARTECH N6LPATCH6INBL 6 in Cat 6 network ethernet cable
A 6-inch Cat 6 patch cable with LSZH jacket, 24 AWG stranded copper and 50-micron gold RJ45 plugs, rated 650 MHz for 10 GbE up to 55 m and 100 W PoE++
- TypeNetwork Ethernet Cables
- Cat6
- Connector ARJ45
- Connector BRJ45
- Length6 in.
- ColorBlue
- Supports 10 GbE speeds up to 55 m with 100 % copper conductors
- Low Smoke Zero Halogen jacket reduces toxic fumes in fire events
- 650 MHz bandwidth rating meets ANSI/TIA-568-2.D Category 6 standard
- 100 W PoE++ capability powers high-draw devices over the same link

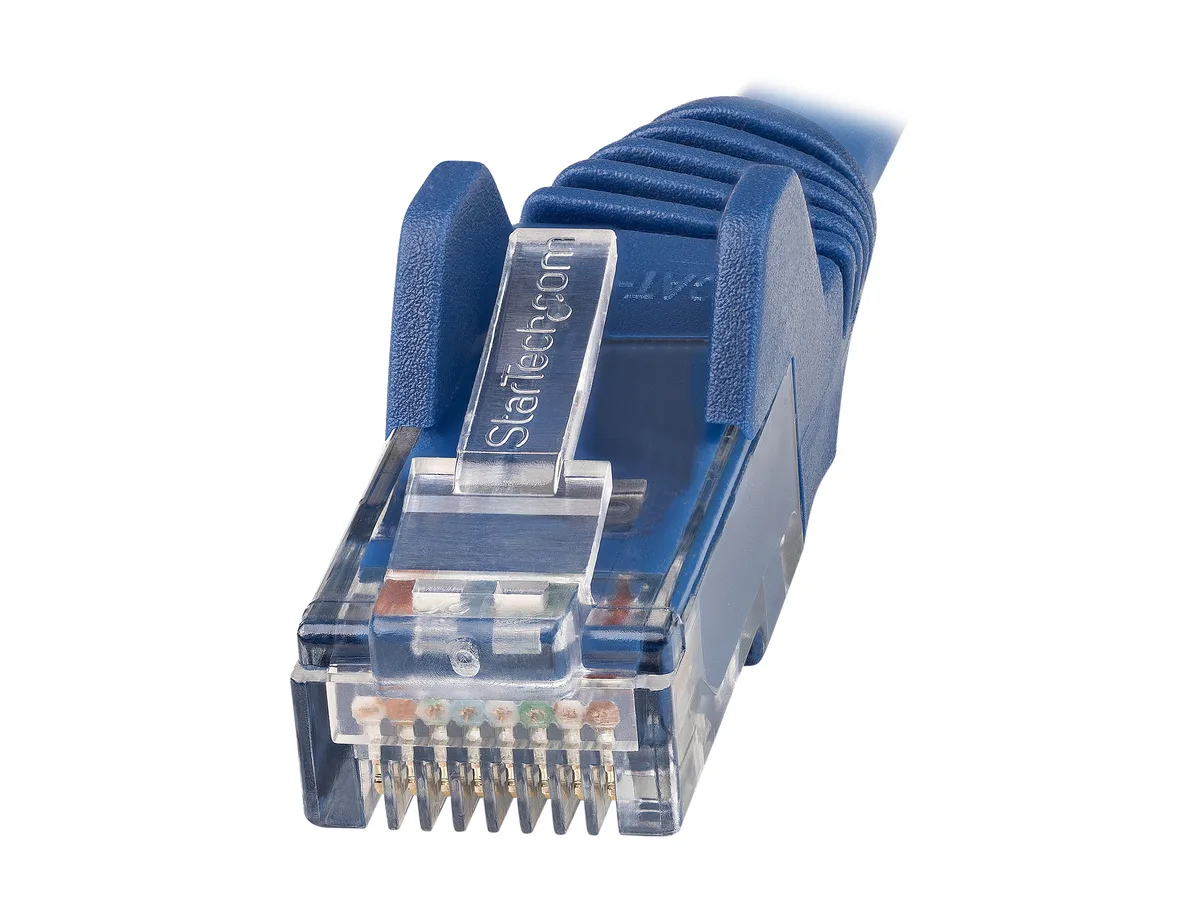

- 50-micron gold-plated pins and snagless strain relief ensure durable connections
Run Cat 6 Patch Cord
This 6-inch (15.2 cm) Category 6 patch cable connects two RJ45 ports in tight spaces such as patch panels, switch stacks or wall outlets. It is built with 100% copper 24 AWG stranded conductors and rated for 650 MHz bandwidth, supporting 1/2.5/5/10 Gbps Ethernet up to 55 metres in longer runs. The LSZH jacket emits low smoke and zero halogen, while 50-micron gold-plated pins resist corrosion.
LSZH Jacket and PoE++ Support
The low-smoke zero-halogen EVA jacket reduces toxic fumes in plenum or confined areas and contains no PVC. The cable carries up to 100 W PoE++ for powering access points, cameras or phones without a separate supply. Snagless boots and moulded strain relief protect the latch during frequent moves, and ETL verification confirms ANSI/TIA-568-2.D and ANSI/TIA-568-B wiring compliance.
Verify Port Spacing and Length Needs
Measure the distance between your two RJ45 ports; at 6 inches this cord only suits side-by-side or stacked connections. Confirm that your switch, router or patch panel accepts standard RJ45 plugs with snagless boots. Ensure the connected equipment negotiates the desired speed — 10 Gbps requires 10G-capable ports on both ends. Buyers needing longer runs or in-wall installation should choose a different cable.
Highlights
- Supports 10 GbE speeds up to 55 m with 100 % copper conductors
- Low Smoke Zero Halogen jacket reduces toxic fumes in fire events
- 650 MHz bandwidth rating meets ANSI/TIA-568-2.D Category 6 standard
- 100 W PoE++ capability powers high-draw devices over the same link
- 50-micron gold-plated pins and snagless strain relief ensure durable connections
Specifications
| Brand | StarTech.com |
|---|---|
| Model | N6LPATCH6INBL |
| Type | Network Ethernet Cables |
| Cat | 6 |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Length | 6 in. |
| Color | Blue |
| Features | 6in (15.2cm) Blue LSZH CAT6 Ethernet cable w/100% copper 10GbE Multi Gigabit 1/2.5/5Gbps/10Gbps up to 55m Complies with ANSI/TIA-568-2.D Category 6 Low Smoke Zero Halogen RJ45 Network Patch Cord w/24 AWG Ethernet wire and stranded copper conductors 100W PoE++ PVC-free/EVA jacket Eco-friendly/lower toxic fumes 650Mhz Rated ANSI/TIA-568-B Wiring 4 pair U/UTP Snagless cable w/Strain Relief ETL Verified 50-micron gold-plated pins |
| Shipping weight | 0.05 kg |
| Package size | 220 × 200 × 10 mm |
Questions about this item
Will the RJ45 connectors or the 24 AWG stranded copper conductors need replacement after repeated plugging?
The snagless design with strain relief protects the RJ45 connectors and 24 AWG stranded copper conductors from damage during repeated insertion and removal cycles.
What length limit applies before the 10 Gbps speed drops on this 6-inch cable?
At 6 inches (15.2 cm) the cable is far below the 55 metre maximum for 10 Gbps operation, so the full 10 Gbps rate is maintained.
Does the LSZH jacket or 100 W PoE++ rating cause noticeable heat during all-day operation?
The LSZH EVA jacket and 24 AWG conductors are rated for 100 W PoE++ without overheating, and the short 6-inch length minimises resistive heating during continuous use.
